HYDRAULIC STEERING BOX AND SERPENTINE of Ferrari Ferrari 550 Barchetta

View All

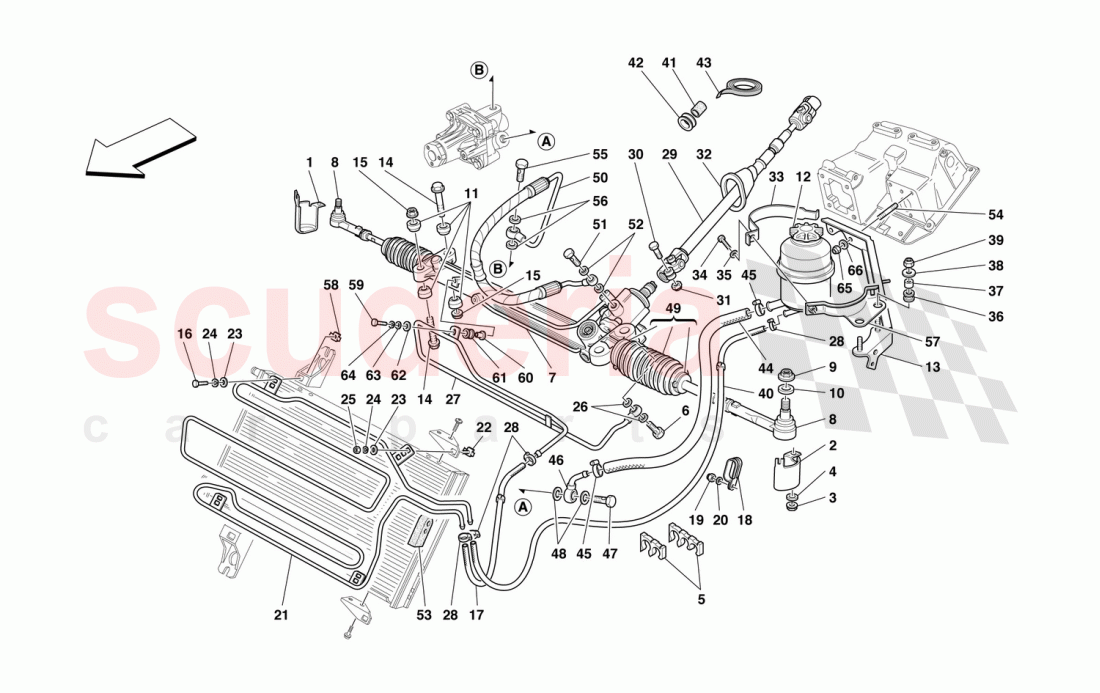

Ferrari 550 Barchetta - HYDRAULIC STEERING BOX AND SERPENTINE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	150879	L.H. BALL JOINT PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150878	R.H. BALL JOINT PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058319	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62764900	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171359	SPRINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277407	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170858	RACK STEERING BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158016	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149807	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155002	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155567	SILENT BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170877	POWER STEERING FLUID RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179303	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175701	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175283	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178183	RUBBER PIPE FROM STEERING BOX TO REFRIGERATING COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61712500	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177360	REFRIGERATING COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14662695	SCREW WITH CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177395	PIPE FROM STEERING BOX WITH UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167168	STEERING CARDANIC TRASMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150427	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150427	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167341	GASKET FOR STEEL SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171746	SUPPORT CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103550	Spacer bush -Only for	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179377	PIPE FROM REFRIGERATING COIL TO FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167379	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167376	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195293	FILM FOR CARDANIC TRASMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179381	RUBBER PIPE FROM TANK TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155449	SWINGING UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155448	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261560	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	900613	RUBBER BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170860	PIPE FROM PUMP TO STEERING BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170862	UNION-VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65141300	SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184727	Banjo bolt For Union M16 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10278660	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179279	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60659100	Caged Captive Nut 6mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10445224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	171813	PIPE FROM PUMP TO STEERING BOX	171813 PIPE FROM PUMP TO STEERING BOX BOX / Valid for GD	-	1	Enquire
-	173534	RUBBER PIPE FROM TANK TO PUMP	173534 RUBBER PIPE FROM TANK TO PUMP PUMP / Valid for GD	-	1	Enquire
-	178182	PIPE FROM REFRIGERATING COIL TO FUEL TANK	178182 PIPE FROM REFRIGERATING COIL TO FUEL TANK TO FUEL TANK / Valid for GD	-	1	Enquire
-	173587	CLAMP	173587 CLAMP Valid for GD	-	1	Enquire
-	169886	STEERING CARDANIC TRASMISSION	169886 STEERING CARDANIC TRASMISSION TRASMISSION / Valid for GD	-	1	Enquire
-	178184	RUBBER PIPE FROM STEERING BOX TO REFIGERATING COIL	178184 RUBBER PIPE FROM STEERING BOX TO REFIGERATING COIL BOX TO REFIGERATING COIL / Valid for GD	-	1	Enquire
-	173586	BRACKET	173586 BRACKET Valid for GD	-	1	Enquire
-	169888	RACK STEERING BOX	169888 RACK STEERING BOX Valid for GD	-	1	Enquire
-	172847	SPRINGS	172847 SPRINGS Valid for GD	-	1	Enquire
1	150879	L.H. BALL JOINT PROTECTION	150879 L.H. BALL JOINT PROTECTION	-	1	Enquire
2	150878	R.H. BALL JOINT PROTECTION	150878 R.H. BALL JOINT PROTECTION	-	1	Enquire
3	14058319	NUT	14058319 NUT	-	4	Enquire
4	62764900	WASHER	62764900 WASHER	-	4	Enquire
5	171359	SPRINGS	171359 SPRINGS Not for GD	-	1	Enquire
6	277407	HOSE CONNECTOR	277407 HOSE CONNECTOR	-	1	Enquire
7	170858	RACK STEERING BOX	170858 RACK STEERING BOX Not for GD	-	1	Enquire
8	158016	BALL JOINT	158016 BALL JOINT	-	2	Enquire
9	149807	NUT	149807 NUT	-	2	Enquire
10	155002	Washer	155002 Washer	-	2	Enquire
11	155567	SILENT BLOCK	155567 SILENT BLOCK	-	8	Enquire
12	170877	POWER STEERING FLUID RESERVOIR	170877 POWER STEERING FLUID RESERVOIR SERVOSTEERING	-	1	Enquire
13	179303	BRACKET	179303 BRACKET Not for GD	-	1	Enquire
14	175701	SCREW	175701 SCREW	-	4	Enquire
15	175283	Nut	175283 Nut	-	4	Enquire
16	10902224	SCREW	10902224 SCREW	-	2	Enquire
17	178183	RUBBER PIPE FROM STEERING BOX TO REFRIGERATING COIL	178183 RUBBER PIPE FROM STEERING BOX TO REFRIGERATING COIL BOX TO REFRIGERATING COIL / Not for GD	-	1	Enquire
18	61712500	BRACKET WITH SHEATH	61712500 BRACKET WITH SHEATH	-	2	Enquire
19	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
20	12639724	WASHER	12639724 WASHER	-	1	Enquire
21	177360	REFRIGERATING COIL	177360 REFRIGERATING COIL	-	1	Enquire
22	14662695	SCREW WITH CAGE	14662695 SCREW WITH CAGE	-	1	Enquire
23	12643724	WASHER	12643724 WASHER	-	4	Enquire
24	127494	WASHER	127494 WASHER	-	4	Enquire
25	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
26	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	-	2	Enquire
27	177395	PIPE FROM STEERING BOX WITH UNION	177395 PIPE FROM STEERING BOX WITH UNION WITH UNION	-	1	Enquire
28	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	4	Enquire
29	167168	STEERING CARDANIC TRASMISSION	167168 STEERING CARDANIC TRASMISSION TRASMISSION / Not for GD	-	1	Enquire
30	150427	SCREW	150427 SCREW	-	1	Enquire
31	150427	SCREW	150427 SCREW	-	1	Enquire
32	167341	GASKET FOR STEEL SHIELD	167341 GASKET FOR STEEL SHIELD	-	1	Enquire
33	171746	SUPPORT CLAMP	171746 SUPPORT CLAMP Not for GD	-	1	Enquire
34	81591700	SCREW	81591700 SCREW	-	1	Enquire
35	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
36	812273	CABLE GROMMET	812273 CABLE GROMMET	-	2	Enquire
37	103550	Spacer bush -Only for	103550 Spacer bush -Only for	-	2	Enquire
38	12643724	WASHER	12643724 WASHER	-	4	Enquire
39	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
40	179377	PIPE FROM REFRIGERATING COIL TO FUEL TANK	179377 PIPE FROM REFRIGERATING COIL TO FUEL TANK TO FUEL TANK / Not for GD	-	1	Enquire
41	167379	RUBBER HOSE	167379 RUBBER HOSE	-	1	Enquire
42	167376	SEAL RING	167376 SEAL RING	-	1	Enquire
43	195293	FILM FOR CARDANIC TRASMISSION	195293 FILM FOR CARDANIC TRASMISSION TRASMISSION	-	1	Enquire
44	179381	RUBBER PIPE FROM TANK TO PUMP	179381 RUBBER PIPE FROM TANK TO PUMP PUMP / Not for GD	-	1	Enquire
45	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
46	155449	SWINGING UNION	155449 SWINGING UNION	-	1	Enquire
47	155448	CONNECTOR	155448 CONNECTOR	-	1	Enquire
48	10261560	GASKET	10261560 GASKET	-	2	Enquire
49	900613	RUBBER BOOT	900613 RUBBER BOOT	-	2	Enquire
50	170860	PIPE FROM PUMP TO STEERING BOX	170860 PIPE FROM PUMP TO STEERING BOX BOX / Not for GD	-	1	Enquire
51	170862	UNION-VALVE	170862 UNION-VALVE	-	1	Enquire
52	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	-	2	Enquire
53	65141300	SEALING	65141300 SEALING	-	1	Enquire
54	13516824	STUD BOLT	13516824 STUD BOLT Not for GD	-	2	Enquire
55	184727	Banjo bolt For Union M16 x 1.5	184727 Banjo bolt For Union M16 x 1.5	-	1	Enquire
56	10278660	GASKET	10278660 GASKET	-	2	Enquire
57	179279	BRACKET	179279 BRACKET Not for GD	-	1	Enquire
58	60659100	Caged Captive Nut 6mm	60659100 Caged Captive Nut 6mm	-	2	Enquire
59	10445224	SCREW	10445224 SCREW	-	1	Enquire
60	149707	SPACER	149707 SPACER	-	1	Enquire
61	812273	CABLE GROMMET	812273 CABLE GROMMET	-	1	Enquire
62	860172	WASHER	860172 WASHER	-	1	Enquire
63	62769800	WASHER	62769800 WASHER	-	1	Enquire
64	10615274	WASHER	10615274 WASHER	-	1	Enquire
65	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5 Not for GD	-	2	Enquire
66	12638524	WASHER	12638524 WASHER Not for GD	-	2	Enquire
