Name: FUEL COOLING SYSTEM -Valid for USA and CDN-
Rating: 4.0 (1 reviews)

View All

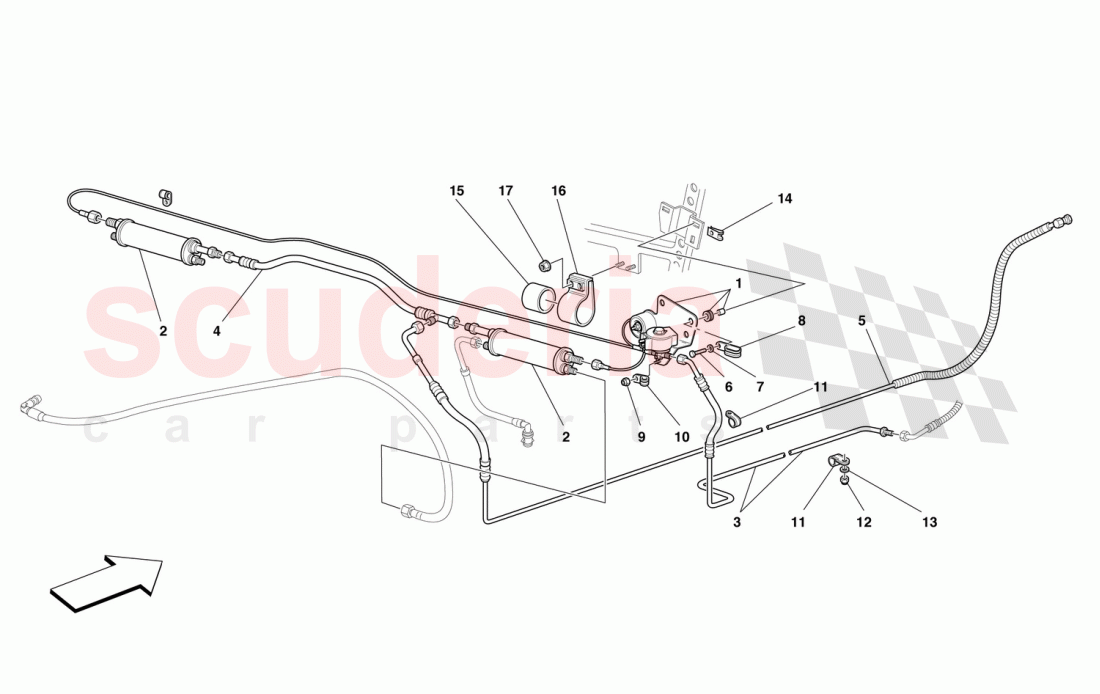

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65864300	COMPLETE SOLENOID VALVE BODY	$609.73	To Order

Photo	Part No	Description	Price (each)	Stock
	181266	COMPLETE FUEL/FREON HEAT EXCHANGER	$321.62	To Order

Photo	Part No	Description	Price (each)	Stock
	65857000	INLET GAS PIPE TO VALVE	$152.42	To Order

Photo	Part No	Description	Price (each)	Stock
	65930200	EXCHANGER PIPE CONNECTION	$152.42	To Order

Photo	Part No	Description	Price (each)	Stock
	65930300	UNDERFLOOR SUCTION GAS PIPE	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	61712500	BRACKET WITH SHEATH	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10440990	BRACKET WITH SHEATH	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	SCRE CLIP M6	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	181267	SLEEVE	$44.91	To Order

Photo	Part No	Description	Price (each)	Stock
	180941	CLAMP	$6.68	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	65864300	COMPLETE SOLENOID VALVE BODY	65864300 COMPLETE SOLENOID VALVE BODY BODY	$609.73	1
2	181266	COMPLETE FUEL/FREON HEAT EXCHANGER	181266 COMPLETE FUEL/FREON HEAT EXCHANGER EXCHANGER	$321.62	2
3	65857000	INLET GAS PIPE TO VALVE	65857000 INLET GAS PIPE TO VALVE	$152.42	1
4	65930200	EXCHANGER PIPE CONNECTION	65930200 EXCHANGER PIPE CONNECTION CONNECTION	$152.42	1
5	65930300	UNDERFLOOR SUCTION GAS PIPE	65930300 UNDERFLOOR SUCTION GAS PIPE GAS PIPE	$224.63	1
6	231625	SCREW	231625 SCREW	$0.65	3
7	127494	WASHER	127494 WASHER	$0.08 MSRP: ~~0.68~~ (88.2% off)	3
8	61712500	BRACKET WITH SHEATH	61712500 BRACKET WITH SHEATH	$1.77	1
9	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
10	10440990	BRACKET WITH SHEATH	10440990 BRACKET WITH SHEATH	$1.46	1
11	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	$0.57 MSRP: ~~1.68~~ (66.1% off)	12
12	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	12
13	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	12
14	62766300	SCRE CLIP M6	62766300 SCRE CLIP M6	$0.76	3
15	181267	SLEEVE	181267 SLEEVE	$44.91 MSRP: ~~64.52~~ (30.4% off)	1
16	180941	CLAMP	180941 CLAMP	$6.68	2
17	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
