Name: CLUTCH - CONTROLS
Rating: 5.0 (1 reviews)

CLUTCH - CONTROLS of Ferrari Ferrari 550 Barchetta

View All

Ferrari 550 Barchetta - CLUTCH - CONTROLS

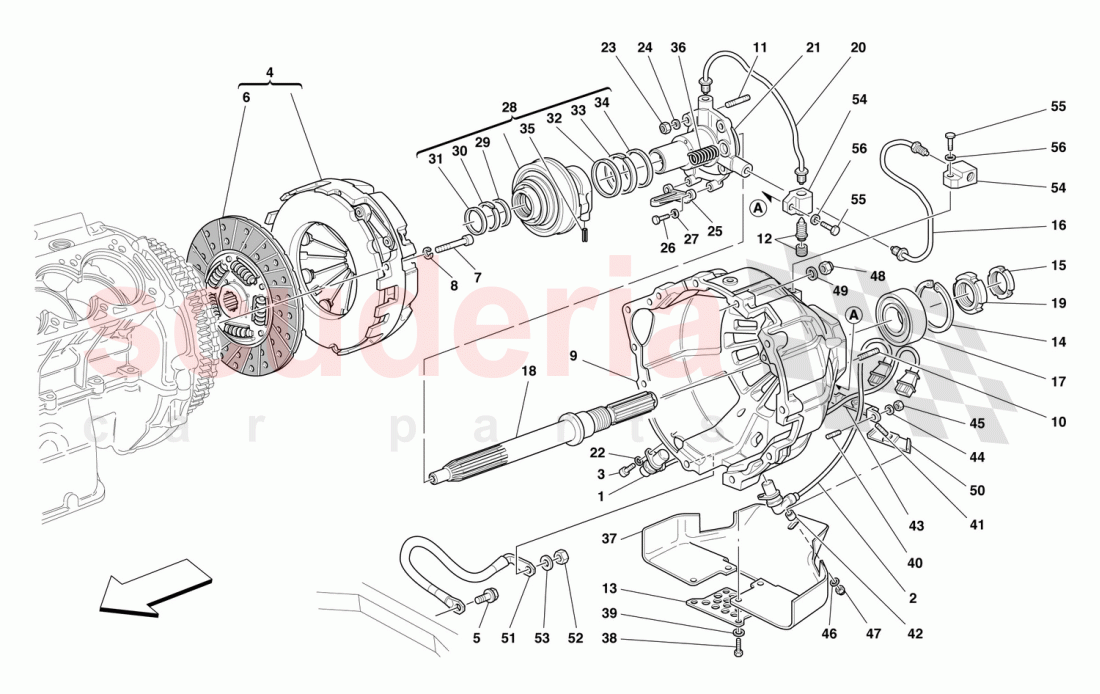

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	164082	RH Side Angolar Speed Sensor	$190.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	164083	COMPLETE ANGOLAR SPEED SENSOR	$190.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	194775	Complete Clutch	$3,001.28	To Order

Photo	Part No	Description	Price (each)	Stock
	16296421	SCREW	$26.22	To Order

Photo	Part No	Description	Price (each)	Stock
	194776	CLUTCH PLATE	$1,249.77	To Order

Photo	Part No	Description	Price (each)	Stock
	14082210	SCREW	$2.93	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	151601	COMPLETE CLUTCH HOUSING	$3,292.80	To Order

Photo	Part No	Description	Price (each)	Stock
	13546334	STUD BOLT	$1.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	$6.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	152954	BLEED NIPPLE SCREW	$6.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	144441	CLUTCH HOUSING COVER	$3.44	To Order

Photo	Part No	Description	Price (each)	Stock
	144511	STOP RING	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	165576	RING NUT	$19.85	To Order

Photo	Part No	Description	Price (each)	Stock
	165759	OIL DELIVERY TUBE	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	174470	GROOVED BALL BEARING D.35-72	$44.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	165573	CLUTCH SHAFT	$657.87	To Order

Photo	Part No	Description	Price (each)	Stock
	165575	RING NUT	$25.01	To Order

Photo	Part No	Description	Price (each)	Stock
	219213	VENT PIPE	$60.96	To Order

Photo	Part No	Description	Price (each)	Stock
	169137	FLANGE WITH SLEEVE	$807.18	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	151693	PLATE	$39.84	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	127493	WASHER	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	177202	Thrust bearing complete	$803.74	To Order

Photo	Part No	Description	Price (each)	Stock
	154505	SEAL RING 32MM	$13.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154504	SEAL RING 32MM	$7.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154550	SCRAPER RING	$24.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154508	Sealing Ring 44mm	$40.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154507	Ring	$3.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154551	Scrapper Ring	$27.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13904970	SPRING PIN	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	155207	Pre-Tightening Springs	$8.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	170115	SHIELD FOR FASE SENSOR PROTECTION	$465.32	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540824	STUD BOLT	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	155177	STUD BOLT	$7.91	To Order

Photo	Part No	Description	Price (each)	Stock
	155175	SPACER	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	154464	SUPPORT	$44.91	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	$0.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11199274	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	146654	MOUNTING	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	155918	CABLE FOR ENGINE	$23.66	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	11199274	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	240774	CONNECTOR	$52.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	$0.02	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	168915	CLUTCH HOUSING	168915 CLUTCH HOUSING With complete clutch housing	-	1	Enquire
1	164082	RH Side Angolar Speed Sensor IN STOCK	164082 RH Side Angolar Speed Sensor SENSOR IN STOCK	$190.66	1
2	164083	COMPLETE ANGOLAR SPEED SENSOR IN STOCK	164083 COMPLETE ANGOLAR SPEED SENSOR SENSOR IN STOCK	$190.66	1
3	248334	SCREW	248334 SCREW	$0.68	2
4	194775	Complete Clutch	194775 Complete Clutch	$3,001.28	1
5	16296421	SCREW	16296421 SCREW	$26.22	1
6	194776	CLUTCH PLATE	194776 CLUTCH PLATE	$1,249.77 MSRP: ~~1,304.67~~ (4.2% off)	1
7	14082210	SCREW	14082210 SCREW	$2.93	9
8	127494	WASHER IN STOCK	127494 WASHER IN STOCK	$0.08 MSRP: ~~0.68~~ (88.2% off)	9
9	151601	COMPLETE CLUTCH HOUSING	151601 COMPLETE CLUTCH HOUSING	$3,292.80	1
10	13546334	STUD BOLT IN STOCK	13546334 STUD BOLT IN STOCK	$1.02	8
11	13543124	STUD BOLT IN STOCK	13543124 STUD BOLT IN STOCK	$6.63	4
12	152954	BLEED NIPPLE SCREW IN STOCK	152954 BLEED NIPPLE SCREW IN STOCK	$6.40	1
13	144441	CLUTCH HOUSING COVER	144441 CLUTCH HOUSING COVER	$3.44 MSRP: ~~14.89~~ (76.9% off)	1
14	144511	STOP RING	144511 STOP RING	$0.79	1
15	165576	RING NUT	165576 RING NUT	$19.85 MSRP: ~~24.01~~ (17.3% off)	1
16	165759	OIL DELIVERY TUBE	165759 OIL DELIVERY TUBE	$401.13	1
17	174470	GROOVED BALL BEARING D.35-72 IN STOCK	174470 GROOVED BALL BEARING D.35-72 IN STOCK	$44.33 MSRP: ~~56.80~~ (22% off)	1
18	165573	CLUTCH SHAFT	165573 CLUTCH SHAFT	$657.87	1
19	165575	RING NUT	165575 RING NUT	$25.01 MSRP: ~~36.88~~ (32.2% off)	1
20	219213	VENT PIPE	219213 VENT PIPE	$60.96	1
21	169137	FLANGE WITH SLEEVE	169137 FLANGE WITH SLEEVE	$807.18	1
22	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	2
23	133989	NUT	133989 NUT	$0.44 MSRP: ~~1.00~~ (56% off)	4
24	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
25	151693	PLATE	151693 PLATE	$39.84 MSRP: ~~95.38~~ (58.2% off)	1
26	10977524	SCREW	10977524 SCREW	$0.15	2
27	127493	WASHER	127493 WASHER	$0.08 MSRP: ~~0.30~~ (73.3% off)	2
28	177202	Thrust bearing complete	177202 Thrust bearing complete	$803.74	1
29	154505	SEAL RING 32MM IN STOCK	154505 SEAL RING 32MM IN STOCK	$13.21 MSRP: ~~16.86~~ (21.6% off)	1
30	154504	SEAL RING 32MM IN STOCK	154504 SEAL RING 32MM IN STOCK	$7.05	1
31	154550	SCRAPER RING IN STOCK	154550 SCRAPER RING IN STOCK	$24.62	1
32	154508	Sealing Ring 44mm IN STOCK	154508 Sealing Ring 44mm IN STOCK	$40.10 MSRP: ~~54.22~~ (26% off)	1
33	154507	Ring IN STOCK	154507 Ring IN STOCK	$3.97 MSRP: ~~5.05~~ (21.4% off)	1
34	154551	Scrapper Ring IN STOCK	154551 Scrapper Ring IN STOCK	$27.26 MSRP: ~~29.85~~ (8.7% off)	1
35	13904970	SPRING PIN IN STOCK	13904970 SPRING PIN IN STOCK	$0.29 MSRP: ~~0.45~~ (35.6% off)	1
36	155207	Pre-Tightening Springs IN STOCK	155207 Pre-Tightening Springs IN STOCK	$8.59	2
37	170115	SHIELD FOR FASE SENSOR PROTECTION	170115 SHIELD FOR FASE SENSOR PROTECTION PROTECTION	$465.32	1
38	10977624	SCREW IN STOCK	10977624 SCREW IN STOCK	$0.06	4
39	12604178	Washer	12604178 Washer	-	4	Enquire
40	13540824	STUD BOLT	13540824 STUD BOLT	$0.24	2
41	155177	STUD BOLT	155177 STUD BOLT	$7.91 MSRP: ~~16.30~~ (51.5% off)	1
42	155175	SPACER	155175 SPACER	$1.65 MSRP: ~~4.25~~ (61.2% off)	1
43	154464	SUPPORT	154464 SUPPORT	$44.91	1
44	12639724	WASHER IN STOCK	12639724 WASHER IN STOCK	$0.05 MSRP: ~~0.50~~ (90% off)	2
45	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.43	2
46	11199274	WASHER	11199274 WASHER	$0.02	1
47	15896470	NUT	15896470 NUT	$0.05 MSRP: ~~1.15~~ (95.7% off)	1
48	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.42	5
49	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	5
50	146654	MOUNTING	146654 MOUNTING	$85.03	1
51	155918	CABLE FOR ENGINE	155918 CABLE FOR ENGINE	$23.66	1
52	15896470	NUT	15896470 NUT	$0.05 MSRP: ~~1.15~~ (95.7% off)	1
53	11199274	WASHER	11199274 WASHER	$0.02	1
54	240774	CONNECTOR IN STOCK	240774 CONNECTOR IN STOCK	$52.94	2
55	231625	SCREW IN STOCK	231625 SCREW IN STOCK	$0.66	2
56	11181874	WASHER IN STOCK	11181874 WASHER IN STOCK	$0.02	2

Clutch - Controls

Ferrari 550 Barchetta

Ferrari 550 Barchetta - CLUTCH - CONTROLS
