Seats and safety belts -Not for USA- of Ferrari Ferrari 512 TR

View All

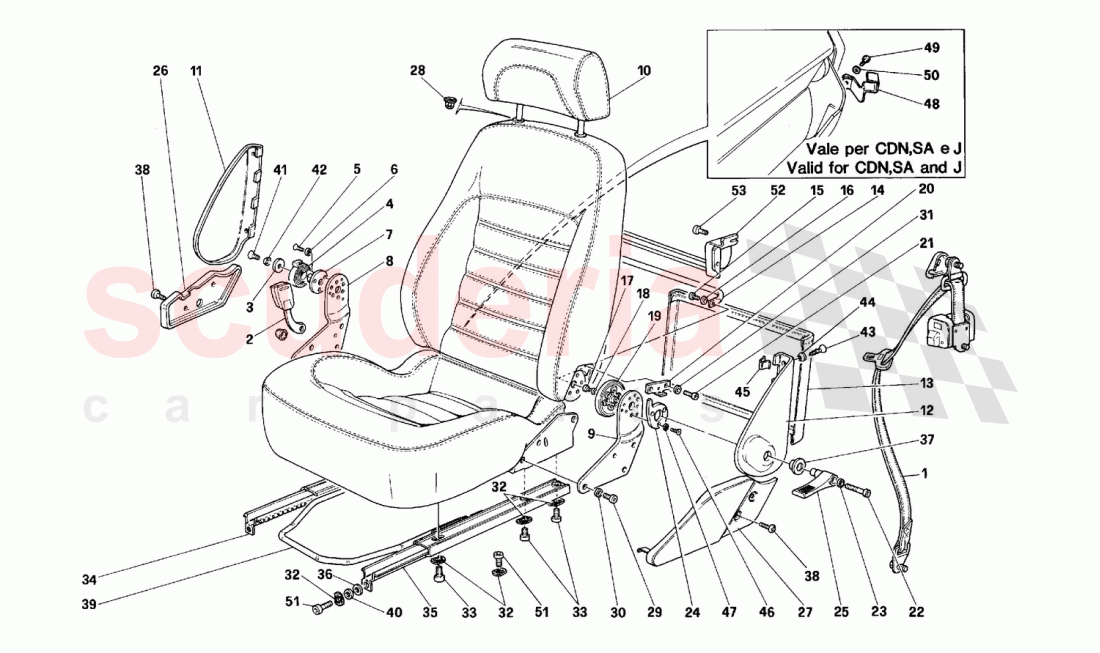

Ferrari 512 TR - Seats and safety belts -Not for USA-

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	63100000	Abdominal belt set assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63433900	Belts whips kit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578305	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62651900	SEAT BACK RETURNING SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14441234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12606876	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63314300	BUSH FOR SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63288900	R.H. joint fastening plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63289000	L.H. joint fastening plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	630180	Lined headrest	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	630187	L.H. inner back seat joint-cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	630185	L.H. outer back-seat joint-cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	630188	Back seat for rear side lining	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63294300	JOINTS CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302931	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160920	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63325100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62652400	L.H. side back-seat adjuster	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62887300	PLATE FOR SEAT BACK FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	40294308	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14358927	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149951	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62955800	CLAMP FOR L.H. SEAT BACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63294200	L.H. HANDLE FOR SEAT RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	632398	L.H. inner pillow joint-cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	632399	L.H. outer pillow joint-cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20058905	BUSHINGS FOR HEAD-REST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	40294308	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63395300	ELASTIC PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	40294308	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64339300	R.H. GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64339400	L.H. GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550405	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62752500	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20297602	Screw -Valid for CDN, SA, J-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	629838	Guides control fork	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14441234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12606876	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15915277	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62823200	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62773500	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63622600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12606876	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153982	Bracket to support belt connector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20297602	Screw -Valid for CDN, SA, J-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	40294308	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62651700	Articulated joints transm. cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302374	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	63622700	SCREW	63622700 SCREW	-	4	Enquire
-	632397	R.H. outer pillow joint-cover	632397 R.H. outer pillow joint-cover	-	1	Enquire
-	62955700	CLAMP FOR R.H.SEAT BACK	62955700 CLAMP FOR R.H.SEAT BACK	-	1	Enquire
-	63294100	R.H. HANDLE FOR SEAT RELEASE	63294100 R.H. HANDLE FOR SEAT RELEASE	-	1	Enquire
-	632396	R.H. inner pillow joint-cover	632396 R.H. inner pillow joint-cover	-	1	Enquire
-	62652200	R.H. side back-seat adjuster	62652200 R.H. side back-seat adjuster	-	1	Enquire
-	630184	R.H. inner back seat joint-cover	630184 R.H. inner back seat joint-cover	-	1	Enquire
-	630186	R.H. outer back-seat joint-cover	630186 R.H. outer back-seat joint-cover	-	1	Enquire
-	636505	Pillow lining	636505 Pillow lining	-	2	Enquire
-	63458700	Abdominal belt set assembly	63458700 Abdominal belt set assembly Valid for CDN, SA, J	-	1	Enquire
-	63459200	Belts whips kit	63459200 Belts whips kit Valid for CDN, SA, J	-	2	Enquire
-	630158	L.H. seat with guides	630158 L.H. seat with guides Valid for CDN, SA, J	-	1	Enquire
-	630153	R.H. seat with guides	630153 R.H. seat with guides Not for CDN, SA, J	-	1	Enquire
-	630157	R.H. seat with guides	630157 R.H. seat with guides Valid for CDN, SA, J	-	1	Enquire
-	636621	Headrest lining	636621 Headrest lining	-	2	Enquire
-	636524	L.H. - R.H. back seat lining	636524 L.H. - R.H. back seat lining	-	1	Enquire
-	630154	L.H. seat with guides	630154 L.H. seat with guides Not for CDN, SA, J	-	1	Enquire
1	63100000	Abdominal belt set assembly	63100000 Abdominal belt set assembly Not for CDN, SA, J	-	1	Enquire
2	63433900	Belts whips kit	63433900 Belts whips kit Not for CDN, SA, J	-	2	Enquire
3	13578305	WASHER	13578305 WASHER	-	2	Enquire
4	62651900	SEAT BACK RETURNING SPRING	62651900 SEAT BACK RETURNING SPRING	-	2	Enquire
5	14441234	SCREW	14441234 SCREW	-	12	Enquire
6	12606876	WASHER	12606876 WASHER	-	12	Enquire
7	63314300	BUSH FOR SPRING	63314300 BUSH FOR SPRING	-	2	Enquire
8	63288900	R.H. joint fastening plate	63288900 R.H. joint fastening plate	-	2	Enquire
9	63289000	L.H. joint fastening plate	63289000 L.H. joint fastening plate	-	2	Enquire
10	630180	Lined headrest	630180 Lined headrest	-	2	Enquire
11	630187	L.H. inner back seat joint-cover	630187 L.H. inner back seat joint-cover	-	1	Enquire
12	630185	L.H. outer back-seat joint-cover	630185 L.H. outer back-seat joint-cover	-	1	Enquire
13	630188	Back seat for rear side lining	630188 Back seat for rear side lining	-	2	Enquire
14	63294300	JOINTS CONNECTION	63294300 JOINTS CONNECTION	-	2	Enquire
15	14302931	SCREW	14302931 SCREW	-	4	Enquire
16	160920	WASHER	160920 WASHER	-	4	Enquire
17	63325100	SCREW	63325100 SCREW	-	12	Enquire
18	12601374	WASHER	12601374 WASHER	-	12	Enquire
19	62652400	L.H. side back-seat adjuster	62652400 L.H. side back-seat adjuster	-	1	Enquire
20	62887300	PLATE FOR SEAT BACK FASTENING	62887300 PLATE FOR SEAT BACK FASTENING	-	4	Enquire
21	40294308	SCREW	40294308 SCREW	-	8	Enquire
22	14358927	SCREW	14358927 SCREW	-	2	Enquire
23	149951	WASHER	149951 WASHER	-	2	Enquire
24	62955800	CLAMP FOR L.H. SEAT BACK	62955800 CLAMP FOR L.H. SEAT BACK	-	1	Enquire
25	63294200	L.H. HANDLE FOR SEAT RELEASE	63294200 L.H. HANDLE FOR SEAT RELEASE	-	1	Enquire
26	632398	L.H. inner pillow joint-cover	632398 L.H. inner pillow joint-cover	-	1	Enquire
27	632399	L.H. outer pillow joint-cover	632399 L.H. outer pillow joint-cover	-	1	Enquire
28	20058905	BUSHINGS FOR HEAD-REST	20058905 BUSHINGS FOR HEAD-REST	-	4	Enquire
29	40294308	SCREW	40294308 SCREW	-	12	Enquire
30	12601374	WASHER	12601374 WASHER	-	12	Enquire
31	12601374	WASHER	12601374 WASHER	-	8	Enquire
32	63395300	ELASTIC PLATE	63395300 ELASTIC PLATE	-	12	Enquire
33	40294308	SCREW	40294308 SCREW	-	20	Enquire
34	64339300	R.H. GUIDE	64339300 R.H. GUIDE	-	2	Enquire
35	64339400	L.H. GUIDE	64339400 L.H. GUIDE	-	2	Enquire
36	13550405	WASHER	13550405 WASHER	-	4	Enquire
37	62752500	BUSHING	62752500 BUSHING	-	2	Enquire
38	20297602	Screw -Valid for CDN, SA, J-	20297602 Screw -Valid for CDN, SA, J-	-	8	Enquire
39	629838	Guides control fork	629838 Guides control fork	-	2	Enquire
40	12601374	WASHER	12601374 WASHER	-	4	Enquire
41	14441234	SCREW	14441234 SCREW	-	2	Enquire
42	12606876	WASHER	12606876 WASHER	-	2	Enquire
43	15915277	Screw	15915277 Screw	-	8	Enquire
44	62823200	WASHER	62823200 WASHER	-	8	Enquire
45	62773500	Clip	62773500 Clip	-	16	Enquire
46	63622600	SCREW	63622600 SCREW	-	3	Enquire
47	12606876	WASHER	12606876 WASHER	-	12	Enquire
48	153982	Bracket to support belt connector	153982 Bracket to support belt connector Valid for CDN, SA, J	-	1	Enquire
49	20297602	Screw -Valid for CDN, SA, J-	20297602 Screw -Valid for CDN, SA, J-	-	1	Enquire
50	12604178	Washer	12604178 Washer Valid for CDN, SA, J	-	1	Enquire
51	40294308	SCREW	40294308 SCREW	-	8	Enquire
52	62651700	Articulated joints transm. cover	62651700 Articulated joints transm. cover	-	1	Enquire
53	14302374	SCREW	14302374 SCREW	-	4	Enquire
