Accessories and trims of Ferrari Ferrari 512 TR

View All

Ferrari 512 TR - Accessories and trims

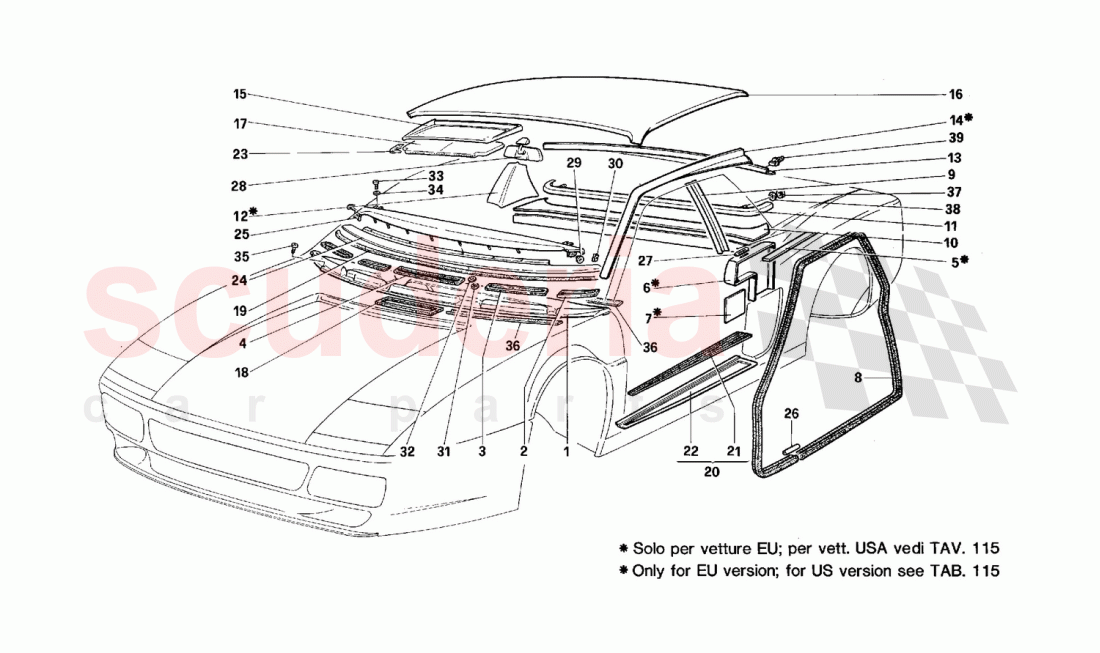

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	63422100	Air delivery duct assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63089400	External side gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63089300	Internal side gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63089200	Central gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	615125	L.H. side trim	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	615127	L.H. side rear panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	615129	L.H. side panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63149500	Door gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	615133	Trim for L.H. central fender	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	615134	Rear window plane	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	615135	Rear window lower trim	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	615136	Trim for R.H. rear fender	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	615138	Rear window upper trim	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	615140	Trim for L.H. roof side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	615143	R.H. upper windshield trim	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	615145	Inner roof	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	615146	R.H. sun visor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63089500	Gasket for condition	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62764400	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63074000	L.H. underdoor moulding, cpl.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61515200	Rubber insert for L.H.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61515000	Frame for L.H. underdoor moulding	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61515500	R.H. sun visor support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63116200	Lower trim for front windshield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	631161	Lower trim for rear windshield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62781300	Gasket connection pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63443200	Seat belts frame -Not for USA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62850100	INNER REAR VIEW MIRROR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62781000	Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62770200	Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64686900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688375	SELF-TAPPING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62660300	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	808769	CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63404400	Rear trim fix. pin	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	14187980	Rear trim fix. pin	14187980 Rear trim fix. pin Valid for J	-	4	Enquire
-	61514900	Frame for R.H. underdoor moulding	61514900 Frame for R.H. underdoor moulding	-	1	Enquire
-	61515600	L.H. sun visor support	61515600 L.H. sun visor support	-	2	Enquire
-	63116700	Lower trim for front windshield	63116700 Lower trim for front windshield Valid for GD	-	1	Enquire
-	63074100	R.H. underdoor moulding, cpl.	63074100 R.H. underdoor moulding, cpl. complete	-	1	Enquire
-	61515100	Rubber insert for R.H.	61515100 Rubber insert for R.H. underdoor moulding	-	1	Enquire
-	615144	L.H. upper windshield trim	615144 L.H. upper windshield trim	-	1	Enquire
-	615147	L.H. sun visor	615147 L.H. sun visor	-	1	Enquire
-	615567	Rear window upper trim	615567 Rear window upper trim Valid for USA	-	1	Enquire
-	615139	Trim for R.H. roof side	615139 Trim for R.H. roof side Not for USA	-	1	Enquire
-	61556500	MOULDING	61556500 MOULDING Valid for USA	-	1	Enquire
-	615137	Trim for L.H. rear fender	615137 Trim for L.H. rear fender Not for USA	-	1	Enquire
-	615128	R.H. side panel	615128 R.H. side panel Not for USA	-	1	Enquire
-	61556600	Trim for L.H. central fender	61556600 Trim for L.H. central fender Valid for USA	-	1	Enquire
-	615132	Trim for R.H. central fender	615132 Trim for R.H. central fender Not for USA	-	1	Enquire
-	615124	R.H. side trim	615124 R.H. side trim Not for USA	-	1	Enquire
-	615126	R.H. side rear panel	615126 R.H. side rear panel Not for USA	-	1	Enquire
-	63422000	Air delivery duct assy	63422000 Air delivery duct assy Valid for GD	-	1	Enquire
1	63422100	Air delivery duct assy	63422100 Air delivery duct assy Not for GD	-	1	Enquire
2	63089400	External side gasket	63089400 External side gasket	-	2	Enquire
3	63089300	Internal side gasket	63089300 Internal side gasket	-	2	Enquire
4	63089200	Central gasket	63089200 Central gasket	-	1	Enquire
5	615125	L.H. side trim	615125 L.H. side trim Not for USA	-	1	Enquire
6	615127	L.H. side rear panel	615127 L.H. side rear panel Not for USA	-	1	Enquire
7	615129	L.H. side panel	615129 L.H. side panel Not for USA	-	1	Enquire
8	63149500	Door gasket	63149500 Door gasket	-	2	Enquire
9	615133	Trim for L.H. central fender	615133 Trim for L.H. central fender Not for USA	-	1	Enquire
10	615134	Rear window plane	615134 Rear window plane	-	1	Enquire
11	615135	Rear window lower trim	615135 Rear window lower trim	-	1	Enquire
12	615136	Trim for R.H. rear fender	615136 Trim for R.H. rear fender Not for USA	-	1	Enquire
13	615138	Rear window upper trim	615138 Rear window upper trim Not for USA	-	1	Enquire
14	615140	Trim for L.H. roof side	615140 Trim for L.H. roof side Not for USA	-	1	Enquire
15	615143	R.H. upper windshield trim	615143 R.H. upper windshield trim	-	1	Enquire
16	615145	Inner roof	615145 Inner roof	-	1	Enquire
17	615146	R.H. sun visor	615146 R.H. sun visor	-	1	Enquire
18	63089500	Gasket for condition	63089500 Gasket for condition	-	1	Enquire
19	62764400	Gasket	62764400 Gasket	-	1	Enquire
20	63074000	L.H. underdoor moulding, cpl.	63074000 L.H. underdoor moulding, cpl. complete	-	1	Enquire
21	61515200	Rubber insert for L.H.	61515200 Rubber insert for L.H. underdoor moulding	-	1	Enquire
22	61515000	Frame for L.H. underdoor moulding	61515000 Frame for L.H. underdoor moulding	-	1	Enquire
23	61515500	R.H. sun visor support	61515500 R.H. sun visor support	-	2	Enquire
24	63116200	Lower trim for front windshield	63116200 Lower trim for front windshield Not for GD	-	1	Enquire
25	631161	Lower trim for rear windshield	631161 Lower trim for rear windshield	-	1	Enquire
26	62781300	Gasket connection pipe	62781300 Gasket connection pipe	-	2	Enquire
27	63443200	Seat belts frame -Not for USA-	63443200 Seat belts frame -Not for USA-	-	2	Enquire
28	62850100	INNER REAR VIEW MIRROR	62850100 INNER REAR VIEW MIRROR	-	1	Enquire
29	62781000	Bush	62781000 Bush	-	2	Enquire
30	62770200	Spring	62770200 Spring	-	2	Enquire
31	15896470	NUT	15896470 NUT	-	7	Enquire
32	62769800	WASHER	62769800 WASHER	-	7	Enquire
33	64686900	SCREW	64686900 SCREW	-	2	Enquire
34	12601374	WASHER	12601374 WASHER	-	2	Enquire
35	15688375	SELF-TAPPING SCREW	15688375 SELF-TAPPING SCREW	-	7	Enquire
36	62660300	GASKET	62660300 GASKET	-	2	Enquire
37	808769	CAP NUT	808769 CAP NUT	-	2	Enquire
38	62769800	WASHER	62769800 WASHER	-	2	Enquire
39	63404400	Rear trim fix. pin	63404400 Rear trim fix. pin Not for J	-	4	Enquire
