Anti-evaporative emission control system of Ferrari Ferrari 512 TR

View All

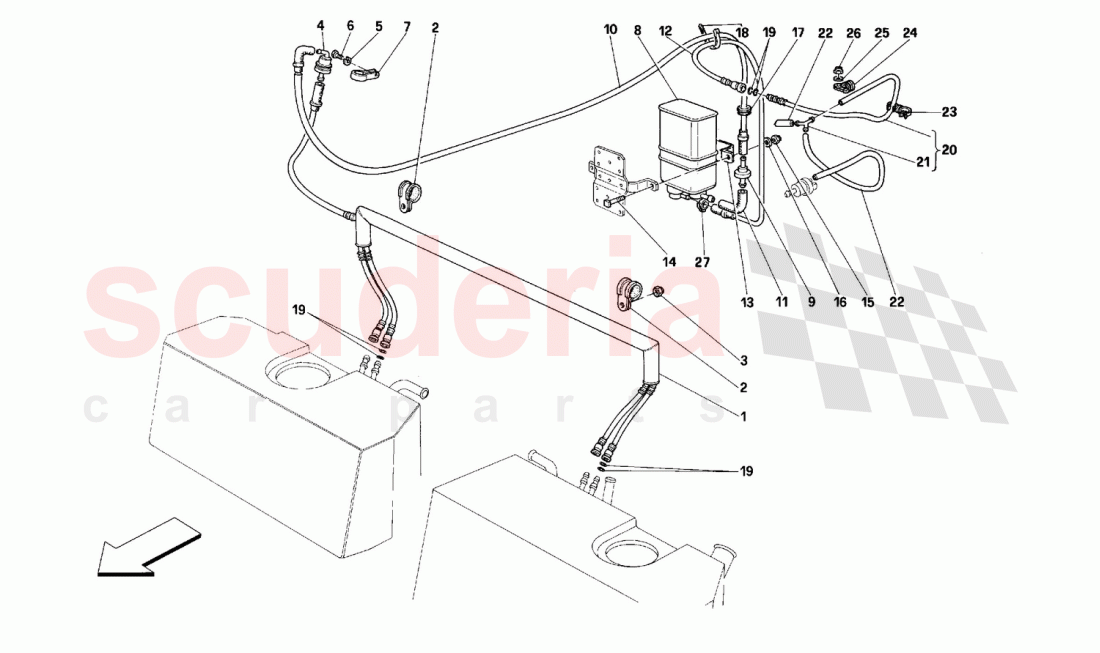

Ferrari 512 TR - Anti-evaporative emission control system

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	148408	Disareator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	124193	ANTI FLOWING BACK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	124226	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148413	Charcoal carbon canister	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114910	TANK VENTILATION VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148414	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148464	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148415	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148516	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14664790	CAGE SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12646604	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10397180	Cable grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MC43254	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133956	O.R. Gasket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	149687	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105496	Union	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150605	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139966	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14499370	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	148408	Disareator	148408 Disareator	-	1	Enquire
2	291225	P clip Bracket With Sheath IN STOCK	291225 P clip Bracket With Sheath IN STOCK	-	2	Enquire
3	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	2	Enquire
4	124193	ANTI FLOWING BACK VALVE	124193 ANTI FLOWING BACK VALVE	-	1	Enquire
5	127494	WASHER IN STOCK	127494 WASHER IN STOCK	-	1	Enquire
6	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	-	1	Enquire
7	124226	Bracket	124226 Bracket	-	1	Enquire
8	148413	Charcoal carbon canister	148413 Charcoal carbon canister	-	1	Enquire
9	114910	TANK VENTILATION VALVE	114910 TANK VENTILATION VALVE	-	1	Enquire
10	148414	Pipe	148414 Pipe	-	1	Enquire
11	148464	SLEEVE	148464 SLEEVE	-	1	Enquire
12	148415	Pipe	148415 Pipe	-	1	Enquire
13	148516	Bracket	148516 Bracket	-	1	Enquire
14	14664790	CAGE SCREW IN STOCK	14664790 CAGE SCREW IN STOCK	-	2	Enquire
15	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	2	Enquire
16	12646604	WASHER	12646604 WASHER	-	2	Enquire
17	10397180	Cable grommet	10397180 Cable grommet	-	5	Enquire
18	MC43254	CLAMP	MC43254 CLAMP	-	3	Enquire
19	133956	O.R. Gasket IN STOCK	133956 O.R. Gasket IN STOCK	-	10	Enquire
20	149687	Pipe	149687 Pipe	-	1	Enquire
21	105496	Union	105496 Union	-	1	Enquire
22	150605	Pipe	150605 Pipe	-	2	Enquire
23	139966	CLIP	139966 CLIP	-	2	Enquire
24	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH IN STOCK	-	1	Enquire
25	14499370	Washer	14499370 Washer	-	1	Enquire
26	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	1	Enquire
27	13432070	HOSE COLLAR IN STOCK	13432070 HOSE COLLAR IN STOCK	-	1	Enquire
