Sportive seat -Not for CDN- of Ferrari Ferrari 512 M

View All

Ferrari 512 M - Sportive seat -Not for CDN-

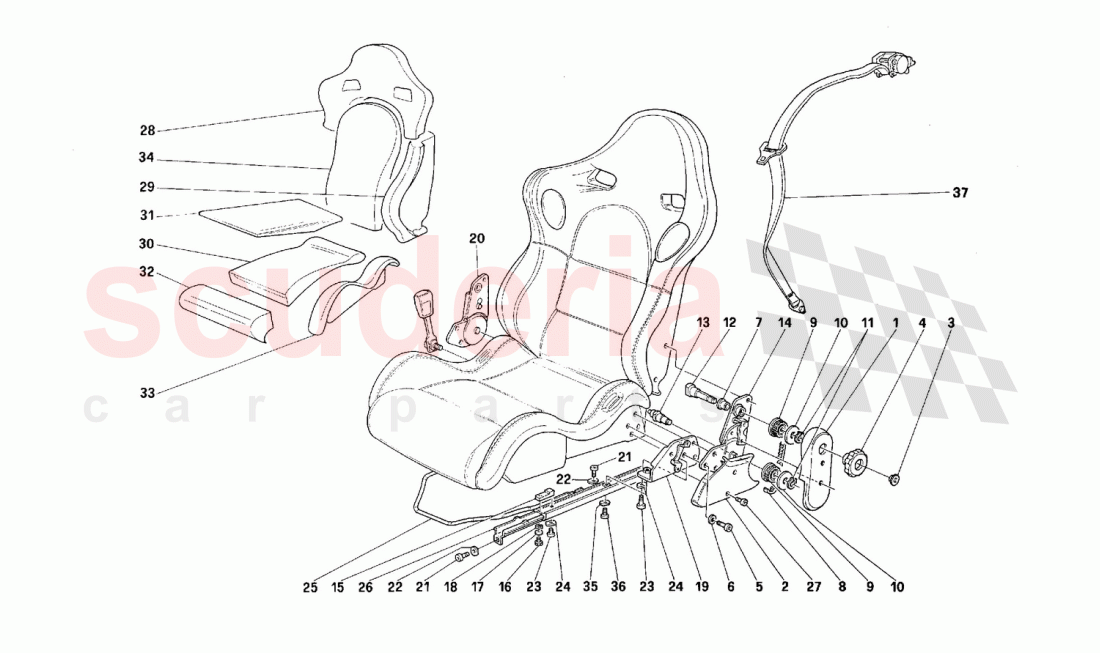

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64348800	RH SEAT INNER ARTICULATED JOINT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64348600	SEAT R.H. TRANSMISSION COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64330800	PLUG FOR KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64331300	SEAT BACK ADJUSTMENT KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63929800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550405	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	64347000	SELF-LUBRICATING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64347100	PULLEYS CONNECTING BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64330700	ARTICULATED JOINT CONTROL PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64347700	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16160976	SNAP RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	64328200	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64347600	ARTICULATED JOINT CONNECTION ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64328700	L.H. SEAT BACK OUTER ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64547200	Stop bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160957	Washer	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	64321400	R.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64346900	L.H. SEAT BACK INNER ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	40294308	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63395300	ELASTIC PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306374	ALLEN SCREW SOCKET HEAD M8 X 20	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	63395300	ELASTIC PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64339500	GUIDE CONTROL FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64339300	R.H. GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64346700	SEAT BACK UPPER AND LATERAL FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64605700	SEAT BACK L.H. LATERAL FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64605800	Central stuffing lower pillow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64347800	Central stuffing upper pillow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64532400	Front stuffing for pillow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64606000	L.H. lateral stuffing for pillow	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64348000	SEAT BACK CENTRAL FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63395300	ELASTIC PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	40294308	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62742300	L.H. complete abdominal belt	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	62742200	R.H. complete abdominal belt	62742200 R.H. complete abdominal belt	-	1	Enquire
-	64605900	R.H. lateral stuffing for pillow	64605900 R.H. lateral stuffing for pillow (narrow seat)	-	1	Enquire
-	64334700	R.H. lateral stuffing for pillow	64334700 R.H. lateral stuffing for pillow (wide seat)	-	1	Enquire
-	64399000	L.H. lateral stuffing for pillow	64399000 L.H. lateral stuffing for pillow (wide seat)	-	1	Enquire
-	64605400	SEAT BACK R.H. LATERAL FOAM	64605400 SEAT BACK R.H. LATERAL FOAM seat back (narrow seat)	-	1	Enquire
-	64605600	SEAT BACK R.H. LATERAL FOAM	64605600 SEAT BACK R.H. LATERAL FOAM seat back (wide seat)	-	1	Enquire
-	64605500	SEAT BACK L.H. LATERAL FOAM	64605500 SEAT BACK L.H. LATERAL FOAM seat back (wide seat)	-	1	Enquire
-	14306374	ALLEN SCREW SOCKET HEAD M8 X 20 IN STOCK	14306374 ALLEN SCREW SOCKET HEAD M8 X 20 Valid after stock exhaustion / of 14306334 IN STOCK	-	8	Enquire
-	64339400	L.H. GUIDE	64339400 L.H. GUIDE	-	2	Enquire
-	64348500	R.H. SEAT BACK INNER ADJUSTER	64348500 R.H. SEAT BACK INNER ADJUSTER	-	1	Enquire
-	64321200	L.H. BRACKET	64321200 L.H. BRACKET	-	2	Enquire
-	64329300	R.H. SEAT BACK OUTER ADJUSTER	64329300 R.H. SEAT BACK OUTER ADJUSTER	-	1	Enquire
-	64348900	RH SEAT OUTER ARTICULATED JOINT COVER	64348900 RH SEAT OUTER ARTICULATED JOINT COVER	-	1	Enquire
-	64347200	SEAT L.H. TRANSMISSION COVER	64347200 SEAT L.H. TRANSMISSION COVER	-	1	Enquire
-	649391	Complete "Narrow" R.H. seat	649391 Complete "Narrow" R.H. seat Alcantara beige / Valid for USA	-	1	Enquire
-	649369	Complete "Narrow" R.H. seat	649369 Complete "Narrow" R.H. seat Leather / Not for USA	-	1	Enquire
-	649392	Complete "Narrow" R.H. seat	649392 Complete "Narrow" R.H. seat Leather / Valid for USA	-	1	Enquire
-	649367	Complete "Narrow" R.H. seat	649367 Complete "Narrow" R.H. seat Black Alcantara / Not for USA	-	1	Enquire
-	649390	Complete "Narrow" R.H. seat	649390 Complete "Narrow" R.H. seat Black Alcantara / Valid for USA	-	1	Enquire
-	649368	Complete "Narrow" R.H. seat	649368 Complete "Narrow" R.H. seat Alcantara "beige" / Not for USA	-	1	Enquire
-	649365	Complete "Large" R.H. seat	649365 Complete "Large" R.H. seat Leather / Not for USA	-	1	Enquire
-	649388	Complete "Large" R.H. seat	649388 Complete "Large" R.H. seat Leather / Valid for USA	-	1	Enquire
-	649366	Complete "Narrow" R.H. seat	649366 Complete "Narrow" R.H. seat Red Alcantara / Not for USA	-	1	Enquire
-	649389	Complete "Narrow" R.H. seat	649389 Complete "Narrow" R.H. seat Red Alcantara / Valid for USA	-	1	Enquire
-	649386	Complete "Large" R.H. seat	649386 Complete "Large" R.H. seat Black Alcantara / Valid for USA	-	1	Enquire
-	649364	Complete "Large" R.H. seat	649364 Complete "Large" R.H. seat Alcantara beige / Not for USA	-	1	Enquire
-	649387	Complete "Large" R.H. seat	649387 Complete "Large" R.H. seat Alcantara beige / Valid for USA	-	1	Enquire
-	649501	Complete "Narrow" L.H. seat	649501 Complete "Narrow" L.H. seat Leather / Valid for USA	-	1	Enquire
-	649362	Complete "Large" R.H. seat	649362 Complete "Large" R.H. seat Red Alcantara / Not for USA	-	1	Enquire
-	649385	Complete "Large" R.H. seat	649385 Complete "Large" R.H. seat Red Alcantara / Valid for USA	-	1	Enquire
-	649363	Complete "Large" R.H. seat	649363 Complete "Large" R.H. seat Black Alcantara / Not for USA	-	1	Enquire
-	649398	Complete "Narrow" L.H. seat	649398 Complete "Narrow" L.H. seat Black Alcantara / Valid for USA	-	1	Enquire
-	649376	Complete "Narrow" L.H. seat	649376 Complete "Narrow" L.H. seat Alcantara beige / Not for USA	-	1	Enquire
-	649399	Complete "Narrow" L.H. seat	649399 Complete "Narrow" L.H. seat Alcantara beige / Valid for USA	-	1	Enquire
-	649377	Complete "Narrow" L.H. seat	649377 Complete "Narrow" L.H. seat Leather / Not for USA	-	1	Enquire
-	649396	Complete "Large" L.H. seat	649396 Complete "Large" L.H. seat Leather / Valid for USA	-	1	Enquire
-	649374	Complete "Narrow" L.H. seat	649374 Complete "Narrow" L.H. seat Red Alcantara / Not for USA	-	1	Enquire
-	649397	Complete "Narrow" L.H. seat	649397 Complete "Narrow" L.H. seat Red Alcantara / Valid for USA	-	1	Enquire
-	649375	Complete "Narrow" L.H. seat	649375 Complete "Narrow" L.H. seat Black Alcantara / Not for USA	-	1	Enquire
-	649394	Complete "Large" L.H. seat	649394 Complete "Large" L.H. seat Black Alcantara / Valid for USA	-	1	Enquire
-	649372	Complete "Large" L.H. seat	649372 Complete "Large" L.H. seat Alcantara beige / Not for USA	-	1	Enquire
-	649395	Complete "Large" L.H. seat	649395 Complete "Large" L.H. seat Alcantara beige / Valid for USA	-	1	Enquire
-	649373	Complete "Large" L.H. seat	649373 Complete "Large" L.H. seat Leather / Not for USA	-	1	Enquire
-	649370	Complete "Large" L.H. seat	649370 Complete "Large" L.H. seat Red Alcantara / Not for USA	-	1	Enquire
-	649393	Complete "Large" L.H. seat	649393 Complete "Large" L.H. seat Red Alcantara / Valid for USA	-	1	Enquire
-	649371	Complete "Large" L.H. seat	649371 Complete "Large" L.H. seat Black Alcantara / Not for USA	-	1	Enquire
1	64348800	RH SEAT INNER ARTICULATED JOINT COVER	64348800 RH SEAT INNER ARTICULATED JOINT COVER	-	1	Enquire
2	64348600	SEAT R.H. TRANSMISSION COVER	64348600 SEAT R.H. TRANSMISSION COVER	-	1	Enquire
3	64330800	PLUG FOR KNOB	64330800 PLUG FOR KNOB	-	2	Enquire
4	64331300	SEAT BACK ADJUSTMENT KNOB	64331300 SEAT BACK ADJUSTMENT KNOB	-	2	Enquire
5	63929800	SCREW	63929800 SCREW	-	10	Enquire
6	13550405	WASHER IN STOCK	13550405 WASHER IN STOCK	-	10	Enquire
7	64347000	SELF-LUBRICATING BUSHING	64347000 SELF-LUBRICATING BUSHING	-	2	Enquire
8	64347100	PULLEYS CONNECTING BELT	64347100 PULLEYS CONNECTING BELT	-	1	Enquire
9	64330700	ARTICULATED JOINT CONTROL PULLEY	64330700 ARTICULATED JOINT CONTROL PULLEY	-	2	Enquire
10	64347700	WASHER	64347700 WASHER	-	2	Enquire
11	16160976	SNAP RING IN STOCK	16160976 SNAP RING IN STOCK	-	2	Enquire
12	64328200	PIN	64328200 PIN	-	1	Enquire
13	64347600	ARTICULATED JOINT CONNECTION ROD	64347600 ARTICULATED JOINT CONNECTION ROD	-	1	Enquire
14	64328700	L.H. SEAT BACK OUTER ADJUSTER	64328700 L.H. SEAT BACK OUTER ADJUSTER	-	1	Enquire
15	64547200	Stop bracket	64547200 Stop bracket	-	4	Enquire
16	10977524	SCREW	10977524 SCREW	-	4	Enquire
17	13577724	WASHER	13577724 WASHER	-	4	Enquire
18	160957	Washer IN STOCK	160957 Washer IN STOCK	-	4	Enquire
19	64321400	R.H. BRACKET	64321400 R.H. BRACKET	-	2	Enquire
20	64346900	L.H. SEAT BACK INNER ADJUSTER	64346900 L.H. SEAT BACK INNER ADJUSTER	-	1	Enquire
21	40294308	SCREW	40294308 SCREW	-	8	Enquire
22	63395300	ELASTIC PLATE	63395300 ELASTIC PLATE	-	8	Enquire
23	14306374	ALLEN SCREW SOCKET HEAD M8 X 20 IN STOCK	14306374 ALLEN SCREW SOCKET HEAD M8 X 20 IN STOCK	-	8	Enquire
24	63395300	ELASTIC PLATE	63395300 ELASTIC PLATE	-	8	Enquire
25	64339500	GUIDE CONTROL FORK	64339500 GUIDE CONTROL FORK	-	2	Enquire
26	64339300	R.H. GUIDE	64339300 R.H. GUIDE	-	2	Enquire
27	85833700	SCREW	85833700 SCREW	-	8	Enquire
28	64346700	SEAT BACK UPPER AND LATERAL FOAM	64346700 SEAT BACK UPPER AND LATERAL FOAM upper part	-	1	Enquire
29	64605700	SEAT BACK L.H. LATERAL FOAM	64605700 SEAT BACK L.H. LATERAL FOAM seat back (narrow seat)	-	1	Enquire
30	64605800	Central stuffing lower pillow	64605800 Central stuffing lower pillow	-	1	Enquire
31	64347800	Central stuffing upper pillow	64347800 Central stuffing upper pillow	-	1	Enquire
32	64532400	Front stuffing for pillow	64532400 Front stuffing for pillow	-	1	Enquire
33	64606000	L.H. lateral stuffing for pillow	64606000 L.H. lateral stuffing for pillow (narrow seat)	-	1	Enquire
34	64348000	SEAT BACK CENTRAL FOAM	64348000 SEAT BACK CENTRAL FOAM seat back	-	1	Enquire
35	63395300	ELASTIC PLATE	63395300 ELASTIC PLATE	-	4	Enquire
36	40294308	SCREW	40294308 SCREW	-	4	Enquire
37	62742300	L.H. complete abdominal belt	62742300 L.H. complete abdominal belt	-	1	Enquire
