EXHAUST SYSTEM - FRONT SECTION of Ferrari Ferrari 488 Pista Spider USA

View All

Ferrari 488 Pista Spider USA - EXHAUST SYSTEM - FRONT SECTION

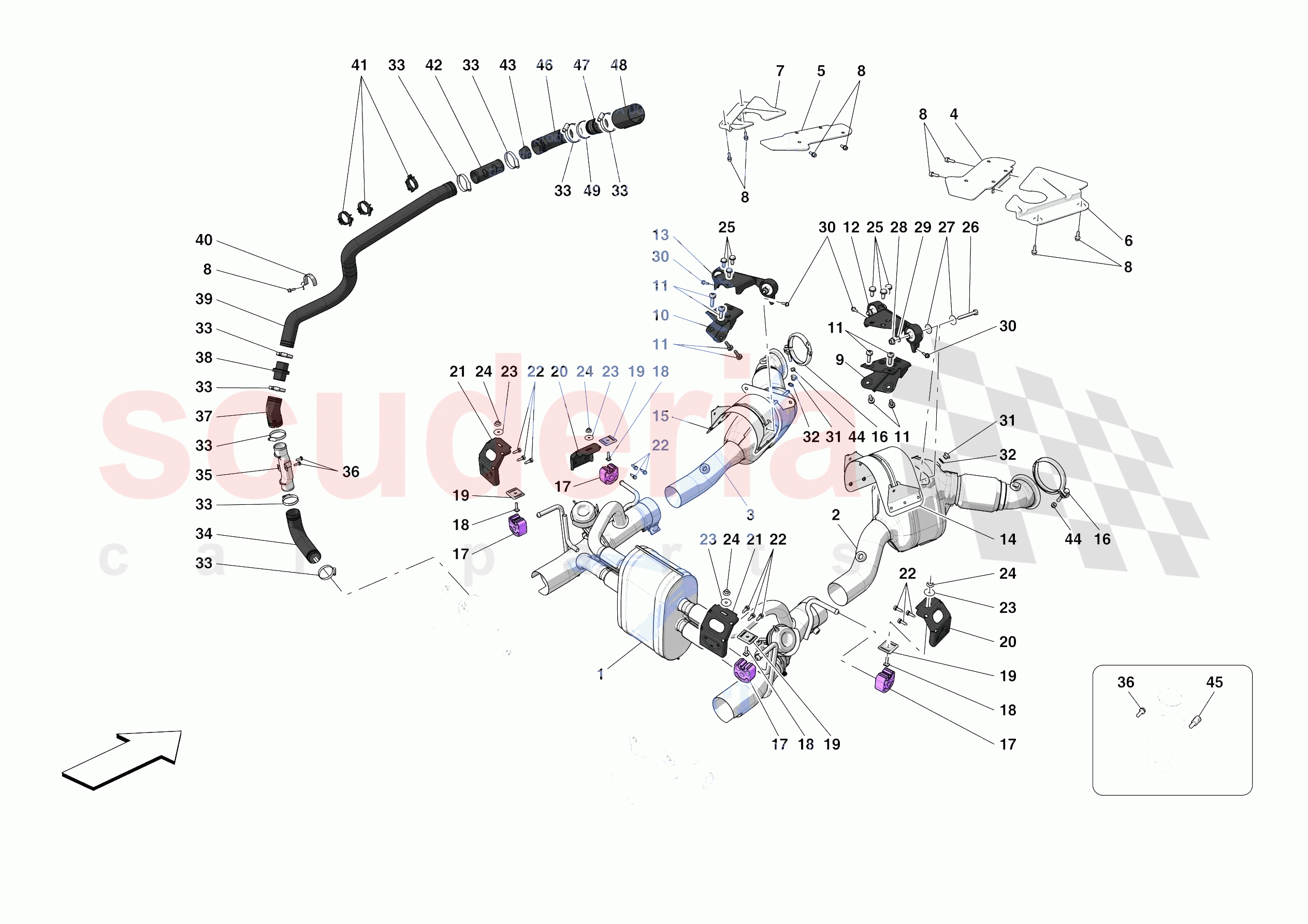

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	844312	CENTRAL SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321608	COMPL. RH CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321609	COMPL. LH CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319368	RH CATALYTIC CONVERTER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319369	LH CATALYTIC CONVERTER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319366	RH CHASSIS TURBO HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	962333	LH CHASSIS TURBO HEAT SHIELD	Enquire	To Order
	962333	LH CHASSIS TURBO HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300595	RH CATALYTIC CONVERTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300596	LH CATALYTIC CONVERTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216575	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	813573	RH BRACKET COMPL. WITH BUSHES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	813574	LH BRACKET COMPL. WITH BUSHES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320008	RH CATALYTIC CONVERTER SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320009	LH CATALYTIC CONVERTER SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324642	RING CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239798	FLEXIBLE SILENCER MOUNTING BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	283425	SQUARE HEADED SCREW M6 X 18.5MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240598	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	875279	SILENCER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	875282	SILENCER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11585024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11627826	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044321	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110860	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	789151	CONNECTOR HOSE FROM TAILPIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	803140	REAR RIGID PIPE ON REAR CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785295	PREFORMED HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	786536	COMPL. MEMBRANE HOLDER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	814258	COIL PIPE COMPL. WITH CLAMPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785344	LH BRACKET	Enquire	To Order
	785341	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292206	PIPE RETAINER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	859363	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	877429	REDUCER FOR RESONATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292945	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260007	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	818977	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	818941	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	878538	MEMBRANE HOLDER PIPE HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262116	COLLAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	844312	CENTRAL SILENCER	844312 CENTRAL SILENCER	-	1	Enquire
0002	321608	COMPL. RH CATALYTIC CONVERTER	321608 COMPL. RH CATALYTIC CONVERTER	-	1	Enquire
0003	321609	COMPL. LH CATALYTIC CONVERTER	321609 COMPL. LH CATALYTIC CONVERTER	-	1	Enquire
0004	319368	RH CATALYTIC CONVERTER HEAT SHIELD	319368 RH CATALYTIC CONVERTER HEAT SHIELD	-	1	Enquire
0005	319369	LH CATALYTIC CONVERTER HEAT SHIELD	319369 LH CATALYTIC CONVERTER HEAT SHIELD	-	1	Enquire
0006	319366	RH CHASSIS TURBO HEAT SHIELD	319366 RH CHASSIS TURBO HEAT SHIELD	-	1	Enquire
0007	962333	LH CHASSIS TURBO HEAT SHIELD	962333 LH CHASSIS TURBO HEAT SHIELD	-	1	Enquire
0007	962333	LH CHASSIS TURBO HEAT SHIELD	962333 LH CHASSIS TURBO HEAT SHIELD	-	1	Enquire
0008	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	10	Enquire
0009	300595	RH CATALYTIC CONVERTER BRACKET	300595 RH CATALYTIC CONVERTER BRACKET	-	1	Enquire
0010	300596	LH CATALYTIC CONVERTER BRACKET	300596 LH CATALYTIC CONVERTER BRACKET	-	1	Enquire
0011	216575	SCREW	216575 SCREW M8 X 25	-	8	Enquire
0012	813573	RH BRACKET COMPL. WITH BUSHES	813573 RH BRACKET COMPL. WITH BUSHES	-	1	Enquire
0013	813574	LH BRACKET COMPL. WITH BUSHES	813574 LH BRACKET COMPL. WITH BUSHES	-	1	Enquire
0014	320008	RH CATALYTIC CONVERTER SHIELD	320008 RH CATALYTIC CONVERTER SHIELD	-	1	Enquire
0015	320009	LH CATALYTIC CONVERTER SHIELD	320009 LH CATALYTIC CONVERTER SHIELD	-	1	Enquire
0016	324642	RING CLAMP	324642 RING CLAMP	-	2	Enquire
0017	239798	FLEXIBLE SILENCER MOUNTING BUSH	239798 FLEXIBLE SILENCER MOUNTING BUSH	-	4	Enquire
0018	283425	SQUARE HEADED SCREW M6 X 18.5MM	283425 SQUARE HEADED SCREW M6 X 18.5MM M6 X 23	-	4	Enquire
0019	240598	PLATE	240598 PLATE	-	4	Enquire
0020	875279	SILENCER MOUNTING BRACKET	875279 SILENCER MOUNTING BRACKET	-	2	Enquire
0021	875282	SILENCER MOUNTING BRACKET	875282 SILENCER MOUNTING BRACKET	-	2	Enquire
0022	11585024	SCREW	11585024 SCREW M5 X 14	-	12	Enquire
0023	12648978	WASHER	12648978 WASHER	-	4	Enquire
0024	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
0025	11627826	SCREW	11627826 SCREW M8 X 18	-	6	Enquire
0026	16044321	SCREW	16044321 SCREW M8 X 55	-	4	Enquire
0027	13578324	WASHER	13578324 WASHER D. 8.15 - 24 X 2	-	8	Enquire
0028	14059311	NUT	14059311 NUT	-	4	Enquire
0029	12601374	WASHER	12601374 WASHER	-	4	Enquire
0030	85833700	SCREW	85833700 SCREW M5 X 16	-	4	Enquire
0031	110860	THREADED PLUG	110860 THREADED PLUG	-	2	Enquire
0032	10298460	GASKET	10298460 GASKET	-	2	Enquire
0033	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	12	Enquire
0034	789151	CONNECTOR HOSE FROM TAILPIPE	789151 CONNECTOR HOSE FROM TAILPIPE	-	2	Enquire
0035	803140	REAR RIGID PIPE ON REAR CROSS MEMBER	803140 REAR RIGID PIPE ON REAR CROSS MEMBER	-	2	Enquire
0036	11625824	SCREW	11625824 SCREW M6 X 18	-	3	Enquire
0037	785295	PREFORMED HOSE	785295 PREFORMED HOSE	-	2	Enquire
0038	786536	COMPL. MEMBRANE HOLDER PIPE	786536 COMPL. MEMBRANE HOLDER PIPE	-	2	Enquire
0039	814258	COIL PIPE COMPL. WITH CLAMPS	814258 COIL PIPE COMPL. WITH CLAMPS	-	2	Enquire
0040	785344	LH BRACKET	785344 LH BRACKET	-	1	Enquire
0040	785341	RH BRACKET	785341 RH BRACKET	-	1	Enquire
0041	292206	PIPE RETAINER CLIP	292206 PIPE RETAINER CLIP	-	8	Enquire
0042	859363	PIPE	859363 PIPE	-	2	Enquire
0043	877429	REDUCER FOR RESONATOR	877429 REDUCER FOR RESONATOR	-	2	Enquire
0044	292945	NUT	292945 NUT M8 X1.25 X 11	-	2	Enquire
0045	260007	STUD BOLT	260007 STUD BOLT	-	1	Enquire
0046	818977	HOSE	818977 HOSE	-	2	Enquire
0047	818941	HOSE	818941 HOSE	-	2	Enquire
0048	878538	MEMBRANE HOLDER PIPE HEAT SHIELD	878538 MEMBRANE HOLDER PIPE HEAT SHIELD	-	2	Enquire
0049	262116	COLLAR	262116 COLLAR	-	2	Enquire
