Name: GEARBOX AND FASTENERS
Rating: 5.0 (1 reviews)

View All

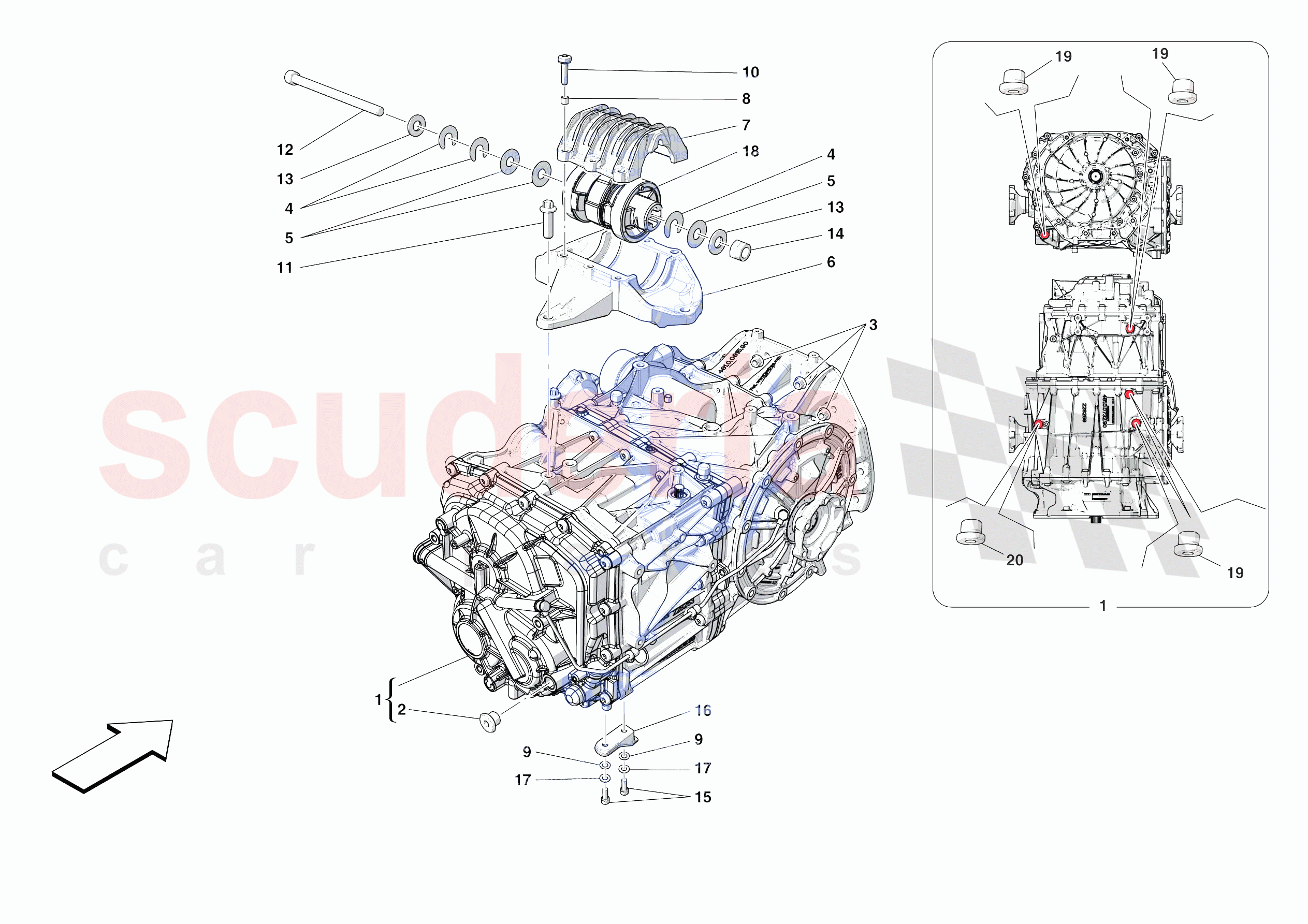

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	807337	COMPL. DCT GEARBOX	$36,698.07	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	255731	SHIM	$5.01	To Order

Photo	Part No	Description	Price (each)	Stock
	255732	SHIM	$28.66	To Order

Photo	Part No	Description	Price (each)	Stock
	259440	BUSHING-GEARBOX CONNECTOR PLATE	$301.00	To Order

Photo	Part No	Description	Price (each)	Stock
	259441	BUSHING COVER COLLAR	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	102032	CENTERING DOWEL	$3.91	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	216576	SCREW	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	259443	SCREW	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	921971	SCREW	$15.66	To Order

Photo	Part No	Description	Price (each)	Stock
	10552324	WASHER	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	851485	SELF-LOCKING NUT	$2.01	To Order

Photo	Part No	Description	Price (each)	Stock
	14814234	SCREW	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	248689	RETENTION BRACKET	$63.05	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	247723	VIBRATION DAMPER	$288.81	To Order

Photo	Part No	Description	Price (each)	Stock
	70004679	OIL DRAIN PLUG	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	70005056	ATF OIL LEVEL PLUG KIT	$17.63	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	807337	COMPL. DCT GEARBOX	807337 COMPL. DCT GEARBOX Request ASM authorisation	$36,698.07	1
0002	263679	FUEL LEVEL PLUG	263679 FUEL LEVEL PLUG Applies until depletion	$114.66	1
0002	70005055	GL5 OIL LEVEL PLUG	70005055 GL5 OIL LEVEL PLUG Applicable after depletion of 263679	$57.75	1
0003	14059421	NUT	14059421 NUT	$0.52	10
0004	255731	SHIM	255731 SHIM Th. 0.4 mm	$5.01	3
0005	255732	SHIM	255732 SHIM Th. 1 mm	$28.66	3
0006	259440	BUSHING-GEARBOX CONNECTOR PLATE	259440 BUSHING-GEARBOX CONNECTOR PLATE	$301.00	1
0007	259441	BUSHING COVER COLLAR	259441 BUSHING COVER COLLAR	$186.33	1
0008	102032	CENTERING DOWEL	102032 CENTERING DOWEL	$3.91 MSRP: ~~10.75~~ (63.6% off)	2
0009	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
0010	216576	SCREW	216576 SCREW M8 X 30	$0.75	6
0011	259443	SCREW	259443 SCREW M12 X 36	$2.92	3
0012	921971	SCREW	921971 SCREW	$15.66	1
0013	10552324	WASHER	10552324 WASHER	$0.47	2
0014	851485	SELF-LOCKING NUT	851485 SELF-LOCKING NUT	$2.01	1
0015	14814234	SCREW	14814234 SCREW M8 X 20	$1.77	4
0016	248689	RETENTION BRACKET	248689 RETENTION BRACKET	$63.05	2
0017	12638524	WASHER	12638524 WASHER D. 8.15 -15 X 1.5	$0.06 MSRP: ~~0.25~~ (76% off)	4
0018	247723	VIBRATION DAMPER	247723 VIBRATION DAMPER	$288.81	1
0019	70004679	OIL DRAIN PLUG	70004679 OIL DRAIN PLUG	$24.05	4
0020	70005056	ATF OIL LEVEL PLUG KIT	70005056 ATF OIL LEVEL PLUG KIT	$17.63	1
