Name: TIMING SYSTEM DRIVE
Rating: 5.0 (1 reviews)

TIMING SYSTEM DRIVE of Ferrari Ferrari 488 Pista Europe RH

View All

Ferrari 488 Pista Europe RH - TIMING SYSTEM DRIVE

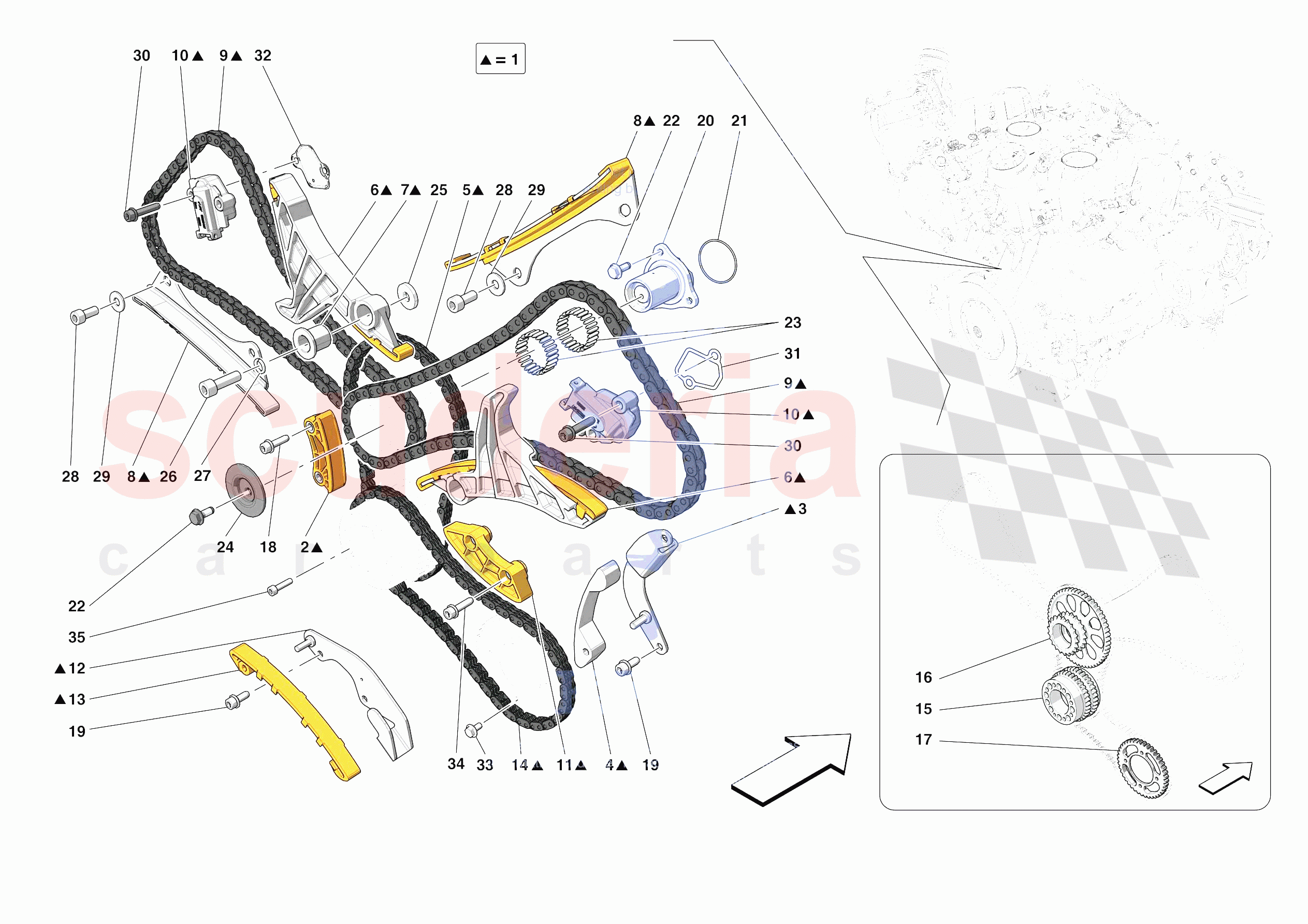

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	341189	COMPL. VALVE TIMING SYSTEM	$1,444.12	To Order

Photo	Part No	Description	Price (each)	Stock
	306094	FIXED SHOE	$68.98	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	271856	MOBILE SHOE MOUNT	$68.98	To Order

Photo	Part No	Description	Price (each)	Stock
	257626	SHOE	$100.33	To Order

Photo	Part No	Description	Price (each)	Stock
	271880	CHAIN	$139.58	To Order

Photo	Part No	Description	Price (each)	Stock
	318677	SHOE	$105.89	To Order

Photo	Part No	Description	Price (each)	Stock
	175303	BUSH	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	307544	SHOE	$78.82	To Order

Photo	Part No	Description	Price (each)	Stock
	317852	CHAIN	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	297696	TENSIONER	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	311057	SHOE	$77.39	To Order

Photo	Part No	Description	Price (each)	Stock
	276463	COMPL. MOUNT	$41.56	To Order

Photo	Part No	Description	Price (each)	Stock
	337842	MOBILE SHOE	$121.82	To Order

Photo	Part No	Description	Price (each)	Stock
	311058	CHAIN	$1,010.88	To Order

Photo	Part No	Description	Price (each)	Stock
	304689	CRANKSHAFT GEAR	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	304687	DRIVE GEAR	$516.03	To Order

Photo	Part No	Description	Price (each)	Stock
	310416	PUMP DRIVE GEAR	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	282396	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	318595	GEAR MOUNT	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	154191	GASKET	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	284898	SCREW	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	267808	ROLLER BEARING CAGE	$15.07	To Order

Photo	Part No	Description	Price (each)	Stock
	304699	SHOULDER	$36.89	To Order

Photo	Part No	Description	Price (each)	Stock
	288341	WASHER	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	14306421	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	284900	WASHER	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	14302821	SCREW	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	163759	WASHER	$14.28	To Order

Photo	Part No	Description	Price (each)	Stock
	282398	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	322518	GASKET	$8.22	To Order

Photo	Part No	Description	Price (each)	Stock
	306440	GASKET	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	284899	SCREW	$4.10	To Order

Photo	Part No	Description	Price (each)	Stock
	282397	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	245914	SCREW	$0.21	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	341189	COMPL. VALVE TIMING SYSTEM	341189 COMPL. VALVE TIMING SYSTEM	$1,444.12	1
0002	306094	FIXED SHOE ARRIVING SOON	306094 FIXED SHOE ARRIVING SOON	$68.98	1
0003	271856	MOBILE SHOE MOUNT	271856 MOBILE SHOE MOUNT	$68.98	1
0004	257626	SHOE	257626 SHOE	$100.33	1
0005	271880	CHAIN	271880 CHAIN	$139.58	1
0006	318677	SHOE	318677 SHOE	$105.89	2
0007	175303	BUSH	175303 BUSH	$37.25	2
0008	307544	SHOE	307544 SHOE	$78.82	2
0009	317852	CHAIN	317852 CHAIN	$240.67	2
0010	297696	TENSIONER	297696 TENSIONER	$320.90	2
0011	311057	SHOE	311057 SHOE	$77.39	1
0012	276463	COMPL. MOUNT	276463 COMPL. MOUNT	$41.56	1
0013	337842	MOBILE SHOE	337842 MOBILE SHOE	$121.82	1
0014	311058	CHAIN	311058 CHAIN	$1,010.88	1
0015	304689	CRANKSHAFT GEAR	304689 CRANKSHAFT GEAR	$433.23	1
0016	304687	DRIVE GEAR	304687 DRIVE GEAR	$516.03	1
0017	310416	PUMP DRIVE GEAR	310416 PUMP DRIVE GEAR	$286.67	1
0018	282396	SCREW	282396 SCREW M6 X 22	$0.63	2
0019	282393	SCREW	282393 SCREW M6 X 16	$0.78	4
0020	318595	GEAR MOUNT	318595 GEAR MOUNT	$224.63	1
0021	154191	GASKET	154191 GASKET	$1.47 MSRP: ~~2.52~~ (41.7% off)	1
0022	284898	SCREW	284898 SCREW M6 X 16	$3.32	4
0023	267808	ROLLER BEARING CAGE	267808 ROLLER BEARING CAGE	$15.07	2
0024	304699	SHOULDER	304699 SHOULDER	$36.89	1
0025	288341	WASHER	288341 WASHER	$3.03	2
0026	14306421	SCREW	14306421 SCREW M8 X 20	$0.32	2
0027	284900	WASHER	284900 WASHER	$0.16	2
0028	14302821	SCREW	14302821 SCREW M8 X 18	$0.19	4
0029	163759	WASHER	163759 WASHER	$14.28	4
0030	282398	SCREW	282398 SCREW M6 X 30	$0.52	4
0031	322518	GASKET	322518 GASKET	$8.22	1
0032	306440	GASKET	306440 GASKET Also included in engine gasket set	$2.25	1
0033	284899	SCREW	284899 SCREW M5 X 10	$4.10	4
0034	282397	SCREW	282397 SCREW M6 X 25	$0.52	2
0035	245914	SCREW	245914 SCREW M5 X 20	$0.21	1
