REAR SUSPENSION - ARMS of Ferrari Ferrari 488 Pista Europe

View All

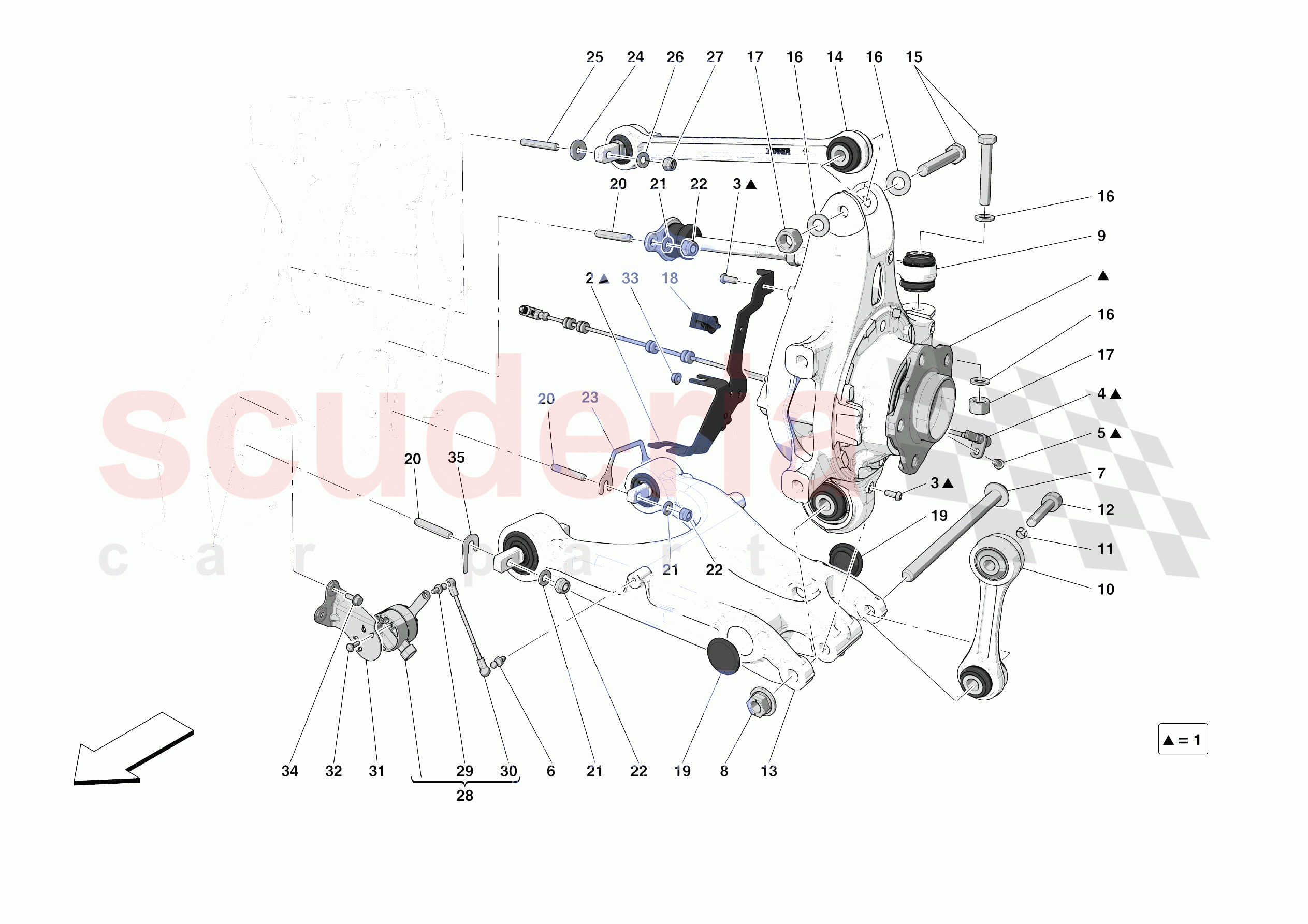

Ferrari 488 Pista Europe - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	299933	COMPL. LH REAR HUB CARRIER	Enquire	To Order
	299935	RH REAR HUB CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299534	LH REAR JOINT BRACKET	Enquire	To Order
	299535	RH REAR JOINT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252514	ABS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216973	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238656	SPECIAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238063	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245161	TIE-ROD	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	259688	ANTI-ROTATION LINKAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222956	COMPENSATOR RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238258	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314774	COMPL. LOWER LH REAR ARM	Enquire	To Order
	911176	LH LOWER REAR ARM	Enquire	To Order
	896443	COMPL. LOWER LH REAR ARM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	295792	REAR UPPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15541434	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14496721	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203666	NUT M12	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	316888	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14507987	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264528	THREADED ROD 10 X 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262544	ADJUSTER SHIM	Enquire	To Order
	262545	ADJUSTER SHIM	Enquire	To Order
	262546	ADJUSTER SHIM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	816274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302406	THREADED ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259265	COMPL. REAR LH MOTION SENSOR	Enquire	To Order
	259266	REAR RH MOTION SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216973	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229653	POTENTIOMETER LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259569	LH REAR BRACKET	Enquire	To Order
	260444	RH REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217456	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262544	ADJUSTER SHIM	Enquire	To Order
	238693	ADJUSTMENT SHIM	Enquire	To Order
	238881	CAMBER SPACER 1.5MM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	299933	COMPL. LH REAR HUB CARRIER	299933 COMPL. LH REAR HUB CARRIER	-	1	Enquire
0001	299935	RH REAR HUB CARRIER	299935 RH REAR HUB CARRIER	-	1	Enquire
0002	299534	LH REAR JOINT BRACKET	299534 LH REAR JOINT BRACKET	-	1	Enquire
0002	299535	RH REAR JOINT BRACKET	299535 RH REAR JOINT BRACKET	-	1	Enquire
0003	250657	SCREW M6 X 14	250657 SCREW M6 X 14 M6 X 14	-	12	Enquire
0004	252514	ABS SENSOR	252514 ABS SENSOR	-	2	Enquire
0006	216973	BALL JOINT	216973 BALL JOINT	-	2	Enquire
0007	238656	SPECIAL SCREW	238656 SPECIAL SCREW M14 X 1.5 X 210	-	2	Enquire
0008	238063	NUT	238063 NUT	-	2	Enquire
0009	245161	TIE-ROD ARRIVING SOON	245161 TIE-ROD ARRIVING SOON	-	2	Enquire
0010	259688	ANTI-ROTATION LINKAGE	259688 ANTI-ROTATION LINKAGE	-	2	Enquire
0011	222956	COMPENSATOR RING	222956 COMPENSATOR RING	-	2	Enquire
0012	238258	SCREW	238258 SCREW M12 X 1.25 X 75	-	2	Enquire
0013	314774	COMPL. LOWER LH REAR ARM	314774 COMPL. LOWER LH REAR ARM No longer supplied - Replaced by 329243	-	1	Enquire
0013	911176	LH LOWER REAR ARM	911176 LH LOWER REAR ARM For vehicles up to Ass.ly No. 169580, also order code 911175; Applicable after depletion of 329243	-	1	Enquire
0013	896443	COMPL. LOWER LH REAR ARM	896443 COMPL. LOWER LH REAR ARM No longer supplied - Replaced by 911176	-	1	Enquire
0013	911176	LH LOWER REAR ARM	911176 LH LOWER REAR ARM	-	1	Enquire
0013	314775	COMPL. LOWER RH REAR ARM	314775 COMPL. LOWER RH REAR ARM No longer supplied - Replaced by 329244	-	1	Enquire
0013	329244	COMPL. LOWER RH REAR ARM	329244 COMPL. LOWER RH REAR ARM Applies until depletion	-	1	Enquire
0013	896445	COMPL. LOWER RH REAR ARM	896445 COMPL. LOWER RH REAR ARM No longer supplied - Replaced by 911175	-	1	Enquire
0013	911175	RH REAR LOWER ARM	911175 RH REAR LOWER ARM For vehicles up to Ass.ly No. 169580, also order code 911176; Applicable after depletion of 329244	-	1	Enquire
0014	295792	REAR UPPER ARM	295792 REAR UPPER ARM	-	2	Enquire
0015	15541434	SCREW ARRIVING SOON	15541434 SCREW M12 X 1.25 X 80 ARRIVING SOON	-	4	Enquire
0016	14496721	WASHER	14496721 WASHER	-	8	Enquire
0017	203666	NUT M12 ARRIVING SOON	203666 NUT M12 ARRIVING SOON	-	4	Enquire
0018	316888	CLIP	316888 CLIP	-	4	Enquire
0019	14507987	PLUG	14507987 PLUG	-	4	Enquire
0020	264528	THREADED ROD 10 X 1.25	264528 THREADED ROD 10 X 1.25	-	12	Enquire
0021	14496624	WASHER	14496624 WASHER D. 10.5-21 X 2	-	12	Enquire
0022	104114	NUT	104114 NUT	-	12	Enquire
0023	262544	ADJUSTER SHIM	262544 ADJUSTER SHIM Installed if necessary; Th. 0.5 mm	-	2	Enquire
0023	262545	ADJUSTER SHIM	262545 ADJUSTER SHIM Installed if necessary; Th. 1 mm	-	2	Enquire
0023	262546	ADJUSTER SHIM	262546 ADJUSTER SHIM Installed if necessary; Th. 1.5 mm	-	2	Enquire
0023	262539	ADJUSTER SHIM	262539 ADJUSTER SHIM Installed if necessary; Th. 2 mm	-	2	Enquire
0023	262540	ADJUSTER SHIM	262540 ADJUSTER SHIM Installed if necessary; Th. 2.5 mm	-	2	Enquire
0023	262541	ADJUSTER SHIM	262541 ADJUSTER SHIM Installed if necessary; Th. 3 mm	-	2	Enquire
0023	262542	ADJUSTER SHIM	262542 ADJUSTER SHIM Installed if necessary; Th. 3.5 mm	-	2	Enquire
0023	262543	ADJUSTER SHIM	262543 ADJUSTER SHIM Installed if necessary; Th. 4 mm	-	2	Enquire
0024	816274	WASHER	816274 WASHER	-	4	Enquire
0025	302406	THREADED ROD	302406 THREADED ROD	-	4	Enquire
0026	14496524	WASHER	14496524 WASHER	-	4	Enquire
0027	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	4	Enquire
0028	259265	COMPL. REAR LH MOTION SENSOR	259265 COMPL. REAR LH MOTION SENSOR	-	1	Enquire
0028	259266	REAR RH MOTION SENSOR	259266 REAR RH MOTION SENSOR	-	1	Enquire
0029	216973	BALL JOINT	216973 BALL JOINT	-	2	Enquire
0030	229653	POTENTIOMETER LINK	229653 POTENTIOMETER LINK L. 115 mm	-	2	Enquire
0031	259569	LH REAR BRACKET	259569 LH REAR BRACKET	-	1	Enquire
0031	260444	RH REAR BRACKET	260444 RH REAR BRACKET	-	1	Enquire
0032	217456	SCREW	217456 SCREW M5 X 16	-	6	Enquire
0033	13046011	NUT	13046011 NUT	-	2	Enquire
0034	86574700	SCREW	86574700 SCREW M6 X 16	-	4	Enquire
0035	262544	ADJUSTER SHIM	262544 ADJUSTER SHIM Th. 0.5 mm	-	4	Enquire
0035	238693	ADJUSTMENT SHIM	238693 ADJUSTMENT SHIM Th. 1 mm	-	4	Enquire
0035	238881	CAMBER SPACER 1.5MM	238881 CAMBER SPACER 1.5MM Th. 1.5 mm	-	4	Enquire
0035	238694	ADJUSTMENT SHIM	238694 ADJUSTMENT SHIM Th. 2 mm	-	4	Enquire
0035	238882	ADJUSTMENT SHIM	238882 ADJUSTMENT SHIM Th. 2.5 mm	-	4	Enquire
0035	238883	ADJUSTMENT SHIM	238883 ADJUSTMENT SHIM Th. 3 mm	-	4	Enquire
0035	238884	ADJUSTMENT SHIM	238884 ADJUSTMENT SHIM Th. 3.5 mm	-	4	Enquire
0035	238885	CAMBER SPACER 4MM	238885 CAMBER SPACER 4MM Th. 4 mm	-	4	Enquire
