FRONT SUBSTRUCTURE of Ferrari Ferrari 488 Pista

View All

Ferrari 488 Pista - FRONT SUBSTRUCTURE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	985771179	COMPL. REAR S-DUCT HALF DUCT	985771179 COMPL. REAR S-DUCT HALF DUCT	-	1	Enquire
2	87524611	RH BUMPER MOUNTING	87524611 RH BUMPER MOUNTING	-	1	Enquire
3	10977824	SCREW	10977824 SCREW	-	2	Enquire
4	789146	S-DUCT ADJUSTER SHIM	789146 S-DUCT ADJUSTER SHIM	-	6	Enquire
5	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
6	13839224	SCREW	13839224 SCREW	-	6	Enquire
7	89225911	COMPL. RH FRONT SUBFRAME	89225911 COMPL. RH FRONT SUBFRAME	-	1	Enquire
8	89226911	COMPL. LH FRONT SUBFRAME	89226911 COMPL. LH FRONT SUBFRAME	-	1	Enquire
9	89227911	LH BUMPER FASTENER BRACKET	89227911 LH BUMPER FASTENER BRACKET	-	1	Enquire
10	89228111	RH BUMPER FASTENER BRACKET	89228111 RH BUMPER FASTENER BRACKET	-	1	Enquire
11	86360011	EXTERNAL LH FENDER FASTENER BRACKET	86360011 EXTERNAL LH FENDER FASTENER BRACKET	-	1	Enquire
12	89228711	COMPL. RH HEADLIGHT AND HORN BRACKET	89228711 COMPL. RH HEADLIGHT AND HORN BRACKET	-	1	Enquire
13	89228900	COMPL. RH HEADLIGHT BRACKET	89228900 COMPL. RH HEADLIGHT BRACKET	-	1	Enquire
14	86766811	TRELLIS MOUNTING BRACKET	86766811 TRELLIS MOUNTING BRACKET	-	2	Enquire
15	68040000	WASHER 6 X 20 X 2	68040000 WASHER 6 X 20 X 2	-	4	Enquire
16	86549811	INTERNAL HEADLIGHT FASTENER BRACKET	86549811 INTERNAL HEADLIGHT FASTENER BRACKET	-	2	Enquire
16	86549811	INTERNAL HEADLIGHT FASTENER BRACKET	86549811 INTERNAL HEADLIGHT FASTENER BRACKET	-	2	Enquire
17	62769800	WASHER	62769800 WASHER	-	7	Enquire
18	86359011	EXTERNAL RH FENDER FASTENER BRACKET	86359011 EXTERNAL RH FENDER FASTENER BRACKET	-	1	Enquire
19	87549700	SHIM	87549700 SHIM	-	4	Enquire
20	86674711	LOWER FASTENER BRACKET FOR FRONT FENDER	86674711 LOWER FASTENER BRACKET FOR FRONT FENDER	-	4	Enquire
20	86674711	LOWER FASTENER BRACKET FOR FRONT FENDER	86674711 LOWER FASTENER BRACKET FOR FRONT FENDER	-	4	Enquire

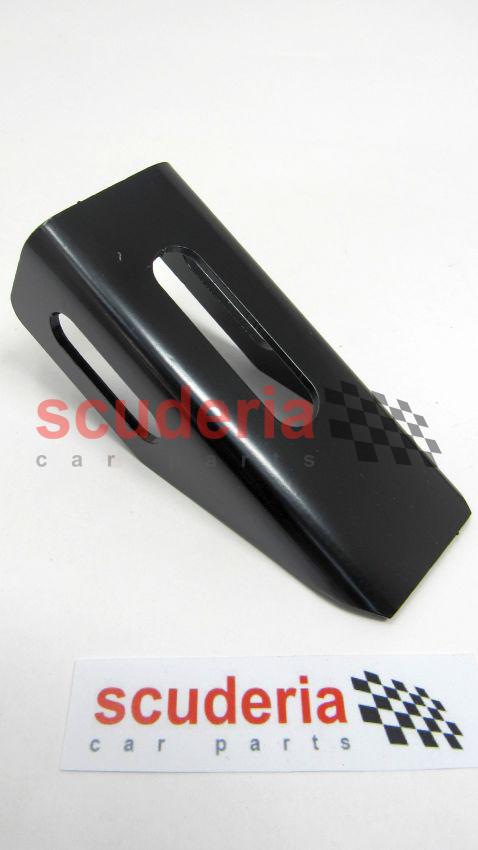

21	85455811	BRACKET FOR ADJUSTER	85455811 BRACKET FOR ADJUSTER	-	2	Enquire
22	87295000	LH UNDERWINDSCREEN TRIM BOX ELEMENT	87295000 LH UNDERWINDSCREEN TRIM BOX ELEMENT	-	1	Enquire
22	87295011	LH UNDERWINDSCREEN TRIM BOX ELEMENT	87295011 LH UNDERWINDSCREEN TRIM BOX ELEMENT	-	1	Enquire
23	87295111	RH UNDERWINDSCREEN TRIM BOX ELEMENT	87295111 RH UNDERWINDSCREEN TRIM BOX ELEMENT	-	1	Enquire
23	87295111	RH UNDERWINDSCREEN TRIM BOX ELEMENT	87295111 RH UNDERWINDSCREEN TRIM BOX ELEMENT	-	1	Enquire
24	12647724	WASHER	12647724 WASHER	-	6	Enquire
25	87549900	SHIM	87549900 SHIM	-	4	Enquire
26	89229900	COMPL. LH HEADLIGHT BRACKET	89229900 COMPL. LH HEADLIGHT BRACKET	-	1	Enquire
27	89230111	COMPL. LH HEADLIGHT AND HORN BRACKET	89230111 COMPL. LH HEADLIGHT AND HORN BRACKET	-	1	Enquire

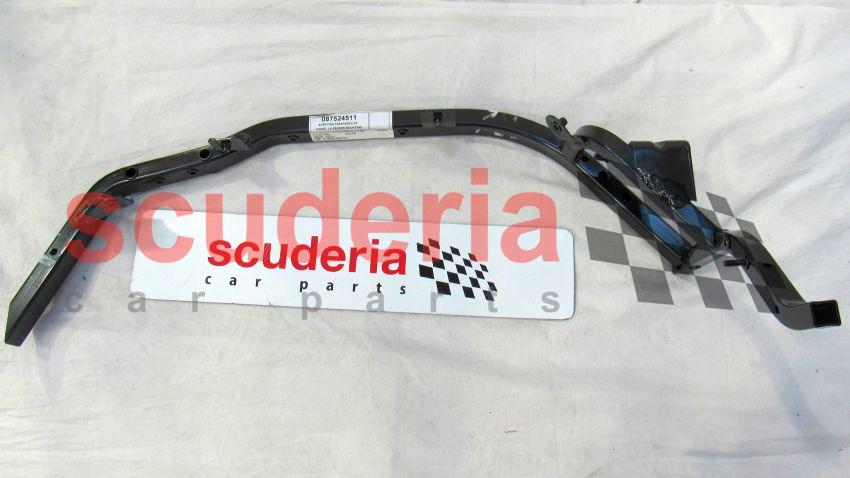

28	87524511	LH BUMPER MOUNTING	87524511 LH BUMPER MOUNTING	-	1	Enquire
29	80709900	SHIM	80709900 SHIM	-	2	Enquire
30	80712500	SHIM	80712500 SHIM	-	2	Enquire
31	89244711	LH RADIATOR MOUNT AND LUGGAGE COMPARTMENT TUB REINFORCEMENT	89244711 LH RADIATOR MOUNT AND LUGGAGE COMPARTMENT TUB REINFORCEMENT	-	1	Enquire
32	89244811	RH RADIATOR MOUNT AND LUGGAGE COMPARTMENT TUB REINFORCEMENT	89244811 RH RADIATOR MOUNT AND LUGGAGE COMPARTMENT TUB REINFORCEMENT	-	1	Enquire
33	12643724	WASHER	12643724 WASHER	-	26	Enquire
34	13578324	WASHER	13578324 WASHER	-	6	Enquire
35	860172	WASHER	860172 WASHER	-	2	Enquire
36	16286121	SCREW	16286121 SCREW	-	34	Enquire
37	89295511	COMPL. FRONT BUMPER CARRIER TUBE	89295511 COMPL. FRONT BUMPER CARRIER TUBE	-	1	Enquire
38	231625	SCREW	231625 SCREW	-	8	Enquire
