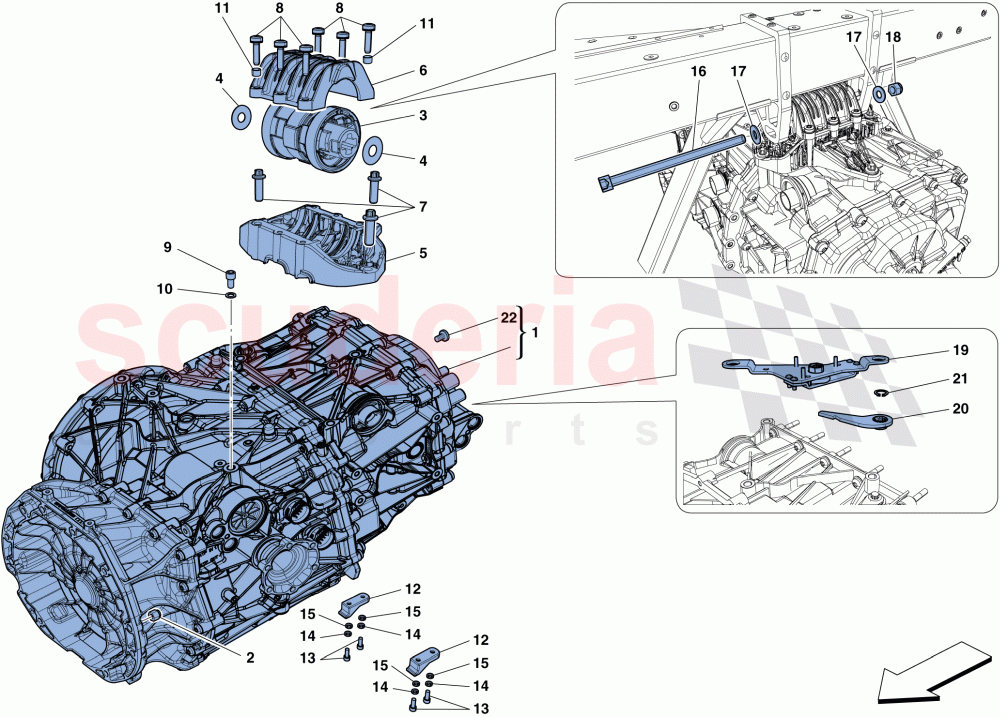

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247723	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259440	BUSHING-GEARBOX CONNECTOR PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259441	BUSHING COVER COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259443	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216576	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14360524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102032	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248689	RETENTION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14814234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	921971	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10552324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	851485	SELF-LOCKING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310524	COMPL. RELEASE CURSOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238370	COMPLETE RELEASE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066176	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263679	FUEL LEVEL PLUG	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	14059421	NUT	14059421 NUT	-	10	Enquire
3	247723	VIBRATION DAMPER	247723 VIBRATION DAMPER	-	1	Enquire
4	255731	SHIM	255731 SHIM Th. 0.4 mm	-	3	Enquire
4	255732	SHIM	255732 SHIM Th. 1 mm	-	3	Enquire
5	259440	BUSHING-GEARBOX CONNECTOR PLATE	259440 BUSHING-GEARBOX CONNECTOR PLATE	-	1	Enquire
6	259441	BUSHING COVER COLLAR	259441 BUSHING COVER COLLAR	-	1	Enquire
7	259443	SCREW	259443 SCREW M12 X 36	-	3	Enquire
8	216576	SCREW	216576 SCREW M8 X 30	-	6	Enquire
9	14360524	SCREW	14360524 SCREW	-	1	Enquire
10	127498	WASHER	127498 WASHER	-	1	Enquire
11	102032	CENTERING DOWEL	102032 CENTERING DOWEL	-	2	Enquire
12	248689	RETENTION BRACKET	248689 RETENTION BRACKET	-	2	Enquire
13	14814234	SCREW	14814234 SCREW M8 X 20	-	4	Enquire
14	12601374	WASHER	12601374 WASHER	-	4	Enquire
15	12638524	WASHER	12638524 WASHER	-	4	Enquire
16	921971	SCREW	921971 SCREW	-	1	Enquire
17	10552324	WASHER	10552324 WASHER	-	2	Enquire
18	851485	SELF-LOCKING NUT	851485 SELF-LOCKING NUT	-	1	Enquire
19	310524	COMPL. RELEASE CURSOR MOUNTING BRACKET	310524 COMPL. RELEASE CURSOR MOUNTING BRACKET	-	1	Enquire
20	238370	COMPLETE RELEASE LEVER	238370 COMPLETE RELEASE LEVER	-	1	Enquire
21	11066176	SEEGER RING	11066176 SEEGER RING	-	1	Enquire
22	263679	FUEL LEVEL PLUG	263679 FUEL LEVEL PLUG	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Gearbox Housing

Ferrari 488 Spider
