ROOF

Find Your Part

Ferrari 488 Spider - ROOF

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
83977100 ROOF ASSEMBLY Enquire To Order
83979500 ROOF ASSEMBLY Enquire To Order
83979600 ROOF ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
83977600 COMPL. LH COVER LIFTER MECHANISM $1,042.97 To Order
Photo Part No Description Price (each) Stock
83977700 COMPL. RH COVER LIFTER MECHANISM $1,042.97 To Order
Photo Part No Description Price (each) Stock
86879400 COMPL. LH HINGE $272.34 To Order
Photo Part No Description Price (each) Stock
86879500 COMPL. RH HINGE $272.34 To Order
Photo Part No Description Price (each) Stock
83977800 COMPL. LOCK SYSTEM $2,596.22 To Order
Photo Part No Description Price (each) Stock
83977900 LH STRIKER $458.69 To Order
Photo Part No Description Price (each) Stock
749652 RH STRIKER $602.03 To Order
Photo Part No Description Price (each) Stock
83978300 LH FLAP MECHANISM $802.28 To Order
Photo Part No Description Price (each) Stock
83978400 RH FLAP MECHANISM $802.28 To Order
Photo Part No Description Price (each) Stock
83977000 FRONT PANEL $8,128.88 To Order
Photo Part No Description Price (each) Stock
83977300 REAR PANEL $7,151.68 To Order
Photo Part No Description Price (each) Stock
84726100 FRONT AND REAR HEADLINER KIT $3,369.64 To Order
84726200 FRONT AND REAR HEADLINER KIT $5,989.95 To Order
84726300 FRONT AND REAR HEADLINER KIT $5,572.75 To Order
Photo Part No Description Price (each) Stock
84603300 COMPLETE HYDRAULIC SYSTEM KIT $10,975.44 To Order
Photo Part No Description Price (each) Stock
84697900 HYDRAULIC SYSTEM SOUNDPROOFING KIT $430.02 To Order
Photo Part No Description Price (each) Stock
84603200 VELCRO FOR HYDRAULIC SYSTEM $75.40 To Order
Photo Part No Description Price (each) Stock
83978100 STOP BUFFER $8.87 To Order
Photo Part No Description Price (each) Stock
13046112 NUT $0.24 To Order
Photo Part No Description Price (each) Stock
86719000 ROOF ECU $3,048.72 To Order
Photo Part No Description Price (each) Stock
805141 ROOF WIRING HARNESS $530.36 To Order
Photo Part No Description Price (each) Stock
84726500 FRONT AND REAR GASKET KIT $2,652.38 To Order
Photo Part No Description Price (each) Stock
86473311 TONNEAU COVER $3,942.48 To Order
Photo Part No Description Price (each) Stock
MC43254 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
84706800 ADHESIVE FOAM $0.76 To Order
Photo Part No Description Price (each) Stock
84643500 RH STRIKER FASTENER BRACKET $13.79 To Order
84643400 LH STRIKER FASTENER BRACKET $13.79 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
14054048 NUT Enquire To Order
Photo Part No Description Price (each) Stock
84807100 SHIM $5.72 To Order
84842000 SHIM $7.07 To Order
84807000 SHIM $5.72 To Order
Photo Part No Description Price (each) Stock
215411 CLIP $1.56 To Order
Photo Part No Description Price (each) Stock
84256000 RH REAR CENTRING PLATE $55.89 To Order
Photo Part No Description Price (each) Stock
84256100 LH REAR CENTRING PLATE $55.89 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.94 To Order
Photo Part No Description Price (each) Stock
86495900 LH WINDSCREEN STRIKER PLATE $65.77 To Order
86496000 RH WINDSCREEN STRIKER PLATE $65.77 To Order
Photo Part No Description Price (each) Stock
316338 ECU MOUNTING BRACKET $99.47 To Order
Photo Part No Description Price (each) Stock
84503800 SHIM KIT FOR ADJUSTING ROOF RELATIVE TO WINDSCREEN $51.33 To Order
Photo Part No Description Price (each) Stock
14305334 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
12646624 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.79 To Order
Photo Part No Description Price (each) Stock
219344 WASHER $0.31 To Order
Photo Part No Description Price (each) Stock
84508500 TUB LIFTING MECHANISM FASTENER SHIM $4.80 To Order
84508600 TUB LIFTING MECHANISM FASTENER SHIM $4.80 To Order
84508700 TUB LIFTING MECHANISM FASTENER SHIM $7.15 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
82271400 SCREW $1.31 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
82271400 SCREW $1.31 To Order
Photo Part No Description Price (each) Stock
219344 WASHER $0.31 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.22 To Order
Photo Part No Description Price (each) Stock
12647724 WASHER $0.15 To Order
Photo Part No Description Price (each) Stock
320599 CLIP $1.85 To Order
Photo Part No Description Price (each) Stock
84975900 PROTECTIVE COIL $22.45 To Order
Photo Part No Description Price (each) Stock
82271400 SCREW $1.31 To Order
Photo Part No Description Price (each) Stock
70003528 COVER PISTON KIT $2,475.88 To Order
Photo Part No Description Price (each) Stock
70003529 ROOF PISTON KIT $2,756.68 To Order
Photo Part No Description Price (each) Stock
88035900 LH TONNEAU COVER WIRING HARNESS $372.69 To Order
Photo Part No Description Price (each) Stock
88036000 RH TONNEAU COVER WIRING HARNESS $430.02 To Order
Photo Part No Description Price (each) Stock
MC43254 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 To Order
View All

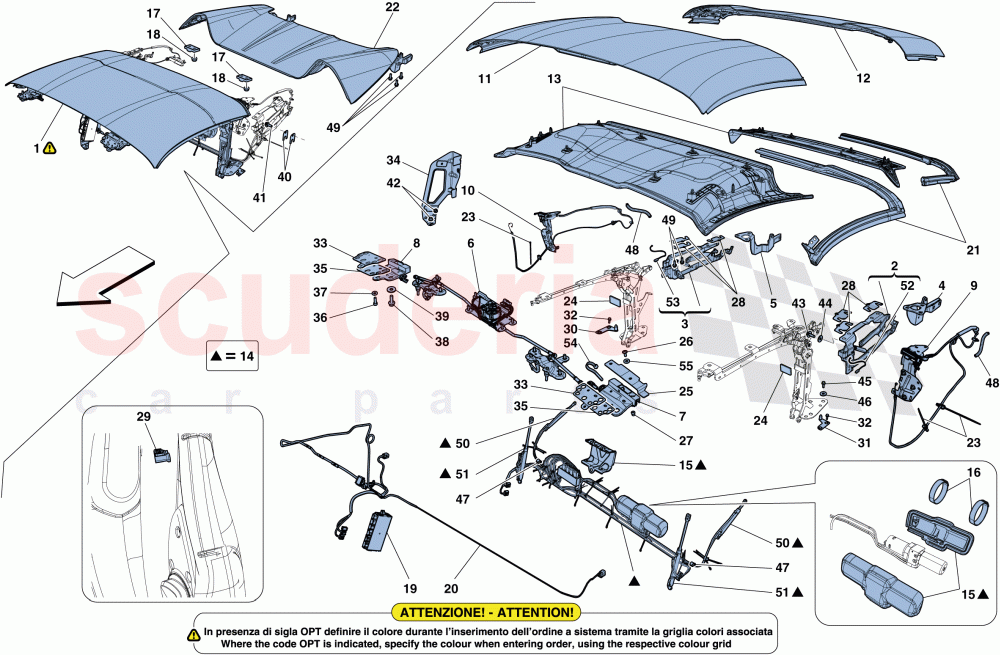

ROOF of Ferrari Ferrari 488 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 83977100
ROOF ASSEMBLY
Painted; Standard; With fabric headliner 		- 1 Enquire
1 83979500
ROOF ASSEMBLY
INTP; Painted; Optional; With leather headliner 		- 1 Enquire
1 83979600
ROOF ASSEMBLY
INTA; Painted; Optional; With Alcantara headliner 		- 1 Enquire
2 83977600
COMPL. LH COVER LIFTER MECHANISM 		$1,042.97 1
3 83977700
COMPL. RH COVER LIFTER MECHANISM 		$1,042.97 1
4 86879400
COMPL. LH HINGE 		$272.34 1
5 86879500
COMPL. RH HINGE 		$272.34 1
6 83977800
COMPL. LOCK SYSTEM 		$2,596.22 1
7 83977900
LH STRIKER 		$458.69 1
8 749652
RH STRIKER 		$602.03 1
9 83978300
LH FLAP MECHANISM 		$802.28 1
10 83978400
RH FLAP MECHANISM 		$802.28 1
11 83977000
FRONT PANEL
Unpainted 		$8,128.88 1
12 83977300
REAR PANEL
Unpainted 		$7,151.68 1
13 84726100
FRONT AND REAR HEADLINER KIT
Standard; Fabric 		$3,369.64 1
13 84726200
FRONT AND REAR HEADLINER KIT
Leather; Optional 		$5,989.95 1
13 84726300
FRONT AND REAR HEADLINER KIT
Alcantara; Optional 		$5,572.75 1
14 84603300
COMPLETE HYDRAULIC SYSTEM KIT 		$10,975.44 1
15 84697900
HYDRAULIC SYSTEM SOUNDPROOFING KIT 		$430.02 1
16 84603200
VELCRO FOR HYDRAULIC SYSTEM 		$75.40 1
17 83978100
STOP BUFFER 		$8.87 2
18 13046112
NUT 		$0.24 4
19 86719000
ROOF ECU 		$3,048.72 1
20 805141
ROOF WIRING HARNESS 		$530.36 1
21 84726500
FRONT AND REAR GASKET KIT 		$2,652.38 1
22 86473311
TONNEAU COVER 		$3,942.48 1
23 MC43254
CLAMP 		- 4 Enquire
24 84706800
ADHESIVE FOAM 		$0.76 2
25 84643500
RH STRIKER FASTENER BRACKET 		$13.79 1
25 84643400
LH STRIKER FASTENER BRACKET 		$13.79 1
26 85833900
SCREW
M5 X 12; No longer supplied; Replaced by 85692000
ARRIVING SOON 		$0.36 4
26 85833900
SCREW
M5 X 10
ARRIVING SOON 		$0.36 4
27 14054048
NUT 		- 4 Enquire
28 84807100
SHIM
Th. 1 mm 		$5.72 4
28 84842000
SHIM
Th. 3 mm 		$7.07 7
28 84807000
SHIM
Th. 0.5 mm 		$5.72 2
29 215411
CLIP 		$1.56 2
30 84256000
RH REAR CENTRING PLATE 		$55.89 1
31 84256100
LH REAR CENTRING PLATE 		$55.89 1
32 11568124
SCREW
M6 X 20 		$0.94 4
33 86495900
LH WINDSCREEN STRIKER PLATE 		$65.77 1
33 86496000
RH WINDSCREEN STRIKER PLATE 		$65.77 1
34 316338
ECU MOUNTING BRACKET 		$99.47 1
35 84503800
SHIM KIT FOR ADJUSTING ROOF RELATIVE TO WINDSCREEN 		$51.33 2
36 14305334
SCREW
M6 X 20 		$0.21 (53.3% off) 4
37 12646624
WASHER 		$0.23 (20.7% off) 4
38 13839224
SCREW
M8 X 25 		$2.79 6
39 219344
WASHER 		$0.31 6
40 84508500
TUB LIFTING MECHANISM FASTENER SHIM 		$4.80 2
40 84508600
TUB LIFTING MECHANISM FASTENER SHIM 		$4.80 2
40 84508700
TUB LIFTING MECHANISM FASTENER SHIM 		$7.15 2
40 85422400
TUB LIFTING MECHANISM FASTENER SHIM 		$3.23 2
41 82271400
SCREW
M8 X 25 		$1.31 6
42 13046011
NUT 		$0.39 5
43 82271400
SCREW
M8 X 25 		$1.31 6
44 219344
WASHER 		$0.31 4
45 81591700
SCREW
M6 X 20 		$2.22 4
46 12647724
WASHER 		$0.15 4
47 320599
CLIP 		$1.85 2
48 84975900
PROTECTIVE COIL 		$22.45 2
49 82271400
SCREW
M8 X 25 		$1.31 10
50 70003528
COVER PISTON KIT 		$2,475.88 1
51 70003529
ROOF PISTON KIT 		$2,756.68 1
52 88035900
LH TONNEAU COVER WIRING HARNESS 		$372.69 1
53 88036000
RH TONNEAU COVER WIRING HARNESS 		$430.02 1
54 MC43254
CLAMP 		- 4 Enquire
55 62769800
WASHER 		$0.23 (23.3% off) 2
