Ferrari 488 Spider - CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985317240 REAR SUBFRAME Enquire To Order
Photo Part No Description Price (each) Stock
305362 REAR RH STRUT Enquire To Order
Photo Part No Description Price (each) Stock
305361 REAR LH STRUT Enquire To Order
Photo Part No Description Price (each) Stock
309018 REAR BUMPER FASTENING CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
86674311 RH REAR FLANK TRELLIS Enquire To Order
Photo Part No Description Price (each) Stock
86674511 LH REAR FLANK TRELLIS Enquire To Order
Photo Part No Description Price (each) Stock
86696111 FRONT LOWER MOUNTING BRACKET FOR RH FENDER Enquire To Order
Photo Part No Description Price (each) Stock
86695911 FRONT LOWER MOUNTING BRACKET FOR LH FENDER Enquire To Order
Photo Part No Description Price (each) Stock
239959 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
82119700 SHIM Enquire To Order
81905000 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
82140800 TUB FOR POWERED REAR SCREEN Enquire To Order
Photo Part No Description Price (each) Stock
83959100 LH PILLAR CONNECTOR REINFORCEMENT Enquire To Order
83959000 RH PILLAR CONNECTOR REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
13791321 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
85584100 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
86918400 RH AIR FILTER DUCT FASTENER BRACKET Enquire To Order
86918300 LH AIR FILTER DUCT FASTENER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
87361300 RH BRACKET Enquire To Order
87361200 LH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
86238800 REAR FRAME Enquire To Order
Photo Part No Description Price (each) Stock
87388600 ENGINE COMPARTMENT LID LOCK BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
86495800 RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH Enquire To Order
87915900 RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH Enquire To Order
Photo Part No Description Price (each) Stock
86495700 LH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH Enquire To Order
Photo Part No Description Price (each) Stock
87441800 RH INTERCOOLER SUPPORT TUBE Enquire To Order
87762311 RH INTERCOOLER MOUNTING TUBE Enquire To Order
Photo Part No Description Price (each) Stock
87762211 LH INTERCOOLER MOUNTING TUBE Enquire To Order
87442000 LH INTERCOOLER SUPPORT TUBE Enquire To Order
Photo Part No Description Price (each) Stock
86743611 BRACKET FOR REAR ADJUSTER Enquire To Order
Photo Part No Description Price (each) Stock
86439300 LOWER EXTRUDED ELEMENT CONNECTING TO RH CHASSIS Enquire To Order
Photo Part No Description Price (each) Stock
86439100 LOWER EXTRUDED ELEMENT CONNECTING TO LH CHASSIS Enquire To Order
Photo Part No Description Price (each) Stock
86675611 RH UPPER REAR TRELLIS MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
86675711 LH UPPER REAR TRELLIS MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
86743511 BRACKET FOR RH LATERAL ADJUSTER Enquire To Order
Photo Part No Description Price (each) Stock
86743411 BRACKET FOR LH LATERAL ADJUSTER Enquire To Order
Photo Part No Description Price (each) Stock
87168911 RH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
231630 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
86634500 HEADLIGHT MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
985321394 LH REAR SUBSTRUCTURE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
985321393 LH REAR SUBSTRUCTURE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
239965 SCREW Enquire To Order
304454 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10520024 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
86627800 COMPL. RH REAR FLANK MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
86627400 COMPL. LH REAR FLANK MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
86879600 REAR ROOF TUB CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
83229400 COMPL. RH FRONT ROOF TUB BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
83229500 COMPL. LH FRONT ROOF TUB BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
83739000 RH VERTICAL EXTRUDED ELEMENT Enquire To Order
Photo Part No Description Price (each) Stock
86919100 LH VERTICAL EXTRUDED ELEMENT Enquire To Order
Photo Part No Description Price (each) Stock
81905100 SPACER FOR BUFFER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
985317219 LOWER GEARBOX MOUNTING CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
14308124 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13578324 WASHER Enquire To Order
View All

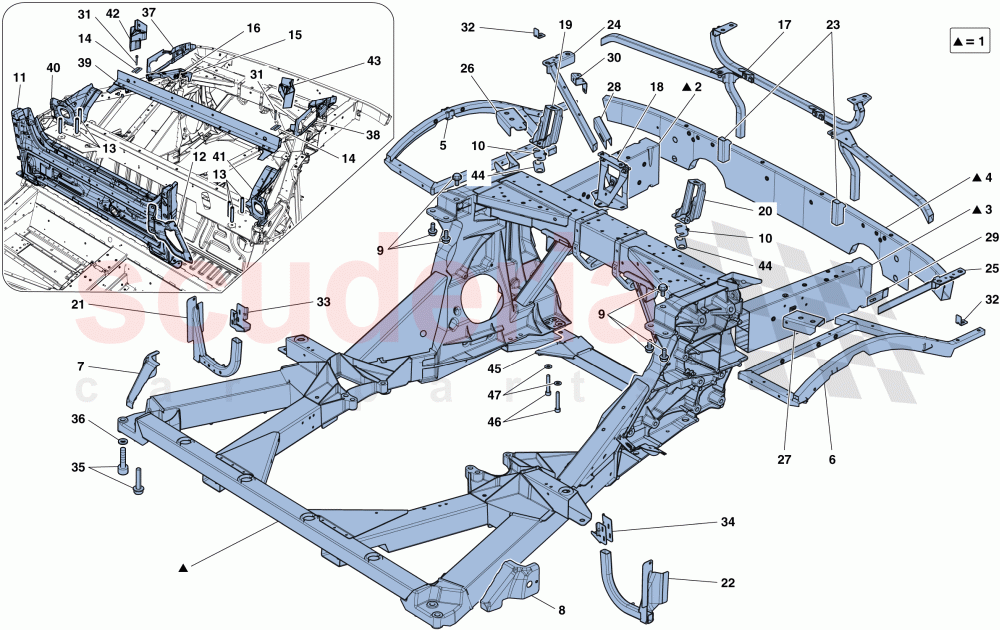

CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS of Ferrari Ferrari 488 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 985317240
REAR SUBFRAME 		- 1 Enquire
2 305362
REAR RH STRUT 		- 1 Enquire
3 305361
REAR LH STRUT 		- 1 Enquire
4 309018
REAR BUMPER FASTENING CROSS MEMBER 		- 1 Enquire
5 86674311
RH REAR FLANK TRELLIS 		- 1 Enquire
6 86674511
LH REAR FLANK TRELLIS 		- 1 Enquire
7 86696111
FRONT LOWER MOUNTING BRACKET FOR RH FENDER 		- 1 Enquire
8 86695911
FRONT LOWER MOUNTING BRACKET FOR LH FENDER 		- 1 Enquire
9 239959
SCREW 		- 6 Enquire
10 82119700
SHIM
Th. 3 mm 		- 2 Enquire
10 81905000
SHIM
Th. 1 mm 		- 2 Enquire
11 82140800
TUB FOR POWERED REAR SCREEN 		- 1 Enquire
12 83959100
LH PILLAR CONNECTOR REINFORCEMENT 		- 1 Enquire
12 83959000
RH PILLAR CONNECTOR REINFORCEMENT 		- 1 Enquire
13 13791321
SCREW 		- 6 Enquire
14 85584100
SHIM 		- 4 Enquire
15 86918400
RH AIR FILTER DUCT FASTENER BRACKET 		- 1 Enquire
15 86918300
LH AIR FILTER DUCT FASTENER BRACKET 		- 1 Enquire
16 87361300
RH BRACKET 		- 1 Enquire
16 87361200
LH BRACKET 		- 1 Enquire
17 86238800
REAR FRAME 		- 1 Enquire
18 87388600
ENGINE COMPARTMENT LID LOCK BRACKET 		- 1 Enquire
19 86495800
RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH
Applicable up to Ass. No. 133468 		- 1 Enquire
19 87915900
RH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH
Applicable from Ass. No. 133469 		- 1 Enquire
20 86495700
LH BRACKET FOR ENGINE COMPARTMENT LID FASTENER BUSH 		- 1 Enquire
21 87441800
RH INTERCOOLER SUPPORT TUBE
Applicable up to Ass. No. 131954 		- 1 Enquire
21 87762311
RH INTERCOOLER MOUNTING TUBE
Applicable from Ass. No. 131955 		- 1 Enquire
22 87762211
LH INTERCOOLER MOUNTING TUBE
Applicable from Ass. No. 131955 		- 1 Enquire
22 87442000
LH INTERCOOLER SUPPORT TUBE
Applicable up to Ass. No. 131954 		- 1 Enquire
23 86743611
BRACKET FOR REAR ADJUSTER 		- 2 Enquire
24 86439300
LOWER EXTRUDED ELEMENT CONNECTING TO RH CHASSIS 		- 1 Enquire
25 86439100
LOWER EXTRUDED ELEMENT CONNECTING TO LH CHASSIS 		- 1 Enquire
26 86675611
RH UPPER REAR TRELLIS MOUNTING BRACKET 		- 1 Enquire
27 86675711
LH UPPER REAR TRELLIS MOUNTING BRACKET 		- 1 Enquire
28 86743511
BRACKET FOR RH LATERAL ADJUSTER 		- 1 Enquire
29 86743411
BRACKET FOR LH LATERAL ADJUSTER 		- 1 Enquire
30 87168911
RH EVAP. EM. CONTROL SYSTEM PIPE MOUNTING BRACKET 		- 1 Enquire
31 231630
SCREW 		- 4 Enquire
32 86634500
HEADLIGHT MOUNTING BRACKET 		- 2 Enquire
33 985321394
LH REAR SUBSTRUCTURE MOUNTING BRACKET 		- 1 Enquire
34 985321393
LH REAR SUBSTRUCTURE MOUNTING BRACKET 		- 1 Enquire
35 239965
SCREW 		- 4 Enquire
35 304454
SCREW 		- 4 Enquire
36 10520024
WASHER 		- 4 Enquire
37 86627800
COMPL. RH REAR FLANK MOUNTING BRACKET 		- 1 Enquire
38 86627400
COMPL. LH REAR FLANK MOUNTING BRACKET 		- 1 Enquire
39 86879600
REAR ROOF TUB CROSS MEMBER 		- 1 Enquire
40 83229400
COMPL. RH FRONT ROOF TUB BRACKET 		- 1 Enquire
41 83229500
COMPL. LH FRONT ROOF TUB BRACKET 		- 1 Enquire
42 83739000
RH VERTICAL EXTRUDED ELEMENT 		- 1 Enquire
43 86919100
LH VERTICAL EXTRUDED ELEMENT 		- 1 Enquire
44 81905100
SPACER FOR BUFFER BRACKET 		- 2 Enquire
45 985317219
LOWER GEARBOX MOUNTING CROSS MEMBER 		- 1 Enquire
46 14308124
SCREW
M10 X 1.25 X 60 		- 6 Enquire
47 13578324
WASHER 		- 6 Enquire
