MANIFOLDS, TURBOCHARGING SYSTEM AND PIPES of Ferrari Ferrari 488 GTB

View All

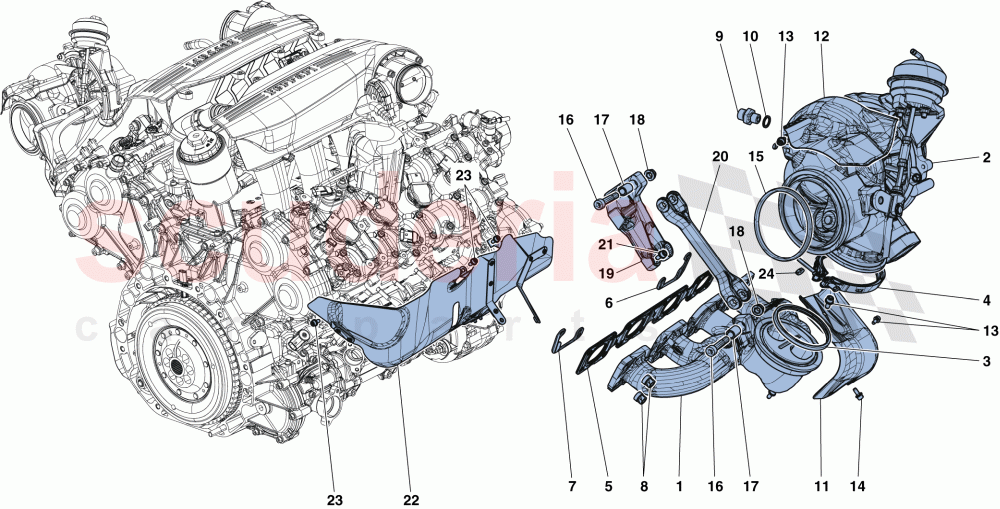

Ferrari 488 GTB - MANIFOLDS, TURBOCHARGING SYSTEM AND PIPES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	319026	RH EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329261	RH TURBOCHARGER	Enquire	To Order
	329267	LH TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314780	STEEL RING SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287210	V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO TURBO	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	292736	EXHAUST MANIFOLD GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307964	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290216	THREADED CONNECTOR WITH SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	GASKET COPPER 12 - 16 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322189	LH EXHAUST MANIFOLD HEAT SHIELD	Enquire	To Order
	322188	RH EXHAUST MANIFOLD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321692	LH TURBO HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280460	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309013	TURBO-CAT. CONVERTER FLANGE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338842	CALIBRATED BUSH	Enquire	To Order
	314448	CALIBRATED BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304378	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325811	TURBO SUPPORT PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320401	RH TURBO MOUNTING BRACKET	Enquire	To Order
	320402	LH TURBO MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321689	LH CYLINDER HEAD HEAT SHIELD	Enquire	To Order
	322386	RH CYLINDER HEAD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14076611	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	319026	RH EXHAUST MANIFOLD	319026 RH EXHAUST MANIFOLD	-	1	Enquire
2	329261	RH TURBOCHARGER	329261 RH TURBOCHARGER	-	1	Enquire
2	329267	LH TURBOCHARGER	329267 LH TURBOCHARGER	-	1	Enquire
3	314780	STEEL RING SEAL	314780 STEEL RING SEAL Also comes with engine gasket set	-	2	Enquire
4	287210	V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO TURBO ARRIVING SOON	287210 V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO TURBO ARRIVING SOON	-	2	Enquire
5	292736	EXHAUST MANIFOLD GASKET	292736 EXHAUST MANIFOLD GASKET Also comes with engine gasket set	-	2	Enquire
8	307964	NUT	307964 NUT	-	20	Enquire
9	290216	THREADED CONNECTOR WITH SEAL RING	290216 THREADED CONNECTOR WITH SEAL RING	-	2	Enquire
10	10261060	GASKET COPPER 12 - 16 X 1.5	10261060 GASKET COPPER 12 - 16 X 1.5 Also comes with engine gasket set	-	2	Enquire
11	322189	LH EXHAUST MANIFOLD HEAT SHIELD	322189 LH EXHAUST MANIFOLD HEAT SHIELD	-	1	Enquire
11	322188	RH EXHAUST MANIFOLD HEAT SHIELD	322188 RH EXHAUST MANIFOLD HEAT SHIELD	-	1	Enquire
12	321692	LH TURBO HEAT SHIELD	321692 LH TURBO HEAT SHIELD	-	1	Enquire
13	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	8	Enquire
14	280460	SCREW	280460 SCREW	-	2	Enquire
15	309013	TURBO-CAT. CONVERTER FLANGE GASKET	309013 TURBO-CAT. CONVERTER FLANGE GASKET Also comes with engine gasket set	-	2	Enquire
17	338842	CALIBRATED BUSH	338842 CALIBRATED BUSH Applicable after depletion of 314448	-	4	Enquire
17	314448	CALIBRATED BUSH	314448 CALIBRATED BUSH Applicable until depletion	-	4	Enquire
18	304378	NUT	304378 NUT No longer supplied	-	4	Enquire
19	325811	TURBO SUPPORT PLATE	325811 TURBO SUPPORT PLATE	-	2	Enquire
20	320401	RH TURBO MOUNTING BRACKET	320401 RH TURBO MOUNTING BRACKET	-	1	Enquire
20	320402	LH TURBO MOUNTING BRACKET	320402 LH TURBO MOUNTING BRACKET	-	1	Enquire
21	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	8	Enquire
22	321689	LH CYLINDER HEAD HEAT SHIELD	321689 LH CYLINDER HEAD HEAT SHIELD	-	1	Enquire
22	322386	RH CYLINDER HEAD HEAT SHIELD	322386 RH CYLINDER HEAD HEAT SHIELD	-	1	Enquire
23	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	7	Enquire
24	14076611	NUT	14076611 NUT	-	2	Enquire
