Name: CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS
Rating: 5.0 (1 reviews)

CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS of Ferrari Ferrari 488 GTB

View All

Ferrari 488 GTB - CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985321076	FRONT SUBFRAME	$22,344.02	To Order
	985300623	FRONT SUBFRAME	$22,344.02	To Order

Photo	Part No	Description	Price (each)	Stock
	301348	FRONT FIREWALL PANEL	$2,317.88	To Order
	306748	FRONT FIREWALL DASHBOARD	$1,730.16	To Order

Photo	Part No	Description	Price (each)	Stock
	272196	WINDSCREEN WIPER SPINDLE BRACKET	$41.23	To Order
	274092	WINDSCREEN WIPER SPINDLE BRACKET	$57.33	To Order

Photo	Part No	Description	Price (each)	Stock
	256207	WINDSCREEN WIPER MOTOR MOUNTING BRACKET	$32.95	To Order
	263064	WINDSCREEN WIPER MOTOR MOUNTING BRACKET	$35.82	To Order

Photo	Part No	Description	Price (each)	Stock
	84652800	RH LUGGAGE COMPARTMENT TUB BRACKET	$336.95	To Order
	84652700	LH LUGGAGE COMPARTMENT TUB BRACKET	$329.61	To Order

Photo	Part No	Description	Price (each)	Stock
	87524611	RH BUMPER MOUNTING	$914.60	To Order

Photo	Part No	Description	Price (each)	Stock
	87524511	LH BUMPER MOUNTING	$914.60	To Order

Photo	Part No	Description	Price (each)	Stock
	86106911	COLLEGAMENTO TRALICCI DX CAT.	$141.19	To Order

Photo	Part No	Description	Price (each)	Stock
	86106811	COLLEGAMENTO TRALICCIO SX	$141.19	To Order

Photo	Part No	Description	Price (each)	Stock
	86107311	RH FRONT SUBFRAME	$754.15	To Order

Photo	Part No	Description	Price (each)	Stock
	86107211	LH Front Subframe	$722.05	To Order

Photo	Part No	Description	Price (each)	Stock

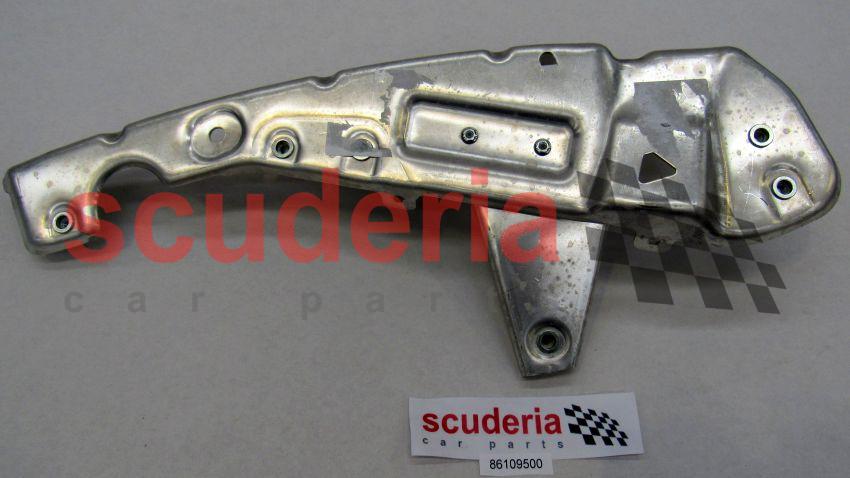

	86109500	RH BUMPER FASTENER BRACKET	$160.44	To Order

Photo	Part No	Description	Price (each)	Stock

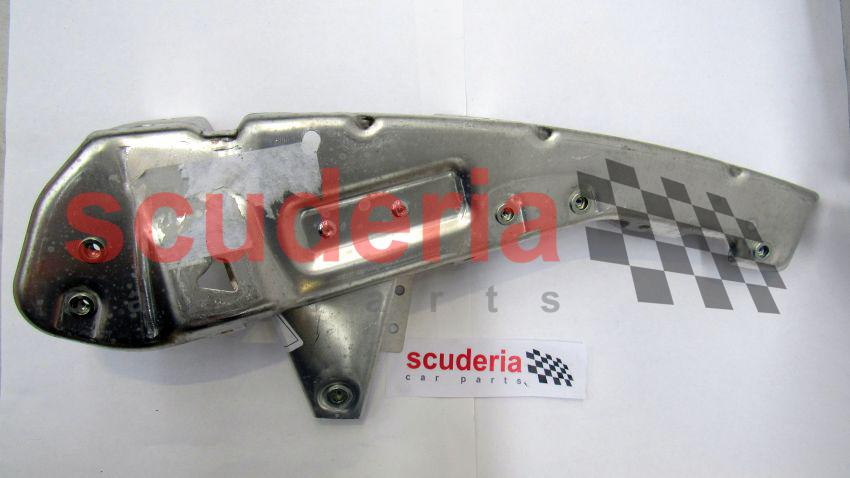

	86109400	LH Bumper Fastener Bracket	$160.44	To Order

Photo	Part No	Description	Price (each)	Stock
	86549811	INTERNAL HEADLIGHT FASTENER BRACKET	$133.17	To Order

Photo	Part No	Description	Price (each)	Stock
	86359011	EXTERNAL RH FENDER FASTENER BRACKET	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	86360011	EXTERNAL LH FENDER FASTENER BRACKET	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	87345711	RH BRACKET	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock

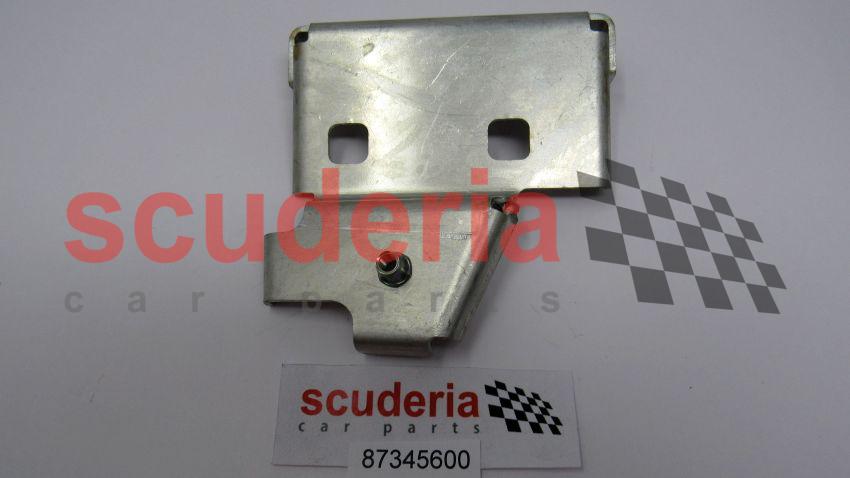

	87345600	LH BRACKET	$38.53	To Order

Photo	Part No	Description	Price (each)	Stock

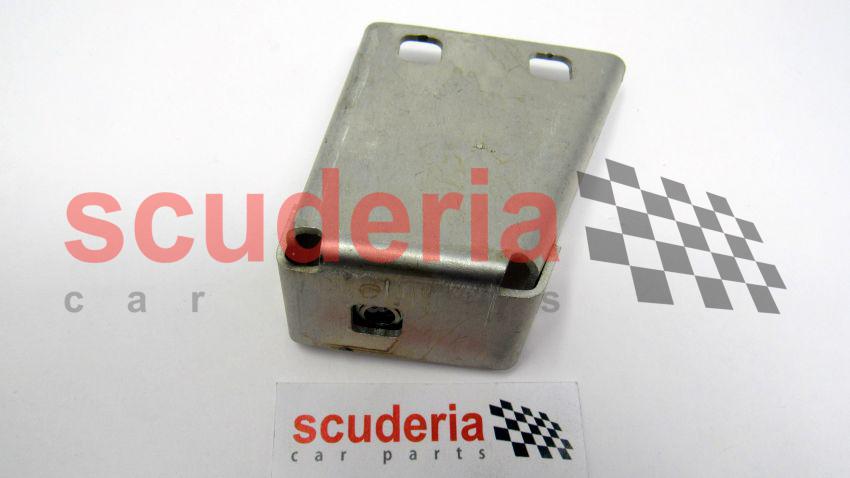

	87346300	Front Fastener Bracket For RH Headlight	$141.19	To Order

Photo	Part No	Description	Price (each)	Stock
	87346211	FRONT FASTENER BRACKET FOR LH HEADLIGHT	$160.44	To Order

Photo	Part No	Description	Price (each)	Stock

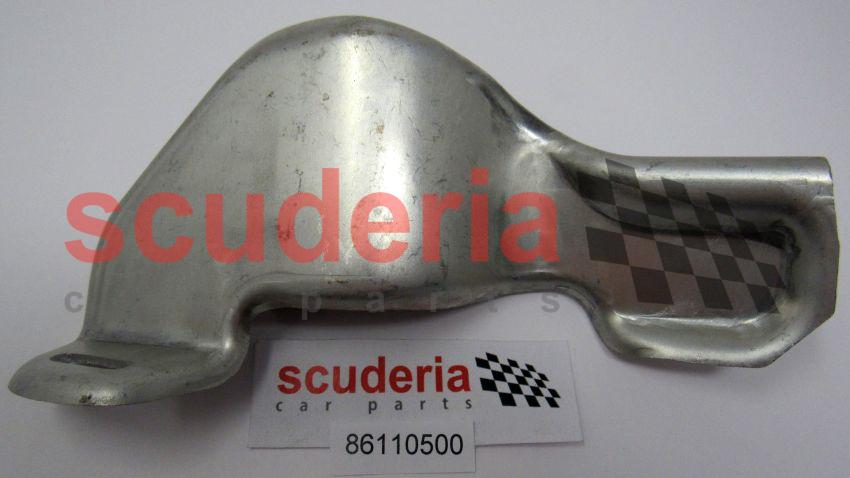

	86110500	EXTERNAL UPPER RH RADIATOR MOUNTING BRACKET	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	86110411	LH External Upper Radiator Mounting Bracket	$513.46	To Order

Photo	Part No	Description	Price (each)	Stock
	87296700	FLOW SEPARATOR SHIM	Enquire	To Order
	87296600	FLOW SEPARATOR SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86766811	TRELLIS MOUNTING BRACKET	$141.19	To Order

Photo	Part No	Description	Price (each)	Stock
	85533700	FRONT FIREWALL VENTILATION FLAP	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	85455811	BRACKET FOR ADJUSTER	$133.17	To Order

Photo	Part No	Description	Price (each)	Stock
	87295111	RH UNDERWINDSCREEN TRIM BOX ELEMENT	$272.34	To Order

Photo	Part No	Description	Price (each)	Stock
	87295000	LH UNDERWINDSCREEN TRIM BOX ELEMENT	$76.76	To Order

Photo	Part No	Description	Price (each)	Stock
	322094	COMPL. BRAKE FLUID RESERVOIR MOUNTING BRACKET	$88.85	To Order

View All

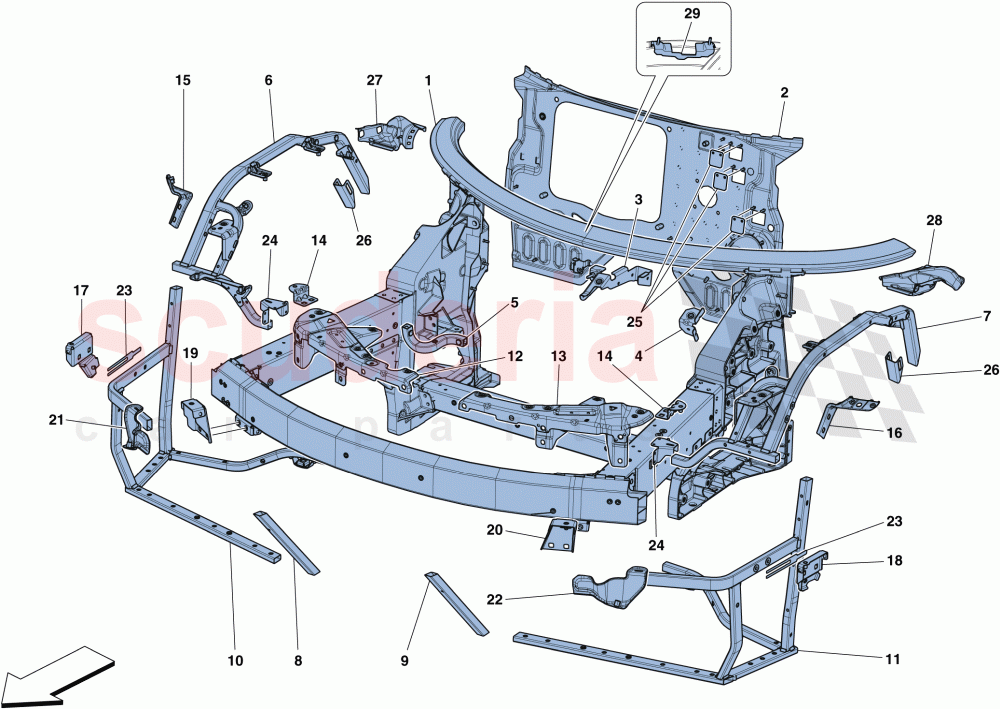

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	985321076	FRONT SUBFRAME	985321076 FRONT SUBFRAME ; Applicable for GD	$22,344.02	1
1	985300623	FRONT SUBFRAME	985300623 FRONT SUBFRAME ; Not for GD	$22,344.02	1
2	301348	FRONT FIREWALL PANEL	301348 FRONT FIREWALL PANEL Applicable for GD	$2,317.88	1
2	306748	FRONT FIREWALL DASHBOARD	306748 FRONT FIREWALL DASHBOARD Not for GD	$1,730.16	1
3	272196	WINDSCREEN WIPER SPINDLE BRACKET	272196 WINDSCREEN WIPER SPINDLE BRACKET Not for GD	$41.23	1
3	274092	WINDSCREEN WIPER SPINDLE BRACKET	274092 WINDSCREEN WIPER SPINDLE BRACKET Applicable for GD	$57.33	1
4	256207	WINDSCREEN WIPER MOTOR MOUNTING BRACKET	256207 WINDSCREEN WIPER MOTOR MOUNTING BRACKET Not for GD	$32.95	1
4	263064	WINDSCREEN WIPER MOTOR MOUNTING BRACKET	263064 WINDSCREEN WIPER MOTOR MOUNTING BRACKET Applicable for GD	$35.82	1
5	84652800	RH LUGGAGE COMPARTMENT TUB BRACKET	84652800 RH LUGGAGE COMPARTMENT TUB BRACKET	$336.95	1
5	84652700	LH LUGGAGE COMPARTMENT TUB BRACKET	84652700 LH LUGGAGE COMPARTMENT TUB BRACKET	$329.61	1
6	87524611	RH BUMPER MOUNTING	87524611 RH BUMPER MOUNTING	$914.60	1
7	87524511	LH BUMPER MOUNTING	87524511 LH BUMPER MOUNTING	$914.60	1
8	86106911	COLLEGAMENTO TRALICCI DX CAT.	86106911 COLLEGAMENTO TRALICCI DX CAT.	$141.19	1
9	86106811	COLLEGAMENTO TRALICCIO SX	86106811 COLLEGAMENTO TRALICCIO SX	$141.19	1
10	86107311	RH FRONT SUBFRAME	86107311 RH FRONT SUBFRAME	$754.15	1
11	86107211	LH Front Subframe	86107211 LH Front Subframe	$722.05	1
12	86109500	RH BUMPER FASTENER BRACKET	86109500 RH BUMPER FASTENER BRACKET	$160.44	1
13	86109400	LH Bumper Fastener Bracket	86109400 LH Bumper Fastener Bracket	$160.44	1
14	86549811	INTERNAL HEADLIGHT FASTENER BRACKET	86549811 INTERNAL HEADLIGHT FASTENER BRACKET	$133.17	2
15	86359011	EXTERNAL RH FENDER FASTENER BRACKET	86359011 EXTERNAL RH FENDER FASTENER BRACKET	$208.58	1
16	86360011	EXTERNAL LH FENDER FASTENER BRACKET	86360011 EXTERNAL LH FENDER FASTENER BRACKET	$208.58	1
17	87345711	RH BRACKET	87345711 RH BRACKET	$192.54	1
18	87345600	LH BRACKET	87345600 LH BRACKET	$38.53	1
19	87346300	Front Fastener Bracket For RH Headlight	87346300 Front Fastener Bracket For RH Headlight	$141.19	1
20	87346211	FRONT FASTENER BRACKET FOR LH HEADLIGHT	87346211 FRONT FASTENER BRACKET FOR LH HEADLIGHT	$160.44	1
21	86110500	EXTERNAL UPPER RH RADIATOR MOUNTING BRACKET	86110500 EXTERNAL UPPER RH RADIATOR MOUNTING BRACKET	$433.23	1
22	86110411	LH External Upper Radiator Mounting Bracket	86110411 LH External Upper Radiator Mounting Bracket	$513.46	1
23	87296700	FLOW SEPARATOR SHIM	87296700 FLOW SEPARATOR SHIM Th. 0.5 mm; No longer supplied	-	2	Enquire
23	87296600	FLOW SEPARATOR SHIM	87296600 FLOW SEPARATOR SHIM Th. 1 mm; No longer supplied	-	2	Enquire
24	86766811	TRELLIS MOUNTING BRACKET	86766811 TRELLIS MOUNTING BRACKET	$141.19	2
25	85533700	FRONT FIREWALL VENTILATION FLAP	85533700 FRONT FIREWALL VENTILATION FLAP	$2.25	3
26	85455811	BRACKET FOR ADJUSTER	85455811 BRACKET FOR ADJUSTER	$133.17	2
27	87295111	RH UNDERWINDSCREEN TRIM BOX ELEMENT	87295111 RH UNDERWINDSCREEN TRIM BOX ELEMENT	$272.34	1
28	87295000	LH UNDERWINDSCREEN TRIM BOX ELEMENT	87295000 LH UNDERWINDSCREEN TRIM BOX ELEMENT	$76.76	1
29	322094	COMPL. BRAKE FLUID RESERVOIR MOUNTING BRACKET	322094 COMPL. BRAKE FLUID RESERVOIR MOUNTING BRACKET	$88.85	1
