GEARBOX OIL COOLING RADIATORS

Find Your Part

Ferrari 458 Italia - GEARBOX OIL COOLING RADIATORS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14054577 CAP NUT $0.32 To Order
Photo Part No Description Price (each) Stock
12648978 WASHER $0.55 To Order
Photo Part No Description Price (each) Stock
255048 GROMMET SHIM $2.84 To Order
Photo Part No Description Price (each) Stock
255047 CABLE GROMMET $3.81 To Order
Photo Part No Description Price (each) Stock
155751 CLIP $4.64 To Order
Photo Part No Description Price (each) Stock
257824 BRACKET $7.07 To Order
Photo Part No Description Price (each) Stock
263312 LH AIR DUCT ON OIL RADIATOR $64.17 To Order
263310 RH Air Duct On Oil Radiator $64.17 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
14054048 NUT Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
68700800 CLIP $1.09 To Order
62766300 SCRE CLIP M6 $0.76 To Order
Photo Part No Description Price (each) Stock
264386 PROTECTIVE FOAM FOR OIL RADIATORS $5.15 To Order
Photo Part No Description Price (each) Stock
82954200 LH AIR DUCT ON BODYSHELL $372.69 To Order
82953900 RH AIR DUCT ON BODYSHELL $372.69 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.22 To Order
11568124 SCREW $0.94 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
11625824 SCREW $0.39 To Order
Photo Part No Description Price (each) Stock
16281827 SCREW $0.23 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
View All

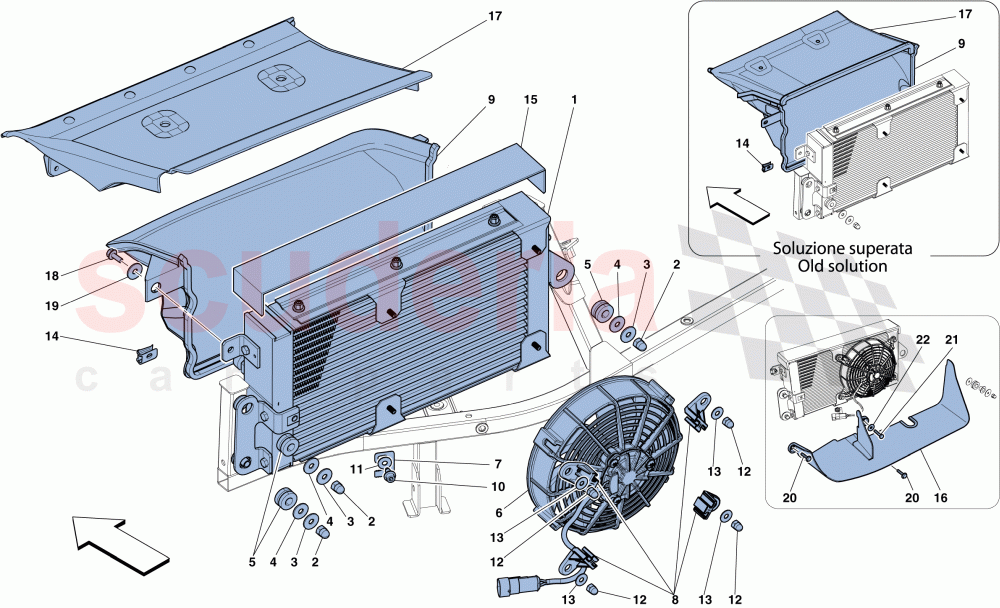

GEARBOX OIL COOLING RADIATORS of Ferrari Ferrari 458 Italia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 14054577
CAP NUT 		$0.32 6
3 12648978
WASHER 		$0.55 12
4 255048
GROMMET SHIM 		$2.84 6
5 255047
CABLE GROMMET 		$3.81 6
7 155751
CLIP 		$4.64 (6.3% off) 1
8 257824
BRACKET 		$7.07 4
9 263312
LH AIR DUCT ON OIL RADIATOR 		$64.17 1
9 263310
RH Air Duct On Oil Radiator 		$64.17 1
10 85833900
SCREW
ARRIVING SOON 		$0.36 1
11 62769800
WASHER 		$0.23 (23.3% off) 1
12 14054048
NUT 		- 4 Enquire
13 62769800
WASHER 		$0.23 (23.3% off) 4
14 68700800
CLIP 		$1.09 6
14 62766300
SCRE CLIP M6 		$0.76 4
15 264386
PROTECTIVE FOAM FOR OIL RADIATORS 		$5.15 2
17 82954200
LH AIR DUCT ON BODYSHELL 		$372.69 1
17 82953900
RH AIR DUCT ON BODYSHELL 		$372.69 1
18 81591700
SCREW
M5 X 20; No longer supplied; Replaced by 16285127 		$2.22 6
18 11568124
SCREW
M5 X 16 		$0.94 6
19 12643724
WASHER 		$0.06 (88% off) 6
20 11625824
SCREW
M6 X 18 		$0.39 (61% off) 4
21 16281827
SCREW 		$0.23 2
22 12643724
WASHER 		$0.06 (88% off) 2
