CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS

Find Your Part

Ferrari 458 Italia - CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985273486 FRONT SUBFRAME $19,044.96 To Order
985280309 FRONT SUBFRAME $19,044.96 To Order
985269322 FRONT SUBFRAME $19,044.96 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
82118000 LOWER CENTRAL TRELLIS $252.94 To Order
Photo Part No Description Price (each) Stock
84629500 RH FRONT SIDE TRELLIS $818.33 To Order
82520600 RH Front Lateral Trellis $658.83 To Order
Photo Part No Description Price (each) Stock
82520800 LH Front Lateral Trellis $658.83 To Order
84629400 LH FRONT LATERAL TRELLIS $742.49 To Order
Photo Part No Description Price (each) Stock
82518700 RH BUMPER FASTENER BRACKET $449.27 To Order
Photo Part No Description Price (each) Stock
82518800 LH BUMPER FASTENER BRACKET $481.36 To Order
Photo Part No Description Price (each) Stock
84631200 COMPL. RH FENDER MOUNT $1,003.41 To Order
Photo Part No Description Price (each) Stock
84631000 COMPL. LH FENDER MOUNT $1,060.74 To Order
Photo Part No Description Price (each) Stock
256179 FRONT FIREWALL $946.70 To Order
262612 FRONT FIREWALL $1,060.74 To Order
Photo Part No Description Price (each) Stock
83283100 RH TRELLIS CONNECTION $72.19 To Order
84638500 RH TRELLIS CONNECTION $126.75 To Order
Photo Part No Description Price (each) Stock
84638400 LH TRELLIS CONNECTION $126.75 To Order
83283200 LH TRELLIS CONNECTION $72.19 To Order
Photo Part No Description Price (each) Stock
256180 WINDSCREEN WIPER SPINDLE BRACKET $85.03 To Order
272196 WINDSCREEN WIPER SPINDLE BRACKET $41.23 To Order
263098 WINDSCREEN WIPER SPINDLE BRACKET $256.72 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
256207 WINDSCREEN WIPER MOTOR MOUNTING BRACKET $32.95 To Order
263064 WINDSCREEN WIPER MOTOR MOUNTING BRACKET $35.82 To Order
Photo Part No Description Price (each) Stock
257195 LH BRACKET $32.95 To Order
257198 RH BRACKET $32.95 To Order
View All

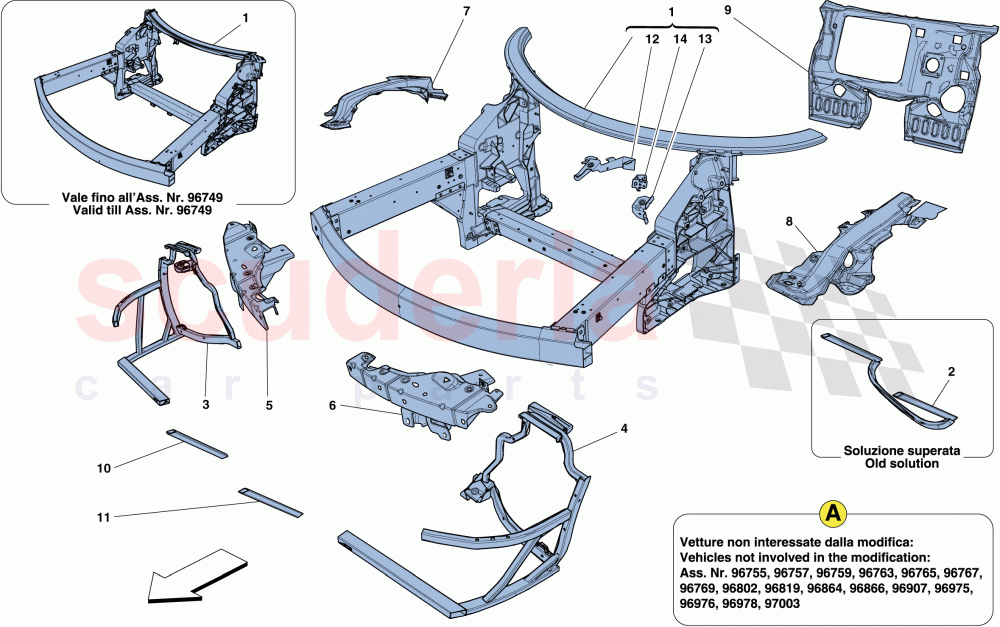

CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS of Ferrari Ferrari 458 Italia Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 985273486
FRONT SUBFRAME
; Applicable for GD; Applicable from Ass. No. 93533 up to Ass. No. 96749 		$19,044.96 1
1 985280309
FRONT SUBFRAME
Request ASM authorisation; not affected by modification; Applicable for GD; Applicable from Ass. No. 96750 		$19,044.96 1
1 985269322
FRONT SUBFRAME
; Applicable for GD; Applicable up to Ass. No. 93532 		$19,044.96 1
1 985269295
FRONT SUBFRAME
; Applicable for USA, CDN; Applicable up to Ass. No. 93532 		$19,044.96 1
1 985273484
FRONT SUBFRAME
; Applicable for USA, CDN; Applicable from Ass. No. 93533 up to Ass. No. 96749 		$19,044.96 1
1 985269298
FRONT SUBFRAME
; Applicable for EU GS; Not for USA, CDN, GD; Applicable from Ass. No. 90802 up to Ass. No. 93532 		$15,072.06 1
1 985269298
FRONT SUBFRAME
; Applicable for GOLFO; Not for USA, CDN, GD; Applicable from Ass. No. 91119 up to Ass. No. 93532 		$15,072.06 1
1 985273483
FRONT SUBFRAME
; Not for USA, CDN, GD; Applicable from Ass. No. 93533 up to Ass. No. 96749 		$19,043.36 1
1 985263775
FRONT SUBFRAME
; Applicable for EU GS; Applicable up to Ass. No. 90801 		$19,044.96 1
1 985263775
FRONT SUBFRAME
; Applicable for GOLFO; Applicable up to Ass. No. 91118 		$19,044.96 1
2 82118000
LOWER CENTRAL TRELLIS
Replaced by 81307200 and 81619600 (ref. 10 and 11); No longer supplied 		$252.94 1
3 84629500
RH FRONT SIDE TRELLIS
Applicable from Ass. No. 120375 		$818.33 1
3 82520600
RH Front Lateral Trellis
Applicable up to Ass. No. 120374 		$658.83 1
4 82520800
LH Front Lateral Trellis
Applicable up to Ass. No. 120374 		$658.83 (30.5% off) 1
4 84629400
LH FRONT LATERAL TRELLIS
Applicable from Ass. No. 120375 		$742.49 1
5 82518700
RH BUMPER FASTENER BRACKET 		$449.27 1
6 82518800
LH BUMPER FASTENER BRACKET 		$481.36 1
7 84631200
COMPL. RH FENDER MOUNT
not affected by modification; Applicable from Ass. No. 120375 		$1,003.41 1
8 84631000
COMPL. LH FENDER MOUNT
not affected by modification; Applicable from Ass. No. 120375 		$1,060.74 1
9 256179
FRONT FIREWALL
Not for GD 		$946.70 1
9 262612
FRONT FIREWALL
Applicable for GD 		$1,060.74 1
10 83283100
RH TRELLIS CONNECTION
Applicable up to Ass. No. 120374 		$72.19 1
10 84638500
RH TRELLIS CONNECTION
Applicable from Ass. No. 120375 		$126.75 1
11 84638400
LH TRELLIS CONNECTION
Applicable from Ass. No. 120375 		$126.75 1
11 83283200
LH TRELLIS CONNECTION
Applicable up to Ass. No. 120374 		$72.19 1
12 256180
WINDSCREEN WIPER SPINDLE BRACKET
Not for GD; Applicable up to Ass. No. 96749 		$85.03 1
12 272196
WINDSCREEN WIPER SPINDLE BRACKET
not affected by modification; Not for GD; Applicable from Ass. No. 96750 		$41.23 1
12 263098
WINDSCREEN WIPER SPINDLE BRACKET
Applicable for GD; Applicable up to Ass. No. 96749 		$256.72 1
12 274092
WINDSCREEN WIPER SPINDLE BRACKET
not affected by modification; Applicable for GD; Applicable from Ass. No. 96750 		$57.33 1
13 256207
WINDSCREEN WIPER MOTOR MOUNTING BRACKET
Not for GD 		$32.95 1
13 263064
WINDSCREEN WIPER MOTOR MOUNTING BRACKET
Applicable for GD 		$35.82 1
14 257195
LH BRACKET 		$32.95 1
14 257198
RH BRACKET 		$32.95 1
