TUNNEL - SUBSTRUCTURE AND ACCESSORIES of Ferrari Ferrari 458 Italia

View All

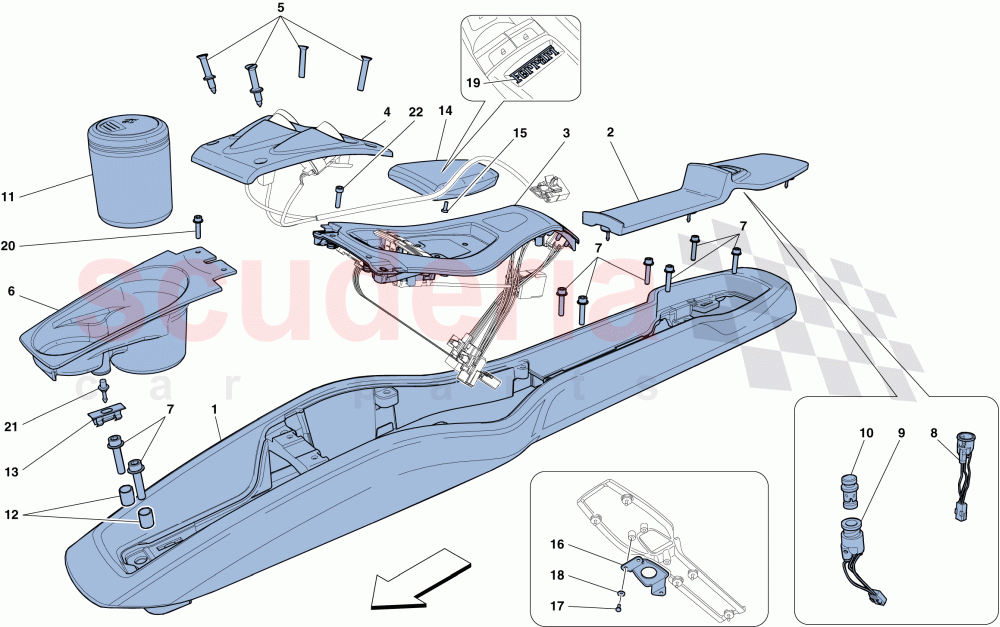

Ferrari 458 Italia - TUNNEL - SUBSTRUCTURE AND ACCESSORIES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	81286700	CENTRE TUNNEL CONSOLE UNIT	Enquire	To Order
	83613500	CENTRE TUNNEL CONSOLE UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81467400	CENTRAL COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84479500	SWITCH MOUNTING PANEL	Enquire	To Order
	82986500	SWITCH MOUNTING PANEL	Enquire	To Order
	82986500	SWITCH MOUNTING PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84479700	F1 GEARBOX CONTROL PANEL	Enquire	To Order
	82988100	F1 GEARBOX CONTROL PANEL	Enquire	To Order
	84479600	F1 GEARBOX CONTROL PANEL	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order
	68927700	SCREW	Enquire	To Order
	159357	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order
	231622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215406	12 V SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183271	CIGARETTE LIGHTER SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66704500	CIGARETTE LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83003500	ASHTRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82229300	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700200	SNAP FASTENING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82051800	CENTRAL INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order
	16083501	TRIM SCREW 4 X 12MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83118800	12V SOCKET BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	13272011	SCREW	Enquire	To Order
	15533401	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83010400	FERRARI BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order
	68176500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88005600	PRESS FASTENER PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13274472	SCREW -M5 X 20- -For carbon fibre surround-	Enquire	To Order
	14302921	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	81286700	CENTRE TUNNEL CONSOLE UNIT	81286700 CENTRE TUNNEL CONSOLE UNIT Leather; STC1; STC2	-	1	Enquire
1	83613500	CENTRE TUNNEL CONSOLE UNIT	83613500 CENTRE TUNNEL CONSOLE UNIT Carbon	-	1	Enquire
2	81467400	CENTRAL COMPARTMENT	81467400 CENTRAL COMPARTMENT Alcantara	-	1	Enquire
3	84479500	SWITCH MOUNTING PANEL	84479500 SWITCH MOUNTING PANEL Alutex	-	1	Enquire
3	82986500	SWITCH MOUNTING PANEL	82986500 SWITCH MOUNTING PANEL Burnished grey; Applicable from Ass. No. 89229	-	1	Enquire
3	82986500	SWITCH MOUNTING PANEL	82986500 SWITCH MOUNTING PANEL Corsa grey; Applicable up to Ass. No. 89228	-	1	Enquire
4	84479700	F1 GEARBOX CONTROL PANEL	84479700 F1 GEARBOX CONTROL PANEL Alutex; Applicable for USA, CDN	-	1	Enquire
4	82988100	F1 GEARBOX CONTROL PANEL	82988100 F1 GEARBOX CONTROL PANEL Carbon	-	1	Enquire
4	84479600	F1 GEARBOX CONTROL PANEL	84479600 F1 GEARBOX CONTROL PANEL Alutex; Not for USA, CDN	-	1	Enquire
4	82987300	F1 GEARBOX CONTROL PANEL	82987300 F1 GEARBOX CONTROL PANEL Corsa grey; Applicable up to Ass. No. 89228	-	1	Enquire
4	82987300	F1 GEARBOX CONTROL PANEL	82987300 F1 GEARBOX CONTROL PANEL Burnished grey; Applicable from Ass. No. 89229	-	1	Enquire
5	81591700	SCREW	81591700 SCREW Corsa grey; Applicable up to Ass. No. 89228	-	2	Enquire
5	68927700	SCREW	68927700 SCREW Burnished grey; Applicable from Ass. No. 89229	-	4	Enquire
5	159357	Screw	159357 Screw Corsa grey; Applicable up to Ass. No. 89228	-	2	Enquire
7	231620	SCREW	231620 SCREW M6 X 30; No longer supplied; Replaced by 231622	-	8	Enquire
7	231622	SCREW	231622 SCREW M6 X 35	-	8	Enquire
8	215406	12 V SOCKET	215406 12 V SOCKET	-	1	Enquire
9	183271	CIGARETTE LIGHTER SOCKET	183271 CIGARETTE LIGHTER SOCKET Applicable for smoker's kit	-	1	Enquire
10	66704500	CIGARETTE LIGHTER	66704500 CIGARETTE LIGHTER Applicable for smoker's kit	-	1	Enquire
11	83003500	ASHTRAY	83003500 ASHTRAY	-	1	Enquire
12	82229300	BUSHING	82229300 BUSHING	-	2	Enquire
13	68700200	SNAP FASTENING CLIP	68700200 SNAP FASTENING CLIP	-	7	Enquire
14	82051800	CENTRAL INSERT	82051800 CENTRAL INSERT	-	1	Enquire
15	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM No longer supplied; Replaced by 16083501	-	3	Enquire
15	16083501	TRIM SCREW 4 X 12MM	16083501 TRIM SCREW 4 X 12MM	-	3	Enquire
16	83118800	12V SOCKET BRACKET	83118800 12V SOCKET BRACKET Applicable for centre compartment with black flocked finish	-	1	Enquire
17	85833700	SCREW	85833700 SCREW For compartment in Alcantara	-	3	Enquire
17	13272011	SCREW	13272011 SCREW No longer supplied	-	3	Enquire
17	15533401	SCREW	15533401 SCREW Not for compartment in Alcantara	-	3	Enquire
18	62769800	WASHER	62769800 WASHER	-	3	Enquire
19	83010400	FERRARI BADGE	83010400 FERRARI BADGE	-	1	Enquire
20	81591700	SCREW	81591700 SCREW M5 X 20	-	2	Enquire
20	68176500	SCREW	68176500 SCREW No longer supplied; Replaced by 85692300	-	2	Enquire
21	88005600	PRESS FASTENER PIN	88005600 PRESS FASTENER PIN	-	9	Enquire
22	13274472	SCREW -M5 X 20- -For carbon fibre surround-	13274472 SCREW -M5 X 20- -For carbon fibre surround- M5 X 20; For carbon fibre surround	-	4	Enquire
22	14302921	SCREW	14302921 SCREW M4 X 20; Not for carbon fibre surround	-	4	Enquire
