EXHAUST SYSTEM of Ferrari Ferrari 458 Spider

View All

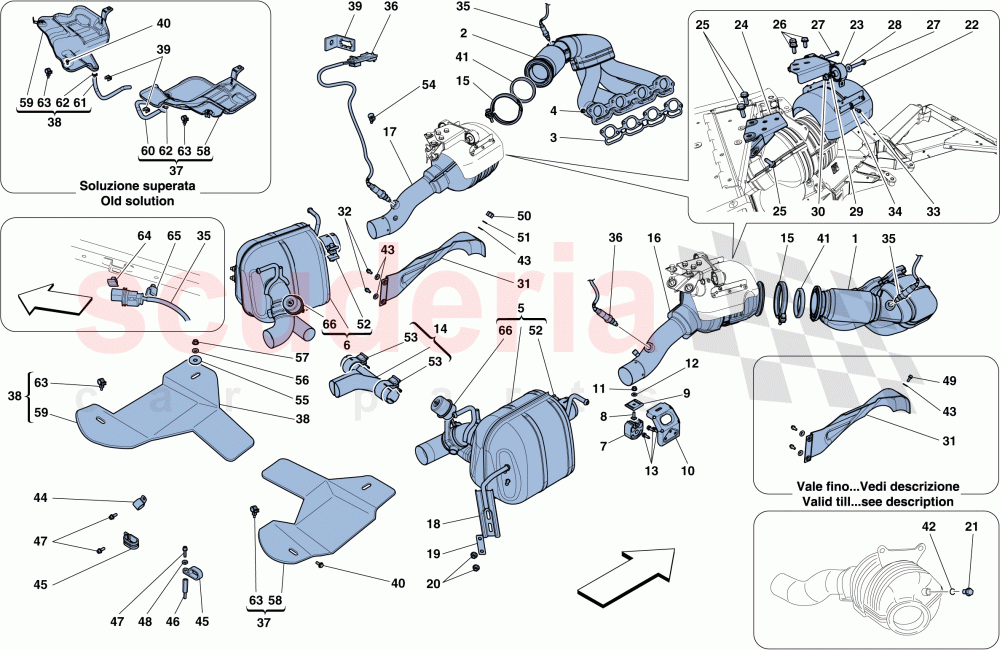

Ferrari 458 Spider - EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	279322	COMPL. RH EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279323	COMPL. LH EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268256	Manifold Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307964	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274957	REAR RH SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274959	REAR LH SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289529	FLEXIBLE SILENCER MOUNTING BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	283425	SQUARE HEADED SCREW M6 X 18.5MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240598	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252764	SILENCER MOUNTING BRACKET	Enquire	To Order
	252765	OUTER REAR SILENCER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87904300	WASHER	Enquire	To Order
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11585024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258108	CENTRAL OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324642	RING CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303836	RH CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303835	LH CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253857	RH SILENCER BRACKET	Enquire	To Order
	253858	LH SILENCER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240597	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	110860	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263588	RH CATALYTIC CONVERTER SHIELD	Enquire	To Order
	263589	LH CATALYTIC CONVERTER SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

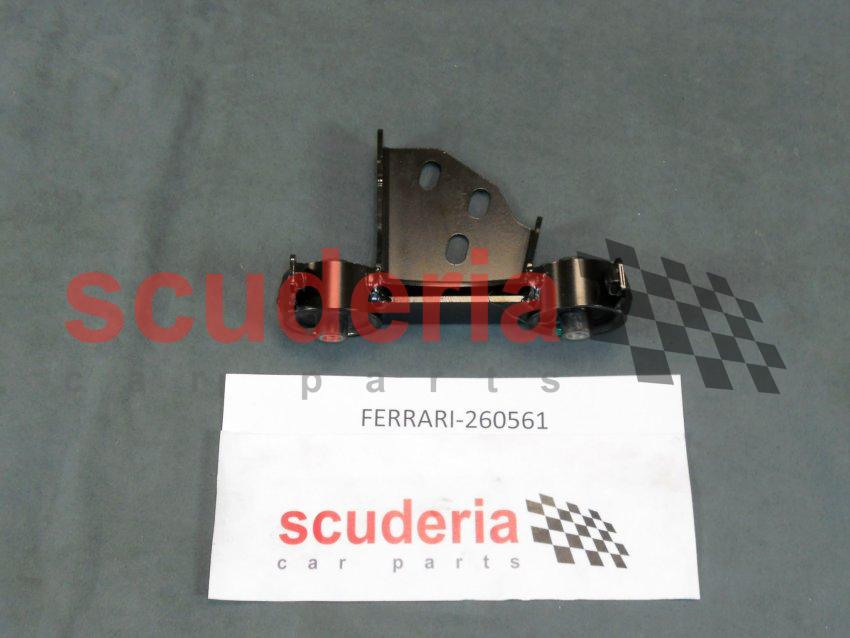

	260561	RH BRACKET WITH BUSHES	Enquire	To Order

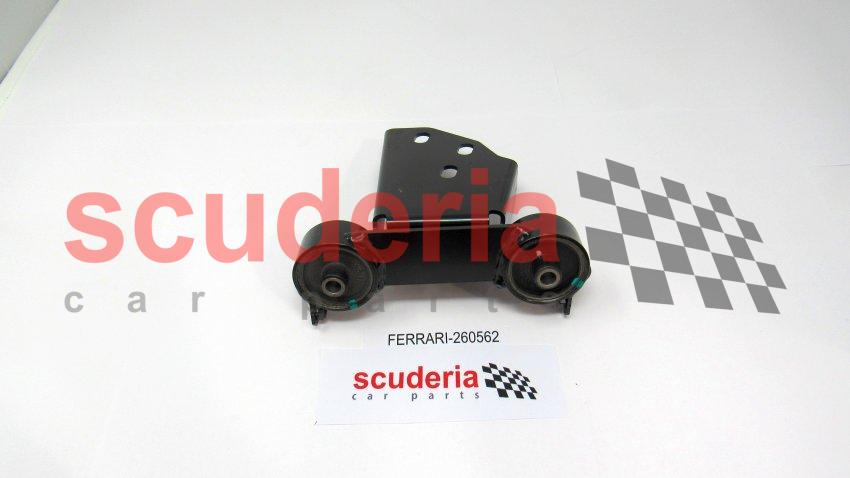

	260562	LH BRACKET WITH BUSHES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

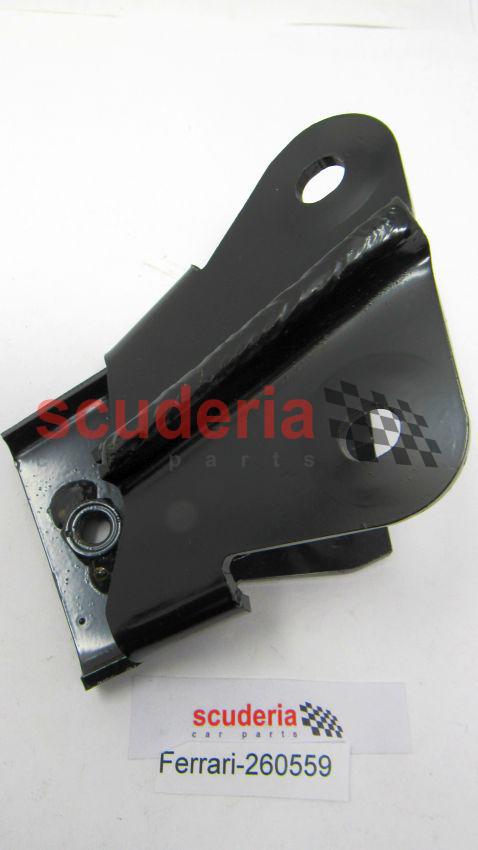

	260559	RH CATALYTIC CONVERTER BRACKET	Enquire	To Order

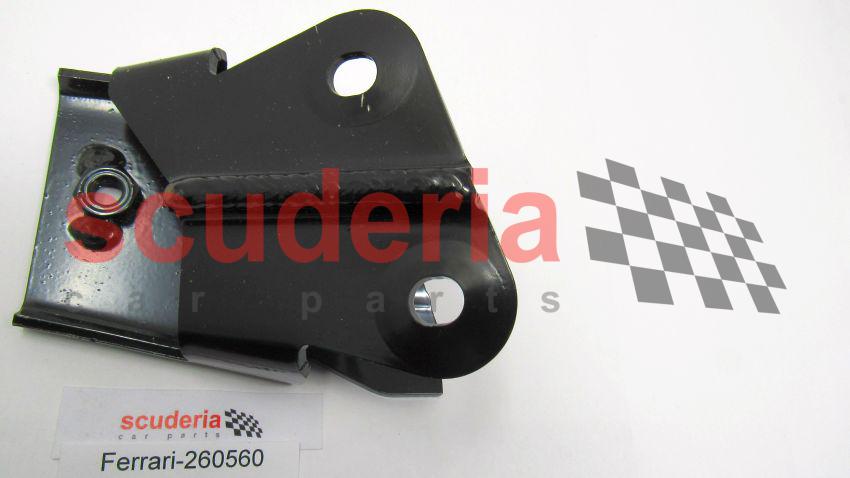

	260560	LH CATALYTIC CONVERTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82271400	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11627826	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044321	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306034	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304021	SCREW M5 X 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14446624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280463	FRONT OXYGEN SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180915	Rear Lambda Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271707	COMPL. RH SHIELD	Enquire	To Order
	283920	COMPL. RH SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	283919	COMPL. LH SHIELD	Enquire	To Order
	271708	COMPL. LH SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185408	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257360	EXHAUST GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647704	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264409	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263901	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182363	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12620477	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185307	Exhaust Clamp	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	292091	RING CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87904300	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271704	RH SHIELD	Enquire	To Order
	281762	RH SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281761	LH SHIELD	Enquire	To Order
	271706	LH SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271898	RUBBER PIPE FOR RH SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271900	RUBBER PIPE FOR LH SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13125970	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198273	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291283	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199589	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003133	BYPASS VALVE ACTUATOR KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	279322	COMPL. RH EXHAUST MANIFOLD	279322 COMPL. RH EXHAUST MANIFOLD	-	1	Enquire
2	279323	COMPL. LH EXHAUST MANIFOLD	279323 COMPL. LH EXHAUST MANIFOLD	-	1	Enquire
3	268256	Manifold Gasket	268256 Manifold Gasket	-	2	Enquire
4	307964	NUT	307964 NUT	-	16	Enquire
5	274957	REAR RH SILENCER	274957 REAR RH SILENCER	-	1	Enquire
6	274959	REAR LH SILENCER	274959 REAR LH SILENCER	-	1	Enquire
7	289529	FLEXIBLE SILENCER MOUNTING BUSH	289529 FLEXIBLE SILENCER MOUNTING BUSH	-	6	Enquire
8	283425	SQUARE HEADED SCREW M6 X 18.5MM	283425 SQUARE HEADED SCREW M6 X 18.5MM	-	6	Enquire
9	240598	PLATE	240598 PLATE	-	6	Enquire
10	252764	SILENCER MOUNTING BRACKET	252764 SILENCER MOUNTING BRACKET	-	4	Enquire
10	252765	OUTER REAR SILENCER BRACKET	252765 OUTER REAR SILENCER BRACKET	-	2	Enquire
11	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
12	87904300	WASHER	87904300 WASHER	-	4	Enquire
12	12643724	WASHER	12643724 WASHER	-	6	Enquire
13	11585024	SCREW	11585024 SCREW M5 X 14	-	18	Enquire
14	258108	CENTRAL OUTLET PIPE	258108 CENTRAL OUTLET PIPE	-	1	Enquire
15	324642	RING CLAMP	324642 RING CLAMP	-	2	Enquire
16	303836	RH CATALYTIC CONVERTER	303836 RH CATALYTIC CONVERTER	-	1	Enquire
17	303835	LH CATALYTIC CONVERTER	303835 LH CATALYTIC CONVERTER	-	1	Enquire
18	253857	RH SILENCER BRACKET	253857 RH SILENCER BRACKET	-	1	Enquire
18	253858	LH SILENCER BRACKET	253858 LH SILENCER BRACKET	-	1	Enquire
19	240597	PLATE	240597 PLATE	-	2	Enquire
20	14059311	NUT	14059311 NUT	-	4	Enquire
21	110860	THREADED PLUG	110860 THREADED PLUG	-	2	Enquire
22	263588	RH CATALYTIC CONVERTER SHIELD	263588 RH CATALYTIC CONVERTER SHIELD	-	1	Enquire
22	263589	LH CATALYTIC CONVERTER SHIELD	263589 LH CATALYTIC CONVERTER SHIELD	-	1	Enquire
23	260561	RH BRACKET WITH BUSHES	260561 RH BRACKET WITH BUSHES	-	1	Enquire
23	260562	LH BRACKET WITH BUSHES	260562 LH BRACKET WITH BUSHES	-	1	Enquire
24	260559	RH CATALYTIC CONVERTER BRACKET	260559 RH CATALYTIC CONVERTER BRACKET	-	1	Enquire
24	260560	LH CATALYTIC CONVERTER BRACKET	260560 LH CATALYTIC CONVERTER BRACKET	-	1	Enquire
25	82271400	SCREW	82271400 SCREW	-	8	Enquire
26	11627826	SCREW	11627826 SCREW	-	6	Enquire
27	16044321	SCREW	16044321 SCREW	-	4	Enquire
28	12601374	WASHER	12601374 WASHER	-	8	Enquire
29	12601374	WASHER	12601374 WASHER	-	4	Enquire
30	14059311	NUT	14059311 NUT	-	4	Enquire
31	306034	SHIELD	306034 SHIELD	-	1	Enquire
32	231620	SCREW	231620 SCREW M6 X 25	-	2	Enquire
33	14304021	SCREW M5 X 10	14304021 SCREW M5 X 10	-	4	Enquire
34	14446624	WASHER	14446624 WASHER	-	4	Enquire
35	280463	FRONT OXYGEN SENSOR	280463 FRONT OXYGEN SENSOR	-	2	Enquire
36	180915	Rear Lambda Sensor	180915 Rear Lambda Sensor	-	2	Enquire
37	271707	COMPL. RH SHIELD	271707 COMPL. RH SHIELD Applicable up to Ass. No. 103617	-	1	Enquire
37	283920	COMPL. RH SHIELD	283920 COMPL. RH SHIELD Applicable from Ass. No. 103618	-	1	Enquire
38	283919	COMPL. LH SHIELD	283919 COMPL. LH SHIELD Applicable from Ass. No. 103618	-	1	Enquire
38	271708	COMPL. LH SHIELD	271708 COMPL. LH SHIELD Applicable up to Ass. No. 103617	-	1	Enquire
39	185408	BRACKET	185408 BRACKET	-	2	Enquire
40	11625824	SCREW	11625824 SCREW M6 X 18	-	2	Enquire
41	257360	EXHAUST GASKET	257360 EXHAUST GASKET	-	2	Enquire
42	10298460	GASKET	10298460 GASKET	-	2	Enquire
43	12647704	WASHER	12647704 WASHER	-	3	Enquire
44	264409	BRACKET WITH SHEATH	264409 BRACKET WITH SHEATH	-	1	Enquire
45	263901	BRACKET WITH SHEATH	263901 BRACKET WITH SHEATH	-	2	Enquire
46	182363	STUD BOLT	182363 STUD BOLT	-	1	Enquire
47	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	3	Enquire
48	12620477	WASHER	12620477 WASHER	-	1	Enquire
49	231620	SCREW	231620 SCREW M6 X 25; Applicable up to Ass. No. 104675	-	1	Enquire
50	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
51	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Applicable from Ass. No. 104676; No longer supplied	-	1	Enquire
52	185307	Exhaust Clamp ARRIVING SOON	185307 Exhaust Clamp ARRIVING SOON	-	2	Enquire
53	292091	RING CLAMP	292091 RING CLAMP	-	2	Enquire
54	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	2	Enquire
55	87904300	WASHER	87904300 WASHER	-	4	Enquire
56	12643724	WASHER	12643724 WASHER	-	4	Enquire
57	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
58	271704	RH SHIELD	271704 RH SHIELD Applicable up to Ass. No. 103617	-	1	Enquire
58	281762	RH SHIELD	281762 RH SHIELD Applicable from Ass. No. 103618	-	1	Enquire
59	281761	LH SHIELD	281761 LH SHIELD Applicable from Ass. No. 103618	-	1	Enquire
59	271706	LH SHIELD	271706 LH SHIELD Applicable up to Ass. No. 103617	-	1	Enquire
60	271898	RUBBER PIPE FOR RH SHIELD	271898 RUBBER PIPE FOR RH SHIELD Applicable up to Ass. No. 103617	-	1	Enquire
61	271900	RUBBER PIPE FOR LH SHIELD	271900 RUBBER PIPE FOR LH SHIELD Applicable up to Ass. No. 103617	-	1	Enquire
62	13125970	CLAMP	13125970 CLAMP Applicable up to Ass. No. 103617	-	2	Enquire
63	198273	CLIP	198273 CLIP	-	2	Enquire
64	291283	CLIP	291283 CLIP	-	2	Enquire
65	199589	CLIP	199589 CLIP	-	2	Enquire
66	70003133	BYPASS VALVE ACTUATOR KIT	70003133 BYPASS VALVE ACTUATOR KIT Also order collar, part number 241986	-	2	Enquire

SECONDARY AIR SYSTEM

AIR INTAKE

EXHAUST SYSTEM

LUBRICATION SYSTEM: TANK, PUMP AND FILTER

Haven't found what you're looking for?

More: Ferrari Exhausts Tuning Parts Need help? Call us

View Cart / Checkout

Exhaust System

Ferrari 458 Spider

Ferrari 458 Spider - EXHAUST SYSTEM
