Chassis - Structure, Front Elements And Panels

Ferrari 458 Spider

Find Your Part

Ferrari 458 Spider - CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
277902 FRONT CROSS MEMBER $3,605.52 To Order
271978 FRONT CROSS MEMBER $1,800.34 To Order
277902 FRONT CROSS MEMBER $3,605.52 To Order
Photo Part No Description Price (each) Stock
266330 FRONT RH STRUT $2,010.55 To Order
266098 FRONT RH STRUT $1,187.39 To Order
Photo Part No Description Price (each) Stock
249940 FRONT LH STRUT $1,139.25 To Order
263944 Front LH Strut $2,010.55 To Order
Photo Part No Description Price (each) Stock
985244142 ANGULAR BRACE FOR RH STRUT $192.54 IN STOCK
Photo Part No Description Price (each) Stock
985244141 ANGULAR BRACE FOR LH STRUT $192.54 IN STOCK
Photo Part No Description Price (each) Stock
285538 FRONT RH SHOCK TOWER $7,803.15 To Order
Photo Part No Description Price (each) Stock
285537 FRONT LH SHOCK TOWER $7,803.15 To Order
Photo Part No Description Price (each) Stock
270833 RH UPPER FRONT DIAGONAL BRACE $385.09 To Order
Photo Part No Description Price (each) Stock
270834 LH UPPER FRONT DIAGONAL BRACE $329.32 To Order
Photo Part No Description Price (each) Stock
274064 RH WHEEL BAY COVER $561.59 To Order
271965 RH WHEEL BAY COVER $609.73 To Order
Photo Part No Description Price (each) Stock
271964 LH WHEEL BAY COVER $609.73 To Order
274063 LH WHEEL BAY COVER $561.59 To Order
Photo Part No Description Price (each) Stock
257921 FRONT RH TORQUE BOX $1,331.80 To Order
Photo Part No Description Price (each) Stock
257920 FRONT LH TORQUE BOX $1,203.43 To Order
Photo Part No Description Price (each) Stock
283975 LOWER FRONT SUSPENSION CROSS MEMBER $1,267.62 To Order
283974 LOWER FRONT SUSPENSION CROSS MEMBER $1,203.43 To Order
Photo Part No Description Price (each) Stock
265057 CASTING LINK CROSS MEMBER $481.36 To Order
265280 CASTING LINK CROSS MEMBER $529.50 To Order
Photo Part No Description Price (each) Stock
275628 WINDSCREEN VALENCE PANEL CROSS MEMBER $826.72 To Order
Photo Part No Description Price (each) Stock
274766 UPPER RH DIAGONAL BRACE $657.87 To Order
275594 UPPER RH DIAGONAL BRACE $593.69 To Order
Photo Part No Description Price (each) Stock
274762 UPPER LH DIAGONAL BRACE $657.87 To Order
275593 UPPER LH DIAGONAL BRACE $593.69 To Order
Photo Part No Description Price (each) Stock
265064 LOWER RH DIAGONAL BRACE $369.04 To Order
Photo Part No Description Price (each) Stock
265063 LOWER LH DIAGONAL BRACE $391.23 To Order
Photo Part No Description Price (each) Stock
270836 RH DIAGONAL WINDSCREEN VALENCE PANEL ENDPIECE $208.58 To Order
Photo Part No Description Price (each) Stock
270835 LH DIAGONAL WINDSCREEN VALENCE PANEL ENDPIECE $208.58 To Order
Photo Part No Description Price (each) Stock
274091 WINDSCREEN WIPER BRACKET $67.38 To Order
272197 WINDSCREEN WIPER BRACKET $51.33 To Order
Photo Part No Description Price (each) Stock
81738700 RH LUGGAGE COMPARTMENT TUB BRACKET $147.61 To Order
81738900 LH LUGGAGE COMPARTMENT TUB BRACKET $147.61 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.82 To Order
Photo Part No Description Price (each) Stock
82981900 RH RADIATOR FASTENER BRACKET $149.21 IN STOCK
84641900 RH RADIATOR FASTENER BRACKET $176.49 To Order
Photo Part No Description Price (each) Stock
84641800 LH RADIATOR FASTENER BRACKET $176.49 IN STOCK
82982000 LH RADIATOR FASTENER BRACKET $149.21 To Order
Photo Part No Description Price (each) Stock
985290233 COMPL. TOW HOOK $401.13 IN STOCK
266096 COMPL. TOW HOOK $272.77 To Order
Photo Part No Description Price (each) Stock
85633900 SCREW $8.12 IN STOCK
903295 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
985270832 RH WINDSCREEN VALENCE PANEL FASTENER BRACKET $153.59 To Order
Photo Part No Description Price (each) Stock
270831 LH WINDSCREEN VALENCE PANEL FASTENER BRACKET $256.72 To Order
Photo Part No Description Price (each) Stock
83754100 RH UNDERWINDSCREEN BOX ELEMENT $240.67 To Order
84827700 RH UNDERWINDSCREEN BOX ELEMENT $94.66 To Order
83754000 LH UNDERWINDSCREEN BOX ELEMENT $240.67 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
272192 BRAKE FLUID RESERVOIR BRACKET $67.38 To Order
Photo Part No Description Price (each) Stock
274093 BRAKE FLUID RESERVOIR BRACKET $272.77 To Order
Photo Part No Description Price (each) Stock
288818 SPACER $15.85 IN STOCK
290236 SPACER $7.52 IN STOCK
Photo Part No Description Price (each) Stock
265090 BRACKET $37.70 To Order
View All

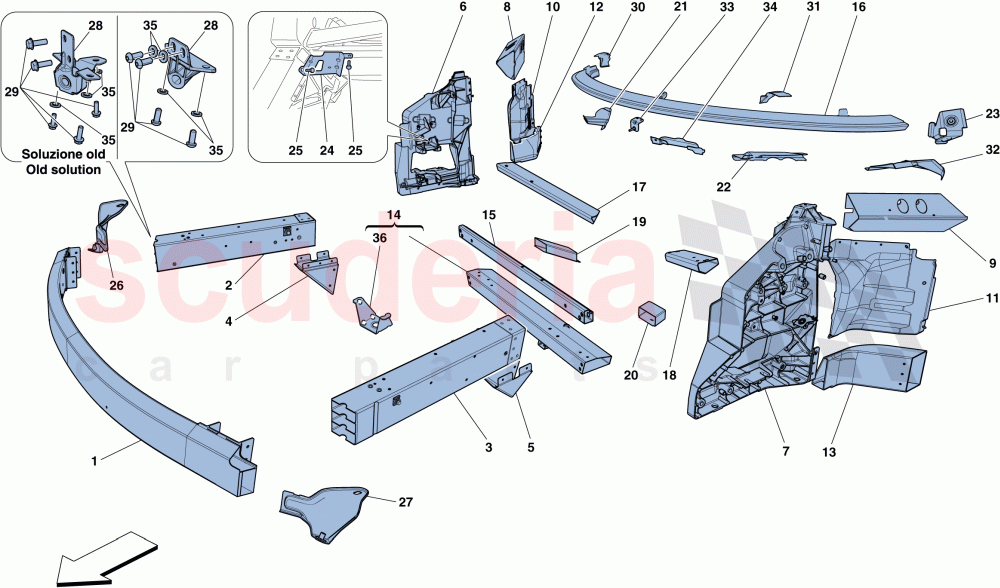

CHASSIS - STRUCTURE, FRONT ELEMENTS AND PANELS of Ferrari Ferrari 458 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 277902
FRONT CROSS MEMBER
; Applicable for USA, CDN 		$3,605.52 1
1 271978
FRONT CROSS MEMBER
; Not for USA, CDN; Applicable up to Ass. No. 109904 		$1,800.34 (21.1% off) 1
1 277902
FRONT CROSS MEMBER
; Not for USA, CDN; Applicable from Ass. No. 109905 		$3,605.52 1
2 266330
FRONT RH STRUT
; Applicable for GD 		$2,010.55 1
2 266098
FRONT RH STRUT
; Not for GD 		$1,187.39 1
3 249940
FRONT LH STRUT
; Not for GD 		$1,139.25 1
3 263944
Front LH Strut
; Applicable for GD 		$2,010.55 1
4 985244142
ANGULAR BRACE FOR RH STRUT
IN STOCK 		$192.54 1
5 985244141
ANGULAR BRACE FOR LH STRUT
IN STOCK 		$192.54 1
6 285538
FRONT RH SHOCK TOWER 		$7,803.15 1
7 285537
FRONT LH SHOCK TOWER 		$7,803.15 1
8 270833
RH UPPER FRONT DIAGONAL BRACE 		$385.09 1
9 270834
LH UPPER FRONT DIAGONAL BRACE 		$329.32 1
10 274064
RH WHEEL BAY COVER
; Applicable for GD 		$561.59 1
10 271965
RH WHEEL BAY COVER
; Not for GD 		$609.73 1
11 271964
LH WHEEL BAY COVER
; Not for GD 		$609.73 1
11 274063
LH WHEEL BAY COVER
; Applicable for GD 		$561.59 1
12 257921
FRONT RH TORQUE BOX 		$1,331.80 1
13 257920
FRONT LH TORQUE BOX 		$1,203.43 1
14 283975
LOWER FRONT SUSPENSION CROSS MEMBER
; Applicable for GD 		$1,267.62 1
14 283974
LOWER FRONT SUSPENSION CROSS MEMBER
; Not for GD 		$1,203.43 1
15 265057
CASTING LINK CROSS MEMBER
; Not for GD 		$481.36 1
15 265280
CASTING LINK CROSS MEMBER
; Applicable for GD 		$529.50 1
16 275628
WINDSCREEN VALENCE PANEL CROSS MEMBER
Not for GD 		$826.72 1
17 274766
UPPER RH DIAGONAL BRACE
Not for GD 		$657.87 1
17 275594
UPPER RH DIAGONAL BRACE
Applicable for GD 		$593.69 1
18 274762
UPPER LH DIAGONAL BRACE
Not for GD 		$657.87 1
18 275593
UPPER LH DIAGONAL BRACE
Applicable for GD 		$593.69 1
19 265064
LOWER RH DIAGONAL BRACE 		$369.04 1
20 265063
LOWER LH DIAGONAL BRACE 		$391.23 1
21 270836
RH DIAGONAL WINDSCREEN VALENCE PANEL ENDPIECE 		$208.58 1
22 270835
LH DIAGONAL WINDSCREEN VALENCE PANEL ENDPIECE 		$208.58 1
23 274091
WINDSCREEN WIPER BRACKET
Applicable for GD 		$67.38 1
23 272197
WINDSCREEN WIPER BRACKET
Not for GD 		$51.33 1
24 81738700
RH LUGGAGE COMPARTMENT TUB BRACKET 		$147.61 1
24 81738900
LH LUGGAGE COMPARTMENT TUB BRACKET 		$147.61 1
25 13839224
SCREW
M8 X 25 		$2.82 4
26 82981900
RH RADIATOR FASTENER BRACKET
Applicable up to Ass. No. 120374
IN STOCK 		$149.21 1
26 84641900
RH RADIATOR FASTENER BRACKET
Applicable from Ass. No. 120375 		$176.49 1
27 84641800
LH RADIATOR FASTENER BRACKET
Applicable from Ass. No. 120375
IN STOCK 		$176.49 1
27 82982000
LH RADIATOR FASTENER BRACKET
Applicable up to Ass. No. 120374 		$149.21 1
28 985290233
COMPL. TOW HOOK
Applicable from Ass. No. 111422
IN STOCK 		$401.13 1
28 266096
COMPL. TOW HOOK
Applicable up to Ass. No. 111421 		$272.77 1
29 85633900
SCREW
IN STOCK 		$8.12 4
29 903295
SCREW
Applicable up to Ass. No. 111421 		$0.68 5
30 985270832
RH WINDSCREEN VALENCE PANEL FASTENER BRACKET 		$153.59 1
31 270831
LH WINDSCREEN VALENCE PANEL FASTENER BRACKET 		$256.72 1
32 83754100
RH UNDERWINDSCREEN BOX ELEMENT
Applicable up to Ass. No. 120374 		$240.67 1
32 84827700
RH UNDERWINDSCREEN BOX ELEMENT
Applicable from Ass. No. 120375 		$94.66 1
32 83754000
LH UNDERWINDSCREEN BOX ELEMENT
Applicable up to Ass. No. 120374 		$240.67 1
32 84827600
LH UNDERWINDSCREEN BOX ELEMENT
Applicable from Ass. No. 120375 		$94.66 1
33 272192
BRAKE FLUID RESERVOIR BRACKET
Not for GD 		$67.38 1
34 274093
BRAKE FLUID RESERVOIR BRACKET
Applicable for GD 		$272.77 1
35 288818
SPACER
Applicable up to Ass. No. 111421
IN STOCK 		$15.85 3
35 290236
SPACER
Applicable from Ass. No. 111422
IN STOCK 		$7.52 4
36 265090
BRACKET 		$37.70 2
