Name: CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS
Rating: 4.8 (1 reviews)

CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS of Ferrari Ferrari 458 Speciale Aperta

View All

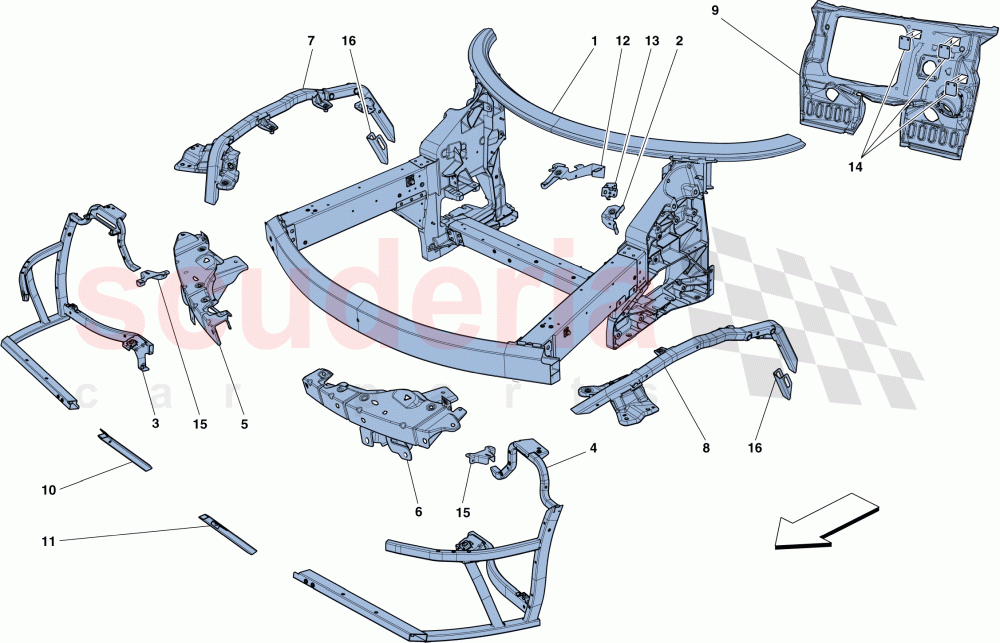

Ferrari 458 Speciale Aperta - CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985313176	FRONT SUBFRAME	$20,508.45	To Order
	985308858	FRONT SUBFRAME	$21,119.71	To Order

Photo	Part No	Description	Price (each)	Stock
	263064	WINDSCREEN WIPER MOTOR MOUNTING BRACKET	$35.82	To Order
	256207	WINDSCREEN WIPER MOTOR MOUNTING BRACKET	$32.95	To Order

Photo	Part No	Description	Price (each)	Stock
	84629500	RH FRONT SIDE TRELLIS	$818.33	To Order

Photo	Part No	Description	Price (each)	Stock
	84629400	LH FRONT LATERAL TRELLIS	$742.49	To Order

Photo	Part No	Description	Price (each)	Stock
	85461800	RH BUMPER FASTENER BRACKET	$387.02	To Order

Photo	Part No	Description	Price (each)	Stock
	85461700	LH BUMPER FASTENER BRACKET	$387.02	To Order

Photo	Part No	Description	Price (each)	Stock
	84631200	COMPL. RH FENDER MOUNT	$1,003.41	To Order

Photo	Part No	Description	Price (each)	Stock
	84631000	COMPL. LH FENDER MOUNT	$1,060.74	To Order

Photo	Part No	Description	Price (each)	Stock
	313212	FRONT FIREWALL	$2,692.50	To Order
	312688	FRONT FIREWALL	$2,759.89	To Order

Photo	Part No	Description	Price (each)	Stock
	84638500	RH TRELLIS CONNECTION	$126.75	To Order

Photo	Part No	Description	Price (each)	Stock
	84638400	LH TRELLIS CONNECTION	$126.75	To Order

Photo	Part No	Description	Price (each)	Stock
	274092	WINDSCREEN WIPER SPINDLE BRACKET	$57.33	To Order
	272196	WINDSCREEN WIPER SPINDLE BRACKET	$41.23	To Order

Photo	Part No	Description	Price (each)	Stock
	257198	RH BRACKET	$32.95	To Order
	257195	LH BRACKET	$32.95	To Order

Photo	Part No	Description	Price (each)	Stock
	85533700	FRONT FIREWALL VENTILATION FLAP	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	84629100	TRELLIS MOUNTING BRACKET	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	85455811	BRACKET FOR ADJUSTER	$133.17	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	985313176	FRONT SUBFRAME	985313176 FRONT SUBFRAME ; Applicable for GD	$20,508.45	1
1	985308858	FRONT SUBFRAME	985308858 FRONT SUBFRAME ; Not for GD	$21,119.71	1
2	263064	WINDSCREEN WIPER MOTOR MOUNTING BRACKET	263064 WINDSCREEN WIPER MOTOR MOUNTING BRACKET Applicable for GD	$35.82	1
2	256207	WINDSCREEN WIPER MOTOR MOUNTING BRACKET	256207 WINDSCREEN WIPER MOTOR MOUNTING BRACKET Not for GD	$32.95	1
3	84629500	RH FRONT SIDE TRELLIS	84629500 RH FRONT SIDE TRELLIS	$818.33	1
4	84629400	LH FRONT LATERAL TRELLIS	84629400 LH FRONT LATERAL TRELLIS	$742.49	1
5	85461800	RH BUMPER FASTENER BRACKET	85461800 RH BUMPER FASTENER BRACKET	$387.02	1
6	85461700	LH BUMPER FASTENER BRACKET	85461700 LH BUMPER FASTENER BRACKET	$387.02	1
7	84631200	COMPL. RH FENDER MOUNT	84631200 COMPL. RH FENDER MOUNT	$1,003.41	1
8	84631000	COMPL. LH FENDER MOUNT	84631000 COMPL. LH FENDER MOUNT	$1,060.74	1
9	313212	FRONT FIREWALL	313212 FRONT FIREWALL Applicable for GD	$2,692.50	1
9	312688	FRONT FIREWALL	312688 FRONT FIREWALL Not for GD	$2,759.89	1
10	84638500	RH TRELLIS CONNECTION	84638500 RH TRELLIS CONNECTION	$126.75	1
11	84638400	LH TRELLIS CONNECTION	84638400 LH TRELLIS CONNECTION	$126.75	1
12	274092	WINDSCREEN WIPER SPINDLE BRACKET	274092 WINDSCREEN WIPER SPINDLE BRACKET Applicable for GD	$57.33	1
12	272196	WINDSCREEN WIPER SPINDLE BRACKET	272196 WINDSCREEN WIPER SPINDLE BRACKET Not for GD	$41.23	1
13	257198	RH BRACKET	257198 RH BRACKET	$32.95	1
13	257195	LH BRACKET	257195 LH BRACKET	$32.95	1
14	85533700	FRONT FIREWALL VENTILATION FLAP	85533700 FRONT FIREWALL VENTILATION FLAP	$2.25	3
15	84629100	TRELLIS MOUNTING BRACKET	84629100 TRELLIS MOUNTING BRACKET	$24.05	2
16	85455811	BRACKET FOR ADJUSTER	85455811 BRACKET FOR ADJUSTER	$133.17	2
