Name: GEARBOX HOUSING
Rating: 5.0 (1 reviews)

GEARBOX HOUSING of Ferrari Ferrari 458 Speciale

View All

Ferrari 458 Speciale - GEARBOX HOUSING

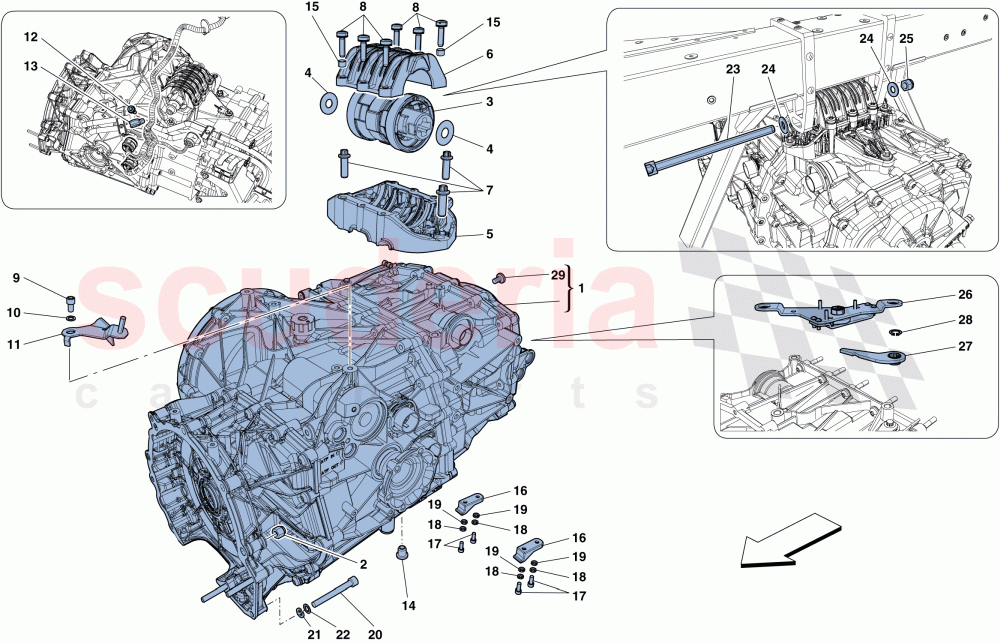

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	263938	COMPL. DUAL CLUTCH GEARBOX	$35,523.29	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	247723	VIBRATION DAMPER	$288.81	To Order

Photo	Part No	Description	Price (each)	Stock
	255731	SHIM	$5.01	To Order
	255732	SHIM	$28.66	To Order

Photo	Part No	Description	Price (each)	Stock
	259440	BUSHING-GEARBOX CONNECTOR PLATE	$301.00	To Order

Photo	Part No	Description	Price (each)	Stock
	259441	BUSHING COVER COLLAR	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	259443	SCREW	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	216576	SCREW	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	14360524	SCREW	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	292361	CLUTCH OIL PIPE MOUNTING BRACKET	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	82271400	SCREW	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	10448890	BRACKET WITH SHEATH	$2.71	To Order

Photo	Part No	Description	Price (each)	Stock
	273038	OIL DRAIN PLUG	$24.64	To Order

Photo	Part No	Description	Price (each)	Stock
	102032	CENTERING DOWEL	$3.91	To Order

Photo	Part No	Description	Price (each)	Stock
	248689	RETENTION BRACKET	$63.05	To Order

Photo	Part No	Description	Price (each)	Stock
	14814234	SCREW	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14309024	SCREW	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	921971	SCREW	$15.66	To Order

Photo	Part No	Description	Price (each)	Stock
	10552324	WASHER	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	851485	SELF-LOCKING NUT	$2.01	To Order

Photo	Part No	Description	Price (each)	Stock
	310524	COMPL. RELEASE CURSOR MOUNTING BRACKET	$83.11	To Order

Photo	Part No	Description	Price (each)	Stock
	238370	COMPLETE RELEASE LEVER	$70.21	To Order

Photo	Part No	Description	Price (each)	Stock
	11066176	SEEGER RING	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	263679	FUEL LEVEL PLUG	$114.66	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	263938	COMPL. DUAL CLUTCH GEARBOX	263938 COMPL. DUAL CLUTCH GEARBOX	$35,523.29 MSRP: ~~36,462.68~~ (2.6% off)	1
2	14059421	NUT	14059421 NUT	$0.52	7
3	247723	VIBRATION DAMPER	247723 VIBRATION DAMPER	$288.81	1
4	255731	SHIM	255731 SHIM Th. 0.4 mm	$5.01	3
4	255732	SHIM	255732 SHIM Th. 1 mm	$28.66	3
5	259440	BUSHING-GEARBOX CONNECTOR PLATE	259440 BUSHING-GEARBOX CONNECTOR PLATE	$301.00	1
6	259441	BUSHING COVER COLLAR	259441 BUSHING COVER COLLAR	$186.33	1
7	259443	SCREW	259443 SCREW	$2.92	3
8	216576	SCREW	216576 SCREW	$0.75	6
9	14360524	SCREW	14360524 SCREW	$1.56	1
10	127498	WASHER	127498 WASHER	$0.15 MSRP: ~~0.60~~ (75% off)	1
11	292361	CLUTCH OIL PIPE MOUNTING BRACKET	292361 CLUTCH OIL PIPE MOUNTING BRACKET	$43.31	1
12	82271400	SCREW	82271400 SCREW	$1.31	1
13	10448890	BRACKET WITH SHEATH	10448890 BRACKET WITH SHEATH	$2.71	1
14	273038	OIL DRAIN PLUG	273038 OIL DRAIN PLUG	$24.64 MSRP: ~~37.33~~ (34% off)	2
15	102032	CENTERING DOWEL	102032 CENTERING DOWEL	$3.91 MSRP: ~~10.75~~ (63.6% off)	2
16	248689	RETENTION BRACKET	248689 RETENTION BRACKET	$63.05	2
17	14814234	SCREW	14814234 SCREW	$1.77	4
18	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
19	12638524	WASHER	12638524 WASHER	$0.06 MSRP: ~~0.25~~ (76% off)	4
20	14309024	SCREW	14309024 SCREW	$1.46	3
21	12638524	WASHER	12638524 WASHER	$0.06 MSRP: ~~0.25~~ (76% off)	3
22	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	3
23	921971	SCREW	921971 SCREW	$15.66	1
24	10552324	WASHER	10552324 WASHER	$0.47	2
25	851485	SELF-LOCKING NUT	851485 SELF-LOCKING NUT	$2.01	1
26	310524	COMPL. RELEASE CURSOR MOUNTING BRACKET	310524 COMPL. RELEASE CURSOR MOUNTING BRACKET	$83.11	1
27	238370	COMPLETE RELEASE LEVER	238370 COMPLETE RELEASE LEVER	$70.21	1
28	11066176	SEEGER RING	11066176 SEEGER RING	$0.05	1
29	263679	FUEL LEVEL PLUG	263679 FUEL LEVEL PLUG	$114.66	1
