Ferrari 458 Speciale - CENTRAL ELEMENTS AND PANELS

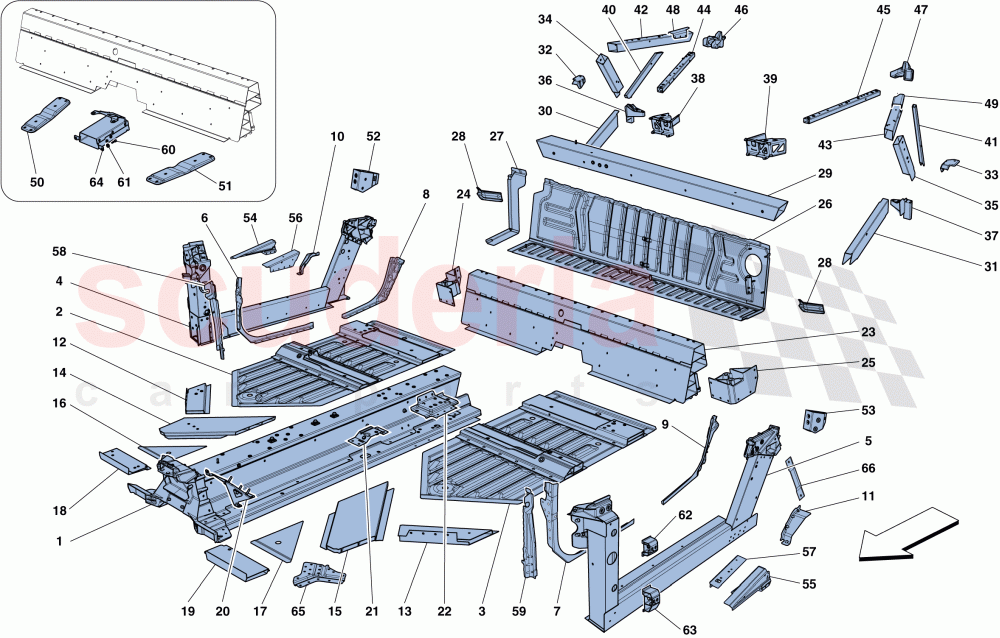

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
291961 COMPL. TUNNEL Enquire To Order
301357 COMPL. TUNNEL Enquire To Order
Photo Part No Description Price (each) Stock
292109 COMPL. RH HALF FLOOR PANEL Enquire To Order
Photo Part No Description Price (each) Stock
292108 COMPL. LH HALF FLOOR PANEL Enquire To Order
Photo Part No Description Price (each) Stock
291960 RH SILL Enquire To Order
301355 RH SILL Enquire To Order
Photo Part No Description Price (each) Stock
291959 LH SILL Enquire To Order
301354 LH SILL Enquire To Order
Photo Part No Description Price (each) Stock
83814500 RH FRONT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
83814600 LH FRONT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
83815000 REAR RH ENDPIECE Enquire To Order
Photo Part No Description Price (each) Stock
83814700 REAR LH ENDPIECE Enquire To Order
Photo Part No Description Price (each) Stock
249925 FRONT FASTENER BRACKET FOR RH FLANK Enquire To Order
Photo Part No Description Price (each) Stock
249924 FRONT FASTENER BRACKET FOR LH FLANK Enquire To Order
Photo Part No Description Price (each) Stock
280494 RH FLOOR LATERAL EXTRUSION Enquire To Order
Photo Part No Description Price (each) Stock
280493 LH FLOOR LATERAL EXTRUSION Enquire To Order
Photo Part No Description Price (each) Stock
245513 RH BRACE BETWEEN TORQUE BOX AND TUNNEL Enquire To Order
263692 RH BRACE BETWEEN TORQUE BOX AND TUNNEL Enquire To Order
Photo Part No Description Price (each) Stock
263693 LH BRACE BETWEEN TORQUE BOX AND TUNNEL Enquire To Order
245514 LH BRACE BETWEEN TORQUE BOX AND TUNNEL Enquire To Order
Photo Part No Description Price (each) Stock
248977 FRONT RH FLOOR ENDPIECE Enquire To Order
Photo Part No Description Price (each) Stock
248976 FRONT LH FLOOR ENDPIECE Enquire To Order
Photo Part No Description Price (each) Stock
282541 FRONT RH CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
282539 FRONT LH CROSS MEMBER Enquire To Order
301349 FRONT LH CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
283681 ACCELERATOR PEDAL FASTENER BRACKET Enquire To Order
266326 ACCELERATOR PEDAL FASTENER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
262866 LH SEAT GUIDE RAIL FASTENER BRACKET Enquire To Order
262867 RH SEAT GUIDE RAIL FASTENER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
290920 REAR FASTENER BRACKET FOR LH SEAT Enquire To Order
290921 REAR FASTENER BRACKET FOR RH SEAT Enquire To Order
Photo Part No Description Price (each) Stock
292261 SILL LINK CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
264308 LOWER RH EXTRUSION Enquire To Order
Photo Part No Description Price (each) Stock
264309 LOWER LH EXTRUSION Enquire To Order
Photo Part No Description Price (each) Stock
292331 REAR FIREWALL Enquire To Order
Photo Part No Description Price (each) Stock
257398 RH LATERAL MOUNTING FOR FIREWALL Enquire To Order
Photo Part No Description Price (each) Stock
82677800 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
303377 FUEL TANK CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
256697 RH LATERAL IMPACT BOX MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
302313 LH LATERAL IMPACT BOX MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
254479 REAR FASTENER BRACKET FOR RH REAR FLANK Enquire To Order
Photo Part No Description Price (each) Stock
254478 REAR FASTENER BRACKET FOR LH REAR FLANK Enquire To Order
Photo Part No Description Price (each) Stock
255316 RH REAR PILLAR BRACE Enquire To Order
Photo Part No Description Price (each) Stock
302304 LH REAR PILLAR BRACE Enquire To Order
Photo Part No Description Price (each) Stock
264431 RH SUBFRAME LINK EXTRUSION Enquire To Order
Photo Part No Description Price (each) Stock
264310 LH SUBFRAME LINK EXTRUSION Enquire To Order
Photo Part No Description Price (each) Stock
271054 RH MOUNTING BRACKET FOR REMOVABLE SUBFRAME Enquire To Order
Photo Part No Description Price (each) Stock
271053 LH MOUNTING BRACKET FOR REMOVABLE SUBFRAME Enquire To Order
Photo Part No Description Price (each) Stock
255318 RH SUSPENSION CASTING BRACE Enquire To Order
Photo Part No Description Price (each) Stock
302288 LH SUSPENSION CASTING BRACE Enquire To Order
Photo Part No Description Price (each) Stock
305513 RH UPPER EXTERNAL DIAGONAL BRACE Enquire To Order
253311 RH UPPER EXTERNAL DIAGONAL BRACE Enquire To Order
Photo Part No Description Price (each) Stock
253310 LH UPPER EXTERNAL DIAGONAL BRACE Enquire To Order
Photo Part No Description Price (each) Stock
271958 RH INTERNAL BOX MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
271956 LH INTERNAL BOX MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
264311 CASTING FOR REAR RH SHOCK TOWER. Enquire To Order
Photo Part No Description Price (each) Stock
264312 CASTING FOR REAR LH SHOCK TOWER. Enquire To Order
Photo Part No Description Price (each) Stock
257869 RH FRAME MOUNT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
257866 LH FRAME MOUNT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
84692400 RH LOCK STRIKER REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
84692300 LH LOCK STRIKER REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
282897 EXTERNAL RH TRUSS Enquire To Order
Photo Part No Description Price (each) Stock
282896 EXTERNAL LH TRUSS Enquire To Order
Photo Part No Description Price (each) Stock
296510 INTERNAL RH TRUSS Enquire To Order
Photo Part No Description Price (each) Stock
271422 INTERNAL LH TRUSS Enquire To Order
Photo Part No Description Price (each) Stock
84632800 A PILLAR FLANGE, FRONT RH ELEMENT Enquire To Order
Photo Part No Description Price (each) Stock
84632700 A PILLAR FLANGE, FRONT LH SECTION Enquire To Order
Photo Part No Description Price (each) Stock
13027024 SCREW M6 X 16MM Enquire To Order
Photo Part No Description Price (each) Stock
10523401 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
272632 COMPL. UPPER LH HINGE REINFORCEMENT Enquire To Order
272633 COMPL. UPPER RH HINGE REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
271953 COMPL. LOWER RH HINGE REINFORCEMENT Enquire To Order
271951 COMPL. LOWER LH HINGE REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
282829 COMPL. ENGINE BUFFER ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
302444 LH UNDERFLOOR IMPACT REINFORCEMENT BRACKET Enquire To Order
302445 RH UNDERFLOOR IMPACT REINFORCEMENT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
83898500 INTRUSION PROTECTION BEAM Enquire To Order
View All
CENTRAL ELEMENTS AND PANELS of Ferrari Ferrari 458 Speciale Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 291961
COMPL. TUNNEL
; Not for GD 		- 1 Enquire
1 301357
COMPL. TUNNEL
; Applicable for GD 		- 1 Enquire
2 292109
COMPL. RH HALF FLOOR PANEL 		- 1 Enquire
3 292108
COMPL. LH HALF FLOOR PANEL 		- 1 Enquire
4 291960
RH SILL
; Not for GD 		- 1 Enquire
4 301355
RH SILL
; Applicable for GD 		- 1 Enquire
5 291959
LH SILL
; Not for GD 		- 1 Enquire
5 301354
LH SILL
; Applicable for GD 		- 1 Enquire
6 83814500
RH FRONT PANEL 		- 1 Enquire
7 83814600
LH FRONT PANEL 		- 1 Enquire
8 83815000
REAR RH ENDPIECE 		- 1 Enquire
9 83814700
REAR LH ENDPIECE 		- 1 Enquire
10 249925
FRONT FASTENER BRACKET FOR RH FLANK 		- 1 Enquire
11 249924
FRONT FASTENER BRACKET FOR LH FLANK 		- 1 Enquire
12 280494
RH FLOOR LATERAL EXTRUSION 		- 1 Enquire
13 280493
LH FLOOR LATERAL EXTRUSION 		- 1 Enquire
14 245513
RH BRACE BETWEEN TORQUE BOX AND TUNNEL
Not for GD 		- 1 Enquire
14 263692
RH BRACE BETWEEN TORQUE BOX AND TUNNEL
Applicable for GD 		- 1 Enquire
15 263693
LH BRACE BETWEEN TORQUE BOX AND TUNNEL
Applicable for GD 		- 1 Enquire
15 245514
LH BRACE BETWEEN TORQUE BOX AND TUNNEL
Not for GD 		- 1 Enquire
16 248977
FRONT RH FLOOR ENDPIECE 		- 1 Enquire
17 248976
FRONT LH FLOOR ENDPIECE 		- 1 Enquire
18 282541
FRONT RH CROSS MEMBER 		- 1 Enquire
19 282539
FRONT LH CROSS MEMBER
Not for GD 		- 1 Enquire
19 301349
FRONT LH CROSS MEMBER
Applicable for GD 		- 1 Enquire
20 283681
ACCELERATOR PEDAL FASTENER BRACKET
Not for GD 		- 1 Enquire
20 266326
ACCELERATOR PEDAL FASTENER BRACKET
Applicable for GD 		- 1 Enquire
21 262866
LH SEAT GUIDE RAIL FASTENER BRACKET 		- 1 Enquire
21 262867
RH SEAT GUIDE RAIL FASTENER BRACKET 		- 1 Enquire
22 290920
REAR FASTENER BRACKET FOR LH SEAT 		- 1 Enquire
22 290921
REAR FASTENER BRACKET FOR RH SEAT 		- 1 Enquire
23 292261
SILL LINK CROSS MEMBER 		- 1 Enquire
24 264308
LOWER RH EXTRUSION 		- 1 Enquire
25 264309
LOWER LH EXTRUSION 		- 1 Enquire
26 292331
REAR FIREWALL 		- 1 Enquire
27 257398
RH LATERAL MOUNTING FOR FIREWALL 		- 1 Enquire
28 82677800
BRACKET 		- 2 Enquire
29 303377
FUEL TANK CROSS MEMBER 		- 1 Enquire
30 256697
RH LATERAL IMPACT BOX MEMBER 		- 1 Enquire
31 302313
LH LATERAL IMPACT BOX MEMBER 		- 1 Enquire
32 254479
REAR FASTENER BRACKET FOR RH REAR FLANK 		- 1 Enquire
33 254478
REAR FASTENER BRACKET FOR LH REAR FLANK 		- 1 Enquire
34 255316
RH REAR PILLAR BRACE 		- 1 Enquire
35 302304
LH REAR PILLAR BRACE 		- 1 Enquire
36 264431
RH SUBFRAME LINK EXTRUSION 		- 1 Enquire
37 264310
LH SUBFRAME LINK EXTRUSION 		- 1 Enquire
38 271054
RH MOUNTING BRACKET FOR REMOVABLE SUBFRAME 		- 1 Enquire
39 271053
LH MOUNTING BRACKET FOR REMOVABLE SUBFRAME 		- 1 Enquire
40 255318
RH SUSPENSION CASTING BRACE 		- 1 Enquire
41 302288
LH SUSPENSION CASTING BRACE 		- 1 Enquire
42 305513
RH UPPER EXTERNAL DIAGONAL BRACE
Applicable up to Ass. No. 117033 		- 1 Enquire
42 253311
RH UPPER EXTERNAL DIAGONAL BRACE
Applicable from Ass. No. 117034 		- 1 Enquire
43 253310
LH UPPER EXTERNAL DIAGONAL BRACE 		- 1 Enquire
44 271958
RH INTERNAL BOX MEMBER 		- 1 Enquire
45 271956
LH INTERNAL BOX MEMBER 		- 1 Enquire
46 264311
CASTING FOR REAR RH SHOCK TOWER. 		- 1 Enquire
47 264312
CASTING FOR REAR LH SHOCK TOWER. 		- 1 Enquire
48 257869
RH FRAME MOUNT BRACKET 		- 1 Enquire
49 257866
LH FRAME MOUNT BRACKET 		- 1 Enquire
52 84692400
RH LOCK STRIKER REINFORCEMENT 		- 1 Enquire
53 84692300
LH LOCK STRIKER REINFORCEMENT 		- 1 Enquire
54 282897
EXTERNAL RH TRUSS 		- 1 Enquire
55 282896
EXTERNAL LH TRUSS 		- 1 Enquire
56 296510
INTERNAL RH TRUSS 		- 1 Enquire
57 271422
INTERNAL LH TRUSS 		- 1 Enquire
58 84632800
A PILLAR FLANGE, FRONT RH ELEMENT 		- 1 Enquire
59 84632700
A PILLAR FLANGE, FRONT LH SECTION 		- 1 Enquire
60 13027024
SCREW M6 X 16MM 		- 4 Enquire
61 10523401
WASHER 		- 4 Enquire
62 272632
COMPL. UPPER LH HINGE REINFORCEMENT 		- 1 Enquire
62 272633
COMPL. UPPER RH HINGE REINFORCEMENT 		- 1 Enquire
63 271953
COMPL. LOWER RH HINGE REINFORCEMENT 		- 1 Enquire
63 271951
COMPL. LOWER LH HINGE REINFORCEMENT 		- 1 Enquire
64 282829
COMPL. ENGINE BUFFER ASSEMBLY 		- 1 Enquire
65 302444
LH UNDERFLOOR IMPACT REINFORCEMENT BRACKET 		- 1 Enquire
65 302445
RH UNDERFLOOR IMPACT REINFORCEMENT BRACKET 		- 1 Enquire
66 83898500
INTRUSION PROTECTION BEAM
Applicable for USA 		- 2 Enquire

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
