BODYSHELL - EXTERNAL TRIM of Ferrari Ferrari 458 Speciale

View All

Ferrari 458 Speciale - BODYSHELL - EXTERNAL TRIM

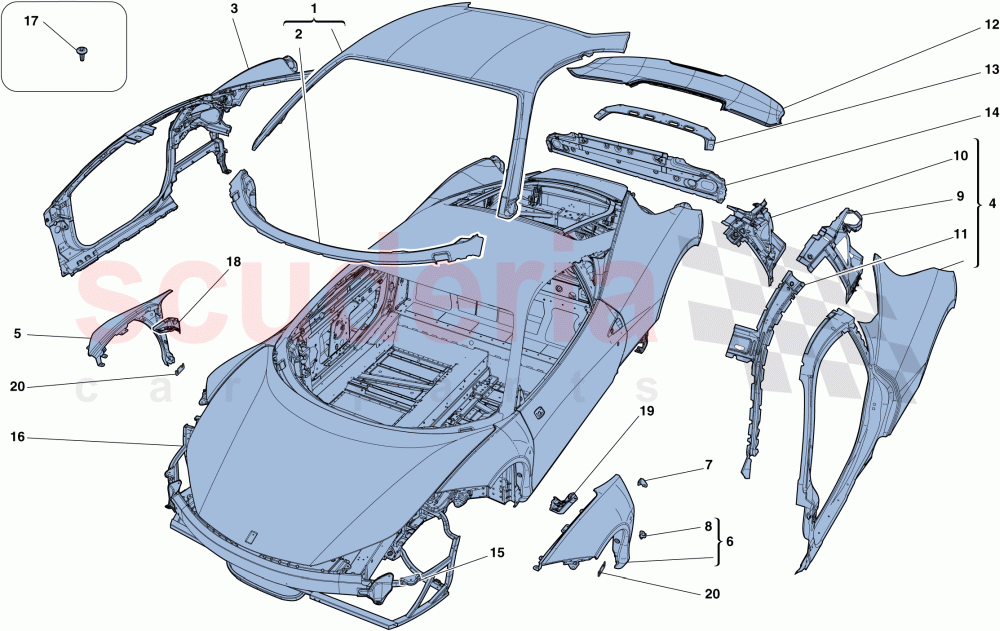

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83818611	ROOF TRIM	Enquire	To Order
	83953611	ROOF TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83740411	WINDSCREEN CROSS-MEMBER UPPER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83815911	RH FLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83816011	LH FLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85288711	FRONT RH FENDER	Enquire	To Order
	85289111	FRONT RH FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85288611	FRONT LH FENDER	Enquire	To Order
	85289011	FRONT LH FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81543000	UPPER LH BRACKET	Enquire	To Order
	81542900	UPPER RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82661400	LOWER RH BRACKET	Enquire	To Order
	82661500	LOWER LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83877100	REAR LH SUBFRAME	Enquire	To Order
	83877200	REAR RH SUBFRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83875400	RH NODE SUBFRAME	Enquire	To Order
	83875300	LH NODE SUBFRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81300200	LH PILLAR SUBFRAME	Enquire	To Order
	81300000	RH PILLAR SUBFRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85289611	REAR SPOILER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83818200	REAR BUMPER MOUNTING CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85859811	REAR SCREEN BULKHEAD SUBFRAME	Enquire	To Order
	83060411	REAR SCREEN BULKHEAD SUBFRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82534100	LH HEADLIGHT FASTENER BRACKET	Enquire	To Order
	82534000	RH HEADLIGHT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82398700	RIVET	Enquire	To Order
	81126500	RIVET	Enquire	To Order
	81126600	RIVET	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	83852000	RH FRONT FENDER REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83852100	LH FRONT FENDER REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82675400	FRONT FENDER SPACER KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	83818611	ROOF TRIM	83818611 ROOF TRIM	-	1	Enquire
1	83953611	ROOF TRIM	83953611 ROOF TRIM Applicable for satellite antenna; Applicable for USA, CDN	-	1	Enquire
2	83740411	WINDSCREEN CROSS-MEMBER UPPER COVER	83740411 WINDSCREEN CROSS-MEMBER UPPER COVER	-	1	Enquire
3	83815911	RH FLANK	83815911 RH FLANK	-	1	Enquire
4	83816011	LH FLANK	83816011 LH FLANK	-	1	Enquire
5	85288711	FRONT RH FENDER	85288711 FRONT RH FENDER	-	1	Enquire
5	85289111	FRONT RH FENDER	85289111 FRONT RH FENDER Shield badge	-	1	Enquire
6	85288611	FRONT LH FENDER	85288611 FRONT LH FENDER	-	1	Enquire
6	85289011	FRONT LH FENDER	85289011 FRONT LH FENDER Shield badge	-	1	Enquire
7	81543000	UPPER LH BRACKET	81543000 UPPER LH BRACKET	-	1	Enquire
7	81542900	UPPER RH BRACKET	81542900 UPPER RH BRACKET	-	1	Enquire
8	82661400	LOWER RH BRACKET	82661400 LOWER RH BRACKET	-	1	Enquire
8	82661500	LOWER LH BRACKET	82661500 LOWER LH BRACKET	-	1	Enquire
9	83877100	REAR LH SUBFRAME	83877100 REAR LH SUBFRAME	-	1	Enquire
9	83877200	REAR RH SUBFRAME	83877200 REAR RH SUBFRAME	-	1	Enquire
10	83875400	RH NODE SUBFRAME	83875400 RH NODE SUBFRAME	-	1	Enquire
10	83875300	LH NODE SUBFRAME	83875300 LH NODE SUBFRAME	-	1	Enquire
11	81300200	LH PILLAR SUBFRAME	81300200 LH PILLAR SUBFRAME	-	1	Enquire
11	81300000	RH PILLAR SUBFRAME	81300000 RH PILLAR SUBFRAME	-	1	Enquire
12	85289611	REAR SPOILER	85289611 REAR SPOILER	-	1	Enquire
13	83818200	REAR BUMPER MOUNTING CROSS MEMBER	83818200 REAR BUMPER MOUNTING CROSS MEMBER	-	1	Enquire
14	85859811	REAR SCREEN BULKHEAD SUBFRAME	85859811 REAR SCREEN BULKHEAD SUBFRAME Standard	-	1	Enquire
14	83060411	REAR SCREEN BULKHEAD SUBFRAME	83060411 REAR SCREEN BULKHEAD SUBFRAME 4-point seat harness; Not for AUS, CINA, USA, CDN, J, USA LIGHT	-	1	Enquire
15	82534100	LH HEADLIGHT FASTENER BRACKET	82534100 LH HEADLIGHT FASTENER BRACKET	-	1	Enquire
15	82534000	RH HEADLIGHT FASTENER BRACKET	82534000 RH HEADLIGHT FASTENER BRACKET	-	1	Enquire
17	82398700	RIVET	82398700 RIVET 4.8 x 9	-	-	Enquire
17	81126500	RIVET	81126500 RIVET 3.9 x 5.5	-	-	Enquire
17	81126600	RIVET	81126600 RIVET 3.9 x 7	-	-	Enquire
17	81126700	RIVET	81126700 RIVET 3.9 x 7	-	-	Enquire
17	81126800	RIVET	81126800 RIVET 3.9 x 8	-	-	Enquire
17	81126900	RIVET	81126900 RIVET 4.8 x 7.5	-	-	Enquire
18	83852000	RH FRONT FENDER REINFORCEMENT	83852000 RH FRONT FENDER REINFORCEMENT Applicable up to Ass. No. 120374	-	1	Enquire
19	83852100	LH FRONT FENDER REINFORCEMENT	83852100 LH FRONT FENDER REINFORCEMENT Applicable up to Ass. No. 120374	-	1	Enquire
20	82675400	FRONT FENDER SPACER KIT	82675400 FRONT FENDER SPACER KIT Consists of 3 shims measuring 1 mm thick	-	-	Enquire
