Find Your Part

CONTROL UNIT AND HYDRAULIC EQUIPMENT FOR ABS SYSTEM of Ferrari Ferrari 456 GT/GTA

View All

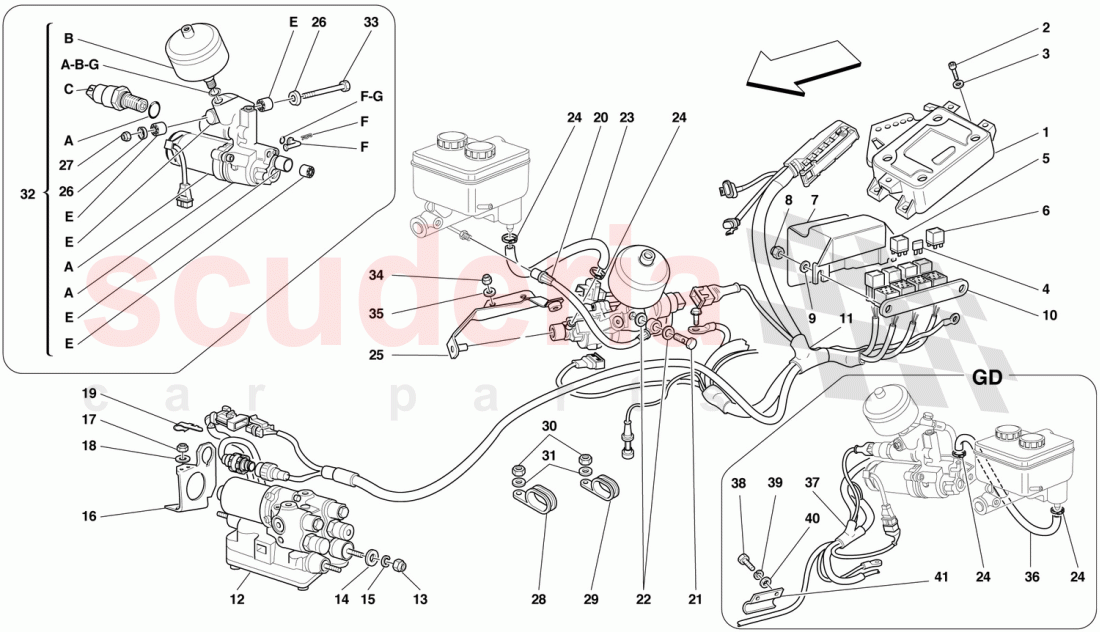

Ferrari 456 GT/GTA - CONTROL UNIT AND HYDRAULIC EQUIPMENT FOR ABS SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	154669	ABS ELECTRONIC CONTROL STATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131941	30 A MAXI FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155436	RED RELAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155437	Relay Control Motor Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155056	ABS RELAY COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155055	SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153125	CABLES FOR ANTISKID DEVICES VEHICLES CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153635	ABS HYDRAULIC CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550321	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155324	BRACKET FOR ABS HYDRAULIC CONTROL UNIT FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175856	CONNECTOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000533	HOSE KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	131873	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000510	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123265	RUBBER HOSE -Not for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157934	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153769	BRACKET -Not for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	130861	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000772	BRAKES CONTROL PUMP KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129636	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136376	RUBBER HOSE -Valid for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156578	CABLES FOR ANTISKID DEVICES VEHICLES CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171020	PROTECTION -Valid for GD-	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	168613	ANTISKID INSTALLATION CABLES	168613 ANTISKID INSTALLATION CABLES Valid for 456 GTA / Valid for GD	-	1	Enquire
-	171020	PROTECTION -Valid for GD-	171020 PROTECTION -Valid for GD- Valid after stock exhaustion of 161512	-	1	Enquire
-	70000774	MOTOR/PUMP KIT	70000774 MOTOR/PUMP KIT ACCUMULATOR KIT / PRESSOSTAT KIT / BUSHING KIT / PUMP UNION KIT / O.R. KIT	-	1	Enquire
-	157749	BRACKET -Valid for GD-	157749 BRACKET -Valid for GD-	-	1	Enquire
-	10441690	BRACKET WITH SHEATH	10441690 BRACKET WITH SHEATH L.H. side	-	2	Enquire
-	166985	ANTISKID INSTALLATION CABLES	166985 ANTISKID INSTALLATION CABLES Valid for 456 GTA / Not for GD	-	1	Enquire
1	154669	ABS ELECTRONIC CONTROL STATION	154669 ABS ELECTRONIC CONTROL STATION STATION	-	1	Enquire
2	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	2	Enquire
3	127494	WASHER	127494 WASHER	-	2	Enquire
4	131941	30 A MAXI FUSE	131941 30 A MAXI FUSE	-	4	Enquire
5	155436	RED RELAY	155436 RED RELAY	-	1	Enquire

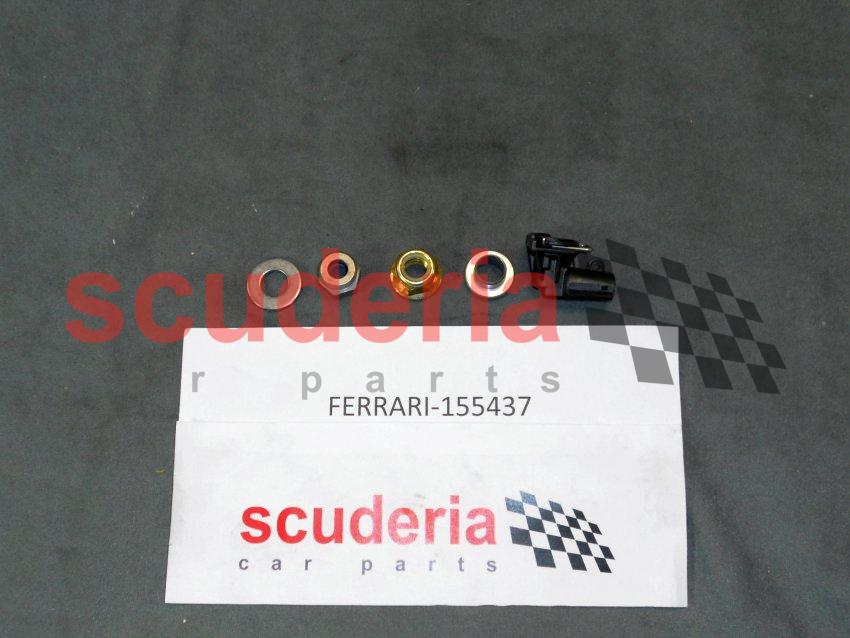

6	155437	Relay Control Motor Pump	155437 Relay Control Motor Pump	-	3	Enquire
7	155056	ABS RELAY COVER	155056 ABS RELAY COVER	-	1	Enquire
8	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	2	Enquire
9	62769800	WASHER	62769800 WASHER	-	2	Enquire
10	155055	SUPPORT BRACKET	155055 SUPPORT BRACKET	-	1	Enquire
11	153125	CABLES FOR ANTISKID DEVICES VEHICLES CONNECTION	153125 CABLES FOR ANTISKID DEVICES VEHICLES CONNECTION Not for 456 GTA / Not for GD	-	1	Enquire
12	153635	ABS HYDRAULIC CONTROL	153635 ABS HYDRAULIC CONTROL	-	1	Enquire
13	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	3	Enquire
14	13550321	WASHER	13550321 WASHER	-	3	Enquire
15	127496	WASHER	127496 WASHER	-	3	Enquire
16	155324	BRACKET FOR ABS HYDRAULIC CONTROL UNIT FIXING	155324 BRACKET FOR ABS HYDRAULIC CONTROL UNIT FIXING CONTROL UNIT FIXING	-	1	Enquire
17	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
18	10519424	WASHER	10519424 WASHER	-	2	Enquire
19	175856	CONNECTOR FASTENER BRACKET	175856 CONNECTOR FASTENER BRACKET	-	1	Enquire
20	70000533	HOSE KIT	70000533 HOSE KIT	-	1	Enquire
21	131873	UNION	131873 UNION	-	1	Enquire
22	70000510	O.R. GASKET	70000510 O.R. GASKET	-	2	Enquire
23	123265	RUBBER HOSE -Not for GD-	123265 RUBBER HOSE -Not for GD-	-	1	Enquire
24	157934	SCREW COLLAR	157934 SCREW COLLAR	-	2	Enquire
25	153769	BRACKET -Not for GD-	153769 BRACKET -Not for GD-	-	1	Enquire
26	130861	WASHER	130861 WASHER	-	2	Enquire
27	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
28	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	2	Enquire
29	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH R.H. side	-	2	Enquire
30	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	5	Enquire
31	10519424	WASHER	10519424 WASHER	-	5	Enquire
32	70000772	BRAKES CONTROL PUMP KIT	70000772 BRAKES CONTROL PUMP KIT	-	1	Enquire
33	129636	SCREW	129636 SCREW	-	1	Enquire

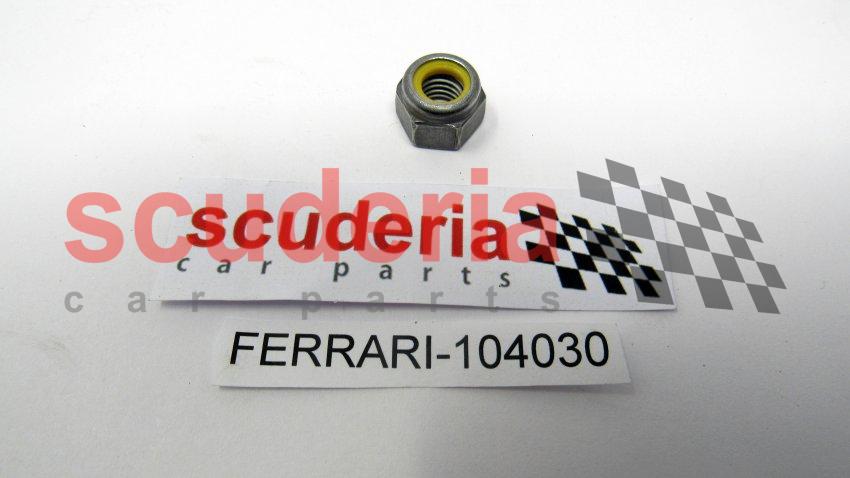

34	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	2	Enquire
35	84653800	WASHER	84653800 WASHER	-	2	Enquire
36	136376	RUBBER HOSE -Valid for GD-	136376 RUBBER HOSE -Valid for GD-	-	1	Enquire
37	156578	CABLES FOR ANTISKID DEVICES VEHICLES CONNECTION	156578 CABLES FOR ANTISKID DEVICES VEHICLES CONNECTION Not for 456 GTA / Valid for GD	-	1	Enquire
38	10977524	SCREW	10977524 SCREW Valid for GD	-	2	Enquire
39	127494	WASHER	127494 WASHER Valid for GD	-	2	Enquire
40	10519424	WASHER	10519424 WASHER Valid for GD	-	2	Enquire
41	171020	PROTECTION -Valid for GD-	171020 PROTECTION -Valid for GD-	-	1	Enquire
