CENTRAL ELEMENTS AND PANELS of Ferrari Ferrari 430 Spider

View All

Ferrari 430 Spider - CENTRAL ELEMENTS AND PANELS

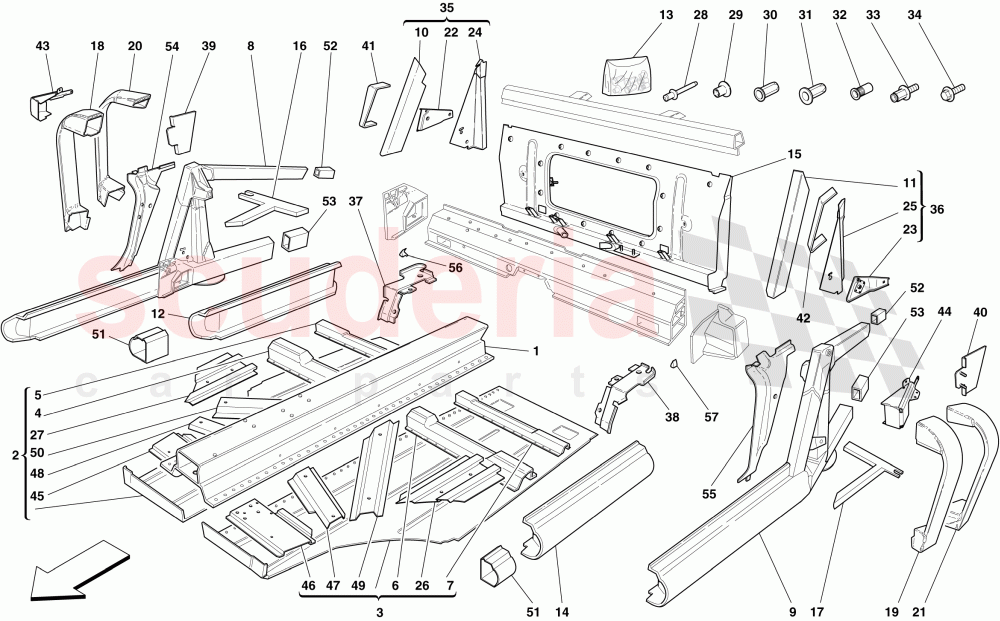

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	194938	COMPLETE TUNNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69413211	COMPLETE RH SEMI-FLOOR	Enquire	To Order
	68886311	COMPLETE RH SEMI-FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69413311	COMPLETE LH SEMI-FLOOR	Enquire	To Order
	68886411	COMPLETE LH SEMI-FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207193	R.H. FRONT CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205203	R.H. REAR CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207192	L.H. FRONT CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205202	L.H. REAR CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69326511	RH REAR LATERAL SILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69326611	LH REAR LATERAL SILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985166232	RH BOX MEMBER REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166132	L.H. REINFORCEMENT FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203612	R.H. CROSSMEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000950	REPAIR INSERTS KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203611	L.H. CROSSMEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216187	REAR SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64811011	REAR RH FASTENER FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64811111	REAR LH FASTENER FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65153411	RH FRONT LATERAL SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65153511	LH FRONT LATERAL SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65998111	RH REAR LATERAL SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65998211	LH REAR LATERAL SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64804311	RH WINDER MOUNTING REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64804411	LH BELT RETRACTOR MOUNTING REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64803500	R.H. LATERAL MOLDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64803611	LH LATERAL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196081	L.H. REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196082	R.H. REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14642891	POP RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65133800	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248146	HEXAGONAL RIVET	Enquire	To Order
	15624311	HEXAGONAL RIVET	Enquire	To Order
	15180411	Hexagonal Blind Rivet	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65151200	Rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65930400	Knurled Rivet	Enquire	To Order
	65319800	Nut Knurled Rivet	Enquire	To Order
	60853400	RIVET	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65065400	HEXAGONAL HEAD STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13836771	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66464811	REAR RH COLUMN BOX MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66464911	REAR LH PILLAR BOX MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65386111	CENTRAL COVER FOR RH MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65386211	CENTRAL COVER FOR LH MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985219918	RH TANK PROTECTION PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219843	LAMIERA SX. PROTEZIONE SERBATOIO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65903611	RH STRIKER REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65903711	LH STRIKER REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985202682	RH REAR REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202681	L.H. REAR REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207194	FRONT CROSS MEMBER FOR BATTERY BIN -Not for GD-	Enquire	To Order
	208941	FRONT CROSS MEMBER FOR BATTERY BIN -Valid for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207195	FRONT CROSS MEMBER FOR ACCELERATOR PEDAL CASTING FIXING -Not for GD-	Enquire	To Order
	208940	FRONT CROSS MEMBER FOR ACCELERATOR PEDAL CASTING FIXING -Valid for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985207196	LH FRONT REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985207197	RH FRONT REINFORCEMENT	Enquire	To Order
	208939	R.H. FRONT REINFORCEMENT -Valid for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207198	L.H. REAR REINFORCEMENT -Not as spare part now- -Replaced by 207198-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207199	R.H. REAR REINFORCEMENT -Not as spare part now- -Replaced by 207199-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985181981	REPAIRING CORE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181980	UPPER INNER CORE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181979	LOWER INNER CORE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69424400	R.H. CENTRAL PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69424500	L.H. CENTRAL PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69408411	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69408511	LH BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	194938	COMPLETE TUNNEL	194938 COMPLETE TUNNEL	-	1	Enquire
2	69413211	COMPLETE RH SEMI-FLOOR	69413211 COMPLETE RH SEMI-FLOOR ; Applicable for GD	-	1	Enquire
2	68886311	COMPLETE RH SEMI-FLOOR	68886311 COMPLETE RH SEMI-FLOOR ; Not for GD	-	1	Enquire
3	69413311	COMPLETE LH SEMI-FLOOR	69413311 COMPLETE LH SEMI-FLOOR ; Applicable for GD	-	1	Enquire
3	68886411	COMPLETE LH SEMI-FLOOR	68886411 COMPLETE LH SEMI-FLOOR ; Not for GD	-	1	Enquire
4	207193	R.H. FRONT CROSS MEMBER	207193 R.H. FRONT CROSS MEMBER	-	1	Enquire
5	205203	R.H. REAR CROSS MEMBER	205203 R.H. REAR CROSS MEMBER	-	1	Enquire
6	207192	L.H. FRONT CROSS MEMBER	207192 L.H. FRONT CROSS MEMBER	-	1	Enquire
7	205202	L.H. REAR CROSS MEMBER	205202 L.H. REAR CROSS MEMBER	-	1	Enquire
8	69326511	RH REAR LATERAL SILL	69326511 RH REAR LATERAL SILL	-	1	Enquire
9	69326611	LH REAR LATERAL SILL	69326611 LH REAR LATERAL SILL	-	1	Enquire
10	985166232	RH BOX MEMBER REINFORCEMENT	985166232 RH BOX MEMBER REINFORCEMENT	-	1	Enquire
11	166132	L.H. REINFORCEMENT FRAME	166132 L.H. REINFORCEMENT FRAME	-	1	Enquire
12	203612	R.H. CROSSMEMBER	203612 R.H. CROSSMEMBER	-	1	Enquire
13	70000950	REPAIR INSERTS KIT	70000950 REPAIR INSERTS KIT	-	1	Enquire
14	203611	L.H. CROSSMEMBER	203611 L.H. CROSSMEMBER	-	1	Enquire
15	216187	REAR SHIELD	216187 REAR SHIELD	-	1	Enquire
16	64811011	REAR RH FASTENER FRAME	64811011 REAR RH FASTENER FRAME	-	1	Enquire
17	64811111	REAR LH FASTENER FRAME	64811111 REAR LH FASTENER FRAME	-	1	Enquire
18	65153411	RH FRONT LATERAL SUBSTRUCTURE	65153411 RH FRONT LATERAL SUBSTRUCTURE	-	1	Enquire
19	65153511	LH FRONT LATERAL SUBSTRUCTURE	65153511 LH FRONT LATERAL SUBSTRUCTURE	-	1	Enquire
20	65998111	RH REAR LATERAL SUBSTRUCTURE	65998111 RH REAR LATERAL SUBSTRUCTURE	-	1	Enquire
21	65998211	LH REAR LATERAL SUBSTRUCTURE	65998211 LH REAR LATERAL SUBSTRUCTURE	-	1	Enquire
22	64804311	RH WINDER MOUNTING REINFORCEMENT	64804311 RH WINDER MOUNTING REINFORCEMENT	-	1	Enquire
23	64804411	LH BELT RETRACTOR MOUNTING REINFORCEMENT	64804411 LH BELT RETRACTOR MOUNTING REINFORCEMENT	-	1	Enquire
24	64803500	R.H. LATERAL MOLDING	64803500 R.H. LATERAL MOLDING	-	1	Enquire
25	64803611	LH LATERAL PLATE	64803611 LH LATERAL PLATE	-	1	Enquire
26	196081	L.H. REINFORCEMENT	196081 L.H. REINFORCEMENT	-	1	Enquire
27	196082	R.H. REINFORCEMENT	196082 R.H. REINFORCEMENT	-	1	Enquire
28	14642891	POP RIVET	14642891 POP RIVET L. 14 mm	-	-	Enquire
29	65133800	RIVET	65133800 RIVET L. 6.4 mm	-	-	Enquire
30	248146	HEXAGONAL RIVET	248146 HEXAGONAL RIVET M6	-	-	Enquire
30	15624311	HEXAGONAL RIVET	15624311 HEXAGONAL RIVET M5	-	-	Enquire
30	15180411	Hexagonal Blind Rivet	15180411 Hexagonal Blind Rivet	-	-	Enquire
30	248150	ESAGONAL RIVET M8	248150 ESAGONAL RIVET M8 M8	-	-	Enquire
30	15624211	Hexagonal Rivet	15624211 Hexagonal Rivet M4	-	-	Enquire
31	65151200	Rivet	65151200 Rivet M6	-	-	Enquire
32	65930400	Knurled Rivet	65930400 Knurled Rivet M6	-	-	Enquire
32	65319800	Nut Knurled Rivet	65319800 Nut Knurled Rivet M5	-	-	Enquire
32	60853400	RIVET	60853400 RIVET	-	-	Enquire
32	166101	Knurled Rivet	166101 Knurled Rivet M4	-	-	Enquire
32	65135000	Knurled Rivet	65135000 Knurled Rivet M8	-	-	Enquire
33	65065400	HEXAGONAL HEAD STUD BOLT	65065400 HEXAGONAL HEAD STUD BOLT M6	-	-	Enquire
34	13836771	SCREW	13836771 SCREW	-	-	Enquire
35	66464811	REAR RH COLUMN BOX MEMBER	66464811 REAR RH COLUMN BOX MEMBER	-	1	Enquire
36	66464911	REAR LH PILLAR BOX MEMBER	66464911 REAR LH PILLAR BOX MEMBER	-	1	Enquire
37	65386111	CENTRAL COVER FOR RH MOUNT	65386111 CENTRAL COVER FOR RH MOUNT	-	1	Enquire
38	65386211	CENTRAL COVER FOR LH MOUNT	65386211 CENTRAL COVER FOR LH MOUNT	-	1	Enquire
39	985219918	RH TANK PROTECTION PANEL	985219918 RH TANK PROTECTION PANEL	-	1	Enquire
40	219843	LAMIERA SX. PROTEZIONE SERBATOIO	219843 LAMIERA SX. PROTEZIONE SERBATOIO	-	1	Enquire
41	65903611	RH STRIKER REINFORCEMENT	65903611 RH STRIKER REINFORCEMENT	-	1	Enquire
42	65903711	LH STRIKER REINFORCEMENT	65903711 LH STRIKER REINFORCEMENT	-	1	Enquire
43	985202682	RH REAR REINFORCEMENT	985202682 RH REAR REINFORCEMENT	-	1	Enquire
44	202681	L.H. REAR REINFORCEMENT	202681 L.H. REAR REINFORCEMENT	-	1	Enquire
45	207194	FRONT CROSS MEMBER FOR BATTERY BIN -Not for GD-	207194 FRONT CROSS MEMBER FOR BATTERY BIN -Not for GD- Not for GD	-	1	Enquire
45	208941	FRONT CROSS MEMBER FOR BATTERY BIN -Valid for GD-	208941 FRONT CROSS MEMBER FOR BATTERY BIN -Valid for GD- Applicable for GD	-	1	Enquire
46	207195	FRONT CROSS MEMBER FOR ACCELERATOR PEDAL CASTING FIXING -Not for GD-	207195 FRONT CROSS MEMBER FOR ACCELERATOR PEDAL CASTING FIXING -Not for GD- Not for GD	-	1	Enquire
46	208940	FRONT CROSS MEMBER FOR ACCELERATOR PEDAL CASTING FIXING -Valid for GD-	208940 FRONT CROSS MEMBER FOR ACCELERATOR PEDAL CASTING FIXING -Valid for GD- Applicable for GD	-	1	Enquire
47	985207196	LH FRONT REINFORCEMENT	985207196 LH FRONT REINFORCEMENT	-	1	Enquire
48	985207197	RH FRONT REINFORCEMENT	985207197 RH FRONT REINFORCEMENT Not for GD	-	1	Enquire
48	208939	R.H. FRONT REINFORCEMENT -Valid for GD-	208939 R.H. FRONT REINFORCEMENT -Valid for GD- Applicable for GD	-	1	Enquire
49	207198	L.H. REAR REINFORCEMENT -Not as spare part now- -Replaced by 207198-	207198 L.H. REAR REINFORCEMENT -Not as spare part now- -Replaced by 207198-	-	1	Enquire
50	207199	R.H. REAR REINFORCEMENT -Not as spare part now- -Replaced by 207199-	207199 R.H. REAR REINFORCEMENT -Not as spare part now- -Replaced by 207199-	-	1	Enquire
51	985181981	REPAIRING CORE	985181981 REPAIRING CORE	-	-	Enquire
52	181980	UPPER INNER CORE	181980 UPPER INNER CORE	-	-	Enquire
53	181979	LOWER INNER CORE	181979 LOWER INNER CORE	-	-	Enquire
54	69424400	R.H. CENTRAL PILLAR	69424400 R.H. CENTRAL PILLAR	-	1	Enquire
55	69424500	L.H. CENTRAL PILLAR	69424500 L.H. CENTRAL PILLAR	-	1	Enquire
56	69408411	RH BRACKET	69408411 RH BRACKET	-	1	Enquire
57	69408511	LH BRACKET	69408511 LH BRACKET	-	1	Enquire
