COOLING SYSTEM of Ferrari Ferrari 430 Spider

View All

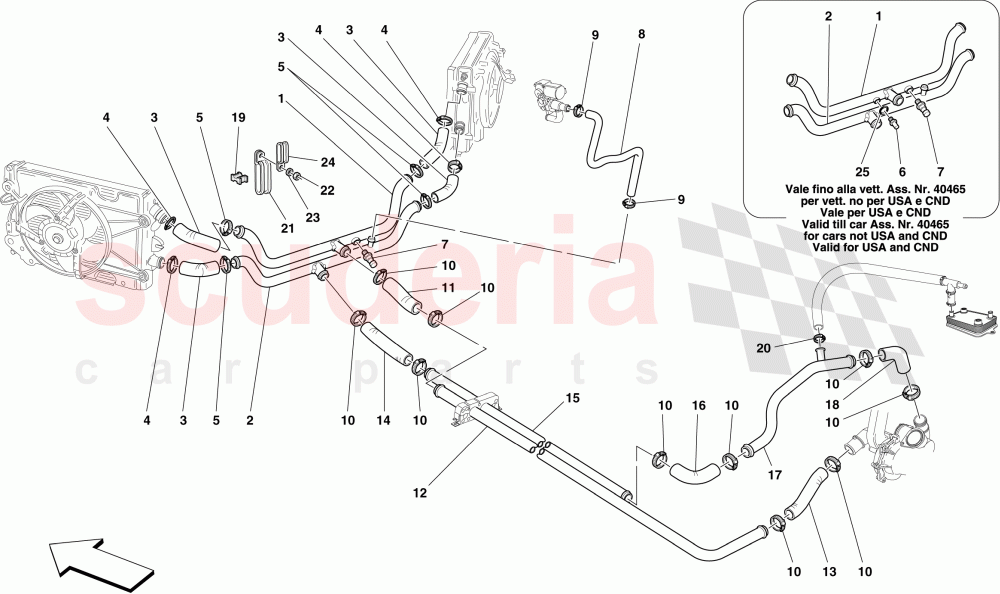

Ferrari 430 Spider - COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	216372	WATER DELIVERY PIPE	$240.67	To Order
	217917	WATER DELIVERY PIPE	$224.63	To Order
	216372	WATER DELIVERY PIPE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	216373	WATER RETURN PIPE	$272.34	To Order

Photo	Part No	Description	Price (each)	Stock
	238695	RUBBER PIPE	$192.54	To Order
	238691	RUBBER PIPE	$70.59	To Order

Photo	Part No	Description	Price (each)	Stock
	13001690	SCREW COLLAR	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	13000590	SCREW COLLAR	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$30.23	To Order
	180137	TEMPERATURE SENSOR	$30.23	To Order

Photo	Part No	Description	Price (each)	Stock
	176322	THERMAL CONTACT	$35.12	To Order

Photo	Part No	Description	Price (each)	Stock
	65231800	PIPE FROM TGK VALVE TO RETURN PIPE	$40.83	To Order
	68641200	PIPE FROM TGK VALVE TO RETURN PIPE	$47.77	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	13001690	SCREW COLLAR	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	202547	RUBBER DELIVERY PIPE	$172.00	To Order

Photo	Part No	Description	Price (each)	Stock
	206621	UNDERBODY ALUMINIUM DELIVERY PIPE	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	208338	RUBBER PIPE	$105.89	To Order

Photo	Part No	Description	Price (each)	Stock
	202548	RUBBER RETURN PIPE	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	206728	UNDERBODY ALUMINIUM RETURN PIPE	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	193463	WATER HOSE	$207.35	To Order

Photo	Part No	Description	Price (each)	Stock
	241611	ALUMINIUM PIPE	$88.07	To Order

Photo	Part No	Description	Price (each)	Stock
	206717	Rubber Pipe	$80.21	To Order

Photo	Part No	Description	Price (each)	Stock
	183641	SHIM	$5.19	To Order

Photo	Part No	Description	Price (each)	Stock
	177995	CLAMP	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	183642	BRACKET WITH SHEATH	$22.63	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10730114	WASHER	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	61712500	BRACKET WITH SHEATH	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	$0.15	To Order
	10298460	GASKET	$0.15	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	216372	WATER DELIVERY PIPE	216372 WATER DELIVERY PIPE Not for USA, CDN; Applicable up to Ass. No. 40465	$240.67	1
1	217917	WATER DELIVERY PIPE	217917 WATER DELIVERY PIPE Not for USA, CDN; Applicable from Ass. No. 40466	$224.63	1
1	216372	WATER DELIVERY PIPE	216372 WATER DELIVERY PIPE Applicable for USA, CDN	$240.67	1
2	216373	WATER RETURN PIPE	216373 WATER RETURN PIPE	$272.34	1
3	238695	RUBBER PIPE	238695 RUBBER PIPE Upper; Replaces 220948	$192.54	2
3	238691	RUBBER PIPE	238691 RUBBER PIPE Lower; Replaces 220948	$70.59	2
4	13001690	SCREW COLLAR	13001690 SCREW COLLAR	$1.36	4
5	13000590	SCREW COLLAR	13000590 SCREW COLLAR	$0.79	4
6	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR Applicable for USA, CDN	$30.23 MSRP: ~~32.99~~ (8.4% off)	1
6	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR Not for USA, CDN; Applicable up to Ass. No. 40465	$30.23 MSRP: ~~32.99~~ (8.4% off)	1
7	176322	THERMAL CONTACT	176322 THERMAL CONTACT	$35.12 MSRP: ~~51.50~~ (31.8% off)	1
8	65231800	PIPE FROM TGK VALVE TO RETURN PIPE	65231800 PIPE FROM TGK VALVE TO RETURN PIPE Not for GD	$40.83 MSRP: ~~54.46~~ (25% off)	1
8	68641200	PIPE FROM TGK VALVE TO RETURN PIPE	68641200 PIPE FROM TGK VALVE TO RETURN PIPE Applicable for GD	$47.77	1
9	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	2
10	13001690	SCREW COLLAR	13001690 SCREW COLLAR	$1.36	10
11	202547	RUBBER DELIVERY PIPE	202547 RUBBER DELIVERY PIPE	$172.00	1
12	206621	UNDERBODY ALUMINIUM DELIVERY PIPE	206621 UNDERBODY ALUMINIUM DELIVERY PIPE	$72.19	1
13	208338	RUBBER PIPE	208338 RUBBER PIPE	$105.89 MSRP: ~~133.52~~ (20.7% off)	1
14	202548	RUBBER RETURN PIPE	202548 RUBBER RETURN PIPE	$224.63	1
15	206728	UNDERBODY ALUMINIUM RETURN PIPE	206728 UNDERBODY ALUMINIUM RETURN PIPE	$72.19	1
16	193463	WATER HOSE	193463 WATER HOSE	$207.35	1
17	241611	ALUMINIUM PIPE	241611 ALUMINIUM PIPE	$88.07	1
18	206717	Rubber Pipe	206717 Rubber Pipe	$80.21 MSRP: ~~100.83~~ (20.5% off)	1
19	183641	SHIM	183641 SHIM	$5.19	2
20	177995	CLAMP	177995 CLAMP	$1.20 MSRP: ~~2.15~~ (44.2% off)	1
21	183642	BRACKET WITH SHEATH	183642 BRACKET WITH SHEATH	$22.63	2
22	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
23	10730114	WASHER	10730114 WASHER	$0.31	2
24	61712500	BRACKET WITH SHEATH	61712500 BRACKET WITH SHEATH	$1.77	2
25	10298460	GASKET	10298460 GASKET Applicable for USA, CDN	$0.15 MSRP: ~~1.25~~ (88% off)	1
25	10298460	GASKET	10298460 GASKET Not for USA, CDN; Applicable up to Ass. No. 40465	$0.15 MSRP: ~~1.25~~ (88% off)	1
