AC SYSTEM of Ferrari Ferrari 430 Scuderia Spider 16M

View All

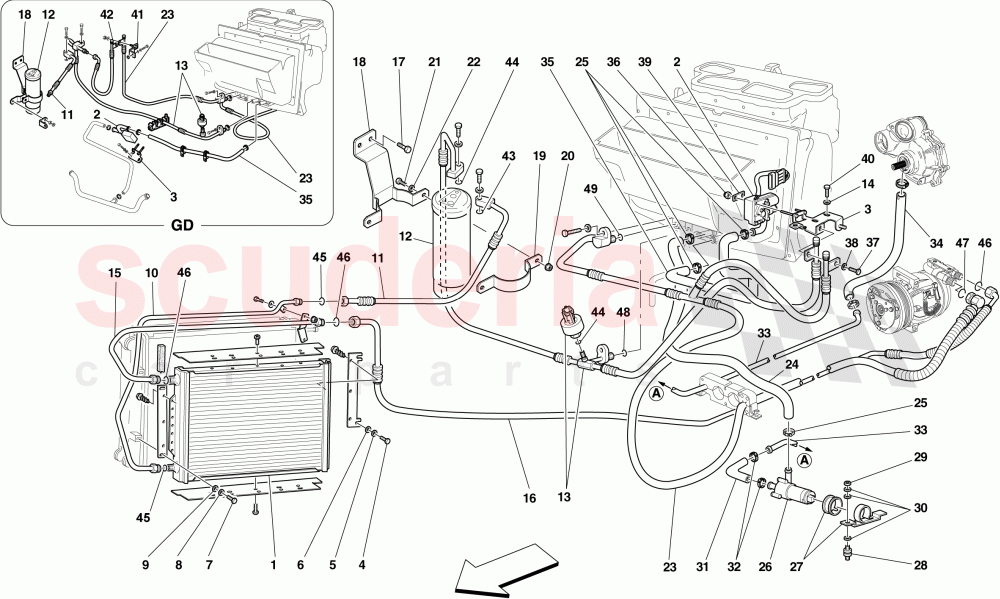

Ferrari 430 Scuderia Spider 16M - AC SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	200340	AIR CONDITIONING CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65066400	TGK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66150300	VALVE FASTENER BRACKET	Enquire	To Order
	68643100	VALVE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60909500	ALLEN HEAD SCREW M6 X 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80668700	EXHAUST METAL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67750800	PIPE FROM CONDENSER TO FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67085100	GAS FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67750900	PIPE FROM FILTER TO AC UNIT	Enquire	To Order
	68640900	PIPE FROM FILTER TO AC UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67750500	INLET METAL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67750400	UNDERBODY PIPE	Enquire	To Order
	67750400	UNDERBODY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67942200	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67942200	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14098700	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68721400	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67750300	PIPE FROM AC UNIT TO COMPRESSOR	Enquire	To Order
	68640800	PIPE FROM AC UNIT TO COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69741700	PIPE FROM MINIMUM PRESSURE PUMP TO AC UNIT	Enquire	To Order
	68641000	PIPE FROM MINIMUM PRESSURE PUMP TO AC UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65460300	COMPLETE WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68018300	COMPLETE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	897379	RUBBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65460700	PIPE FROM UNDERBODY PIPE TO MINIMUM PRESSURE PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190345	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68393000	UNDERBODY WATER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68237600	PIPE FROM PUMP TO UNDERBODY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68641100	PIPE FROM AC HEATER TO TGK VALVE	Enquire	To Order
	65231700	PIPE FROM AC HEATER TO TGK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11188079	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65929400	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212340	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68863200	AC LOAD FILTER CONNECTION TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68392000	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68392100	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66309300	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66309400	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66309500	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66309700	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66309800	O-RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	200340	AIR CONDITIONING CONDENSER	200340 AIR CONDITIONING CONDENSER	-	1	Enquire
2	65066400	TGK VALVE	65066400 TGK VALVE	-	1	Enquire
3	66150300	VALVE FASTENER BRACKET	66150300 VALVE FASTENER BRACKET Aluminium; Replaces 66150300; Not for GD	-	1	Enquire
3	68643100	VALVE FASTENER BRACKET	68643100 VALVE FASTENER BRACKET Applicable for GD	-	1	Enquire
4	81591700	SCREW	81591700 SCREW	-	3	Enquire
5	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
6	10519424	WASHER	10519424 WASHER	-	3	Enquire
7	60909500	ALLEN HEAD SCREW M6 X 15	60909500 ALLEN HEAD SCREW M6 X 15	-	1	Enquire
8	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
9	12643724	WASHER	12643724 WASHER	-	1	Enquire
10	80668700	EXHAUST METAL PIPE	80668700 EXHAUST METAL PIPE	-	1	Enquire
11	67750800	PIPE FROM CONDENSER TO FILTER	67750800 PIPE FROM CONDENSER TO FILTER	-	1	Enquire
12	67085100	GAS FILTER	67085100 GAS FILTER	-	1	Enquire
13	67750900	PIPE FROM FILTER TO AC UNIT	67750900 PIPE FROM FILTER TO AC UNIT Not for GD	-	1	Enquire
13	68640900	PIPE FROM FILTER TO AC UNIT	68640900 PIPE FROM FILTER TO AC UNIT Applicable for GD	-	1	Enquire
14	11193274	WASHER	11193274 WASHER	-	2	Enquire
15	67750500	INLET METAL PIPE	67750500 INLET METAL PIPE	-	1	Enquire
16	67750400	UNDERBODY PIPE	67750400 UNDERBODY PIPE Not for GD	-	1	Enquire
16	67750400	UNDERBODY PIPE	67750400 UNDERBODY PIPE Applicable for GD	-	1	Enquire
17	10902224	SCREW	10902224 SCREW	-	2	Enquire
18	67942200	BRACKET	67942200 BRACKET	-	1	Enquire
19	67942200	BRACKET	67942200 BRACKET	-	1	Enquire
20	14098700	NUT	14098700 NUT	-	2	Enquire
21	68721400	SCREW	68721400 SCREW	-	2	Enquire
22	13577724	WASHER	13577724 WASHER	-	2	Enquire
23	67750300	PIPE FROM AC UNIT TO COMPRESSOR	67750300 PIPE FROM AC UNIT TO COMPRESSOR Not for GD	-	1	Enquire
23	68640800	PIPE FROM AC UNIT TO COMPRESSOR	68640800 PIPE FROM AC UNIT TO COMPRESSOR Applicable for GD	-	1	Enquire
24	69741700	PIPE FROM MINIMUM PRESSURE PUMP TO AC UNIT	69741700 PIPE FROM MINIMUM PRESSURE PUMP TO AC UNIT Not for GD	-	1	Enquire
24	68641000	PIPE FROM MINIMUM PRESSURE PUMP TO AC UNIT	68641000 PIPE FROM MINIMUM PRESSURE PUMP TO AC UNIT Applicable for GD	-	1	Enquire
25	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	4	Enquire
26	65460300	COMPLETE WATER PUMP	65460300 COMPLETE WATER PUMP	-	1	Enquire
27	68018300	COMPLETE BRACKET	68018300 COMPLETE BRACKET	-	1	Enquire
28	897379	RUBBER BUSHING	897379 RUBBER BUSHING	-	2	Enquire
29	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
30	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
31	65460700	PIPE FROM UNDERBODY PIPE TO MINIMUM PRESSURE PUMP	65460700 PIPE FROM UNDERBODY PIPE TO MINIMUM PRESSURE PUMP	-	1	Enquire
32	190345	SCREW COLLAR	190345 SCREW COLLAR	-	2	Enquire
33	68393000	UNDERBODY WATER PIPE	68393000 UNDERBODY WATER PIPE	-	1	Enquire
34	68237600	PIPE FROM PUMP TO UNDERBODY PIPE	68237600 PIPE FROM PUMP TO UNDERBODY PIPE	-	1	Enquire
35	68641100	PIPE FROM AC HEATER TO TGK VALVE	68641100 PIPE FROM AC HEATER TO TGK VALVE Applicable for GD	-	1	Enquire
35	65231700	PIPE FROM AC HEATER TO TGK VALVE	65231700 PIPE FROM AC HEATER TO TGK VALVE Not for GD	-	1	Enquire
36	62790300	NUT	62790300 NUT	-	2	Enquire
37	10977524	SCREW	10977524 SCREW	-	1	Enquire
38	11188079	WASHER	11188079 WASHER	-	1	Enquire
39	65929400	PLATE	65929400 PLATE	-	1	Enquire
40	10902224	SCREW	10902224 SCREW	-	2	Enquire
41	212340	BRACKET	212340 BRACKET Applicable for GD	-	1	Enquire
42	68863200	AC LOAD FILTER CONNECTION TUBE	68863200 AC LOAD FILTER CONNECTION TUBE Applicable for GD	-	1	Enquire
43	68392000	O-RING	68392000 O-RING	-	1	Enquire
44	68392100	O-RING	68392100 O-RING	-	2	Enquire
45	66309300	O-RING	66309300 O-RING	-	2	Enquire
46	66309400	O-RING	66309400 O-RING	-	3	Enquire
47	66309500	O-RING	66309500 O-RING	-	1	Enquire
48	66309700	O-RING	66309700 O-RING	-	1	Enquire
49	66309800	O-RING	66309800 O-RING	-	1	Enquire
