Ferrari 430 Coupe - DOORS - OPENING MECHANISM AND HINGES

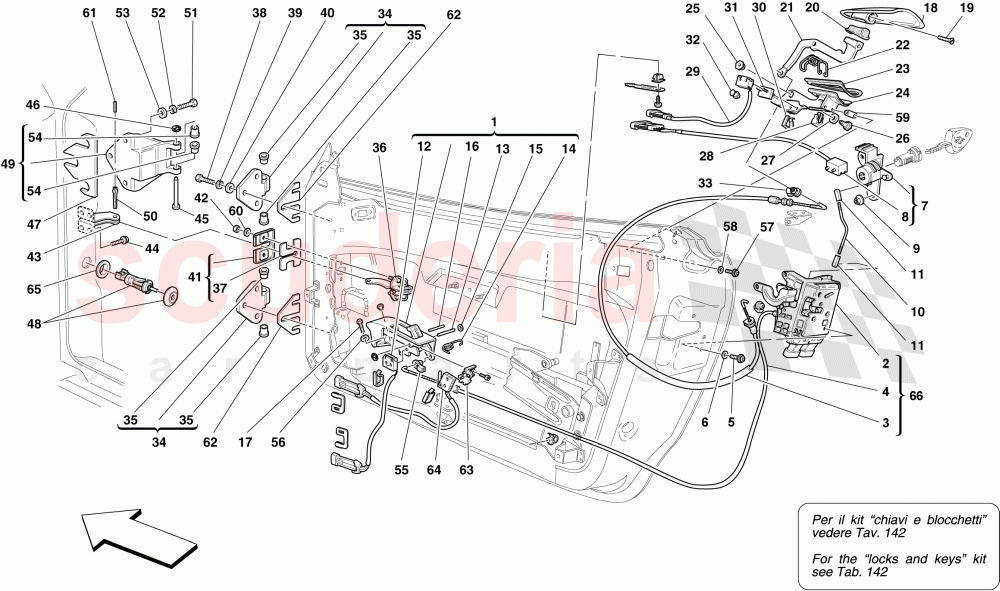

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
68884600 LH INTERNAL DOOR RELEASE HANDLE Enquire To Order
68884500 RH INTERNAL DOOR RELEASE HANDLE Enquire To Order
Photo Part No Description Price (each) Stock
80355300 LH DOOR LOCK Enquire To Order
68993200 LH Door Lock with Cables Enquire To Order
80355200 RH DOOR LOCK Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
68602600 Exteral Door Release Cable Enquire To Order
Photo Part No Description Price (each) Stock
68883400 DOOR INTERNAL OPENING CABLE Enquire To Order
65069300 DOOR INTERNAL OPENING CABLE Enquire To Order
Photo Part No Description Price (each) Stock
62940900 Allen Head Screw M6 x 15 Enquire To Order
Photo Part No Description Price (each) Stock
13550277 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65839500 LH DOOR LOCK BLOCK Enquire To Order
65839500 LH DOOR LOCK BLOCK Enquire To Order
65839400 RH DOOR LOCK BLOCK Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
63859200 MICROSWITCH Enquire To Order
63859200 MICROSWITCH Enquire To Order
Photo Part No Description Price (each) Stock
13046011 NUT Enquire To Order
13046011 NUT Enquire To Order
Photo Part No Description Price (each) Stock
65836500 SAFETY TIE-ROD Enquire To Order
65836500 SAFETY TIE-ROD Enquire To Order
Photo Part No Description Price (each) Stock
62794000 JOINT Enquire To Order
62794000 JOINT Enquire To Order
Photo Part No Description Price (each) Stock
171120 MircoSwitch Enquire To Order
Photo Part No Description Price (each) Stock
63723400 PIN Enquire To Order
Photo Part No Description Price (each) Stock
63724700 LH SPRING Enquire To Order
63724600 RH SPRING Enquire To Order
Photo Part No Description Price (each) Stock
11087476 SNAP RING Enquire To Order
Photo Part No Description Price (each) Stock
65582700 SPRING PIN Enquire To Order
Photo Part No Description Price (each) Stock
13273977 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
63576110 LH EXTERNAL DOOR HANDLE Enquire To Order
63576010 RH EXTERNAL DOOR HANDLE Enquire To Order
Photo Part No Description Price (each) Stock
13309277 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
64861200 LH INTERNAL GASKET Enquire To Order
64861100 RH INTERNAL GASKET Enquire To Order
Photo Part No Description Price (each) Stock
64860600 ARM Enquire To Order
Photo Part No Description Price (each) Stock
64860700 HANDLE SPRING Enquire To Order
Photo Part No Description Price (each) Stock
64861000 LH HANDLE GASKET Enquire To Order
64860900 RH HANDLE GASKET Enquire To Order
Photo Part No Description Price (each) Stock
64860510 LH HANDLE SEAT Enquire To Order
64860410 RH Handle Seat Enquire To Order
Photo Part No Description Price (each) Stock
65398700 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
64860800 PIN Enquire To Order
Photo Part No Description Price (each) Stock
65520700 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65398600 GUIDE Enquire To Order
Photo Part No Description Price (each) Stock
178187 MICROSWITCH Enquire To Order
Photo Part No Description Price (each) Stock
63179900 Fastener Clip Enquire To Order
Photo Part No Description Price (each) Stock
65806300 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
63853400 RUBBER BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
14578283 TIE ROD RETAINING CLIP Enquire To Order
Photo Part No Description Price (each) Stock
64803300 MOBILE HINGE Enquire To Order
Photo Part No Description Price (each) Stock
62825300 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
65195200 TIE-ROD Enquire To Order
Photo Part No Description Price (each) Stock
63892300 DOOR GASKET Enquire To Order
Photo Part No Description Price (each) Stock
16043436 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13550405 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
63895300 LH COLUMN Enquire To Order
63895200 RH COLUMN Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
67111800 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
230083 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
64803400 PIN Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
11087974 SNAP RING Enquire To Order
Photo Part No Description Price (each) Stock
65713400 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
179697 PILLAR SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
64803200 FIXED HINGE Enquire To Order
Photo Part No Description Price (each) Stock
66842800 Pin Enquire To Order
Photo Part No Description Price (each) Stock
16043534 SCREW M8 X 22 Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13550405 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
62825300 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
810790 FASTENER CLIP Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
85833700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
82242400 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65547500 SHIM Enquire To Order
69919600 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
13577724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14163874 SPRING PIN Enquire To Order
Photo Part No Description Price (each) Stock
65998600 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
67903900 LH MICROSWITCH BRACKET Enquire To Order
67904000 RH MICROSWITCH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
212584 DOOR LOCK MICROSWITCH Enquire To Order
Photo Part No Description Price (each) Stock
68917600 SWITCH FIXING PLATE Enquire To Order
Photo Part No Description Price (each) Stock
68993200 LH Door Lock with Cables Enquire To Order
69998100 LH DOOR LOCK COMPLETE WITH CABLES, WITHOUT EXTERNAL LOCKING Enquire To Order
68993100 RH Door Lock With Cables Enquire To Order
...and 1 more part variants. See table on right for more details.
View All
DOORS - OPENING MECHANISM AND HINGES of Ferrari Ferrari 430 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 68884600
LH INTERNAL DOOR RELEASE HANDLE 		- 1 Enquire
1 68884500
RH INTERNAL DOOR RELEASE HANDLE 		- 1 Enquire
2 80355300
LH DOOR LOCK
Without knob; Replaced by lock compl. with cables ref. 66; Applicable for GD; Applicable from Ass. No. 74919 up to Ass. No. 74918; No longer supplied 		- 1 Enquire
2 68993200
LH Door Lock with Cables
Replaced by lock compl. with cables ref. 66; Applicable for GD; Applicable up to Ass. No. 74918; No longer supplied 		- 1 Enquire
2 80355200
RH DOOR LOCK
Without knob; Replaced by lock compl. with cables ref. 66; Not for GD; Applicable from Ass. No. 74919; No longer supplied 		- 1 Enquire
2 68993100
RH Door Lock With Cables
Replaced by lock compl. with cables ref. 66; Not for GD; Applicable up to Ass. No. 74918; No longer supplied 		- 1 Enquire
3 68602600
Exteral Door Release Cable
Replaced by lock compl. with cables ref. 66; No longer supplied 		- 1 Enquire
4 68883400
DOOR INTERNAL OPENING CABLE
Replaced by lock compl. with cables ref. 66; No longer supplied 		- 2 Enquire
4 65069300
DOOR INTERNAL OPENING CABLE
No longer supplied; Replaced by 68883400 		- 2 Enquire
5 62940900
Allen Head Screw M6 x 15 		- 6 Enquire
6 13550277
WASHER 		- 6 Enquire
7 65839500
LH DOOR LOCK BLOCK
Not for GD 		- 1 Enquire
7 65839500
LH DOOR LOCK BLOCK
Applicable for GD; Applicable up to Ass. No. 74896 		- 1 Enquire
7 65839400
RH DOOR LOCK BLOCK
Applicable for GD 		- 1 Enquire
7 65839400
RH DOOR LOCK BLOCK
Not for GD; Applicable up to Ass. No. 74896 		- 1 Enquire
8 63859200
MICROSWITCH
Applicable for GD 		- 1 Enquire
8 63859200
MICROSWITCH
Not for GD; Applicable up to Ass. No. 74896 		- 1 Enquire
9 13046011
NUT
Applicable from Ass. No. 74897 		- 2 Enquire
9 13046011
NUT
Applicable up to Ass. No. 74896 		- 4 Enquire
10 65836500
SAFETY TIE-ROD
Applicable from Ass. No. 74897 		- 1 Enquire
10 65836500
SAFETY TIE-ROD
Applicable up to Ass. No. 74896 		- 2 Enquire
11 62794000
JOINT
Applicable from Ass. No. 74897 		- 2 Enquire
11 62794000
JOINT
Applicable up to Ass. No. 74896 		- 4 Enquire
12 171120
MircoSwitch 		- 2 Enquire
13 63723400
PIN 		- 2 Enquire
14 63724700
LH SPRING 		- 1 Enquire
14 63724600
RH SPRING 		- 1 Enquire
15 11087476
SNAP RING 		- 2 Enquire
16 65582700
SPRING PIN 		- 2 Enquire
17 13273977
SCREW 		- 2 Enquire
18 63576110
LH EXTERNAL DOOR HANDLE 		- 1 Enquire
18 63576010
RH EXTERNAL DOOR HANDLE 		- 1 Enquire
19 13309277
SCREW 		- 2 Enquire
20 64861200
LH INTERNAL GASKET 		- 1 Enquire
20 64861100
RH INTERNAL GASKET 		- 1 Enquire
21 64860600
ARM 		- 2 Enquire
22 64860700
HANDLE SPRING 		- 2 Enquire
23 64861000
LH HANDLE GASKET 		- 1 Enquire
23 64860900
RH HANDLE GASKET 		- 1 Enquire
24 64860510
LH HANDLE SEAT 		- 1 Enquire
24 64860410
RH Handle Seat 		- 1 Enquire
25 65398700
BUSHING 		- 2 Enquire
26 64860800
PIN 		- 2 Enquire
27 65520700
WASHER 		- 4 Enquire
28 65398600
GUIDE 		- 2 Enquire
29 178187
MICROSWITCH 		- 2 Enquire
30 63179900
Fastener Clip 		- 2 Enquire
31 65806300
PLATE 		- 2 Enquire
32 63853400
RUBBER BUSHING 		- 2 Enquire
33 14578283
TIE ROD RETAINING CLIP 		- 2 Enquire
34 64803300
MOBILE HINGE 		- 4 Enquire
35 62825300
BUSHING 		- 8 Enquire
36 65195200
TIE-ROD 		- 2 Enquire
37 63892300
DOOR GASKET 		- 2 Enquire
38 16043436
SCREW 		- 12 Enquire
39 84653800
WASHER 		- 12 Enquire
40 13550405
WASHER 		- 12 Enquire
41 63895300
LH COLUMN 		- 1 Enquire
41 63895200
RH COLUMN 		- 1 Enquire
42 14059290
FLANGED NUT M6 		- 4 Enquire
43 67111800
BRACKET 		- 2 Enquire
44 230083
SCREW 		- 8 Enquire
45 64803400
PIN
ARRIVING SOON 		- 4 Enquire
46 11087974
SNAP RING 		- 4 Enquire
47 65713400
SHIM 		- 4 Enquire
48 179697
PILLAR SWITCH 		- 2 Enquire
49 64803200
FIXED HINGE 		- 4 Enquire
50 66842800
Pin 		- 2 Enquire
51 16043534
SCREW M8 X 22 		- 12 Enquire
52 84653800
WASHER 		- 12 Enquire
53 13550405
WASHER 		- 12 Enquire
54 62825300
BUSHING 		- 8 Enquire
55 810790
FASTENER CLIP
Applicable up to Ass. No. 58208 		- 2 Enquire
56 62769800
WASHER 		- 2 Enquire
57 85833700
SCREW 		- 2 Enquire
58 82242400
WASHER 		- 2 Enquire
59 65547500
SHIM
Applicable until depletion 		- 6 Enquire
59 69919600
SHIM
Applicable after depletion of 65547500 		- 2 Enquire
60 13577724
WASHER 		- 4 Enquire
61 14163874
SPRING PIN 		- 2 Enquire
62 65998600
SHIM 		- 4 Enquire
63 67903900
LH MICROSWITCH BRACKET 		- 1 Enquire
63 67904000
RH MICROSWITCH BRACKET 		- 1 Enquire
64 212584
DOOR LOCK MICROSWITCH 		- 2 Enquire
65 68917600
SWITCH FIXING PLATE 		- 2 Enquire
66 68993200
LH Door Lock with Cables
Version with knob 		- 1 Enquire
66 69998100
LH DOOR LOCK COMPLETE WITH CABLES, WITHOUT EXTERNAL LOCKING
Version without knob 		- 1 Enquire
66 68993100
RH Door Lock With Cables
Version with knob 		- 1 Enquire
66 69998000
RH DOOR LOCK COMPLETE WITH CABLES, WITHOUT EXTERNAL LOCKING
Version without knob 		- 1 Enquire

Haven't found what you're looking for?

More: Ferrari Doors Tuning Parts Need help? Call us

View Cart / Checkout
