Ferrari 430 Coupe - COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
216372 WATER DELIVERY PIPE Enquire To Order
217917 WATER DELIVERY PIPE Enquire To Order
216372 WATER DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
216373 WATER RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
238695 RUBBER PIPE Enquire To Order
238691 RUBBER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
13001690 SCREW COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
13000590 SCREW COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR Enquire To Order
180137 TEMPERATURE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
176322 THERMAL CONTACT Enquire To Order
Photo Part No Description Price (each) Stock
68641200 PIPE FROM TGK VALVE TO RETURN PIPE Enquire To Order
65231800 PIPE FROM TGK VALVE TO RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
13001690 SCREW COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
202547 RUBBER DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
206621 UNDERBODY ALUMINIUM DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
208338 RUBBER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
202548 RUBBER RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
206728 UNDERBODY ALUMINIUM RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
193463 RUBBER RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
241611 ALUMINIUM PIPE Enquire To Order
Photo Part No Description Price (each) Stock
206717 Rubber Pipe Enquire To Order
Photo Part No Description Price (each) Stock
183641 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
177995 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
183642 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
10730114 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
61712500 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
10298460 GASKET Enquire To Order
10298460 GASKET Enquire To Order
View All

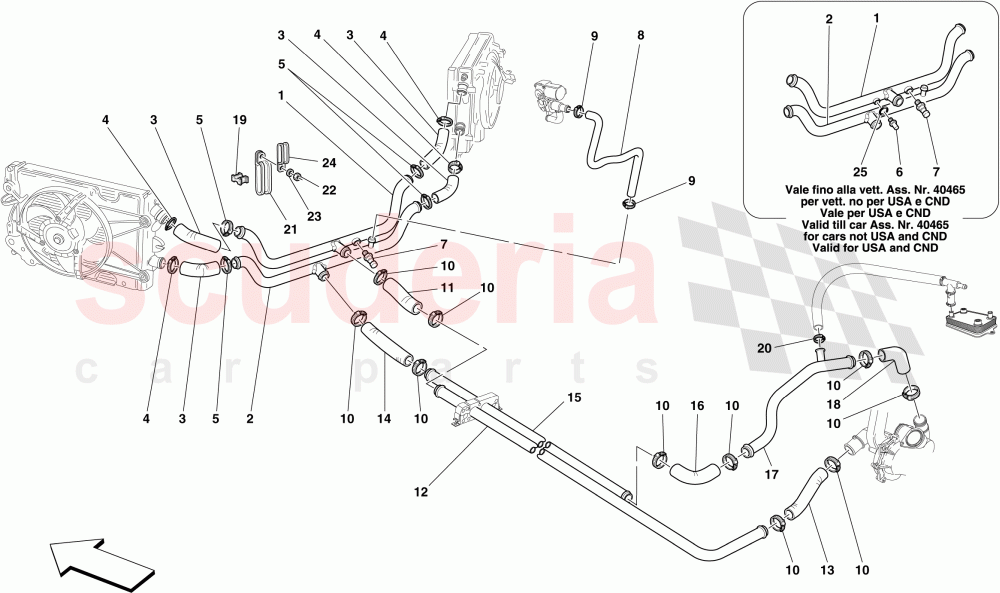

COOLING SYSTEM of Ferrari Ferrari 430 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 216372
WATER DELIVERY PIPE
Not for USA, CDN; Applicable up to Ass. No. 40465 		- 1 Enquire
1 217917
WATER DELIVERY PIPE
Not for USA, CDN; Applicable from Ass. No. 40466 		- 1 Enquire
1 216372
WATER DELIVERY PIPE
Applicable for USA, CDN 		- 1 Enquire
2 216373
WATER RETURN PIPE 		- 1 Enquire
3 238695
RUBBER PIPE
Upper; Replaces 220948 		- 2 Enquire
3 238691
RUBBER PIPE
Lower; Replaces 220948 		- 2 Enquire
4 13001690
SCREW COLLAR 		- 4 Enquire
5 13000590
SCREW COLLAR 		- 4 Enquire
6 180137
TEMPERATURE SENSOR
Applicable for USA, CDN 		- 1 Enquire
6 180137
TEMPERATURE SENSOR
Not for USA, CDN; Applicable up to Ass. No. 40465 		- 1 Enquire
7 176322
THERMAL CONTACT 		- 1 Enquire
8 68641200
PIPE FROM TGK VALVE TO RETURN PIPE
Applicable for GD 		- 1 Enquire
8 65231800
PIPE FROM TGK VALVE TO RETURN PIPE
Not for GD 		- 1 Enquire
9 262111
JUBILEE CLAMP 		- 2 Enquire
10 13001690
SCREW COLLAR 		- 10 Enquire
11 202547
RUBBER DELIVERY PIPE 		- 1 Enquire
12 206621
UNDERBODY ALUMINIUM DELIVERY PIPE 		- 1 Enquire
13 208338
RUBBER PIPE 		- 1 Enquire
14 202548
RUBBER RETURN PIPE 		- 1 Enquire
15 206728
UNDERBODY ALUMINIUM RETURN PIPE 		- 1 Enquire
16 193463
RUBBER RETURN PIPE 		- 1 Enquire
17 241611
ALUMINIUM PIPE 		- 1 Enquire
18 206717
Rubber Pipe 		- 1 Enquire
19 183641
SHIM 		- 2 Enquire
20 177995
CLAMP 		- 1 Enquire
21 183642
BRACKET WITH SHEATH 		- 2 Enquire
22 14059290
FLANGED NUT M6 		- 2 Enquire
23 10730114
WASHER 		- 2 Enquire
24 61712500
BRACKET WITH SHEATH 		- 2 Enquire
25 10298460
GASKET
Applicable for USA, CDN 		- 1 Enquire
25 10298460
GASKET
Not for USA, CDN; Applicable up to Ass. No. 40465 		- 1 Enquire
