Find Your Part

AIR INTAKE MANIFOLD COVER of Ferrari Ferrari 360 Challenge (2000)

View All

Ferrari 360 Challenge (2000) - AIR INTAKE MANIFOLD COVER

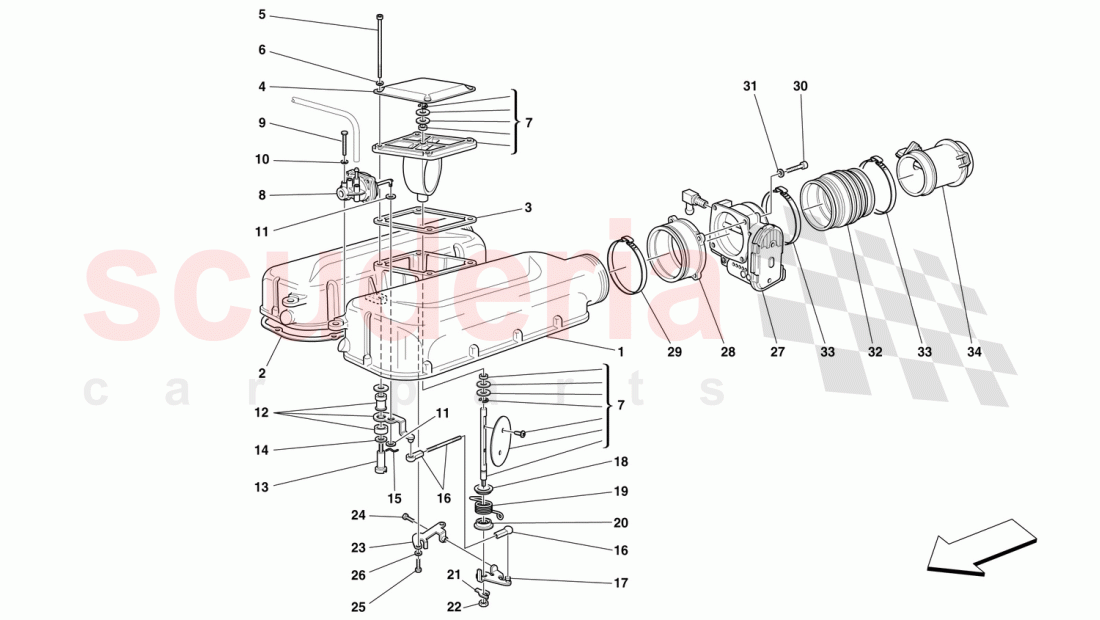

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	191873	SUCTION MANIFOLD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

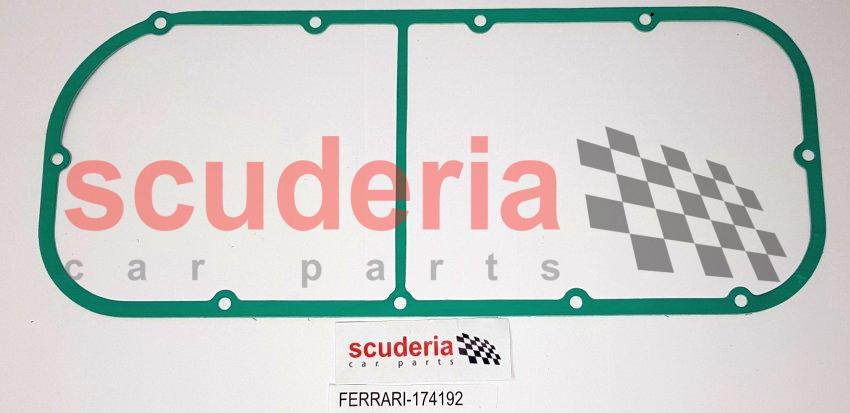

	174192	RH Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

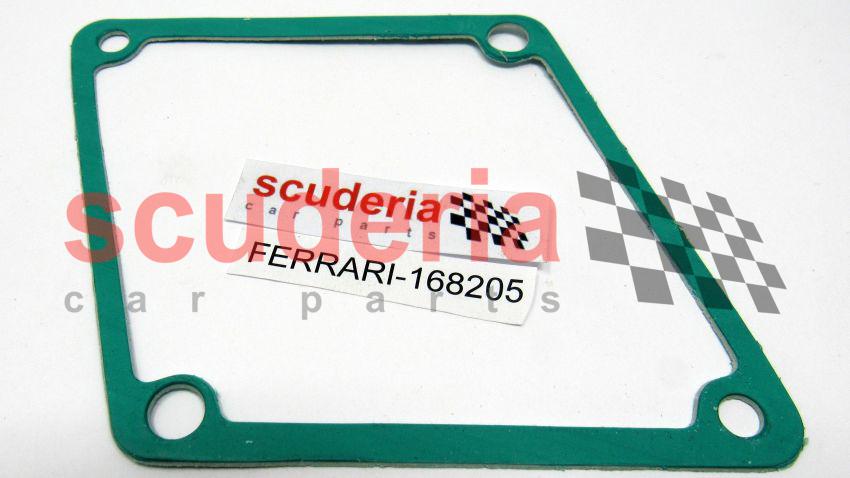

	168205	COMPENSATION DUCTING GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176106	COMPENSATION DUCTING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176154	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182086	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182092	COMPLETE COMPENSATION DUCTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136815	PNEUMATIC CAPSULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177644	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177646	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182087	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182089	LEVER SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177600	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182093	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182088	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177565	COMPLETE TIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177560	COMPLETE IDLING LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177626	BUSH FOR SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177578	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177586	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177639	SAFETY SMALL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182091	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177564	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182090	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177652	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177651	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171716	THROTTLE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177132	SPACER FOR THROTTLE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190151	Clamp	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12581474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170917	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

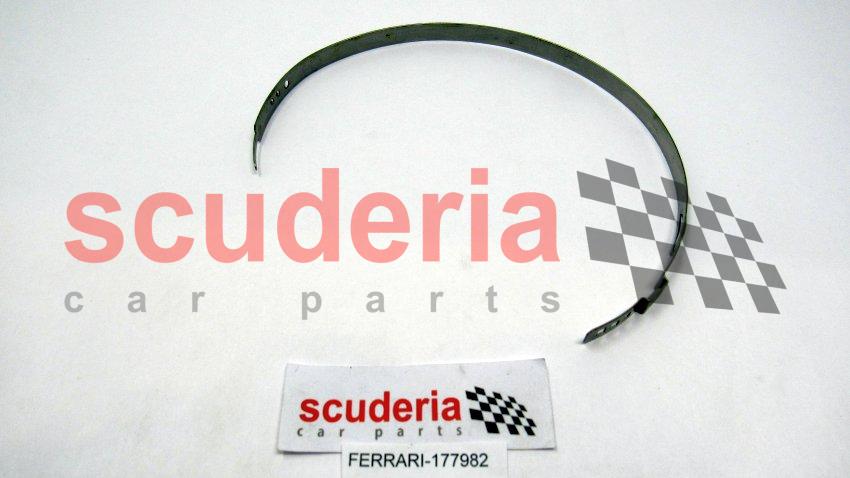

	177982	Special Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

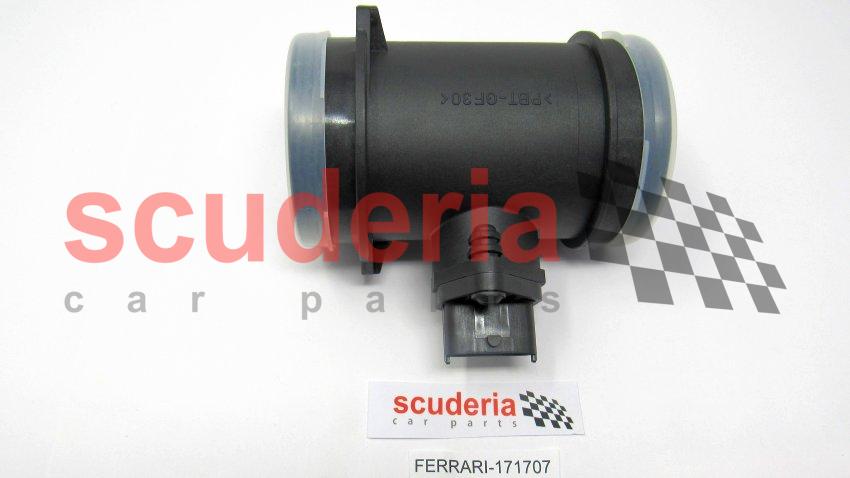

	171707	Air Flow Meter	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart

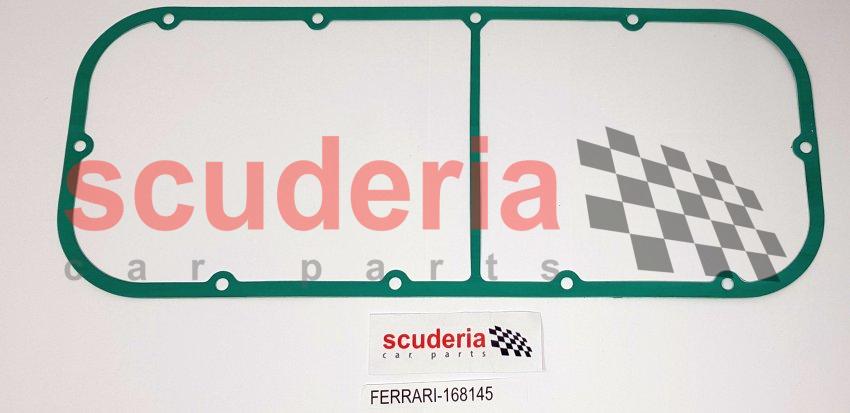

-	168145	LH Gasket	168145 LH Gasket	-	1	Enquire
1	191873	SUCTION MANIFOLD COVER	191873 SUCTION MANIFOLD COVER	-	1	Enquire
2	174192	RH Gasket	174192 RH Gasket	-	1	Enquire
3	168205	COMPENSATION DUCTING GASKET	168205 COMPENSATION DUCTING GASKET GASKET	-	1	Enquire
4	176106	COMPENSATION DUCTING COVER	176106 COMPENSATION DUCTING COVER COVER	-	1	Enquire
5	176154	SCREW	176154 SCREW	-	4	Enquire
6	182086	WASHER	182086 WASHER	-	4	Enquire
7	182092	COMPLETE COMPENSATION DUCTING	182092 COMPLETE COMPENSATION DUCTING DUCTING	-	1	Enquire
8	136815	PNEUMATIC CAPSULE	136815 PNEUMATIC CAPSULE	-	1	Enquire
9	177644	SCREW	177644 SCREW	-	2	Enquire
10	177646	WASHER	177646 WASHER	-	2	Enquire
11	182087	WASHER	182087 WASHER	-	2	Enquire
12	182089	LEVER SET	182089 LEVER SET	-	1	Enquire
13	177600	PIN	177600 PIN	-	1	Enquire
14	182093	WASHER	182093 WASHER	-	1	Enquire
15	182088	PIN	182088 PIN	-	1	Enquire
16	177565	COMPLETE TIE ROD	177565 COMPLETE TIE ROD	-	1	Enquire
17	177560	COMPLETE IDLING LEVER	177560 COMPLETE IDLING LEVER	-	1	Enquire
18	177626	BUSH FOR SPRING	177626 BUSH FOR SPRING	-	1	Enquire
19	177578	SPRING	177578 SPRING	-	1	Enquire
20	177586	BUSHING	177586 BUSHING	-	1	Enquire
21	177639	SAFETY SMALL PLATE	177639 SAFETY SMALL PLATE	-	1	Enquire
22	182091	NUT	182091 NUT	-	1	Enquire
23	177564	SUPPORT	177564 SUPPORT	-	1	Enquire
24	182090	SCREW	182090 SCREW	-	1	Enquire
25	177652	SCREW	177652 SCREW	-	2	Enquire
26	177651	WASHER	177651 WASHER	-	2	Enquire
27	171716	THROTTLE HOLDER	171716 THROTTLE HOLDER	-	2	Enquire
28	177132	SPACER FOR THROTTLE HOLDER	177132 SPACER FOR THROTTLE HOLDER HOLDER	-	2	Enquire
29	190151	Clamp ARRIVING SOON	190151 Clamp ARRIVING SOON	-	2	Enquire
30	231625	SCREW	231625 SCREW	-	8	Enquire
31	12581474	WASHER	12581474 WASHER	-	8	Enquire
32	170917	SLEEVE	170917 SLEEVE	-	2	Enquire
33	177982	Special Clamp	177982 Special Clamp	-	4	Enquire
34	171707	Air Flow Meter	171707 Air Flow Meter	-	2	Enquire
