STEERING COLUMN of Ferrari Ferrari 360 Spider

View All

Ferrari 360 Spider - STEERING COLUMN

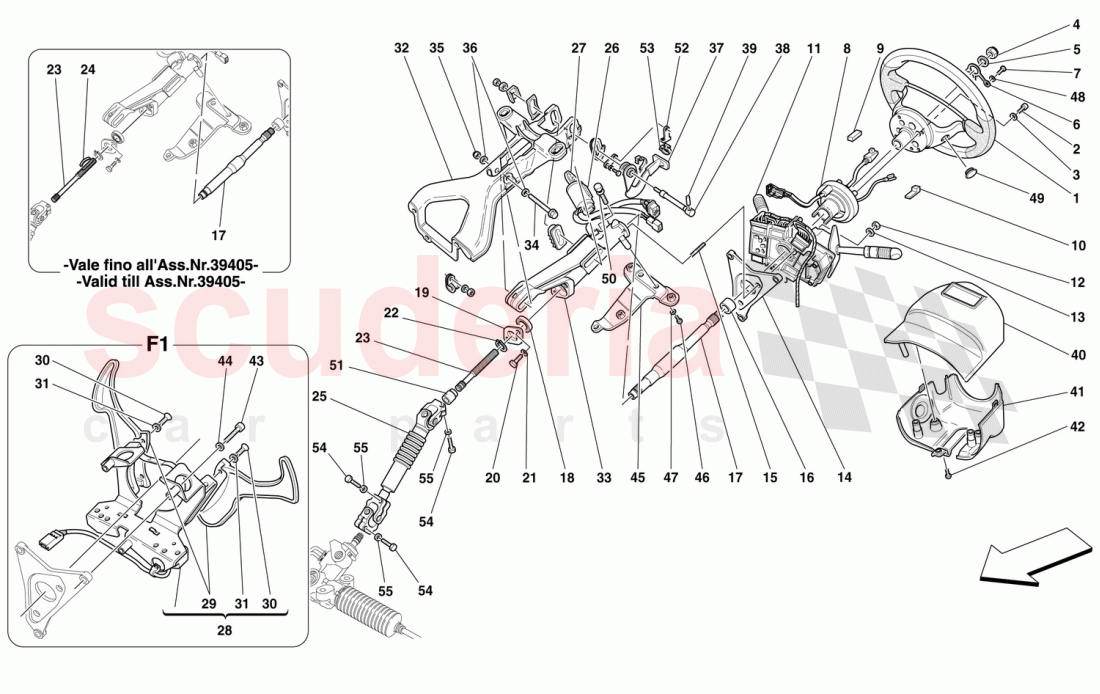

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	662039	COMPLETE AIR - BAG STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271914	SCREW -Valid for "60Â°anniversario"-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101648	Ring nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10730921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157639	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11021111	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169471	SPIRAL CONTACT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163816	CLOCK SPRING CONNECTOR RESISTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135355	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178993	UNHOOK DEVIATION ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176360	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11001424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171539	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171526	COLUMN UPPER SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171540	BALL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177645	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11067376	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171507	COLUMN LOWER SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171520	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171528	STEERING CARDAN SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179567	LOCKS SET COMPLETED WITH STEERING LOCK AND KEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185451	BLANK KEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176335	F1 GEARBOX CONTROL LEVERS ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182154	COUPLE LEVERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13308977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12606673	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171505	STEERING COLUMN SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171516	COLUMN SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180632	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	659933	COVERED LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171503	ARM PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10336630	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65164000	UPPER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64014900	LOWER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15960507	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13274611	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65164200	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977887	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185486	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172563	ANTI-THEFT SYSTEM FASTENER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183995	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177977	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192229	HEXAGONAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192230	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	65310600	COLUMN LOWER COVER ARRIVING SOON	65310600 COLUMN LOWER COVER Valid for F1 ARRIVING SOON	-	1	Enquire
-	65583200	COLUMN COVER	65583200 COLUMN COVER Valid for F1	-	1	Enquire
-	171546	STEERING COLUMN SUPPORT BRACKET	171546 STEERING COLUMN SUPPORT BRACKET BRACKET / Valid for GD	-	1	Enquire
-	185451	BLANK KEY	185451 BLANK KEY Valid from Ass. Nr. 42075	-	-	Enquire
-	183993	LOWER COLUMN AXLE	183993 LOWER COLUMN AXLE Valid from Ass. Nr. 39406	-	1	Enquire
-	183994	UPPER SHAFT FOR STEERING	183994 UPPER SHAFT FOR STEERING Valid from Ass. Nr. 39406	-	1	Enquire
-	177585	STEERING COLUMN SWITCH ASSEMBLY	177585 STEERING COLUMN SWITCH ASSEMBLY For gas lamps head light	-	1	Enquire
1	662039	COMPLETE AIR - BAG STEERING WHEEL	662039 COMPLETE AIR - BAG STEERING WHEEL	-	1	Enquire
2	13271914	SCREW -Valid for "60Â°anniversario"-	13271914 SCREW -Valid for "60Â°anniversario"-	-	3	Enquire
3	10615274	WASHER	10615274 WASHER	-	3	Enquire
4	101648	Ring nut	101648 Ring nut	-	1	Enquire
5	10730921	WASHER	10730921 WASHER	-	1	Enquire
6	157639	SPRING	157639 SPRING	-	1	Enquire
7	11021111	SCREW	11021111 SCREW	-	2	Enquire
8	169471	SPIRAL CONTACT	169471 SPIRAL CONTACT	-	1	Enquire
9	163816	CLOCK SPRING CONNECTOR RESISTOR	163816 CLOCK SPRING CONNECTOR RESISTOR	-	1	Enquire
10	135355	CONNECTOR	135355 CONNECTOR	-	1	Enquire
11	178993	UNHOOK DEVIATION ASSEMBLY	178993 UNHOOK DEVIATION ASSEMBLY For normal head light	-	1	Enquire
12	15896470	NUT	15896470 NUT	-	2	Enquire
13	12604178	Washer	12604178 Washer	-	2	Enquire
14	176360	BRACKET	176360 BRACKET	-	1	Enquire
15	11001424	STUD BOLT	11001424 STUD BOLT	-	2	Enquire
16	171539	ROLLER BEARING	171539 ROLLER BEARING	-	1	Enquire
17	171526	COLUMN UPPER SHAFT	171526 COLUMN UPPER SHAFT Valid till Ass. Nr. 39405	-	1	Enquire
18	171540	BALL BEARING	171540 BALL BEARING	-	1	Enquire
19	177645	PLATE	177645 PLATE	-	1	Enquire
20	10902224	SCREW	10902224 SCREW	-	2	Enquire
21	11181874	WASHER	11181874 WASHER	-	2	Enquire
22	11067376	SEEGER RING	11067376 SEEGER RING	-	1	Enquire
23	171507	COLUMN LOWER SHAFT	171507 COLUMN LOWER SHAFT Valid till Ass. Nr. 39405	-	1	Enquire
24	171520	SPRING	171520 SPRING Valid till Ass. Nr. 39405	-	1	Enquire
25	171528	STEERING CARDAN SHAFT	171528 STEERING CARDAN SHAFT	-	1	Enquire
26	179567	LOCKS SET COMPLETED WITH STEERING LOCK AND KEY	179567 LOCKS SET COMPLETED WITH STEERING LOCK AND KEY WITH STEERING / LOCK AND KEY	-	1	Enquire
27	185451	BLANK KEY	185451 BLANK KEY Valid till Ass. Nr. 42074	-	-	Enquire
28	176335	F1 GEARBOX CONTROL LEVERS ASSEMBLY	176335 F1 GEARBOX CONTROL LEVERS ASSEMBLY ASSEMBLY / Valid for F1	-	1	Enquire
29	182154	COUPLE LEVERS	182154 COUPLE LEVERS Valid for F1	-	1	Enquire
30	13308977	SCREW	13308977 SCREW Valid for F1	-	4	Enquire
31	12606673	WASHER	12606673 WASHER Valid for F1	-	4	Enquire
32	171505	STEERING COLUMN SUPPORT BRACKET	171505 STEERING COLUMN SUPPORT BRACKET BRACKET / Not for GD	-	1	Enquire
33	171516	COLUMN SUPPORT	171516 COLUMN SUPPORT	-	1	Enquire
34	180632	SCREW	180632 SCREW	-	1	Enquire
35	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	1	Enquire
36	12625224	WASHER	12625224 WASHER	-	2	Enquire
37	659933	COVERED LEVER	659933 COVERED LEVER	-	1	Enquire
38	171503	ARM PIN	171503 ARM PIN	-	1	Enquire
39	10336630	PIN	10336630 PIN	-	1	Enquire
40	65164000	UPPER COVER	65164000 UPPER COVER Not for F1	-	1	Enquire
41	64014900	LOWER COVER	64014900 LOWER COVER Not for F1	-	1	Enquire
42	15960507	SCREW	15960507 SCREW	-	2	Enquire
43	13274611	SCREW	13274611 SCREW Valid for F1	-	3	Enquire
44	12604178	Washer	12604178 Washer Valid for F1	-	3	Enquire
45	65164200	BRACKET	65164200 BRACKET	-	1	Enquire
46	10977887	SCREW	10977887 SCREW	-	3	Enquire
47	62769800	WASHER	62769800 WASHER	-	3	Enquire
48	10615274	WASHER	10615274 WASHER	-	2	Enquire
49	185486	CAP	185486 CAP	-	2	Enquire
50	172563	ANTI-THEFT SYSTEM FASTENER SCREW	172563 ANTI-THEFT SYSTEM FASTENER SCREW	-	1	Enquire
51	183995	RING NUT	183995 RING NUT Valid from Ass. Nr. 39406	-	1	Enquire
52	177977	PLATE	177977 PLATE	-	1	Enquire
53	178430	FASTENER CLIP	178430 FASTENER CLIP	-	1	Enquire
54	192229	HEXAGONAL SCREW	192229 HEXAGONAL SCREW	-	3	Enquire
55	192230	WASHER	192230 WASHER	-	3	Enquire
