Ferrari 360 Spider - FRONT AND REAR LIGHTS

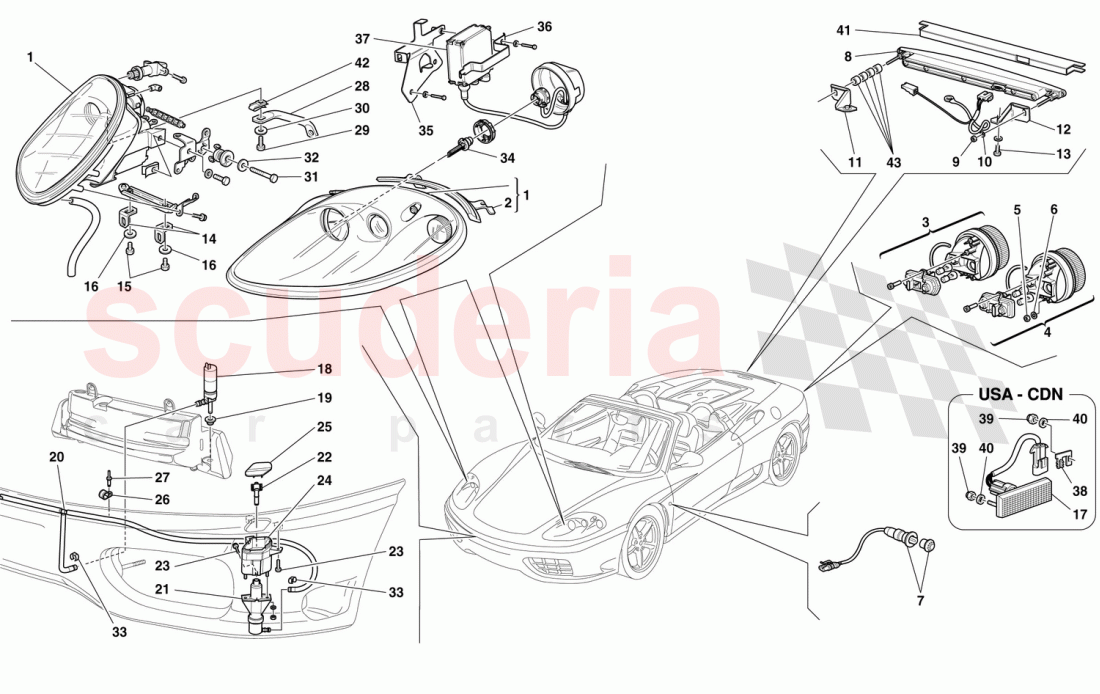

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	659943	R.H. HEADLIGHT LOW/HIGH BEAM	Enquire	To Order
	659945	R.H. HEADLIGHT LOW/HIGH BEAM	Enquire	To Order
	659946	R.H. HEADLIGHT LOW/HIGH BEAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185376	RH HEADLIGHT GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157514	L.H. rear internal light	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157516	L.H. rear external light	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165558	SIDE TURN INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241531	Third Stop Light	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	10794014	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64865900	R.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64866000	L.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65520000	Fastening Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147563	FRONT SIDE MARKER LAMP	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	65164700	HEADLIGHTS WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65511700	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65380000	HEADLIGHTS WASHER FIXED BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65667200	RH HEADLIGHTS WASHER MOBILE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15517201	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65896600	R.H. SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65896400	RH Cover - Bumper Washer Jet	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14296191	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65161500	R. H. FRONT SIDE LIGHT SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116413	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63234200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83220900	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185378	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183672	BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65705500	R.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65705400	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185554	FRONT LIGHT CONTROL STATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69640200	INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14190190	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64529600	Shim	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	65705600	L.H. BRACKET	65705600 L.H. BRACKET For gas lamps	-	1	Enquire
-	65161700	L. H. FRONT SIDE LIGHT SUPPORT	65161700 L. H. FRONT SIDE LIGHT SUPPORT	-	1	Enquire
-	65896500	L.H. PLUG	65896500 L.H. PLUG Valid for cars with headlights washer	-	1	Enquire
-	65896700	L.H. SUPPORT	65896700 L.H. SUPPORT Valid for cars with headlights washer	-	1	Enquire
-	65380100	LH HEADLIGHTS WASHER MOBILE BODY	65380100 LH HEADLIGHTS WASHER MOBILE BODY MOBILE BODY / Valid for cars with headlights washer	-	1	Enquire
-	140594	REAR SIDE-MARKER LIGHT	140594 REAR SIDE-MARKER LIGHT Valid for USA and CDN	-	2	Enquire
-	157515	R.H. rear external light	157515 R.H. rear external light Not for USA and CDN	-	1	Enquire
-	157522	R.H. rear external light	157522 R.H. rear external light Valid for USA and CDN	-	1	Enquire
-	165558	SIDE TURN INDICATOR	165558 SIDE TURN INDICATOR Valid for J / Not as spare part / Replaced by 165558	-	2	Enquire
-	157525	LH Inner Rear Light ARRIVING SOON	157525 LH Inner Rear Light Valid for USA and CDN ARRIVING SOON	-	1	Enquire
-	157513	R.H. rear internal light	157513 R.H. rear internal light Not for USA and CDN	-	1	Enquire
-	157524	RH Rear Inner Light	157524 RH Rear Inner Light Valid for USA and CDN	-	1	Enquire
-	157523	L.H. rear external light	157523 L.H. rear external light Valid for USA and CDN	-	1	Enquire
-	659951	L.H. HEADLIGHT LOW/HIGH BEAM	659951 L.H. HEADLIGHT LOW/HIGH BEAM Not gas lamps / Valid for GB	-	1	Enquire
-	185377	LH HEADLIGHT GASKET	185377 LH HEADLIGHT GASKET	-	1	Enquire
-	659952	L.H. HEADLIGHT LOW/HIGH BEAM	659952 L.H. HEADLIGHT LOW/HIGH BEAM Gas lamps / Not for USA, CDN, GD and J	-	1	Enquire
-	659953	L.H. HEADLIGHT LOW/HIGH BEAM	659953 L.H. HEADLIGHT LOW/HIGH BEAM Gas lamps / Valid for USA and CDN	-	1	Enquire
-	659954	L.H. HEADLIGHT LOW/HIGH BEAM	659954 L.H. HEADLIGHT LOW/HIGH BEAM Gas lamps / Valid for GD and J	-	1	Enquire
-	659949	L.H. HEADLIGHT LOW/HIGH BEAM	659949 L.H. HEADLIGHT LOW/HIGH BEAM Not gas lamps / Not for USA, CDN, GB, AUS and J	-	1	Enquire
-	659947	R.H. HEADLIGHT LOW/HIGH BEAM	659947 R.H. HEADLIGHT LOW/HIGH BEAM Gas lamps / Valid for USA and CDN	-	1	Enquire
-	659948	R.H. HEADLIGHT LOW/HIGH BEAM	659948 R.H. HEADLIGHT LOW/HIGH BEAM Gas lamps / Valid for GD and J	-	1	Enquire
1	659943	R.H. HEADLIGHT LOW/HIGH BEAM	659943 R.H. HEADLIGHT LOW/HIGH BEAM Not gas lamps / Not for USA, CDN, GB, AUS and J	-	1	Enquire
1	659945	R.H. HEADLIGHT LOW/HIGH BEAM	659945 R.H. HEADLIGHT LOW/HIGH BEAM Not gas lamps / Valid for GB	-	1	Enquire
1	659946	R.H. HEADLIGHT LOW/HIGH BEAM	659946 R.H. HEADLIGHT LOW/HIGH BEAM Gas lamps / Not for USA, CDN, GD and J	-	1	Enquire
2	185376	RH HEADLIGHT GASKET	185376 RH HEADLIGHT GASKET	-	1	Enquire
3	157514	L.H. rear internal light	157514 L.H. rear internal light Not for USA and CDN	-	1	Enquire
4	157516	L.H. rear external light	157516 L.H. rear external light Not for USA and CDN	-	1	Enquire
5	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
6	10519424	WASHER	10519424 WASHER	-	8	Enquire
7	165558	SIDE TURN INDICATOR	165558 SIDE TURN INDICATOR Not for J	-	2	Enquire
8	241531	Third Stop Light ARRIVING SOON	241531 Third Stop Light ARRIVING SOON	-	1	Enquire
9	10794014	NUT	10794014 NUT	-	2	Enquire
10	10615274	WASHER	10615274 WASHER	-	2	Enquire
11	64865900	R.H. BRACKET	64865900 R.H. BRACKET	-	1	Enquire
12	64866000	L.H. BRACKET	64866000 L.H. BRACKET	-	1	Enquire
13	11568124	SCREW	11568124 SCREW	-	2	Enquire
14	65520000	Fastening Bracket	65520000 Fastening Bracket	-	4	Enquire
15	10977524	SCREW	10977524 SCREW	-	8	Enquire
16	12647724	WASHER	12647724 WASHER	-	8	Enquire
17	147563	FRONT SIDE MARKER LAMP ARRIVING SOON	147563 FRONT SIDE MARKER LAMP Valid for USA and CDN ARRIVING SOON	-	2	Enquire
18	65164700	HEADLIGHTS WASHER PUMP	65164700 HEADLIGHTS WASHER PUMP Valid for cars with headlights washer	-	1	Enquire
19	65511700	GASKET	65511700 GASKET Valid for cars with headlights washer	-	1	Enquire
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY	65363000 HEADLIGHTS WASHER PIPE ASSEMBLY Valid for cars with headlights washer	-	1	Enquire
21	65380000	HEADLIGHTS WASHER FIXED BODY	65380000 HEADLIGHTS WASHER FIXED BODY Valid for cars with headlights washer	-	2	Enquire
22	65667200	RH HEADLIGHTS WASHER MOBILE BODY	65667200 RH HEADLIGHTS WASHER MOBILE BODY MOBILE BODY / Valid for cars with headlights washer	-	1	Enquire
23	15517201	SCREW	15517201 SCREW Valid for cars with headlights washer	-	6	Enquire
24	65896600	R.H. SUPPORT	65896600 R.H. SUPPORT Valid for cars with headlights washer	-	1	Enquire
25	65896400	RH Cover - Bumper Washer Jet ARRIVING SOON	65896400 RH Cover - Bumper Washer Jet Valid for cars with headlights washer ARRIVING SOON	-	1	Enquire
26	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH Valid for cars with headlights washer	-	4	Enquire
27	14296191	RIVET	14296191 RIVET Valid for cars with headlights washer	-	4	Enquire
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	65161500 R. H. FRONT SIDE LIGHT SUPPORT	-	1	Enquire
29	10902424	SCREW	10902424 SCREW	-	2	Enquire
30	116413	WASHER	116413 WASHER	-	2	Enquire
31	63234200	SCREW	63234200 SCREW	-	2	Enquire
32	83220900	Washer	83220900 Washer	-	2	Enquire
33	185378	CLIP	185378 CLIP	-	3	Enquire
34	183672	BULB	183672 BULB For gas lamps	-	2	Enquire
35	65705500	R.H. BRACKET	65705500 R.H. BRACKET For gas lamps	-	1	Enquire
36	65705400	BRACKET	65705400 BRACKET For gas lamps	-	2	Enquire
37	185554	FRONT LIGHT CONTROL STATION	185554 FRONT LIGHT CONTROL STATION STATION / For gas lamps	-	2	Enquire
38	155751	CLIP	155751 CLIP Valid for USA and CDN	-	4	Enquire
39	14084111	NUT	14084111 NUT Valid for USA and CDN	-	8	Enquire
40	12638124	WASHER	12638124 WASHER Valid for USA and CDN	-	8	Enquire
41	69640200	INSULATION	69640200 INSULATION	-	1	Enquire
42	14190190	NUT	14190190 NUT	-	2	Enquire
43	64529600	Shim	64529600 Shim	-	8	Enquire
