OUTSIDE GEARBOX CONTROLS

Find Your Part

Ferrari 360 Spider - OUTSIDE GEARBOX CONTROLS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
181751 GEARBOX CONTROL HOUSING $418.93 To Order
Photo Part No Description Price (each) Stock
16044024 SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
180936 GEAR LEVER $722.05 To Order
Photo Part No Description Price (each) Stock
174967 BUSH $289.17 To Order
Photo Part No Description Price (each) Stock
147561 SPRING $110.47 To Order
Photo Part No Description Price (each) Stock
199070 BUSHING $111.09 To Order
Photo Part No Description Price (each) Stock
13896070 PIN $7.26 To Order
Photo Part No Description Price (each) Stock
160480 GEAR LEVER KNOB $320.90 To Order
Photo Part No Description Price (each) Stock
108010 CHECKNUT $27.31 To Order
Photo Part No Description Price (each) Stock
176626 PIVOT $688.34 To Order
Photo Part No Description Price (each) Stock
176425 PIN $380.39 To Order
Photo Part No Description Price (each) Stock
172934 VIBRATION DAMPER $64.17 To Order
Photo Part No Description Price (each) Stock
176642 ARM $157.23 To Order
Photo Part No Description Price (each) Stock
176419 PIN $65.85 To Order
Photo Part No Description Price (each) Stock
14160570 PIN $7.89 To Order
Photo Part No Description Price (each) Stock
172918 SAFETY RING $7.26 To Order
Photo Part No Description Price (each) Stock
179844 GEAR SELECTOR $4,006.67 To Order
Photo Part No Description Price (each) Stock
159357 Screw $4.94 To Order
Photo Part No Description Price (each) Stock
181752 REAR BUSHING $75.92 To Order
Photo Part No Description Price (each) Stock
177029 LATERAL ADJUSTER SCREW $72.19 To Order
Photo Part No Description Price (each) Stock
177027 LATERAL SPRING $82.71 To Order
Photo Part No Description Price (each) Stock
177028 SPRING RETAINER CAP $3.81 To Order
Photo Part No Description Price (each) Stock
11058976 SNAP RING $10.00 To Order
Photo Part No Description Price (each) Stock
115980A SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
182268 COMPLETE GEARBOX CONTROL CABLES $1,842.06 To Order
Photo Part No Description Price (each) Stock
14567187 BUTTON $0.19 To Order
Photo Part No Description Price (each) Stock
177812 CABLE RETAINER BRACKET $42.72 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
177105 SUPPORT FOR LEVERAGE $31.98 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
12638524 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
178840 ARM $369.04 To Order
Photo Part No Description Price (each) Stock
109407 BALL-JOINT $70.59 To Order
Photo Part No Description Price (each) Stock
178423 SHIM $3.00 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.65 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
171677 ROLLER BEARING $16.24 To Order
Photo Part No Description Price (each) Stock
174984 BUSHING $30.36 To Order
Photo Part No Description Price (each) Stock
171671 WASHER $4.00 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
16044024 SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
171673 SHIM $23.50 To Order
Photo Part No Description Price (each) Stock
174911 FORK $177.51 To Order
Photo Part No Description Price (each) Stock
174974 PIN $38.20 To Order
Photo Part No Description Price (each) Stock
11065674 SEEGER RING $0.03 To Order
Photo Part No Description Price (each) Stock
184022 EXTERNAL CONTROL ASSEMBLY $3,854.83 To Order
Photo Part No Description Price (each) Stock
178423 SHIM $3.00 To Order
Photo Part No Description Price (each) Stock
109407 BALL-JOINT $70.59 To Order
Photo Part No Description Price (each) Stock
174912 FORK $179.33 To Order
Photo Part No Description Price (each) Stock
178932 ARM $372.69 To Order
Photo Part No Description Price (each) Stock
109407 BALL-JOINT $70.59 To Order
Photo Part No Description Price (each) Stock
181067 F1 GEARBOX CONTROL DASHBOARD $2,541.67 To Order
Photo Part No Description Price (each) Stock
68123900 SCREW $6.55 To Order
Photo Part No Description Price (each) Stock
182237 BUSHING $45.06 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
219570 SHIM $192.54 To Order
Photo Part No Description Price (each) Stock
180127 PLUG $39.17 To Order
Photo Part No Description Price (each) Stock
187873 R.H. JOINT $158.84 To Order
Photo Part No Description Price (each) Stock
187874 L.H. JOINT $123.54 To Order
Photo Part No Description Price (each) Stock
187875 LOCK RING $12.72 To Order
Photo Part No Description Price (each) Stock
182435 COMPLETE RUBBER JOINT $32.81 To Order
Photo Part No Description Price (each) Stock
182391 NUT $15.48 To Order
View All

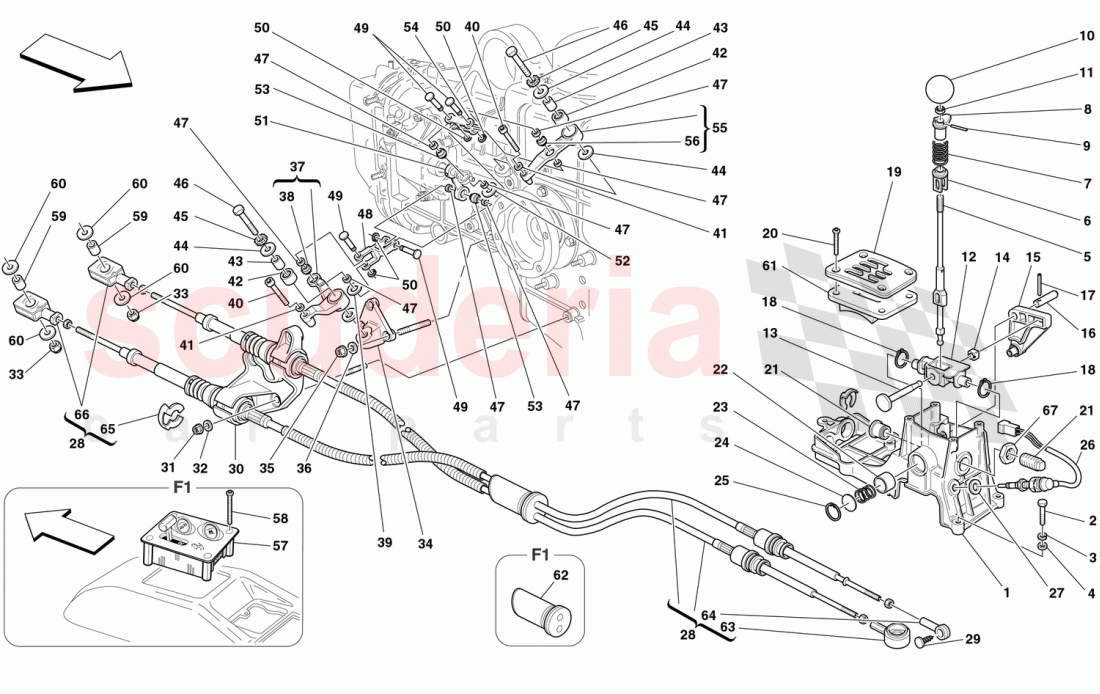

OUTSIDE GEARBOX CONTROLS of Ferrari Ferrari 360 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 181068
F1 GEARBOX CONTROL DASHBOARD
Valid for F1 / Valid for GD 		$2,442.30 1
- 181753
FRONT BUSHING 		$108.61 1
1 181751
GEARBOX CONTROL HOUSING
Not for F1 		$418.93 1
2 16044024
SCREW
Not for F1 		$0.37 (57.5% off) 4
3 12601374
WASHER
Not for F1 		$0.02 (92% off) 4
4 14496524
WASHER
Not for F1 		$0.11 (92.7% off) 4
5 180936
GEAR LEVER
Not for F1 		$722.05 1
6 174967
BUSH
Not for F1 		$289.17 (28.8% off) 1
7 147561
SPRING
Not for F1 		$110.47 1
8 199070
BUSHING
Not for F1 		$111.09 (34.7% off) 1
9 13896070
PIN
Not for F1 		$7.26 1

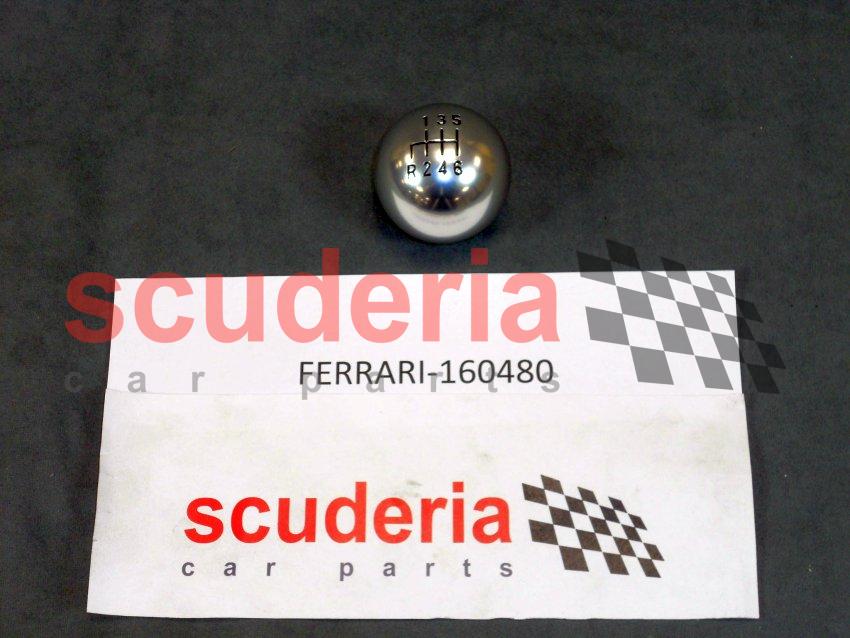

10 160480
GEAR LEVER KNOB
Not for F1 		$320.90 (32.6% off) 1
11 108010
CHECKNUT
Not for F1 		$27.31 (6.8% off) 1
12 176626
PIVOT
Not for F1 		$688.34 1
13 176425
PIN
Not for F1 		$380.39 1
14 172934
VIBRATION DAMPER
Not for F1 		$64.17 1
15 176642
ARM
Not for F1 		$157.23 (25.7% off) 1
16 176419
PIN
Not for F1 		$65.85 1
17 14160570
PIN
Not for F1 		$7.89 1
18 172918
SAFETY RING
Not for F1 		$7.26 2
19 179844
GEAR SELECTOR
Not for F1 		$4,006.67 1

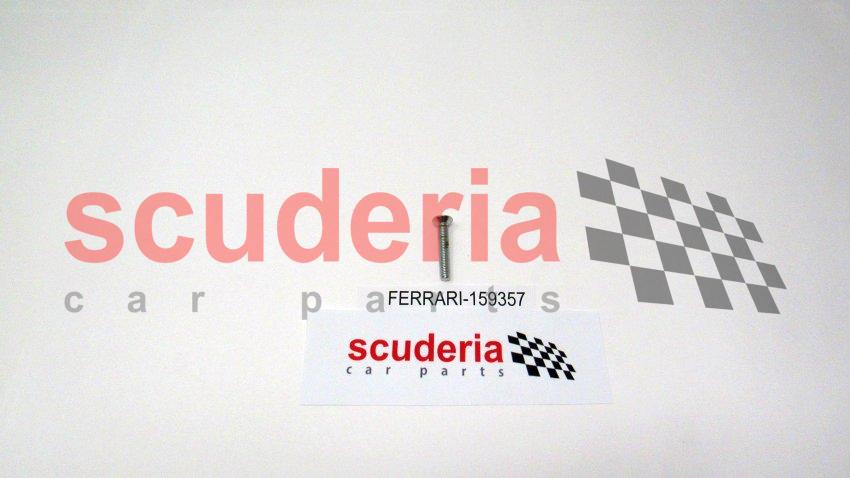

20 159357
Screw
Not for F1 		$4.94 4
21 181752
REAR BUSHING 		$75.92 1
22 177029
LATERAL ADJUSTER SCREW
Not for F1 		$72.19 1
23 177027
LATERAL SPRING
Not for F1 		$82.71 1
24 177028
SPRING RETAINER CAP
Not for F1 		$3.81 1
25 11058976
SNAP RING
Not for F1 		$10.00 1
26 115980A
SWITCH
Not for F1 		- 1 Enquire
27 84653800
WASHER
Not for F1 		$5.75 1
28 182268
COMPLETE GEARBOX CONTROL CABLES
CABLES / Not for F1 		$1,842.06 1
29 14567187
BUTTON
Not for F1 		$0.19 (67.8% off) 1
30 177812
CABLE RETAINER BRACKET
Not for F1 		$42.72 1
31 14059290
FLANGED NUT M6
Not for F1 		$1.51 3
32 10519424
WASHER
Not for F1 		$0.02 (92% off) 3
33 14059290
FLANGED NUT M6
Not for F1 		$1.51 2
34 177105
SUPPORT FOR LEVERAGE
Not for F1 		$31.98 1
35 14040711
NUT
Not for F1 		$0.41 3
36 12638524
WASHER
Not for F1 		$0.06 (76% off) 3
37 178840
ARM
Not for F1 		$369.04 1
38 109407
BALL-JOINT
Not for F1 		$70.59 1
39 178423
SHIM
Not for F1 		$3.00 1
40 231625
SCREW
Not for F1 		$0.65 2
41 12643724
WASHER
Not for F1 		$0.06 (88% off) 2
42 171677
ROLLER BEARING
Not for F1 		$16.24 2
43 174984
BUSHING
Not for F1 		$30.36 2
44 171671
WASHER
Not for F1 		$4.00 (35.8% off) 4
45 12601374
WASHER
Not for F1 		$0.02 (92% off) 2
46 16044024
SCREW
Not for F1 		$0.37 (57.5% off) 2
47 171673
SHIM
Not for F1 		$23.50 8
48 174911
FORK
Not for F1 		$177.51 1
49 174974
PIN
Not for F1 		$38.20 4
50 11065674
SEEGER RING
Not for F1 		$0.03 4
51 184022
EXTERNAL CONTROL ASSEMBLY
Not for F1 / Not as spare part / Replaced by 184022 / See tab. 35 ref. 6 		$3,854.83 1
52 178423
SHIM
Not for F1 		$3.00 1
53 109407
BALL-JOINT
Not for F1 		$70.59 2
54 174912
FORK
Not for F1 		$179.33 1
55 178932
ARM
Not for F1 		$372.69 1
56 109407
BALL-JOINT
Not for F1 		$70.59 1
57 181067
F1 GEARBOX CONTROL DASHBOARD
Valid for F1 / Not for GD 		$2,541.67 (21.4% off) 1
58 68123900
SCREW
Valid for F1 		$6.55 4
59 182237
BUSHING
Not for F1 		$45.06 2
60 12643724
WASHER
Not for F1 		$0.06 (88% off) 4
61 219570
SHIM
Not for F1 		$192.54 1
62 180127
PLUG
Valid for F1 		$39.17 1
63 187873
R.H. JOINT
Not for F1 		$158.84 1
64 187874
L.H. JOINT
Not for F1 		$123.54 1
65 187875
LOCK RING
Not for F1 		$12.72 2
66 182435
COMPLETE RUBBER JOINT
Not for F1 		$32.81 (27.1% off) 2
67 182391
NUT 		$15.48 1
