DOORS - FRAMEWORK AND COVERINGS of Ferrari Ferrari 360 Challenge Stradale

View All

Ferrari 360 Challenge Stradale - DOORS - FRAMEWORK AND COVERINGS

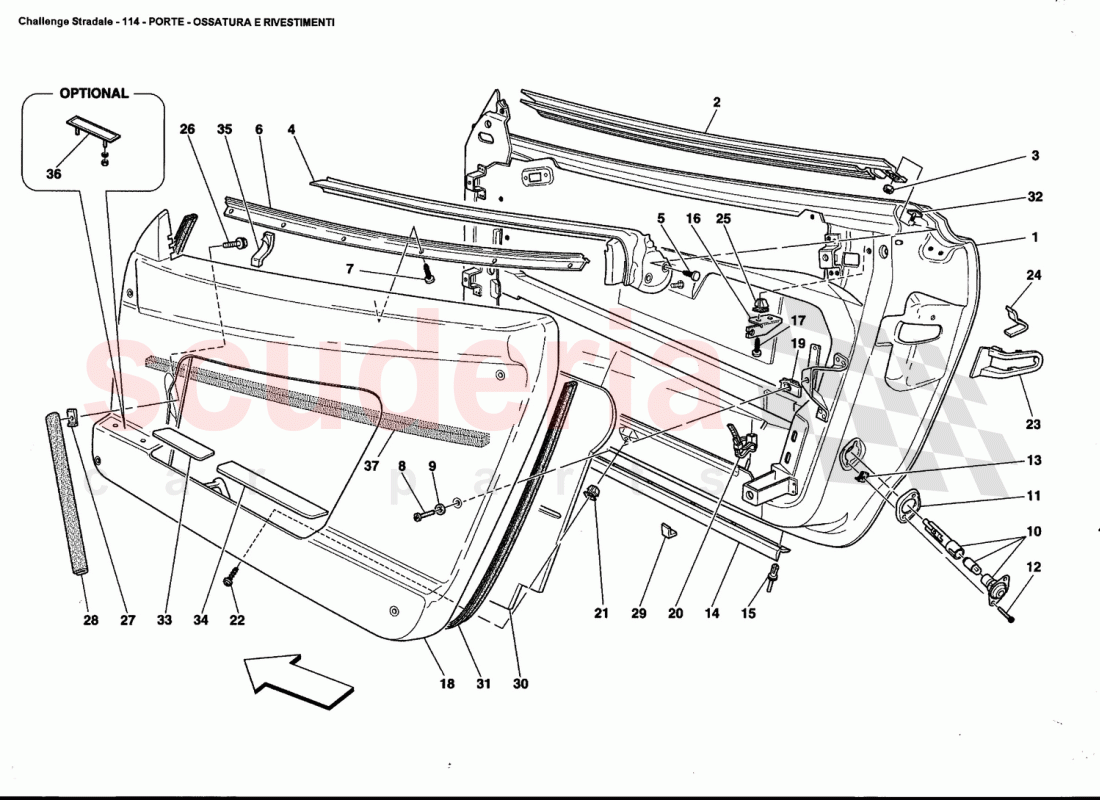

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	67660211	R.H. DOOR FRAME	Enquire	To Order
	67784111	R.H. DOOR FRAME	Enquire	To Order
	67660311	L.H. DOOR FRAME	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65164500	LH EXTERNAL WINDOW SCRAPER SEAL	Enquire	To Order
	65164400	EXTERNAL RH WINDOW SCRAPER SEAL	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14042077	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65544600	RH INTERNAL WINDOW SCRAPER SEAL	Enquire	To Order
	67541200	RH GASKET INNER GLASS SCRAPER	Enquire	To Order
	65544700	LH INTERNAL WINDOW SCRAPER SEAL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14591687	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65013000	RH MOULDING	Enquire	To Order
	65546200	LH MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915271	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69969500	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184786	Open-Door Light	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140576	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15901575	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61828500	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64855600	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62764000	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65546400	RH BRACKET	Enquire	To Order
	65547800	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15903975	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67538600	R.H. COVERED DOOR PANEL	Enquire	To Order
	67787500	R.H. COVERED DOOR PANEL	Enquire	To Order
	67538700	L.H. COVERED DOOR PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14190190	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14201980	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688170	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65705000	RH DOOR TRIM PLATE	Enquire	To Order
	65717800	L.H. PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65705300	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14201980	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14190190	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67531700	HANDLE MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69101000	RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66212700	R.H. WATER PROTECTION CLOTH	Enquire	To Order
	66212800	L.H. WATER PROTECTION CLOTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67761700	R.H. GASKET	Enquire	To Order
	67761800	L.H. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67194200	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	677592	R.H. FRONT INSERT	Enquire	To Order
	677593	L.H. FRONT INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	677594	R.H. REAR CARPET SHIELD	Enquire	To Order
	677595	L.H. REAR CARPET SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67953900	ANTI-VIBRATION GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65643100	DEDICATION PLAQUE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67954000	ANTI-VIBRATIONS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	67660211	R.H. DOOR FRAME	67660211 R.H. DOOR FRAME Not for USA and CDN	-	1	Enquire
1	67784111	R.H. DOOR FRAME	67784111 R.H. DOOR FRAME Valid for USA and CDN	-	1	Enquire
1	67660311	L.H. DOOR FRAME	67660311 L.H. DOOR FRAME Not for USA and CDN	-	1	Enquire
1	67784211	L.H. DOOR FRAME	67784211 L.H. DOOR FRAME Valid for USA and CDN	-	1	Enquire
2	65164500	LH EXTERNAL WINDOW SCRAPER SEAL	65164500 LH EXTERNAL WINDOW SCRAPER SEAL SCRAPER	-	1	Enquire
2	65164400	EXTERNAL RH WINDOW SCRAPER SEAL ARRIVING SOON	65164400 EXTERNAL RH WINDOW SCRAPER SEAL SCRAPER ARRIVING SOON	-	1	Enquire
3	14042077	NUT	14042077 NUT	-	2	Enquire
4	65544600	RH INTERNAL WINDOW SCRAPER SEAL	65544600 RH INTERNAL WINDOW SCRAPER SEAL SCRAPER / Valid for descending glass	-	1	Enquire
4	67541200	RH GASKET INNER GLASS SCRAPER	67541200 RH GASKET INNER GLASS SCRAPER SCRAPER / Valid for fixing glass	-	1	Enquire
4	65544700	LH INTERNAL WINDOW SCRAPER SEAL	65544700 LH INTERNAL WINDOW SCRAPER SEAL SCRAPER / Valid for descending glass	-	1	Enquire
4	67541300	LH GASKET INNER GLASS SCRAPER	67541300 LH GASKET INNER GLASS SCRAPER SCRAPER / Valid for fixing glass	-	1	Enquire
5	14591687	FASTENER BUTTON	14591687 FASTENER BUTTON	-	4	Enquire
6	65013000	RH MOULDING	65013000 RH MOULDING	-	1	Enquire
6	65546200	LH MOULDING	65546200 LH MOULDING	-	1	Enquire
7	85833700	SCREW	85833700 SCREW	-	12	Enquire
8	915271	SCREW	915271 SCREW	-	12	Enquire
9	69969500	WASHER	69969500 WASHER	-	12	Enquire
10	184786	Open-Door Light	184786 Open-Door Light	-	2	Enquire
11	140576	GASKET	140576 GASKET	-	2	Enquire
12	15901575	SCREW	15901575 SCREW	-	4	Enquire
13	61828500	FASTENER CLIP	61828500 FASTENER CLIP	-	4	Enquire
14	64855600	GASKET	64855600 GASKET	-	2	Enquire
15	62764000	RIVET	62764000 RIVET	-	14	Enquire
16	65546400	RH BRACKET	65546400 RH BRACKET	-	1	Enquire
16	65547800	LH BRACKET	65547800 LH BRACKET	-	1	Enquire
17	15903975	Screw	15903975 Screw	-	4	Enquire
18	67538600	R.H. COVERED DOOR PANEL	67538600 R.H. COVERED DOOR PANEL Not for USA and CDN	-	1	Enquire
18	67787500	R.H. COVERED DOOR PANEL	67787500 R.H. COVERED DOOR PANEL Valid for USA and CDN	-	1	Enquire
18	67538700	L.H. COVERED DOOR PANEL	67538700 L.H. COVERED DOOR PANEL Not for USA and CDN	-	1	Enquire
18	67787600	L.H. COVERED DOOR PANEL	67787600 L.H. COVERED DOOR PANEL Valid for USA and CDN	-	1	Enquire
19	14190190	NUT	14190190 NUT	-	12	Enquire
20	177553	CLAMP	177553 CLAMP	-	8	Enquire
21	14201980	BLOCK	14201980 BLOCK	-	4	Enquire
22	15688170	SCREW	15688170 SCREW	-	4	Enquire
23	65705000	RH DOOR TRIM PLATE	65705000 RH DOOR TRIM PLATE	-	1	Enquire
23	65717800	L.H. PLATE	65717800 L.H. PLATE	-	1	Enquire
24	65705300	Clip	65705300 Clip	-	4	Enquire
25	14201980	BLOCK	14201980 BLOCK	-	4	Enquire
26	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	4	Enquire
27	14190190	NUT	14190190 NUT	-	4	Enquire
28	67531700	HANDLE MOULDING	67531700 HANDLE MOULDING	-	2	Enquire
29	69101000	RUBBER	69101000 RUBBER	-	4	Enquire
30	66212700	R.H. WATER PROTECTION CLOTH	66212700 R.H. WATER PROTECTION CLOTH	-	1	Enquire
30	66212800	L.H. WATER PROTECTION CLOTH	66212800 L.H. WATER PROTECTION CLOTH	-	1	Enquire
31	67761700	R.H. GASKET	67761700 R.H. GASKET	-	1	Enquire
31	67761800	L.H. GASKET	67761800 L.H. GASKET	-	1	Enquire
32	67194200	PLATE	67194200 PLATE	-	2	Enquire
33	677592	R.H. FRONT INSERT	677592 R.H. FRONT INSERT	-	1	Enquire
33	677593	L.H. FRONT INSERT	677593 L.H. FRONT INSERT	-	1	Enquire
34	677594	R.H. REAR CARPET SHIELD	677594 R.H. REAR CARPET SHIELD	-	1	Enquire
34	677595	L.H. REAR CARPET SHIELD	677595 L.H. REAR CARPET SHIELD	-	1	Enquire
35	67953900	ANTI-VIBRATION GASKET	67953900 ANTI-VIBRATION GASKET	-	3	Enquire
36	65643100	DEDICATION PLAQUE	65643100 DEDICATION PLAQUE Optional	-	1	Enquire
37	67954000	ANTI-VIBRATIONS	67954000 ANTI-VIBRATIONS Valid for USA and CDN / order by Fax or E-m@il, specifying serial number. - See "INNER TRIMS CAR CODES" table for codes of parts covered in leather or moquette.	-	2	Enquire
