Name: LAY SHAFT GEARS
Rating: 5.0 (1 reviews)

LAY SHAFT GEARS of Ferrari Ferrari 360 Challenge Stradale

View All

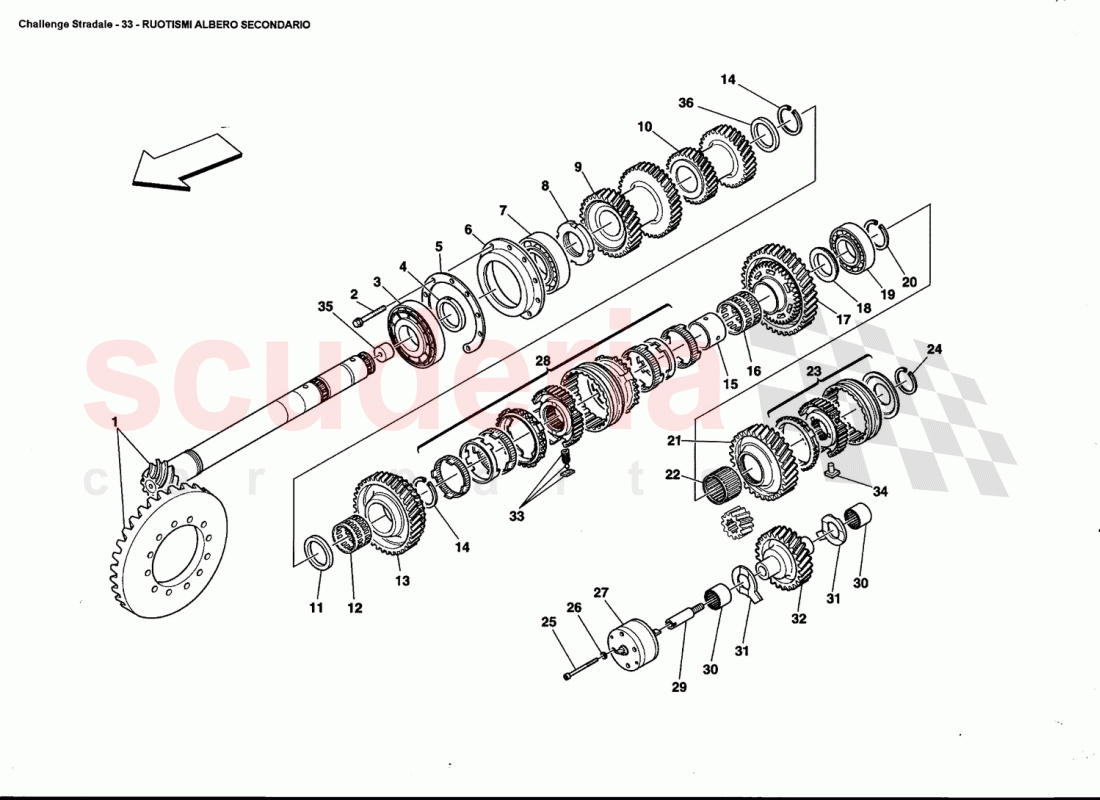

Ferrari 360 Challenge Stradale - LAY SHAFT GEARS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	197822	COMPETE BEVEL SET	$1,665.67	To Order

Photo	Part No	Description	Price (each)	Stock
	16287730	SCREW	$4.64	To Order

Photo	Part No	Description	Price (each)	Stock
	185022	ROLLER BEARING	$347.97	To Order

Photo	Part No	Description	Price (each)	Stock
	185027	RING ADJUSTER	$56.00	To Order
	185045	RING ADJUSTER	$36.94	To Order
	185028	RING ADJUSTER	$56.00	To Order

Photo	Part No	Description	Price (each)	Stock
	185042	RING ADJUSTER	$11.54	To Order
	185043	RING ADJUSTER	$18.59	To Order
	185044	RING ADJUSTER	$32.32	To Order

Photo	Part No	Description	Price (each)	Stock
	185020	BEARING MOUNTING	$624.03	To Order

Photo	Part No	Description	Price (each)	Stock
	185021	Roller Bearing	$185.79	To Order

Photo	Part No	Description	Price (each)	Stock
	196667	GEARBOX RING NUT M45 X 1.5	$68.97	To Order

Photo	Part No	Description	Price (each)	Stock
	197821	3rd AND 4th DRIVEN GEAR	$543.42	To Order

Photo	Part No	Description	Price (each)	Stock
	188461	5th AND 6th DRIVEN GEAR	$545.22	To Order

Photo	Part No	Description	Price (each)	Stock
	189791	RING	$76.78	To Order
	189792	RING	$87.00	To Order

Photo	Part No	Description	Price (each)	Stock
	184014	ROLLER BEARING CAGE	$21.59	To Order

Photo	Part No	Description	Price (each)	Stock
	197818	PINION FOR 2nd GEAR	$344.16	To Order

Photo	Part No	Description	Price (each)	Stock
	185036	SNAP RING	$40.50	To Order
	185037	SNAP RING	$70.00	To Order
	183976	SNAP RING	$13.70	To Order

Photo	Part No	Description	Price (each)	Stock
	183971	BUSHING	$86.21	To Order

Photo	Part No	Description	Price (each)	Stock
	184016	ROLLER BEARING CAGE	$27.49	To Order

Photo	Part No	Description	Price (each)	Stock
	197816	PINION FOR 1st GEAR	$344.16	To Order

Photo	Part No	Description	Price (each)	Stock
	185041	RING	$39.17	To Order
	183972	CENTRE BEARING	$87.18	To Order
	185040	RING	$47.67	To Order

Photo	Part No	Description	Price (each)	Stock
	184020	Roller Bearing	$167.98	To Order

Photo	Part No	Description	Price (each)	Stock
	184042	SNAP RING	$13.70	To Order

Photo	Part No	Description	Price (each)	Stock
	197820	REVERSE GEAR	$277.21	To Order

Photo	Part No	Description	Price (each)	Stock
	184018	ROLLER BEARING CAGE	$32.38	To Order

Photo	Part No	Description	Price (each)	Stock
	326260	REVERSE SPEED SYNCHRONISER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184041	SNAP RING	$5.12	To Order

Photo	Part No	Description	Price (each)	Stock
	14303624	SCREW	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	10571379	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	185048	BEARBOX OIL PUMP	$802.28	To Order

Photo	Part No	Description	Price (each)	Stock
	185164	1ST AND 2ND SPEED SYNCHRONISER	$2,088.64	To Order

Photo	Part No	Description	Price (each)	Stock
	185050	PUMP DRIVE SHAFT	$60.96	To Order

Photo	Part No	Description	Price (each)	Stock
	184017	DRAWN CUP NEEDLE BEARING	$9.95	To Order

Photo	Part No	Description	Price (each)	Stock
	183975	RING	$27.42	To Order

Photo	Part No	Description	Price (each)	Stock
	197819	IDLE GEAR FOR REVERSE	$271.71	To Order

Photo	Part No	Description	Price (each)	Stock
	188320	SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT	$13.58	To Order

Photo	Part No	Description	Price (each)	Stock
	193440	SYNCHROREVERSE/BLOCKS REPLACEMENT KIT	$4.88	To Order

Photo	Part No	Description	Price (each)	Stock
	201870	BUSHING	$25.35	To Order

Photo	Part No	Description	Price (each)	Stock
	188497	SHIM	$86.75	To Order
	212457	SPACER -Thickness mm. 6,00-	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	197822	COMPETE BEVEL SET	197822 COMPETE BEVEL SET	$1,665.67	1
2	16287730	SCREW	16287730 SCREW	$4.64	9
3	185022	ROLLER BEARING	185022 ROLLER BEARING	$347.97	1
4	185027	RING ADJUSTER	185027 RING ADJUSTER Thickness mm. 6,4 / Possible fitting	$56.00	1
4	185045	RING ADJUSTER	185045 RING ADJUSTER Thickness mm. 7,10	$36.94	1
4	185028	RING ADJUSTER	185028 RING ADJUSTER Thickness mm. 6 / Possible fitting	$56.00	1
5	185042	RING ADJUSTER	185042 RING ADJUSTER Thickness mm. 2,8	$11.54	1
5	185043	RING ADJUSTER	185043 RING ADJUSTER Thickness mm. 2,5 / Possible fitting	$18.59	1
5	185044	RING ADJUSTER	185044 RING ADJUSTER Thickness mm. 2,2 / Possible fitting	$32.32	1
6	185020	BEARING MOUNTING	185020 BEARING MOUNTING	$624.03	1
7	185021	Roller Bearing	185021 Roller Bearing	$185.79	1
8	196667	GEARBOX RING NUT M45 X 1.5	196667 GEARBOX RING NUT M45 X 1.5	$68.97	1
9	197821	3rd AND 4th DRIVEN GEAR	197821 3rd AND 4th DRIVEN GEAR GEAR	$543.42	1
10	188461	5th AND 6th DRIVEN GEAR	188461 5th AND 6th DRIVEN GEAR GEAR	$545.22	1
11	189791	RING	189791 RING Thickness mm. 6,1	$76.78	1
11	189792	RING	189792 RING Thickness mm. 5,8 / As an alternative	$87.00	1
12	184014	ROLLER BEARING CAGE	184014 ROLLER BEARING CAGE	$21.59	1
13	197818	PINION FOR 2nd GEAR	197818 PINION FOR 2nd GEAR	$344.16	1
14	185036	SNAP RING	185036 SNAP RING Thickness mm. 1,85 / Possible fitting	$40.50	2
14	185037	SNAP RING	185037 SNAP RING Thickness mm. 1,60 / Possible fitting	$70.00	2
14	183976	SNAP RING	183976 SNAP RING Thickness mm. 2,10	$13.70	2
15	183971	BUSHING	183971 BUSHING	$86.21	1
16	184016	ROLLER BEARING CAGE	184016 ROLLER BEARING CAGE	$27.49 MSRP: ~~33.00~~ (16.7% off)	1
17	197816	PINION FOR 1st GEAR	197816 PINION FOR 1st GEAR	$344.16	1
18	185041	RING	185041 RING Thickness mm. 4,60 / Possible fitting	$39.17	1
18	183972	CENTRE BEARING	183972 CENTRE BEARING Thickness mm. 5,10	$87.18	1
18	185040	RING	185040 RING Thickness mm. 4,85 / Possible fitting	$47.67	1
19	184020	Roller Bearing	184020 Roller Bearing	$167.98 MSRP: ~~280.72~~ (40.2% off)	1
20	184042	SNAP RING	184042 SNAP RING	$13.70 MSRP: ~~15.17~~ (9.7% off)	1
21	197820	REVERSE GEAR	197820 REVERSE GEAR	$277.21	1
22	184018	ROLLER BEARING CAGE	184018 ROLLER BEARING CAGE	$32.38 MSRP: ~~37.00~~ (12.5% off)	1
23	326260	REVERSE SPEED SYNCHRONISER	326260 REVERSE SPEED SYNCHRONISER SYNCHRONIZER	-	1	Enquire
24	184041	SNAP RING	184041 SNAP RING	$5.12 MSRP: ~~12.20~~ (58% off)	1
25	14303624	SCREW	14303624 SCREW	$0.45	4
26	10571379	WASHER	10571379 WASHER	$0.06	4
27	185048	BEARBOX OIL PUMP	185048 BEARBOX OIL PUMP	$802.28	1
28	185164	1ST AND 2ND SPEED SYNCHRONISER	185164 1ST AND 2ND SPEED SYNCHRONISER SYNCHRONIZER	$2,088.64	1
29	185050	PUMP DRIVE SHAFT	185050 PUMP DRIVE SHAFT	$60.96	1
30	184017	DRAWN CUP NEEDLE BEARING	184017 DRAWN CUP NEEDLE BEARING	$9.95 MSRP: ~~29.98~~ (66.8% off)	2
31	183975	RING	183975 RING	$27.42	2
32	197819	IDLE GEAR FOR REVERSE	197819 IDLE GEAR FOR REVERSE	$271.71	1
33	188320	SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT	188320 SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT SPRING REPLACEMENT KIT	$13.58	1
34	193440	SYNCHROREVERSE/BLOCKS REPLACEMENT KIT	193440 SYNCHROREVERSE/BLOCKS REPLACEMENT KIT KIT	$4.88 MSRP: ~~7.50~~ (34.9% off)	1
35	201870	BUSHING	201870 BUSHING	$25.35	1
36	188497	SHIM	188497 SHIM Thickness mm. 6,25	$86.75	1
36	212457	SPACER -Thickness mm. 6,00-	212457 SPACER -Thickness mm. 6,00-	-	1	Enquire
