Ferrari 355 (5.2 Motronic) - HYDRAULIC STEERING PUMP AND TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
158114 COMPLETE HYDRAULIC SERVO-CONTROL PUMP Enquire To Order
158114 COMPLETE HYDRAULIC SERVO-CONTROL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
158002 UPPER FRONT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
158003 LOWER FRONT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
158004 REAR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
158009 POWER STEERING PUMP PULLEY Enquire To Order
Photo Part No Description Price (each) Stock
16051921 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11193874 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
199832 POWER STEERING PUMP BELT Enquire IN STOCK
Photo Part No Description Price (each) Stock
158000 BELT TENSION ADJUSTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
125668 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14496524 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
153366 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
152535 THREADED PIN Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
14307224 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
158008 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
11190574 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
13526070 Heli-coil securing cover Enquire To Order
Photo Part No Description Price (each) Stock
167568 DELIVERY PIPE FROM PUMP TO UNDERFLOOR PIPE Enquire To Order
Photo Part No Description Price (each) Stock
277407 HOSE CONNECTOR Enquire IN STOCK
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 Enquire IN STOCK
Photo Part No Description Price (each) Stock
160955 Power Steering Reservoir Hose Enquire IN STOCK
Photo Part No Description Price (each) Stock
159469 UNION Enquire To Order
Photo Part No Description Price (each) Stock
184727 Banjo bolt For Union M16 x 1.5 Enquire IN STOCK
Photo Part No Description Price (each) Stock
872137 GASKET Dia.16,7-26X1,5 Enquire IN STOCK
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire IN STOCK
Photo Part No Description Price (each) Stock
167002 OIL TANK FOR SERVOSTEERING Enquire IN STOCK
Photo Part No Description Price (each) Stock
164912 TANK SUPPORTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
159443 TANK SUPPORT CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
173572 HOSE FROM UNDERFLOOR PIPE TO TANK Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire IN STOCK
Photo Part No Description Price (each) Stock
13525570 THREADED INSERT Enquire To Order
View All

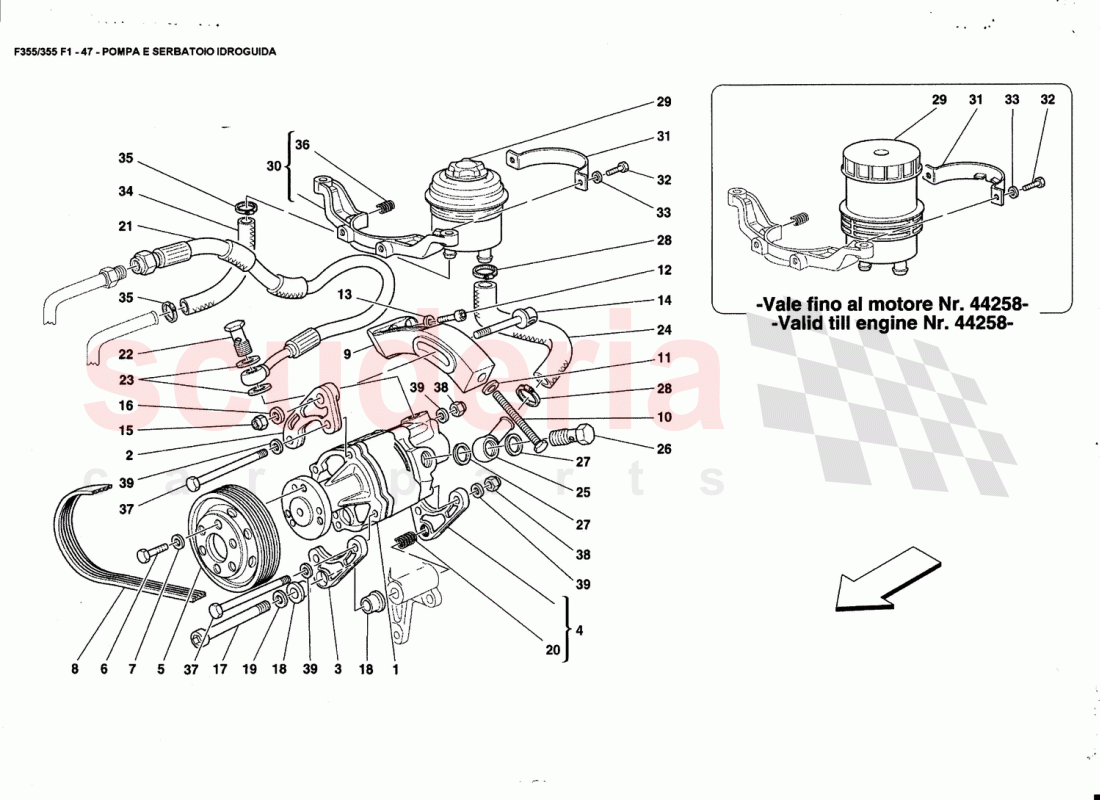

HYDRAULIC STEERING PUMP AND TANK of Ferrari Ferrari 355 (5.2 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 172549
TANK SUPPORT CLAMP
For oil tank 167002 		- 1 Enquire
- 167002
OIL TANK FOR SERVOSTEERING
Valid from engine Nr. 44259
IN STOCK 		- 1 Enquire
1 158114
COMPLETE HYDRAULIC SERVO-CONTROL PUMP 		- 1 Enquire
1 158114
COMPLETE HYDRAULIC SERVO-CONTROL PUMP
SERVO-CONTROL PUMP 		- 1 Enquire
2 158002
UPPER FRONT BRACKET
Not as spare part / With the complete hydraulic / servo-control pump 158114 		- 1 Enquire
3 158003
LOWER FRONT BRACKET 		- 1 Enquire
4 158004
REAR BRACKET 		- 1 Enquire
5 158009
POWER STEERING PUMP PULLEY 		- 1 Enquire
6 16051921
SCREW 		- 3 Enquire
7 11193874
WASHER
IN STOCK 		- 3 Enquire
8 199832
POWER STEERING PUMP BELT
IN STOCK 		- 1 Enquire
9 158000
BELT TENSION ADJUSTING BRACKET
BRACKET 		- 1 Enquire
10 125668
SCREW 		- 1 Enquire
11 14496524
WASHER
IN STOCK 		- 1 Enquire
12 231620
SCREW
IN STOCK 		- 2 Enquire
13 153366
WASHER 		- 2 Enquire
14 152535
THREADED PIN 		- 1 Enquire
15 104030
NYLOC NUT M8 X 1.25 X 9.5
IN STOCK 		- 1 Enquire
16 84653800
WASHER
IN STOCK 		- 1 Enquire
17 14307224
SCREW
IN STOCK 		- 1 Enquire
18 158008
BUSHING 		- 2 Enquire
19 11190574
WASHER
IN STOCK 		- 1 Enquire
20 13526070
Heli-coil securing cover 		- 1 Enquire
21 167568
DELIVERY PIPE FROM PUMP TO UNDERFLOOR PIPE
UNDERFLOOR PIPE 		- 1 Enquire
22 277407
HOSE CONNECTOR
IN STOCK 		- 1 Enquire
23 10280060
WASHER COPPER D14. 20 X 1.5
IN STOCK 		- 2 Enquire
24 160955
Power Steering Reservoir Hose
IN STOCK 		- 1 Enquire
25 159469
UNION 		- 1 Enquire
26 184727
Banjo bolt For Union M16 x 1.5
IN STOCK 		- 1 Enquire
27 872137
GASKET Dia.16,7-26X1,5
IN STOCK 		- 2 Enquire
28 262111
JUBILEE CLAMP
IN STOCK 		- 2 Enquire
29 167002
OIL TANK FOR SERVOSTEERING
Valid till engine Nr. 44258 / Not as spare part replaced by 167002 + / clamp 172549
IN STOCK 		- 1 Enquire
30 164912
TANK SUPPORTING BRACKET 		- 1 Enquire
31 159443
TANK SUPPORT CLAMP
For oil tank 161140 		- 1 Enquire
32 248334
SCREW M6 X 14MM 		- 2 Enquire
33 10519424
WASHER
IN STOCK 		- 2 Enquire
34 173572
HOSE FROM UNDERFLOOR PIPE TO TANK
PIPE TO TANK 		- 1 Enquire
35 262111
JUBILEE CLAMP
IN STOCK 		- 2 Enquire
36 13525570
THREADED INSERT 		- 2 Enquire
