Ferrari 355 (5.2 Motronic) - SEATS AND SAFETY BELTS -COMFORT-Nat far Spider-

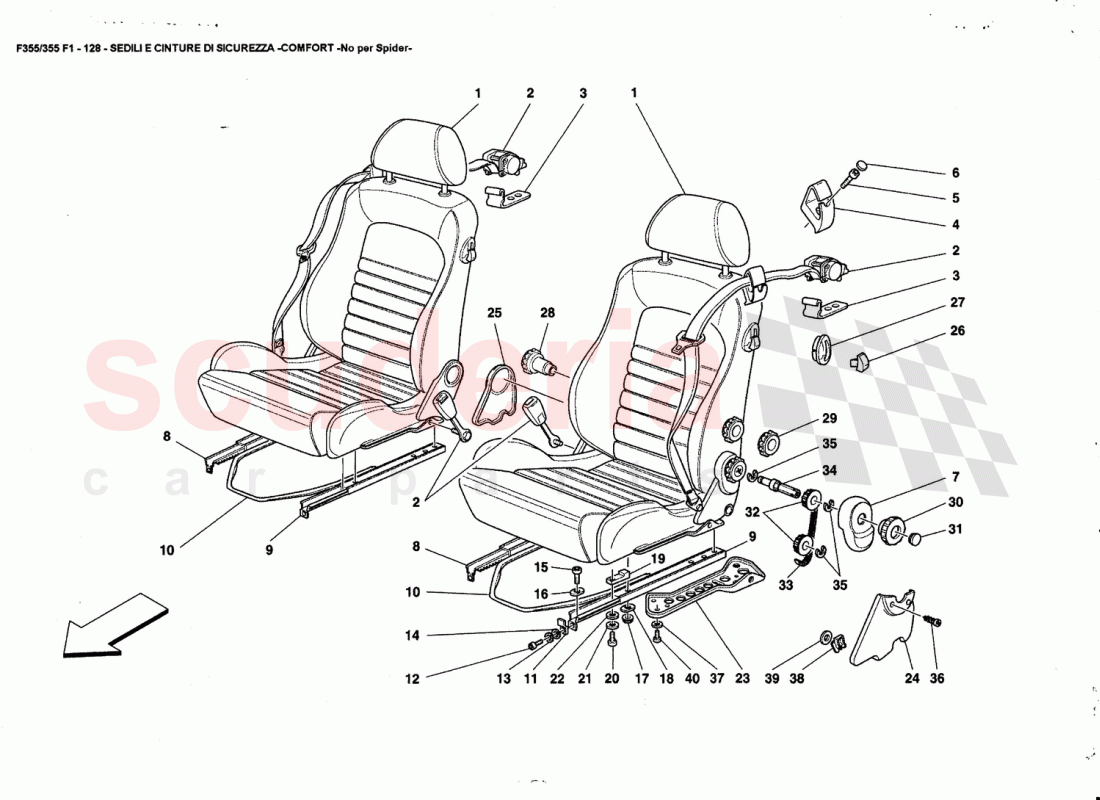

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	643410	UPHOLSTERED HEAD-REST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64678500	SAFETY BELTS ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63377800	BELT TIGHTENING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64331600	COMPLETE BELT-SLIDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64348200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64341400	PLUG FOR SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	643417	L.H. TRANSMISSION COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64339300	R.H. GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64339400	L.H. GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64339500	GUIDE CONTROL FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62844500	PLATE FOR SEAT BACK FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	40294308	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550405	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	40294308	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63395300	ELASTIC PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63395300	ELASTIC PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63698000	STOP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160957	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64331400	L.H. ADAPTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	643420	L.H. SEAT OUTER JOINT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	643423	L.H. SEAT INNER JOINT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64341600	SEAT RELEASE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64341500	FRAME FOR LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64331000	LUMBAR ADJUSTMENT KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64330900	SIDES ADJUSTMENT KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64331300	SEAT BACK ADJUSTMENT KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64330800	PLUG FOR KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64330700	ARTICULATED JOINT CONTROL PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64796000	PULLEYS CONNECTING BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64795500	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64795600	Seeger Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15915977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64428300	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64795700	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64795800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64348400	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	643194	COMPLETE R.H. SEAT	643194 COMPLETE R.H. SEAT	-	1	Enquire
-	643460	R.H. SEAT INNER JOINT COVER	643460 R.H. SEAT INNER JOINT COVER	-	1	Enquire
-	64331500	R.H. ADAPTER	64331500 R.H. ADAPTER	-	2	Enquire
-	643458	R.H. TRANSMISSION COVER	643458 R.H. TRANSMISSION COVER	-	1	Enquire
-	64928200	SAFETY BELTS ASSEMBLY	64928200 SAFETY BELTS ASSEMBLY Valid for USA and CDN	-	1	Enquire
-	643407	CUSHION LH LATERAL LINING	643407 CUSHION LH LATERAL LINING	-	2	Enquire
-	643413	HEAD REST UPHOLSTERY	643413 HEAD REST UPHOLSTERY	-	2	Enquire
-	644293	LH SEAT BACK PERIPHERAL LINING	644293 LH SEAT BACK PERIPHERAL LINING	-	1	Enquire
-	643401	CUSHION CENTRAL	643401 CUSHION CENTRAL	-	2	Enquire
-	643403	CUSHION CENTRAL LINING	643403 CUSHION CENTRAL LINING	-	2	Enquire
-	643409	CALF-REST LINING	643409 CALF-REST LINING	-	2	Enquire
-	643405	CUSHION RH LATERAL LINING	643405 CUSHION RH LATERAL LINING	-	2	Enquire
-	643400	SEAT BACK CENTRAL LINING	643400 SEAT BACK CENTRAL LINING	-	2	Enquire
-	643455	RH SEAT BACK PERIPHERAL LINING	643455 RH SEAT BACK PERIPHERAL LINING LINING	-	1	Enquire
-	644289	RH SEAT BACK PERIPHERAL LINING	644289 RH SEAT BACK PERIPHERAL LINING	-	1	Enquire
-	643397	LH SEAT BACK PERIPHERAL LINING	643397 LH SEAT BACK PERIPHERAL LINING	-	1	Enquire
-	643195	COMPLETE L.H. SEAT	643195 COMPLETE L.H. SEAT	-	1	Enquire
-	644285	COMPLETE L.H. SEAT	644285 COMPLETE L.H. SEAT	-	1	Enquire
-	643456	R.H. SEAT BACK CENTRAL	643456 R.H. SEAT BACK CENTRAL	-	1	Enquire
-	643398	L.H. SEAT BACK CENTRAL	643398 L.H. SEAT BACK CENTRAL	-	1	Enquire
-	643194	COMPLETE R.H. SEAT	643194 COMPLETE R.H. SEAT Not for GD	-	1	Enquire
-	644284	COMPLETE R.H. SEAT	644284 COMPLETE R.H. SEAT Valid for GD	-	1	Enquire
1	643410	UPHOLSTERED HEAD-REST	643410 UPHOLSTERED HEAD-REST	-	2	Enquire
2	64678500	SAFETY BELTS ASSEMBLY	64678500 SAFETY BELTS ASSEMBLY Not for USA and CDN	-	1	Enquire
3	63377800	BELT TIGHTENING BRACKET	63377800 BELT TIGHTENING BRACKET	-	2	Enquire
4	64331600	COMPLETE BELT-SLIDING	64331600 COMPLETE BELT-SLIDING	-	2	Enquire
5	64348200	SCREW	64348200 SCREW	-	2	Enquire
6	64341400	PLUG FOR SCREW	64341400 PLUG FOR SCREW	-	1	Enquire
7	643417	L.H. TRANSMISSION COVER	643417 L.H. TRANSMISSION COVER	-	1	Enquire
8	64339300	R.H. GUIDE	64339300 R.H. GUIDE	-	2	Enquire
9	64339400	L.H. GUIDE	64339400 L.H. GUIDE	-	2	Enquire
10	64339500	GUIDE CONTROL FORK	64339500 GUIDE CONTROL FORK	-	2	Enquire
11	62844500	PLATE FOR SEAT BACK FASTENING	62844500 PLATE FOR SEAT BACK FASTENING	-	4	Enquire
12	40294308	SCREW	40294308 SCREW	-	4	Enquire
13	12601374	WASHER	12601374 WASHER	-	4	Enquire
14	13550405	WASHER	13550405 WASHER	-	4	Enquire
15	40294308	SCREW	40294308 SCREW	-	4	Enquire
16	63395300	ELASTIC PLATE	63395300 ELASTIC PLATE	-	4	Enquire
17	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	8	Enquire
18	63395300	ELASTIC PLATE	63395300 ELASTIC PLATE	-	8	Enquire
19	63698000	STOP BRACKET	63698000 STOP BRACKET	-	4	Enquire
20	10977524	SCREW	10977524 SCREW	-	4	Enquire
21	160957	Washer	160957 Washer	-	4	Enquire
22	13577724	WASHER	13577724 WASHER	-	4	Enquire
23	64331400	L.H. ADAPTER	64331400 L.H. ADAPTER	-	2	Enquire
24	643420	L.H. SEAT OUTER JOINT COVER	643420 L.H. SEAT OUTER JOINT COVER R.H. SEAT OUTER JOINT COVER	-	1	Enquire
25	643423	L.H. SEAT INNER JOINT COVER	643423 L.H. SEAT INNER JOINT COVER	-	1	Enquire
26	64341600	SEAT RELEASE LEVER	64341600 SEAT RELEASE LEVER	-	2	Enquire
27	64341500	FRAME FOR LEVER	64341500 FRAME FOR LEVER	-	2	Enquire
28	64331000	LUMBAR ADJUSTMENT KNOB	64331000 LUMBAR ADJUSTMENT KNOB KNOB	-	1	Enquire
29	64330900	SIDES ADJUSTMENT KNOB	64330900 SIDES ADJUSTMENT KNOB	-	1	Enquire
30	64331300	SEAT BACK ADJUSTMENT KNOB	64331300 SEAT BACK ADJUSTMENT KNOB	-	2	Enquire
31	64330800	PLUG FOR KNOB	64330800 PLUG FOR KNOB	-	1	Enquire
32	64330700	ARTICULATED JOINT CONTROL PULLEY	64330700 ARTICULATED JOINT CONTROL PULLEY PULLEY	-	4	Enquire
33	64796000	PULLEYS CONNECTING BELT	64796000 PULLEYS CONNECTING BELT	-	2	Enquire
34	64795500	PIN	64795500 PIN	-	2	Enquire
35	64795600	Seeger Ring	64795600 Seeger Ring	-	6	Enquire
36	15915977	SCREW	15915977 SCREW	-	4	Enquire
37	64428300	WASHER	64428300 WASHER	-	12	Enquire
38	64795700	CLIP	64795700 CLIP	-	4	Enquire
39	64795800	WASHER	64795800 WASHER	-	4	Enquire
40	64348400	SCREW	64348400 SCREW for codes of parts covered in leather or moquette.	-	12	Enquire
