FUEL TANK of Ferrari Ferrari 355 (2.7 Motronic)

View All

Ferrari 355 (2.7 Motronic) - FUEL TANK

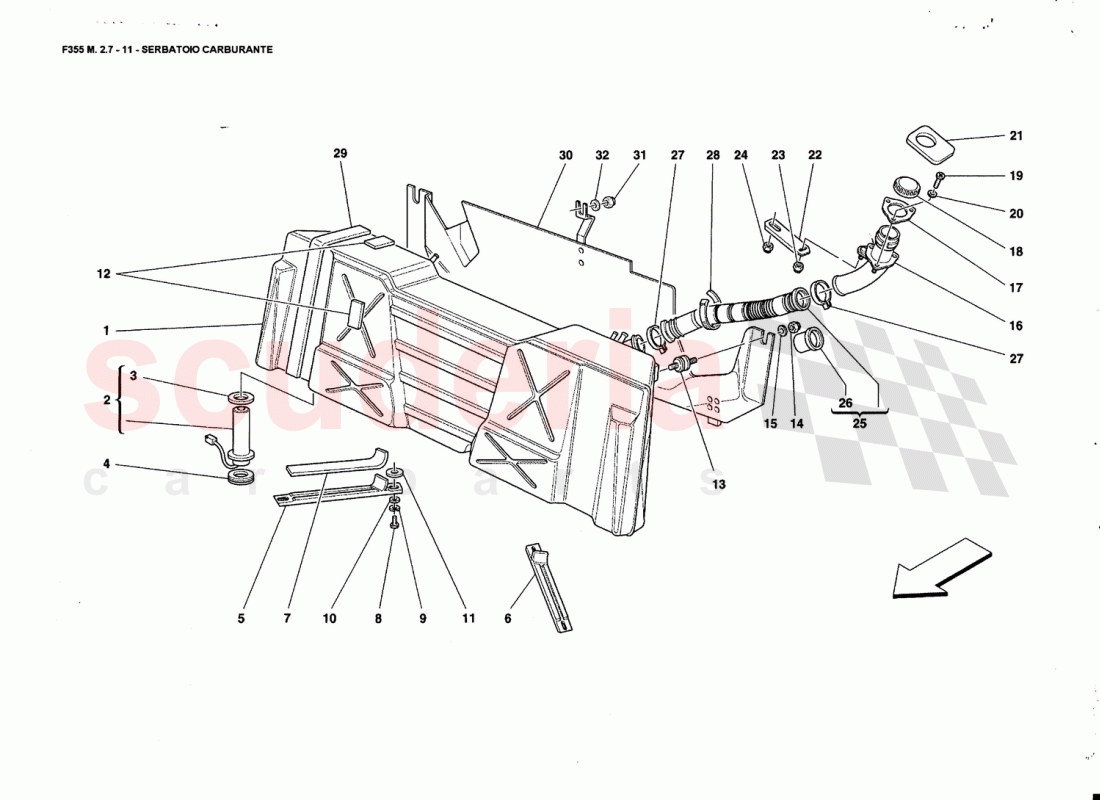

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	157685	FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146648	FUEL LEVEL INDICATOR CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154802	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121435	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135035	R.H. SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135036	L.H. SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125035	RUBBER THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15970721	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140745	SPACER WASHER mm. 2,0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127403	Rubber Thickness	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137994	ANTI-VIBRATION SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12644364	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153965	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174095	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180320	COPMLETE TANK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13276470	SCREW M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62943200	RUBBER PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141507	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054511	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141066	UNION-TANK CONNECTING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141033	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165398	Collar For Sleeve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10815787	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125036	RUBBER THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163981	SHIELD FOR TANK PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	168374	SHIELD FOR TANK PROTECTION	168374 SHIELD FOR TANK PROTECTION Valid for cars with single fuel pump	-	1	Enquire
-	165398	Collar For Sleeve	165398 Collar For Sleeve	-	2	Enquire
-	160719	UNION	160719 UNION Valid for non-catalyzed cars	-	1	Enquire
-	140746	SPACER WASHER mm. 3,0	140746 SPACER WASHER mm. 3,0 SPACER WASHER mm. 4,0	-	16	Enquire
-	165652	FUEL TANK	165652 FUEL TANK Valid for cars with single fuel / pump	-	1	Enquire
-	157685	FUEL TANK	157685 FUEL TANK Valid for cars with double fuel pump / Valid from car Ass. Nr. 17075	-	1	Enquire
1	157685	FUEL TANK	157685 FUEL TANK Valid for cars with double fuel pump / Valid till car Ass. Nr. 17074 - Not as spare part now / Replace with parts 157685 + 157977 + 157979 + / 10441290+ 12574211 + 14496421 - See also Table 11	-	1	Enquire
2	146648	FUEL LEVEL INDICATOR CONTROL	146648 FUEL LEVEL INDICATOR CONTROL CONTROL	-	1	Enquire
3	154802	GASKET	154802 GASKET	-	1	Enquire
4	121435	RING NUT	121435 RING NUT	-	1	Enquire
5	135035	R.H. SUPPORT	135035 R.H. SUPPORT	-	1	Enquire
6	135036	L.H. SUPPORT	135036 L.H. SUPPORT	-	1	Enquire
7	125035	RUBBER THICKNESS	125035 RUBBER THICKNESS	-	2	Enquire
8	15970721	SCREW	15970721 SCREW	-	4	Enquire
9	127497	WASHER	127497 WASHER	-	4	Enquire
10	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	4	Enquire
11	140745	SPACER WASHER mm. 2,0	140745 SPACER WASHER mm. 2,0	-	16	Enquire
12	127403	Rubber Thickness	127403 Rubber Thickness	-	4	Enquire
13	137994	ANTI-VIBRATION SUPPORT	137994 ANTI-VIBRATION SUPPORT	-	2	Enquire
14	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	2	Enquire
15	12644364	WASHER	12644364 WASHER	-	2	Enquire
16	153965	UNION	153965 UNION Valid for catalyzed cars	-	1	Enquire
17	174095	GASKET	174095 GASKET	-	1	Enquire
18	180320	COPMLETE TANK PLUG	180320 COPMLETE TANK PLUG	-	1	Enquire
19	13276470	SCREW M6 X 20	13276470 SCREW M6 X 20	-	3	Enquire
20	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
21	62943200	RUBBER PROTECTION	62943200 RUBBER PROTECTION	-	1	Enquire
22	141507	BRACKET	141507 BRACKET	-	1	Enquire
23	14054511	NUT	14054511 NUT	-	1	Enquire
24	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
25	141066	UNION-TANK CONNECTING PIPE	141066 UNION-TANK CONNECTING PIPE PIPE	-	1	Enquire
26	141033	GASKET	141033 GASKET	-	2	Enquire
27	165398	Collar For Sleeve	165398 Collar For Sleeve Not as spare part now / Replaced by 165398	-	2	Enquire
28	10815787	CLAMP	10815787 CLAMP	-	2	Enquire
29	125036	RUBBER THICKNESS	125036 RUBBER THICKNESS	-	2	Enquire
30	163981	SHIELD FOR TANK PROTECTION	163981 SHIELD FOR TANK PROTECTION Valid for cars with double fuel pump	-	1	Enquire
31	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
32	10519424	WASHER	10519424 WASHER	-	1	Enquire
