Steering Column

Ferrari 348 (2.7 Motronic)

Find Your Part

Ferrari 348 (2.7 Motronic) - STEERING COLUMN

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
148991 COMPLETE STEERING WHEEL Enquire To Order
157275 COMPLETE STEERING WHEEL Enquire To Order
140945 COMPLETE STEERING WHEEL Enquire To Order
Photo Part No Description Price (each) Stock
101648 Ring nut Enquire To Order
Photo Part No Description Price (each) Stock
12601774 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
157297 STEERING WHEEL COVER Enquire To Order
Photo Part No Description Price (each) Stock
137819 ELECTRIC HORN PUSH BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
154563 UNHOOK DEVIATION Enquire To Order
Photo Part No Description Price (each) Stock
15896470 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
11060076 Seeger Ring Enquire To Order
Photo Part No Description Price (each) Stock
134065 SPACER WASHER mm. 1,0 Enquire To Order
Photo Part No Description Price (each) Stock
134061 BEARING Enquire To Order
Photo Part No Description Price (each) Stock
11001524 STUD Enquire To Order
Photo Part No Description Price (each) Stock
133903 COLUMN SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
13525170 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
138052 ANTI THEFT DEVICE (COMPLETE OF DOORS LOCKS SET) Enquire To Order
Photo Part No Description Price (each) Stock
101106 Tongue Enquire To Order
Photo Part No Description Price (each) Stock
140939 UPPER SHAFT FOR STEERING CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
134071 DITTO, THICKNESS mm. 1.1 Enquire To Order
134070 SPACER WASHER mm. 1,0 Enquire To Order
Photo Part No Description Price (each) Stock
11066876 SEEGER RING Enquire To Order
Photo Part No Description Price (each) Stock
133870 SHAFT FOR LEVER Enquire To Order
Photo Part No Description Price (each) Stock
14163870 FLEXIBLE PIN Enquire To Order
Photo Part No Description Price (each) Stock
114865 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
125185 LOCK LEVER FOR STEERING COLUMN Enquire To Order
Photo Part No Description Price (each) Stock
134504 THREADED BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
16043324 SCREW M8 X 18 Enquire To Order
Photo Part No Description Price (each) Stock
12638524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
138712 LOWER SHAFT FOR STEERING CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
125518 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
95401152 BLANK KEY Enquire To Order
Photo Part No Description Price (each) Stock
63318700 COVER FOR STEERING ROD Enquire To Order
Photo Part No Description Price (each) Stock
15961107 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13274114 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
15960507 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
150427 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
150427 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
121611 SCREW Enquire To Order
View All

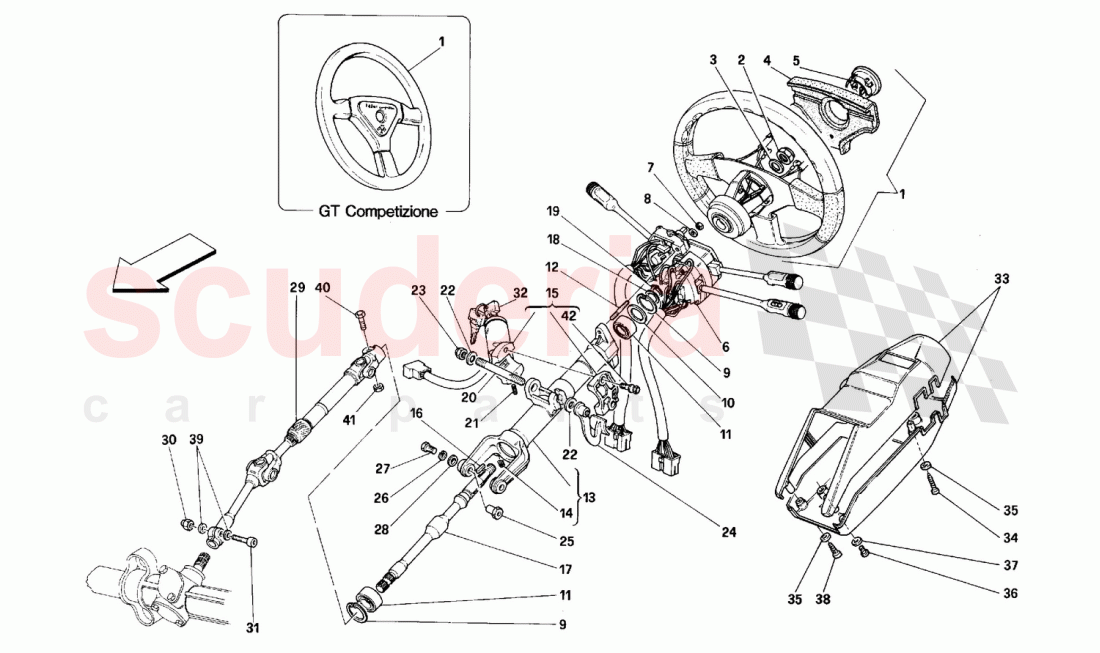

STEERING COLUMN of Ferrari Ferrari 348 (2.7 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 134072
DITTO, THICKNESS mm. 1.2 		- 1 Enquire
- 134073
DITTO, THICKNESS mm. 1.3 		- 1 Enquire
- 134074
DITTO, THICKNESS mm. 1.4 		- 1 Enquire
- 138052
ANTI THEFT DEVICE (COMPLETE OF DOORS LOCKS SET)
(COMPLETE OF DOORS LOCKS / SET) -Valid for USA, CDN, J 		- 1 Enquire
- 134067
DITTO, THICKNESS mm. 1.2 		- 1 Enquire
- 134068
DITTO, THICKNESS mm. 1.3 		- 1 Enquire
- 134069
DITTO, THICKNESS mm. 1.4 		- 1 Enquire
- 134066
DITTO, THICKNESS mm. 1.1 		- 1 Enquire
- 138048
Steering wheel coating
Valid for steering wheel Nr. 140945 		- 1 Enquire
1 148991
COMPLETE STEERING WHEEL
Valid for 348 COMP. 		- 1 Enquire
1 157275
COMPLETE STEERING WHEEL
Valid for GTB/GTS / Not for GD and SA 		- 1 Enquire
1 140945
COMPLETE STEERING WHEEL
Valid for Spider and / GTB/GTS GD and SA 		- 1 Enquire
2 101648
Ring nut 		- 1 Enquire
3 12601774
WASHER 		- 1 Enquire
4 157297
STEERING WHEEL COVER
Valid for steering wheel Nr. 157275 		- 1 Enquire
5 137819
ELECTRIC HORN PUSH BUTTON 		- 1 Enquire
6 154563
UNHOOK DEVIATION 		- 1 Enquire
7 15896470
NUT 		- 2 Enquire
8 12604178
Washer 		- 2 Enquire
9 11060076
Seeger Ring 		- 2 Enquire
10 134065
SPACER WASHER mm. 1,0 		- 1 Enquire
11 134061
BEARING 		- 2 Enquire
12 11001524
STUD 		- 2 Enquire
13 133903
COLUMN SUPPORT 		- 1 Enquire
14 13525170
THREADED INSERT 		- 2 Enquire
15 138052
ANTI THEFT DEVICE (COMPLETE OF DOORS LOCKS SET)
(COMPLETE OF DOORS LOCKS / SET) -Not for USA, CDN, J 		- 1 Enquire
16 101106
Tongue 		- 1 Enquire
17 140939
UPPER SHAFT FOR STEERING CONTROL
CONTROL 		- 1 Enquire
18 134071
DITTO, THICKNESS mm. 1.1 		- 1 Enquire
18 134070
SPACER WASHER mm. 1,0 		- 1 Enquire
19 11066876
SEEGER RING 		- 1 Enquire
20 133870
SHAFT FOR LEVER 		- 1 Enquire
21 14163870
FLEXIBLE PIN 		- 1 Enquire
22 114865
WASHER 		- 2 Enquire
23 148020
NUT 		- 1 Enquire
24 125185
LOCK LEVER FOR STEERING COLUMN
COLUMN 		- 1 Enquire
25 134504
THREADED BUSHING 		- 2 Enquire
26 127496
WASHER 		- 2 Enquire
27 16043324
SCREW M8 X 18 		- 2 Enquire
28 12638524
WASHER 		- 4 Enquire
29 138712
LOWER SHAFT FOR STEERING CONTROL
CONTROL 		- 1 Enquire
30 14059290
FLANGED NUT M6 		- 1 Enquire
31 125518
SCREW 		- 1 Enquire
32 95401152
BLANK KEY 		- - Enquire
33 63318700
COVER FOR STEERING ROD 		- 1 Enquire
34 15961107
SCREW 		- 2 Enquire
35 12643724
WASHER 		- 4 Enquire
36 13274114
SCREW 		- 2 Enquire
37 12604178
Washer 		- 2 Enquire
38 15960507
SCREW 		- 2 Enquire
39 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
40 150427
SCREW 		- 1 Enquire
41 150427
SCREW 		- 1 Enquire
42 121611
SCREW 		- 2 Enquire
