Ferrari 296 GTS Europe RH - COMPLETE WHEELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
966447 FRONT WHEEL $1,683.53 To Order
984954 FRONT WHEEL $2,242.52 To Order
984957 FRONT WHEEL $2,209.39 To Order
...and 23 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
939581 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR $255.28 To Order
939582 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR $255.28 To Order
Photo Part No Description Price (each) Stock
913102 VALVE $15.77 To Order
913104 VALVE $19.98 To Order
Photo Part No Description Price (each) Stock
55031812 WHEEL STUD BOLT $41.70 To Order
206274 WHEEL STUD BOLT $240.67 To Order
Photo Part No Description Price (each) Stock
55059092 HUB CAP $30.47 To Order
889561 HUB CAP $286.67 To Order
Photo Part No Description Price (each) Stock
11096693 ADHESIVE WHEEL BALANCER WEIGHT $15.87 To Order
308296 ADHESIVE WHEEL BALANCER WEIGHT $15.87 To Order
View All

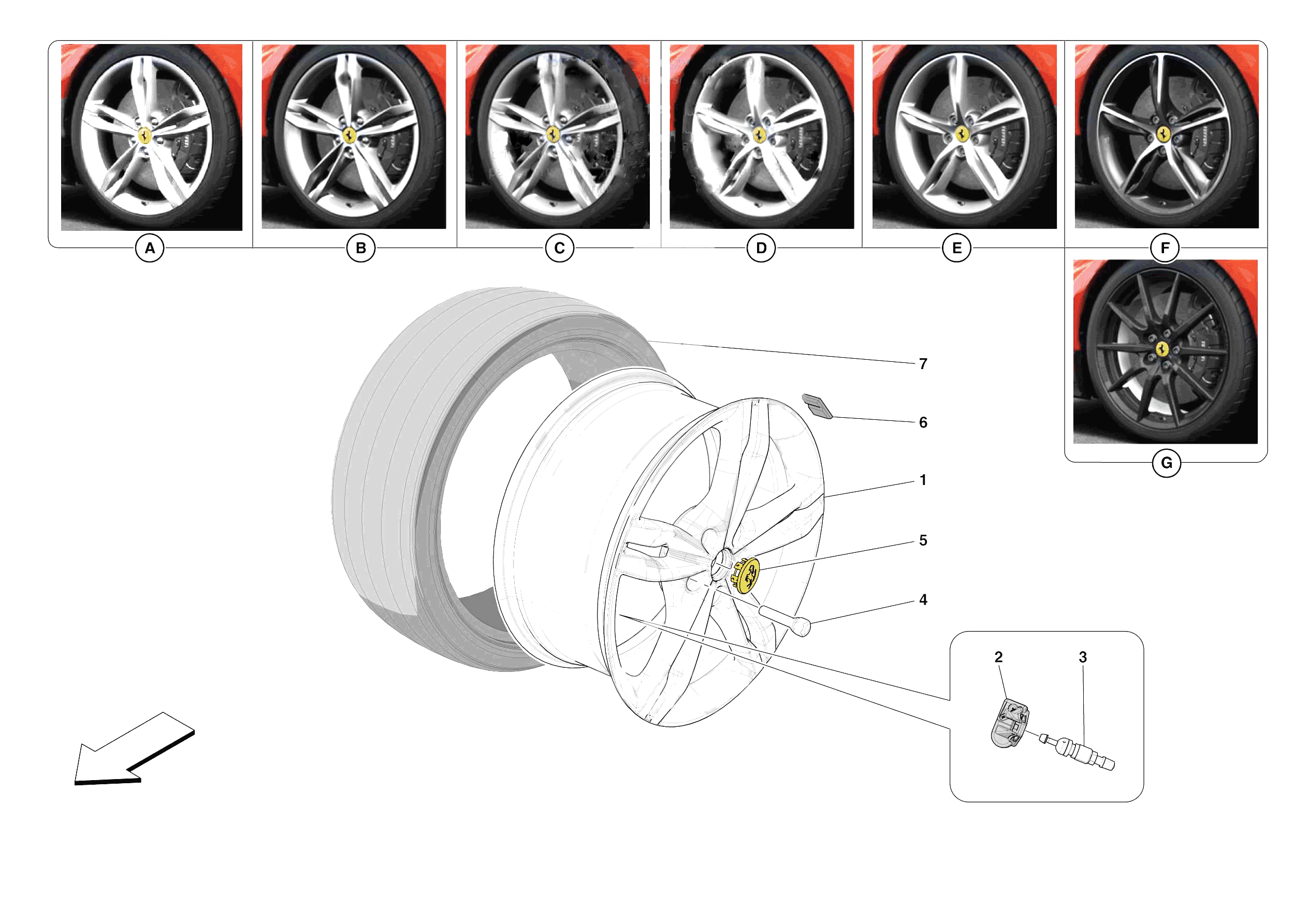

COMPLETE WHEELS of Ferrari Ferrari 296 GTS Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 966447
FRONT WHEEL
Cast - Glossy silver - See box A - Modis code STANDARD; 9J X 20" 		$1,683.53 2
0001 984954
FRONT WHEEL
Cast - Matte silver - See box B - Modis code RICS; 9J X 20" 		$2,242.52 2
0001 984957
FRONT WHEEL
Cast - Matte Corsa grey - See box C - Modis code RMSC; 9J X 20" 		$2,209.39 2
0001 976807
LH FRONT WHEEL
Forged - High gloss silver - See box D - Modis code RMSV; 9J X 20" 		$4,335.35 1
0001 966456
RH FRONT WHEEL
Forged - High gloss silver - See box D - Modis code RMSV; 9J X 20" 		$4,335.35 1
0001 986212
LH FRONT WHEEL
Forged - Corsa grey with matte diamond polished finish - See box E - Modis code RSFG; 9J X 20" 		$4,911.55 1
0001 986213
RH FRONT WHEEL
Forged - Corsa grey with matte diamond polished finish - See box E - Modis code RSFG; 9J X 20" 		$4,663.85 1
0001 986211
LH FRONT WHEEL
Forged - Technical Grey with polished diamond polished finish - See box F - Modis code RSFD; 9J X 20" 		$4,879.76 1
0001 986217
RH FRONT WHEEL
Forged - Technical Grey with polished diamond polished finish - See box F - Modis code RSFD; 9J X 20" 		$4,879.76 1
0001 976575
FRONT WHEEL
Carbon version - See box G - Modis code RMCF 		$13,133.26 2
0001 976558
REAR WHEEL
Cast - Glossy silver - See box A - Modis code STANDARD; 11J X 20" 		$1,773.60 2
0001 984955
REAR WHEEL
Cast - Matte silver - See box B - Modis code RICS; 11J X 20" 		$2,242.52 2
0001 984956
REAR WHEEL
Cast - Matte Corsa grey - See box C - Modis code RMSC; 11J X 20" 		$2,208.07 2
0001 976570
LH REAR WHEEL
Forged - High gloss silver - See box D - Modis code RMSV; 11J X 20" 		$4,580.40 1
0001 976579
RH REAR WHEEL
Forged - High gloss silver - See box D - Modis code RMSV; 11J X 20" 		$4,580.40 1
0001 986223
LH REAR WHEEL
Forged - Corsa grey with matte diamond polished finish - See box E - Modis code RSFG; 11J X 20" 		$4,911.55 1
0001 986229
RH REAR WHEEL
Forged - Corsa grey with matte diamond polished finish - See box E - Modis code RSFG; 11J X 20" 		$5,171.17 1
0001 986220
LH REAR WHEEL
Forged - Technical Grey with polished diamond polished finish - See box F - Modis code RSFD; 11J X 20" 		$5,142.02 1
0001 986224
RH REAR WHEEL
Forged - Technical Grey with polished diamond polished finish - See box F - Modis code RSFD; 11J X 20" 		$5,142.02 1
0001 976577
REAR WHEEL
Carbon version - See box G - Modis code RMCF 		$13,482.95 2
0001 70007636
FRONT WHEEL
9J X 20" - Wheels with paint finish - RIMM- -RIMP - RIMM for matte finish colour selection - RIMP for gloss finish colour selection - See detail A/C; Off-catalogue version 		$11,237.78 2
0001 70007637
LH FRONT WHEEL
9J X 20" - Wheels with paint finish - RIMM- -RIMP - RIMM for matte finish colour selection - RIMP for gloss finish colour selection - See box D; Off-catalogue version 		$10,689.40 1
0001 70007638
RH FRONT WHEEL
9J X 20" - Wheels with paint finish - RIMM- -RIMP - RIMM for matte finish colour selection - RIMP for gloss finish colour selection - See box D; Off-catalogue version 		$10,572.83 1
0001 70007639
REAR WHEEL
11J X 20" - Wheels with paint finish - RIMM- -RIMP - RIMM for matte finish colour selection - RIMP for gloss finish colour selection - See detail A/C; Off-catalogue version 		$11,237.78 2
0001 70007640
LH REAR WHEEL
11J X 20" - Wheels with paint finish - RIMM- -RIMP - RIMM for matte finish colour selection - RIMP for gloss finish colour selection - See box D; Off-catalogue version 		$10,681.45 1
0001 70007641
RH REAR WHEEL
11J X 20" - Wheels with paint finish - RIMM- -RIMP - RIMM for matte finish colour selection - RIMP for gloss finish colour selection - See box D; Off-catalogue version 		$10,689.40 1
0002 939581
TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR 		$255.28 4
0002 939582
TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR 		$255.28 4
0003 913102
VALVE 		$15.77 4
0003 913104
VALVE
Applicable for carbon fibre wheels; Black 		$19.98 4
0004 55031812
WHEEL STUD BOLT
Applicable for STD, RICS and RMSC wheels 		$41.70 20
0004 206274
WHEEL STUD BOLT
Applicable for RMCF, RMSV, RSFD and RSFG wheels; Titanium 		$240.67 (15.6% off) 20
0005 55059092
HUB CAP 		$30.47 4
0005 889561
HUB CAP
Carbon 		$286.67 4
0006 11096693
ADHESIVE WHEEL BALANCER WEIGHT
Not for rmcf carbon fibre wheels 		$15.87 -
0006 308296
ADHESIVE WHEEL BALANCER WEIGHT
Applicable for RMCF carbon fibre wheels 		$15.87 -
