Find Your Part

View All

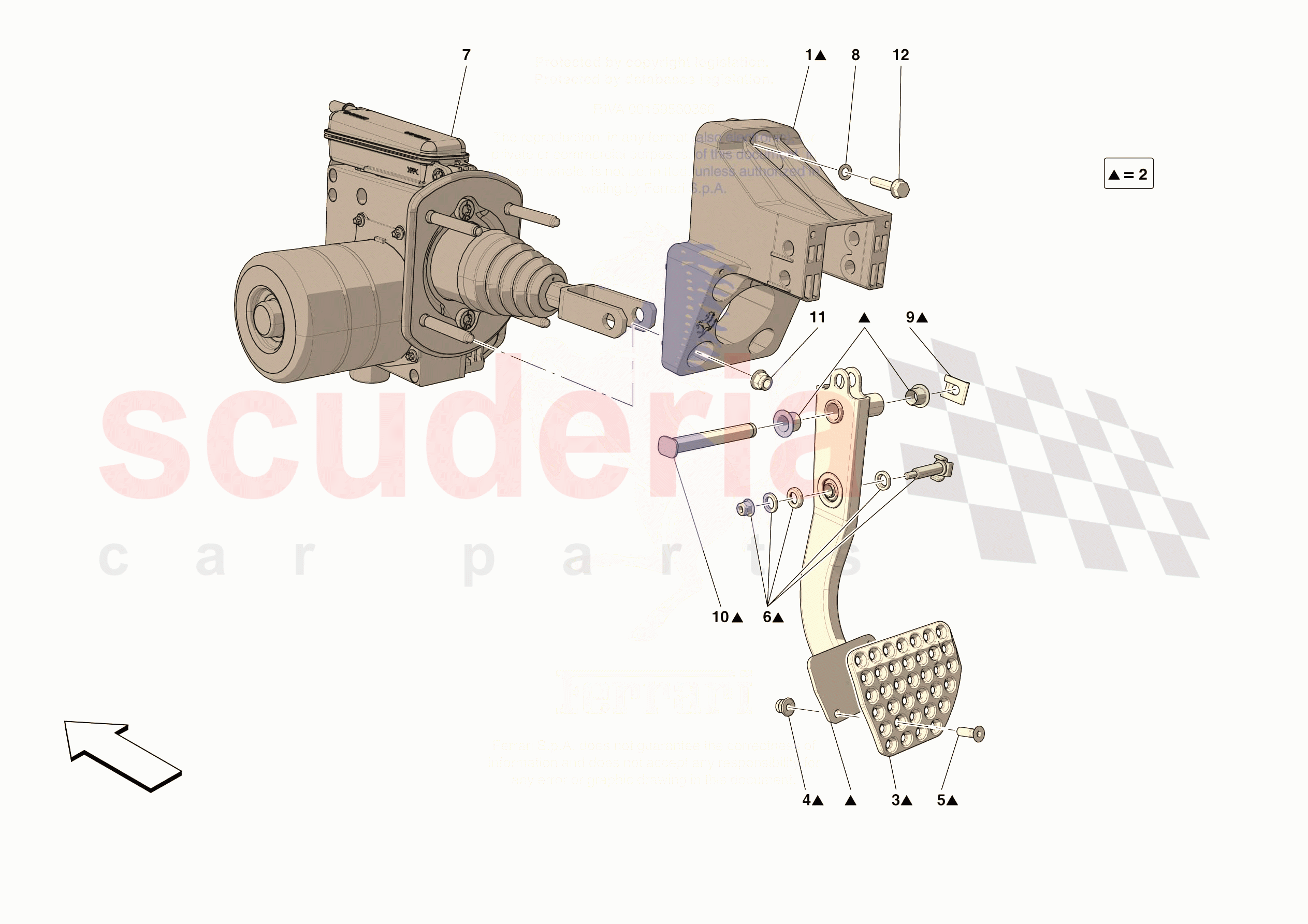

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	240987	DRILLED PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	933730	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	896903	IPB-PEDAL BOARD FASTENER PIN KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	783098	IPB UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	842845	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	831281	BRAKE PEDAL PIVOT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12578211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	773369	PEDAL BOARD MOUNT	773369 PEDAL BOARD MOUNT	-	1	Enquire
0001	773372	PEDAL BOARD MOUNT	773372 PEDAL BOARD MOUNT	-	1	Enquire
0002	773367	COMPL. PEDAL BOARD	773367 COMPL. PEDAL BOARD	-	1	Enquire
0002	773370	COMPL. PEDAL BOARD	773370 COMPL. PEDAL BOARD	-	1	Enquire
0003	240987	DRILLED PLATE	240987 DRILLED PLATE	-	1	Enquire
0004	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
0005	933730	SCREW	933730 SCREW M6 X 20	-	2	Enquire
0006	896903	IPB-PEDAL BOARD FASTENER PIN KIT	896903 IPB-PEDAL BOARD FASTENER PIN KIT	-	1	Enquire
0007	783098	IPB UNIT	783098 IPB UNIT	-	1	Enquire
0008	12601374	WASHER	12601374 WASHER	-	1	Enquire
0009	842845	CLIP	842845 CLIP	-	1	Enquire
0010	831281	BRAKE PEDAL PIVOT PIN	831281 BRAKE PEDAL PIVOT PIN	-	1	Enquire
0011	12578211	NUT	12578211 NUT	-	4	Enquire
0012	16287524	SCREW	16287524 SCREW M8 X 40	-	1	Enquire
