Bentley New Flying Spur (2025-2026) - oil filter with flange Oil cooler Sensors

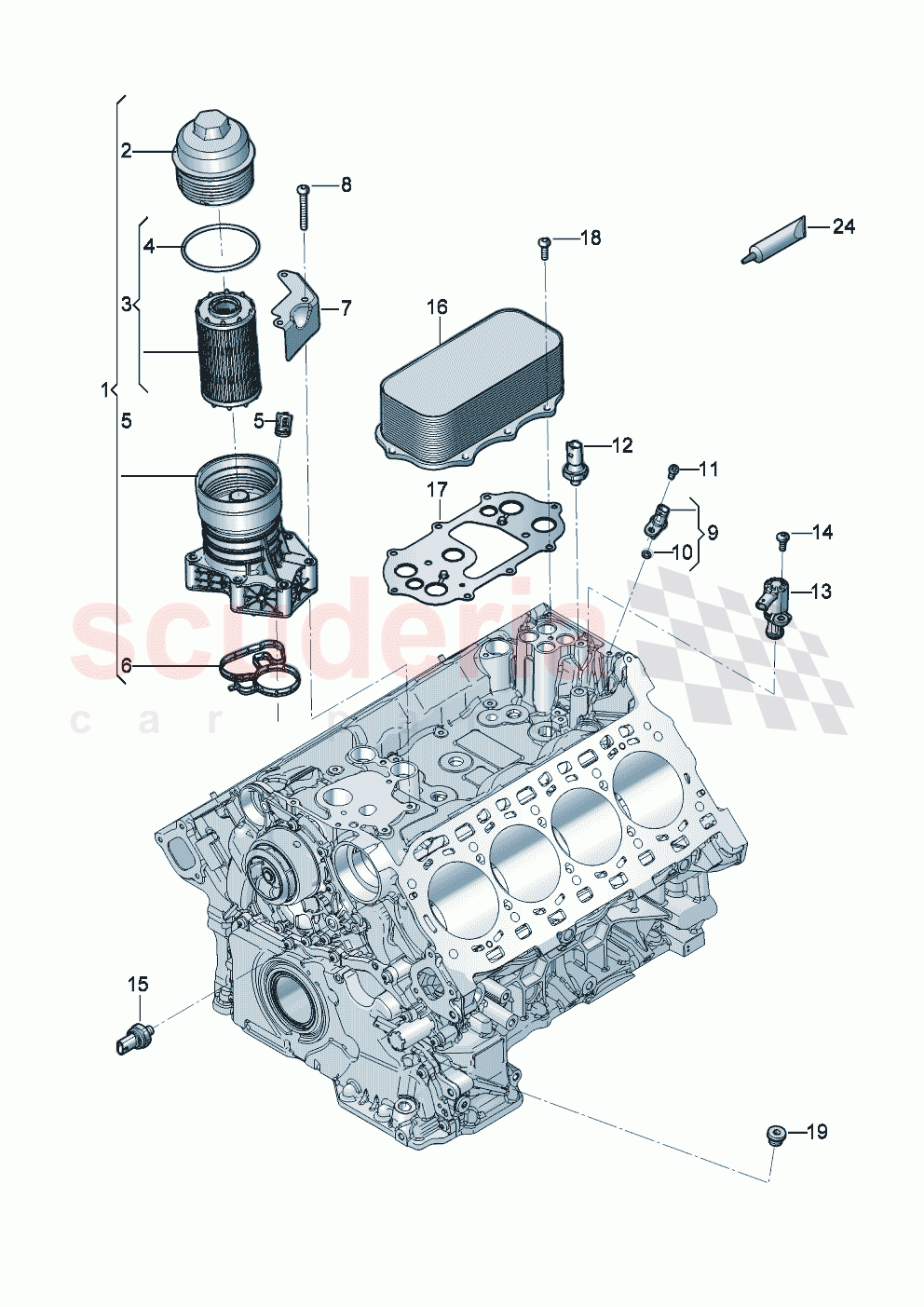

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6M115401L	Filter housing D - 22.01.2021>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M115311E	Cover for oil filter	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M198405F	filter element with gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M115331A	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M103175C	Non-return valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	6M115441G	Seal D - 22.01.2021>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	P2119275	Heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10470703	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	79919525D	Temperature sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002287C	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10285505	Socket head bolt with inner hex round head	Enquire

Photo	Part No	Description	Price (each)	Stock
	79919081D	Oil pressure switch Low-pressure sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	5C906455E	operating valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90071102	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	5E906060A	Oil pressure sender use only in conjunction with: D - 26.05.2023>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	P2117015	Oil cooler additionally to be used items:	Enquire

Photo	Part No	Description	Price (each)	Stock
	P2103161A	gasket for oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91180601	Seal bolt (combination)	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6M115401L	Filter housing D - 22.01.2021>>	6M115401L Filter housing D - 22.01.2021>>	-	1	Enquire
2	6M115311E	Cover for oil filter	6M115311E Cover for oil filter	-	1	Enquire
3	6M198405F	filter element with gasket	6M198405F filter element with gasket	-	1	Enquire
4	6M115331A	O-ring	6M115331A O-ring 72X3,9	-	1	Enquire
5	6M103175C	Non-return valve	6M103175C Non-return valve	-	1	Enquire
6	6M115441G	Seal D - 22.01.2021>>	6M115441G Seal D - 22.01.2021>>	-	1	Enquire
7	P2119275	Heat shield	P2119275 Heat shield	-	1	Enquire
8	N10470703	round hd. screw	N10470703 round hd. screw M6X50	-	6	Enquire
9	79919525D	Temperature sensor	79919525D Temperature sensor	-	1	Enquire
10	WHT002287C	O-ring	WHT002287C O-ring 5,6X2	-	1	Enquire
11	N10285505	Socket head bolt with inner hex round head	N10285505 Socket head bolt with inner hex round head M6X12	-	1	Enquire
12	79919081D	Oil pressure switch Low-pressure sensor	79919081D Oil pressure switch Low-pressure sensor 0,3-0,6 BAR 1 pin turquoise(gr.) M10X1	-	1	Enquire
13	5C906455E	operating valve	5C906455E operating valve	-	1	Enquire
14	N90071102	hexagon head bolt (combi)	N90071102 hexagon head bolt (combi) M6X18	-	1	Enquire
15	5E906060A	Oil pressure sender use only in conjunction with: D - 26.05.2023>>	5E906060A Oil pressure sender use only in conjunction with: D - 26.05.2023>>	-	1	Enquire
16	P2117015	Oil cooler additionally to be used items:	P2117015 Oil cooler additionally to be used items: 17	-	1	Enquire
17	P2103161A	gasket for oil cooler	P2103161A gasket for oil cooler	-	1	Enquire
18	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20	-	8	Enquire
19	N91180601	Seal bolt (combination)	N91180601 Seal bolt (combination) M14X1,5X12	-	1	Enquire
