Air supply unit Pressure accumulator Air line connecting parts for self- levelling of Bentley Bentley New Flying Spur (2020-2024)

View All

Bentley New Flying Spur (2020-2024) - Air supply unit Pressure accumulator Air line connecting parts for self- levelling (616015)

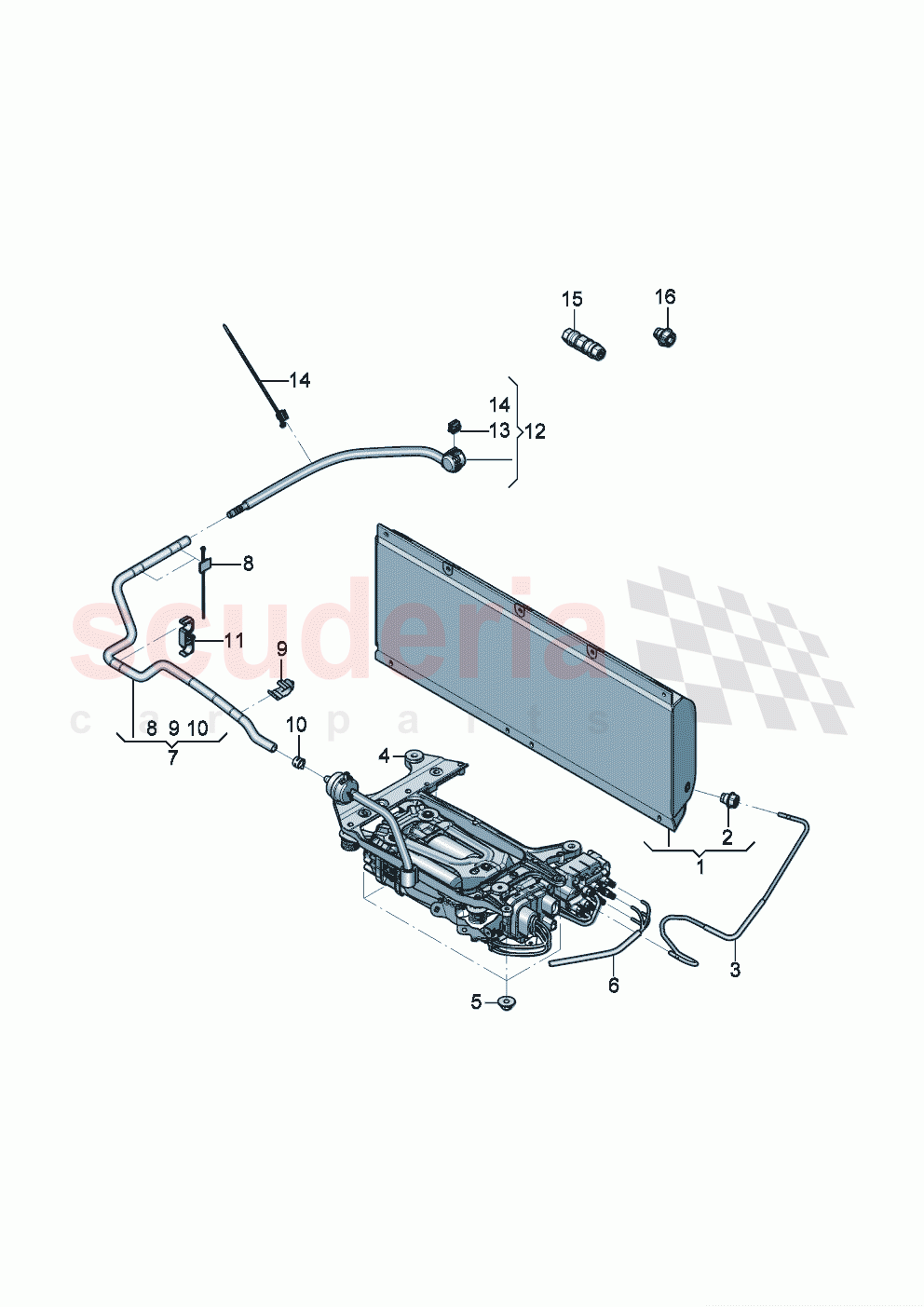

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	971616202	Pressure accumulator	Enquire

Photo	Part No	Description	Price (each)	Stock
	7L0616758	Connection piece	Enquire
	7L0616757	push-on connector	Enquire

Photo	Part No	Description	Price (each)	Stock
	971616711B	Air line	Enquire
	N10158605	bolt,hex.hd.with shoul.(combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	971616006G	Compressor single parts see: D - 01.09.2020>> - 03.10.2023	Enquire
	971616006H	Compressor single parts see: D - 04.10.2023>>	Enquire
	971616006G	Compressor single parts see: D - 01.09.2020>> - 03.10.2023	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90887703	Hexagon flange nut, self-locking	$1.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SE616675A	Air line	Enquire	IN STOCK
	3SE616715A	Air pipe	Enquire	IN STOCK
	3SE616647A	Air line	Enquire	IN STOCK

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	971616795C	Hose	Enquire	IN STOCK
	N90757901	Hexagon collar nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	971010	retaining plate for cable binder (self-adhesive)	Enquire	IN STOCK
	N10772901	toothed lock washer	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90681601	Corrugated tube clip	$2.39	IN STOCK
	971616711	Air line	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	99951265109	Hose clamp	Enquire	IN STOCK
	3SE616675	Air line	Enquire	IN STOCK
	3SE616715	Air pipe	Enquire	IN STOCK

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4F0616241	Connection piece	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SE616795	Intake hose	Enquire	IN STOCK
	4B0616751	Connection piece	Enquire	IN STOCK
	7L0616758	Connection piece	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0854551	Edge protection	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3D0971838M	cable tie with terminal socket	$2.39	IN STOCK
	3SA616795	Intake hose	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4F0616241	Connection piece	Enquire	IN STOCK
	3D0971838L	cable tie with terminal socket	$2.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4B0616751	Connection piece	Enquire	IN STOCK
	5M0971838A	cable tie with terminal socket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	99951265109	Hose clamp	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	971616202	Pressure accumulator	971616202 Pressure accumulator	-	1	Enquire
2	7L0616758	Connection piece	7L0616758 Connection piece M10X1	-	1	Enquire
2	7L0616757	push-on connector	7L0616757 push-on connector M10X1	-	1	Enquire
3	971616711B	Air line	971616711B Air line	-	1	Enquire
3	N10158605	bolt,hex.hd.with shoul.(combi)	N10158605 bolt,hex.hd.with shoul.(combi) M6X16	-	3	Enquire
4	971616006G	Compressor single parts see: D - 01.09.2020>> - 03.10.2023	971616006G Compressor single parts see: D - 01.09.2020>> - 03.10.2023 616-020	-	1	Enquire
4	971616006H	Compressor single parts see: D - 04.10.2023>>	971616006H Compressor single parts see: D - 04.10.2023>> 616-020	-	1	Enquire
4	971616006G	Compressor single parts see: D - 01.09.2020>> - 03.10.2023	971616006G Compressor single parts see: D - 01.09.2020>> - 03.10.2023 616-020	-	1	Enquire
5	N90887703	Hexagon flange nut, self-locking IN STOCK	N90887703 Hexagon flange nut, self-locking IN STOCK	$1.75	4
6	3SE616675A	Air line	3SE616675A Air line left front red 7585MM	-	1	Enquire
6	3SE616715A	Air pipe	3SE616715A Air pipe right front green 9100MM	-	1	Enquire
6	3SE616647A	Air line	3SE616647A Air line left rear black 1300MM	-	1	Enquire
6	3SE616649A	Air line	3SE616649A Air line right rear blue 1950MM	-	1	Enquire
6	3SA616141A	Retainer for air filter	3SA616141A Retainer for air filter	-	1	Enquire
7	971616795C	Hose	971616795C Hose	-	1	Enquire
7	N90757901	Hexagon collar nut	N90757901 Hexagon collar nut M6X20	-	1	Enquire
8	971010	retaining plate for cable binder (self-adhesive)	971010 retaining plate for cable binder (self-adhesive)	-	2	Enquire
8	N10772901	toothed lock washer	N10772901 toothed lock washer 15X25X30	-	1	Enquire
9	N90681601	Corrugated tube clip IN STOCK	N90681601 Corrugated tube clip 13 IN STOCK	$2.39	1
9	971616711	Air line	971616711 Air line 6MM	-	1	Enquire
10	99951265109	Hose clamp	99951265109 Hose clamp 15X12	-	1	Enquire
10	3SE616675	Air line	3SE616675 Air line left front red 7645MM	-	1	Enquire
10	3SE616715	Air pipe	3SE616715 Air pipe right front green 9135MM	-	1	Enquire
10	3SE616647	Air line	3SE616647 Air line left rear black 1224MM	-	1	Enquire
10	3SE616649	Air line	3SE616649 Air line right rear blue 1842MM	-	1	Enquire
11	4F0616241	Connection piece	4F0616241 Connection piece 4MM	-	-	Enquire
12	3SE616795	Intake hose	3SE616795 Intake hose	-	1	Enquire
12	4B0616751	Connection piece	4B0616751 Connection piece M8X1	-	-	Enquire
12	7L0616758	Connection piece	7L0616758 Connection piece M10X1	-	-	Enquire
13	3W0854551	Edge protection	3W0854551 Edge protection	-	1	Enquire
14	3D0971838M	cable tie with terminal socket IN STOCK	3D0971838M cable tie with terminal socket 4,6X200 IN STOCK	$2.39	1
14	3SA616795	Intake hose	3SA616795 Intake hose	-	1	Enquire
15	4F0616241	Connection piece	4F0616241 Connection piece	-	-	Enquire
15	3D0971838L	cable tie with terminal socket IN STOCK	3D0971838L cable tie with terminal socket 4,6X200 IN STOCK	$2.75	1
16	4B0616751	Connection piece	4B0616751 Connection piece M8X1	-	-	Enquire
16	5M0971838A	cable tie with terminal socket	5M0971838A cable tie with terminal socket 1-3MM vertical outer	-	1	Enquire
17	99951265109	Hose clamp	99951265109 Hose clamp 15X12	-	1	Enquire
