Drive shaft of Bentley Bentley New Flying Spur (2020-2024)

View All

Bentley New Flying Spur (2020-2024) - Drive shaft (407000)

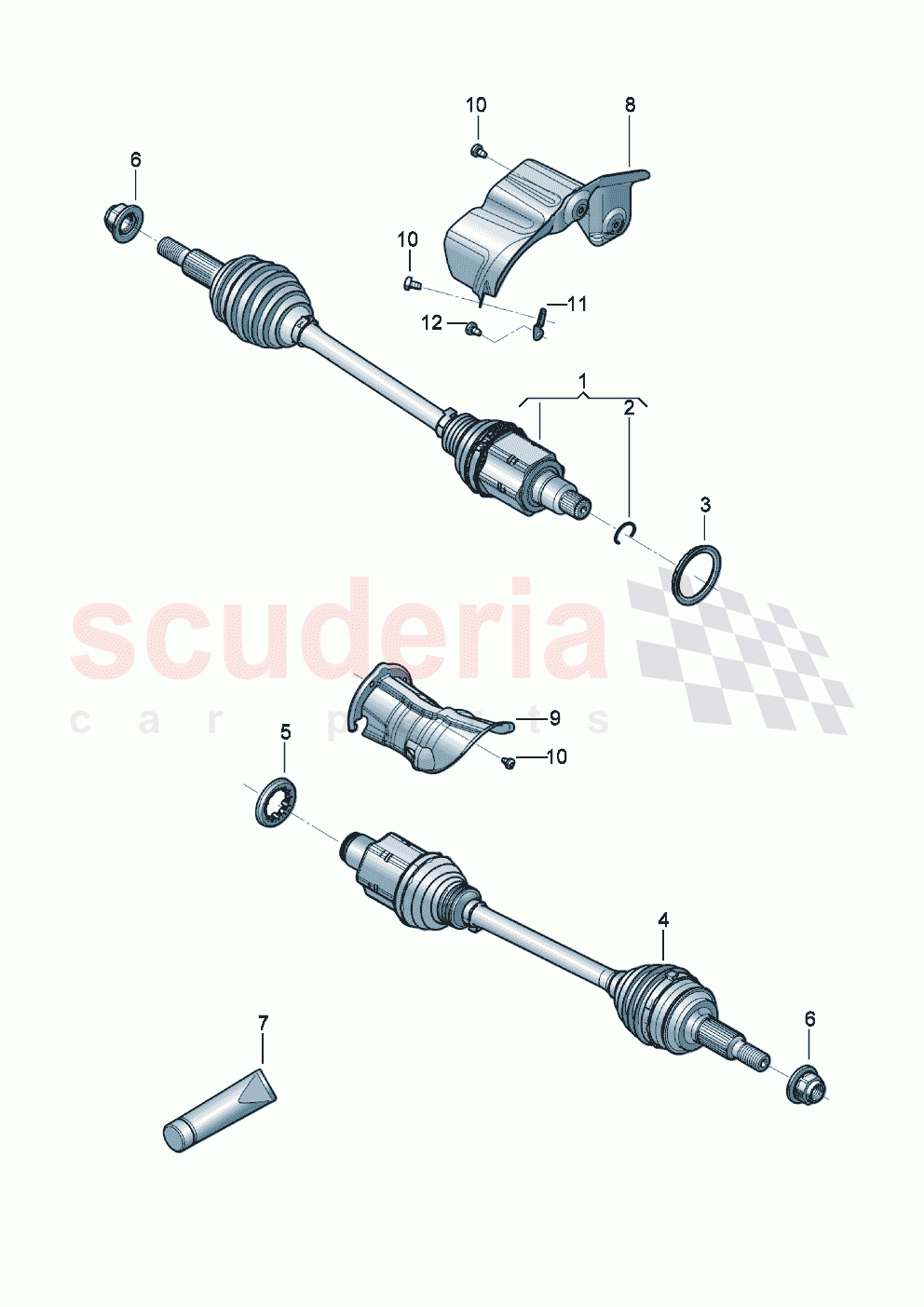

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	971407271AB	Drive shaft D - 07.12.2020>> - 02.01.2023	Enquire
	971407271AB	Drive shaft D - 07.12.2020>> - 02.01.2023	Enquire
	971407271AF	Drive shaft D - 02.01.2023>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	971407635	snap ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	971407624	Deflector ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	971407271AA	Drive shaft D - 07.12.2020>> - 02.01.2023	Enquire
	971407271AA	Drive shaft D - 07.12.2020>> - 02.01.2023	Enquire
	971407271AE	Drive shaft D - 02.01.2023>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	971407623	Deflector ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007021	hex. nut, self-locking with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	G052109A2	Assembly paste	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SA407722A	Heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SA407721A	Heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90818302	Socket head bolt with hexagon socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SA407059	Retainer for heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10773201	Flat head bolt with hexagon socket head, thread forming	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	971407271AB	Drive shaft D - 07.12.2020>> - 02.01.2023	971407271AB Drive shaft D - 07.12.2020>> - 02.01.2023 right	-	1	Enquire
1	971407271AB	Drive shaft D - 07.12.2020>> - 02.01.2023	971407271AB Drive shaft D - 07.12.2020>> - 02.01.2023 right	-	1	Enquire
1	971407271AF	Drive shaft D - 02.01.2023>>	971407271AF Drive shaft D - 02.01.2023>> right	-	1	Enquire
2	971407635	snap ring	971407635 snap ring	-	1	Enquire
3	971407624	Deflector ring	971407624 Deflector ring right inner	-	1	Enquire
4	971407271AA	Drive shaft D - 07.12.2020>> - 02.01.2023	971407271AA Drive shaft D - 07.12.2020>> - 02.01.2023 left	-	1	Enquire
4	971407271AA	Drive shaft D - 07.12.2020>> - 02.01.2023	971407271AA Drive shaft D - 07.12.2020>> - 02.01.2023 left	-	1	Enquire
4	971407271AE	Drive shaft D - 02.01.2023>>	971407271AE Drive shaft D - 02.01.2023>> left	-	1	Enquire
5	971407623	Deflector ring	971407623 Deflector ring left inner	-	1	Enquire
6	WHT007021	hex. nut, self-locking with washer	WHT007021 hex. nut, self-locking with washer M22X1.5	-	2	Enquire
7	G052109A2	Assembly paste	G052109A2 Assembly paste 120G	-	1	Enquire
8	3SA407722A	Heat shield	3SA407722A Heat shield side, right ,PR:A8K	-	1	Enquire
9	3SA407721A	Heat shield	3SA407721A Heat shield side, left ,PR:A8K	-	1	Enquire
10	N90818302	Socket head bolt with hexagon socket head	N90818302 Socket head bolt with hexagon socket head M6X9 ,PR:A8K	-	6	Enquire
11	3SA407059	Retainer for heat shield	3SA407059 Retainer for heat shield PR:A8K	-	1	Enquire
12	N10773201	Flat head bolt with hexagon socket head, thread forming	N10773201 Flat head bolt with hexagon socket head, thread forming M6GFX10 ,PR:A8K	-	1	Enquire
