Sound package of Bentley Bentley New Flying Spur (2020-2024)

View All

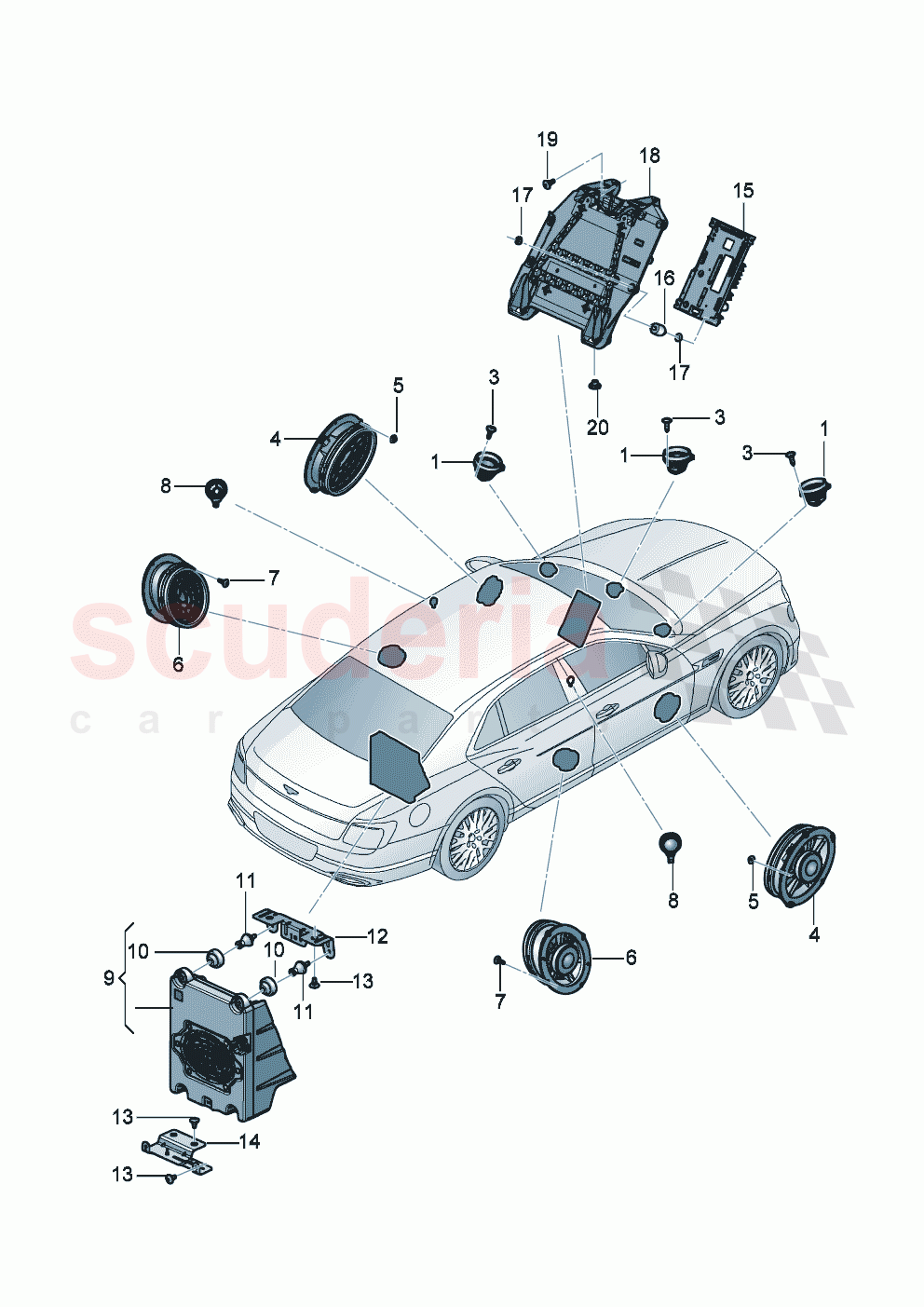

Bentley New Flying Spur (2020-2024) - Sound package (35030)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	36A035416A	Treble speaker	Enquire
	36A035416A	Treble speaker	Enquire
	36A035361A	Loudspeaker	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3SA035209	Treble loudspeaker with holder	Enquire
	36A035361A	Loudspeaker	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90698606	Hexagon socket head panel bolt	Enquire
	N90698606	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SA035411E	Bass loudspeaker	Enquire
	36A035361A	Loudspeaker	Enquire
	36A035361A	Loudspeaker	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90663603	hex. nut with washer	Enquire
	36A035399	Treble speaker	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SA035411D	Bass loudspeaker D >> - 17.10.2023	Enquire
	3SA035411K	Bass loudspeaker D - 18.10.2023>>	Enquire
	N90663603	hex. nut with washer	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N91090701	Oval socket head bolt with hex drive	Enquire
	36A035399	Treble speaker	Enquire
	N90663603	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A035399	Treble speaker	Enquire
	36A035399	Treble speaker	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SE035621B	Subwoofer	Enquire
	N91090701	Oval socket head bolt with hex drive	Enquire
	3SA035411F	Bass loudspeaker D >> - 17.10.2023	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	36A035361A	Loudspeaker	Enquire
	N91090701	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	36129846B	ball head	Enquire
	36A035361A	Loudspeaker	Enquire
	36A035361A	Loudspeaker	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SE035627	Bracket for subwoofer	Enquire
	36A035361A	Loudspeaker	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91042301	Oval hexagon socket head bolt	Enquire
	36129846B	ball head	Enquire
	3SA035400	Loudspeaker	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SE035628A	Bracket for subwoofer	Enquire
	N91042301	Oval hexagon socket head bolt	Enquire
	3SE035627	Bracket for subwoofer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SA035223	Amplifiers	Enquire
	36129846B	ball head	Enquire

Photo	Part No	Description	Price (each)	Stock
	4D0614177F	Stop buffer	Enquire
	3SE035621C	Subwoofer	Enquire
	N91042301	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire
	3SE035628A	Bracket for subwoofer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SC971502B	Holder for amplifier	Enquire
	3SB971502B	Holder for amplifier	Enquire
	N91042301	Oval hexagon socket head bolt	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N91261301	Hexalobular flange screw	Enquire
	3SB971502B	Holder for amplifier	Enquire
	3SC971502B	Holder for amplifier	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N90757901	Hexagon collar nut	Enquire
	3SA035466C	Amplifiers	Enquire
	N91042301	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4D0614177F	Stop buffer	Enquire
	4H0907601E	Actuator for engine noise production	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire
	3SE907175	Bracket	Enquire
	3SE907176	Bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91261301	Hexalobular flange screw	Enquire
	N10156310	Hex collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90757901	Hexagon collar nut	Enquire
	N01118312	hexagon nut, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0161979	Pop rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SA035466C	Amplifiers	Enquire

Photo	Part No	Description	Price (each)	Stock
	4D0614177F	Stop buffer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90663603	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90757901	Hexagon collar nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91261301	Hexalobular flange screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SB971502B	Holder for amplifier	Enquire
	3SC971502B	Holder for amplifier	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	36A035416A	Treble speaker	36A035416A Treble speaker left a. right	-	2	Enquire
1	36A035416A	Treble speaker	36A035416A Treble speaker center	-	1	Enquire
1	36A035361A	Loudspeaker	36A035361A Loudspeaker center	-	1	Enquire
1	36A035361A	Loudspeaker	36A035361A Loudspeaker front left a. right	-	2	Enquire
2	3SA035209	Treble loudspeaker with holder	3SA035209 Treble loudspeaker with holder left a. right	-	2	Enquire
2	36A035361A	Loudspeaker	36A035361A Loudspeaker front center	-	1	Enquire
3	N90698606	Hexagon socket head panel bolt	N90698606 Hexagon socket head panel bolt	-	9	Enquire
3	N90698606	Hexagon socket head panel bolt	N90698606 Hexagon socket head panel bolt	-	27	Enquire
4	3SA035411E	Bass loudspeaker	3SA035411E Bass loudspeaker	-	2	Enquire
4	36A035361A	Loudspeaker	36A035361A Loudspeaker left a. right 80MM	-	2	Enquire
4	36A035361A	Loudspeaker	36A035361A Loudspeaker Front door left a. right	-	2	Enquire
5	N90663603	hex. nut with washer	N90663603 hex. nut with washer M5	-	10	Enquire
5	36A035399	Treble speaker	36A035399 Treble speaker A-pillar left a. right	-	2	Enquire
6	3SA035411D	Bass loudspeaker D >> - 17.10.2023	3SA035411D Bass loudspeaker D >> - 17.10.2023	-	2	Enquire
6	3SA035411K	Bass loudspeaker D - 18.10.2023>>	3SA035411K Bass loudspeaker D - 18.10.2023>>	-	2	Enquire
6	N90663603	hex. nut with washer	N90663603 hex. nut with washer M5	-	10	Enquire
6	3SA035411G	Bass loudspeaker	3SA035411G Bass loudspeaker 6X9 Front door left a. right"	-	2	Enquire
7	N91090701	Oval socket head bolt with hex drive	N91090701 Oval socket head bolt with hex drive M5X20	-	8	Enquire
7	36A035399	Treble speaker	36A035399 Treble speaker	-	2	Enquire
7	N90663603	hex. nut with washer	N90663603 hex. nut with washer M5	-	10	Enquire
8	36A035399	Treble speaker	36A035399 Treble speaker	-	2	Enquire
8	36A035399	Treble speaker	36A035399 Treble speaker B-pillar left a. right	-	2	Enquire
9	3SE035621B	Subwoofer	3SE035621B Subwoofer	-	1	Enquire
9	N91090701	Oval socket head bolt with hex drive	N91090701 Oval socket head bolt with hex drive M5X20	-	8	Enquire
9	3SA035411F	Bass loudspeaker D >> - 17.10.2023	3SA035411F Bass loudspeaker D >> - 17.10.2023 6X9 Rear door left a. right"	-	2	Enquire
9	3SA035411L	Bass loudspeaker D - 18.10.2023>>	3SA035411L Bass loudspeaker D - 18.10.2023>> 6X9 Rear door left a. right"	-	2	Enquire
10	36A035361A	Loudspeaker	36A035361A Loudspeaker left a. right	-	2	Enquire
10	N91090701	Oval socket head bolt with hex drive	N91090701 Oval socket head bolt with hex drive M5X20	-	8	Enquire
11	36129846B	ball head	36129846B ball head	-	2	Enquire
11	36A035361A	Loudspeaker	36A035361A Loudspeaker left a. right	-	2	Enquire
11	36A035361A	Loudspeaker	36A035361A Loudspeaker Rear door left a. right	-	2	Enquire
12	3SE035627	Bracket for subwoofer	3SE035627 Bracket for subwoofer	-	1	Enquire
12	36A035361A	Loudspeaker	36A035361A Loudspeaker rear left a. right	-	2	Enquire
13	N91042301	Oval hexagon socket head bolt	N91042301 Oval hexagon socket head bolt M6X16	-	6	Enquire
13	36129846B	ball head	36129846B ball head	-	2	Enquire
13	3SA035400	Loudspeaker	3SA035400 Loudspeaker	-	1	Enquire
14	3SE035628A	Bracket for subwoofer	3SE035628A Bracket for subwoofer	-	1	Enquire
14	N91042301	Oval hexagon socket head bolt	N91042301 Oval hexagon socket head bolt M6X16	-	2	Enquire
14	3SE035627	Bracket for subwoofer	3SE035627 Bracket for subwoofer	-	1	Enquire
15	3SA035223	Amplifiers	3SA035223 Amplifiers PASSENGER SIDE FOOTWELL	-	1	Enquire
15	36129846B	ball head	36129846B ball head	-	2	Enquire
16	4D0614177F	Stop buffer	4D0614177F Stop buffer	-	4	Enquire
16	3SE035621C	Subwoofer	3SE035621C Subwoofer side, right	-	1	Enquire
16	N91042301	Oval hexagon socket head bolt	N91042301 Oval hexagon socket head bolt M6X16	-	2	Enquire
17	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6	-	8	Enquire
17	3SE035628A	Bracket for subwoofer	3SE035628A Bracket for subwoofer	-	1	Enquire
18	3SC971502B	Holder for amplifier	3SC971502B Holder for amplifier rhd PASSENGER SIDE FOOTWELL ,PR:LOR	-	1	Enquire
18	3SB971502B	Holder for amplifier	3SB971502B Holder for amplifier lhd PASSENGER SIDE FOOTWELL ,PR:L0L	-	1	Enquire
18	N91042301	Oval hexagon socket head bolt	N91042301 Oval hexagon socket head bolt M6X16	-	2	Enquire
18	3SE035621C	Subwoofer	3SE035621C Subwoofer side, right	-	1	Enquire
19	N91261301	Hexalobular flange screw	N91261301 Hexalobular flange screw M6X20	-	2	Enquire
19	3SB971502B	Holder for amplifier	3SB971502B Holder for amplifier lhd PASSENGER SIDE FOOTWELL ,PR:L0L	-	1	Enquire
19	3SC971502B	Holder for amplifier	3SC971502B Holder for amplifier rhd PASSENGER SIDE FOOTWELL ,PR:LOR	-	1	Enquire
19	3SE035628A	Bracket for subwoofer	3SE035628A Bracket for subwoofer	-	1	Enquire
20	N90757901	Hexagon collar nut	N90757901 Hexagon collar nut E5	-	2	Enquire
20	3SA035466C	Amplifiers	3SA035466C Amplifiers PASSENGER SIDE FOOTWELL	-	1	Enquire
20	N91042301	Oval hexagon socket head bolt	N91042301 Oval hexagon socket head bolt M6X16	-	4	Enquire
21	4D0614177F	Stop buffer	4D0614177F Stop buffer	-	4	Enquire
21	4H0907601E	Actuator for engine noise production	4H0907601E Actuator for engine noise production FRONT SEATS left a. right	-	2	Enquire
22	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6	-	4	Enquire
22	3SE907175	Bracket	3SE907175 Bracket left	-	1	Enquire
22	3SE907176	Bracket	3SE907176 Bracket right	-	1	Enquire
23	N91261301	Hexalobular flange screw	N91261301 Hexalobular flange screw M6X20	-	2	Enquire
23	N10156310	Hex collared bolt	N10156310 Hex collared bolt	-	2	Enquire
24	N90757901	Hexagon collar nut	N90757901 Hexagon collar nut	-	2	Enquire
24	N01118312	hexagon nut, self-locking	N01118312 hexagon nut, self-locking	-	2	Enquire
25	N0161979	Pop rivet	N0161979 Pop rivet	-	2	Enquire
26	3SA035466C	Amplifiers	3SA035466C Amplifiers PASSENGER SIDE FOOTWELL	-	1	Enquire
27	4D0614177F	Stop buffer	4D0614177F Stop buffer	-	4	Enquire
28	N90663603	hex. nut with washer	N90663603 hex. nut with washer M5	-	4	Enquire
29	N90757901	Hexagon collar nut	N90757901 Hexagon collar nut 5	-	2	Enquire
30	N91261301	Hexalobular flange screw	N91261301 Hexalobular flange screw M6X20	-	2	Enquire
31	3SB971502B	Holder for amplifier	3SB971502B Holder for amplifier lhd PASSENGER SIDE FOOTWELL ,PR:L0L	-	1	Enquire
31	3SC971502B	Holder for amplifier	3SC971502B Holder for amplifier rhd PASSENGER SIDE FOOTWELL ,PR:LOR	-	1	Enquire
