sub-frame with rubber mounting of Bentley Bentley New Continental GT (2019-2024)

View All

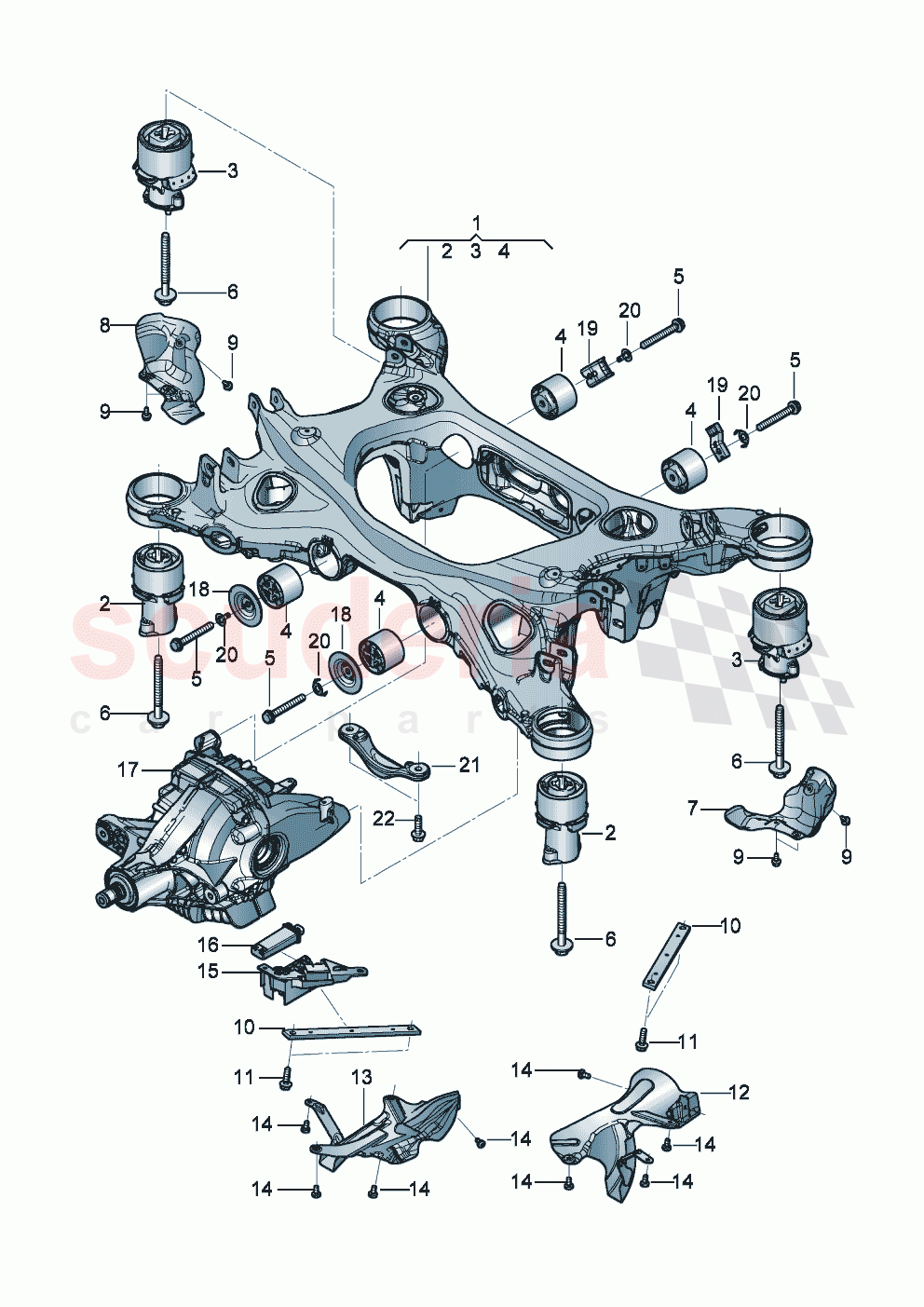

Bentley New Continental GT (2019-2024) - sub-frame with rubber mounting

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	971599030AL	sub-frame with rubber mounting D - 10.06.2019>> - 13.06.2022	Enquire
	971599030AL	sub-frame with rubber mounting D - 10.06.2019>> - 13.06.2022	Enquire
	971599030AP	sub-frame with rubber mounting D - 13.06.2022>> - 13.11.2023	Enquire

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	WHT008502	Hexagon flange screw	Enquire
	N10272202	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91228001	Hexagon flange screw (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	971825613B	Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>>	Enquire
	971825613B	Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	971825613C	Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>>	Enquire
	971825613C	Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10338302	set screw, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	971505477	Brace	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10629602	Hex collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	971825729D	Heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	971825729E	Heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91096604	Socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	971599383	Stop	Enquire

Photo	Part No	Description	Price (each)	Stock
	971599383A	Stop	Enquire

Photo	Part No	Description	Price (each)	Stock
	971501329	Retaining clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	971505447	Transverse strut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10628401	Hex collared bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	971599030AL	sub-frame with rubber mounting D - 10.06.2019>> - 13.06.2022	971599030AL sub-frame with rubber mounting D - 10.06.2019>> - 13.06.2022 PR:0N1	-	1	Enquire
1	971599030AL	sub-frame with rubber mounting D - 10.06.2019>> - 13.06.2022	971599030AL sub-frame with rubber mounting D - 10.06.2019>> - 13.06.2022 PR:0N1	-	1	Enquire
1	971599030AP	sub-frame with rubber mounting D - 13.06.2022>> - 13.11.2023	971599030AP sub-frame with rubber mounting D - 13.06.2022>> - 13.11.2023 PR:0N1	-	1	Enquire
1	971599030AS	sub-frame with rubber mounting D - 13.11.2023>>	971599030AS sub-frame with rubber mounting D - 13.11.2023>> PR:0N1	-	1	Enquire
1	971599030AM	sub-frame with rubber mounting Rear axle steering D >> - 13.06.2022	971599030AM sub-frame with rubber mounting Rear axle steering D >> - 13.06.2022 PR:0N5	-	1	Enquire
1	971599030AQ	sub-frame with rubber mounting Rear axle steering D - 13.06.2022>> - 13.11.2023	971599030AQ sub-frame with rubber mounting Rear axle steering D - 13.06.2022>> - 13.11.2023 PR:0N5	-	1	Enquire
1	971599030AT	sub-frame with rubber mounting Rear axle steering D - 13.11.2023>>	971599030AT sub-frame with rubber mounting Rear axle steering D - 13.11.2023>> PR:0N5	-	1	Enquire
5	WHT008502	Hexagon flange screw	WHT008502 Hexagon flange screw M12X1,5X95 ,PR:A8K	-	4	Enquire
5	N10272202	hexagon head bolt (combi)	N10272202 hexagon head bolt (combi) M12X95 ,PR:A8H	-	4	Enquire
6	N91228001	Hexagon flange screw (combi)	N91228001 Hexagon flange screw (combi) M14X1.5X145- S22	-	4	Enquire
7	971825613B	Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>>	971825613B Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>> left rear	-	1	Enquire
7	971825613B	Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>>	971825613B Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>> left rear	-	1	Enquire
8	971825613C	Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>>	971825613C Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>> right rear	-	1	Enquire
8	971825613C	Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>>	971825613C Heat shield Suspension sub-frame Bearing bush D - 24.02.2020>> right rear	-	1	Enquire
9	N10338302	set screw, D - 11.12.2006>>	N10338302 set screw, D - 11.12.2006>> M5 X 12MM	-	6	Enquire
10	971505477	Brace	971505477 Brace left a. right	-	2	Enquire
11	N10629602	Hex collared bolt	N10629602 Hex collared bolt M10X35	-	4	Enquire
12	971825729D	Heat shield	971825729D Heat shield left	-	1	Enquire
13	971825729E	Heat shield	971825729E Heat shield right	-	1	Enquire
14	N91096604	Socket head bolt with inner multipoint head	N91096604 Socket head bolt with inner multipoint head M6X12	-	8	Enquire
18	971599383	Stop	971599383 Stop front ,PR:A8K	-	2	Enquire
19	971599383A	Stop	971599383A Stop rear ,PR:A8K	-	2	Enquire
20	971501329	Retaining clip	971501329 Retaining clip PR:A8K	-	4	Enquire
21	971505447	Transverse strut	971505447 Transverse strut PR:0N5	-	1	Enquire
22	N10628401	Hex collared bolt	N10628401 Hex collared bolt M12X1,5X40 ,PR:0N5	-	2	Enquire
