Coolant hoses and pipes Engine of Bentley Bentley New Continental GT (2019-2024)

View All

Bentley New Continental GT (2019-2024) - Coolant hoses and pipes Engine

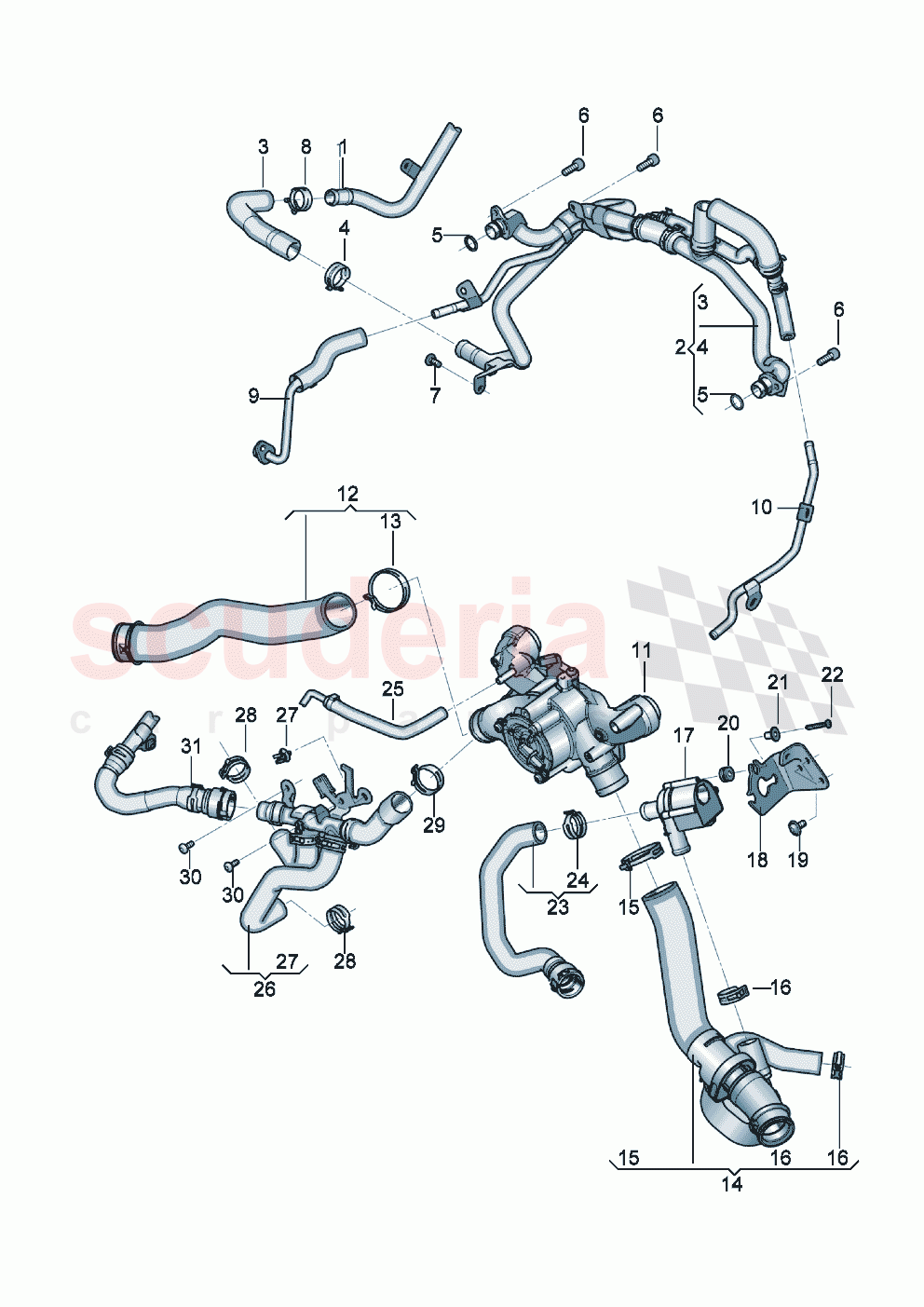

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6H121601M	Coolant pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121050AK	Coolant pipe with coolant hose D - 28.09.2018>>	Enquire
	7P121050AK	Coolant pipe with coolant hose D - 28.09.2018>>	Enquire
	P2121093	Bracket for additional coolant pump D >> - 09.10.2023	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7P121051B	Coolant hose	Enquire
	WHT002306	self-tapping screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire
	N91044801	double stud with hexagon drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90561902	O-ring	Enquire
	P2121054A	Coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10546403	Hexagon socket head bolt	Enquire
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10335206	Hexagon socket flat head bolt	Enquire
	6B145917A	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	4B0422379A	Spring band clamp	Enquire
	P2121089	Coolant connection	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90925001	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	P2121052	Coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	975122101	Coolant hose	Enquire
	P2121077	Clamping plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0121530	Spring band clamp	Enquire
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	975122051A	Coolant hose with valve	Enquire
	P2121075C	Coolant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0121530	Spring band clamp	Enquire
	N0206267	Clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire
	WHT005652A	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	6H121601N	Additional coolant pump	Enquire
	N91126601	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	975121313	Bracket for additional coolant pump	Enquire
	P2121193D	Coolant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737101	Oval hexagon socket head bolt	Enquire
	N0206267	Clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3L121275	Rubber bush	Enquire
	WHT005652A	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3L121199	Sleeve	Enquire
	P2121164B	Coolant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003361	Hexagon socket flat head bolt	Enquire
	WHT005652A	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	975122444	Coolant hose with quick release coupling	Enquire
	N10259903	Clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire
	P2121071G	Coolant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P121070AR	Coolant pipe with coolant hose D - 28.09.2018>>	Enquire
	7P121070AR	Coolant pipe with coolant hose D - 28.09.2018>>	Enquire
	N90365304	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	6E971739	Clip	Enquire
	99970751741	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire
	P2121455D	Breather line D >> - 03.05.2023	Enquire
	P2121455J	Breather line D - 03.05.2023>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90687102	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10405604	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	971122051K	Coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0121530	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	971122101D	Coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0121530	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	79919525M	Temperature sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002287B	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91126601	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	971121064H	Coolant pipe with coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686901	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N02300213	hexagon nut, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10632003	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	N02214812	hexagon nut, self-locking	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6H121601M	Coolant pump	6H121601M Coolant pump	-	1	Enquire
2	7P121050AK	Coolant pipe with coolant hose D - 28.09.2018>>	7P121050AK Coolant pipe with coolant hose D - 28.09.2018>>	-	1	Enquire
2	7P121050AK	Coolant pipe with coolant hose D - 28.09.2018>>	7P121050AK Coolant pipe with coolant hose D - 28.09.2018>>	-	1	Enquire
2	P2121093	Bracket for additional coolant pump D >> - 09.10.2023	P2121093 Bracket for additional coolant pump D >> - 09.10.2023	-	1	Enquire
2	P2121093A	Bracket for additional coolant pump D - 09.10.2023>>	P2121093A Bracket for additional coolant pump D - 09.10.2023>>	-	1	Enquire
3	7P121051B	Coolant hose	7P121051B Coolant hose	-	1	Enquire
3	WHT002306	self-tapping screw	WHT002306 self-tapping screw 3,5X12	-	3	Enquire
4	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12	-	1	Enquire
4	N91044801	double stud with hexagon drive	N91044801 double stud with hexagon drive M6X14/M6X14	-	2	Enquire
5	N90561902	O-ring	N90561902 O-ring 15,08X2,26	-	2	Enquire
5	P2121054A	Coolant hose	P2121054A Coolant hose	-	1	Enquire
6	N10546403	Hexagon socket head bolt	N10546403 Hexagon socket head bolt M6X16	-	3	Enquire
6	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12	-	1	Enquire
7	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12	-	1	Enquire
7	6B145917A	Spring band clamp	6B145917A Spring band clamp 21X12	-	1	Enquire
8	4B0422379A	Spring band clamp	4B0422379A Spring band clamp 25X12	-	1	Enquire
8	P2121089	Coolant connection	P2121089 Coolant connection	-	1	Enquire
9	N90925001	O-ring	N90925001 O-ring 17X3	-	1	Enquire
10	P2121052	Coolant hose	P2121052 Coolant hose	-	1	Enquire
11	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12	-	2	Enquire
12	975122101	Coolant hose	975122101 Coolant hose	-	1	Enquire
12	P2121077	Clamping plate	P2121077 Clamping plate	-	1	Enquire
13	8E0121530	Spring band clamp	8E0121530 Spring band clamp 46X12	-	1	Enquire
13	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20	-	7	Enquire
14	975122051A	Coolant hose with valve	975122051A Coolant hose with valve	-	1	Enquire
14	P2121075C	Coolant pipe	P2121075C Coolant pipe	-	1	Enquire
15	8E0121530	Spring band clamp	8E0121530 Spring band clamp 46X12	-	1	Enquire
15	N0206267	Clamp	N0206267 Clamp 16X15	-	1	Enquire
16	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12	-	2	Enquire
16	WHT005652A	O-ring	WHT005652A O-ring 17X3	-	1	Enquire
17	6H121601N	Additional coolant pump	6H121601N Additional coolant pump	-	1	Enquire
17	N91126601	Oval hexagon socket head bolt	N91126601 Oval hexagon socket head bolt M6X16	-	7	Enquire
18	975121313	Bracket for additional coolant pump	975121313 Bracket for additional coolant pump	-	1	Enquire
18	P2121193D	Coolant pipe	P2121193D Coolant pipe	-	1	Enquire
19	N90737101	Oval hexagon socket head bolt	N90737101 Oval hexagon socket head bolt M6X12	-	3	Enquire
19	N0206267	Clamp	N0206267 Clamp 16X15	-	1	Enquire
20	3L121275	Rubber bush	3L121275 Rubber bush	-	3	Enquire
20	WHT005652A	O-ring	WHT005652A O-ring 17X3	-	1	Enquire
21	3L121199	Sleeve	3L121199 Sleeve	-	3	Enquire
21	P2121164B	Coolant pipe	P2121164B Coolant pipe	-	1	Enquire
22	WHT003361	Hexagon socket flat head bolt	WHT003361 Hexagon socket flat head bolt 3,5X20	-	3	Enquire
22	WHT005652A	O-ring	WHT005652A O-ring 17X3	-	1	Enquire
23	975122444	Coolant hose with quick release coupling	975122444 Coolant hose with quick release coupling	-	1	Enquire
23	N10259903	Clamp	N10259903 Clamp 14X15	-	1	Enquire
24	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12	-	1	Enquire
24	P2121071G	Coolant pipe	P2121071G Coolant pipe	-	1	Enquire
26	7P121070AR	Coolant pipe with coolant hose D - 28.09.2018>>	7P121070AR Coolant pipe with coolant hose D - 28.09.2018>>	-	1	Enquire
26	7P121070AR	Coolant pipe with coolant hose D - 28.09.2018>>	7P121070AR Coolant pipe with coolant hose D - 28.09.2018>>	-	1	Enquire
26	N90365304	O-ring	N90365304 O-ring 20X3	-	1	Enquire
27	6E971739	Clip	6E971739 Clip	-	1	Enquire
27	99970751741	O-ring	99970751741 O-ring 22X3	-	2	Enquire
28	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12	-	2	Enquire
28	P2121455D	Breather line D >> - 03.05.2023	P2121455D Breather line D >> - 03.05.2023	-	1	Enquire
28	P2121455J	Breather line D - 03.05.2023>>	P2121455J Breather line D - 03.05.2023>>	-	1	Enquire
29	N90687102	Spring band clamp	N90687102 Spring band clamp 32X12	-	1	Enquire
30	N10405604	Oval hexagon socket head bolt	N10405604 Oval hexagon socket head bolt M6X14	-	2	Enquire
34	971122051K	Coolant hose	971122051K Coolant hose side, right	-	1	Enquire
35	8E0121530	Spring band clamp	8E0121530 Spring band clamp 46X12	-	1	Enquire
36	971122101D	Coolant hose	971122101D Coolant hose side, left	-	1	Enquire
37	8E0121530	Spring band clamp	8E0121530 Spring band clamp 46X12	-	1	Enquire
38	79919525M	Temperature sensor	79919525M Temperature sensor	-	1	Enquire
39	WHT002287B	O-ring	WHT002287B O-ring 5,6X2	-	1	Enquire
40	N91126601	Oval hexagon socket head bolt	N91126601 Oval hexagon socket head bolt M6X16	-	1	Enquire
41	971121064H	Coolant pipe with coolant hose	971121064H Coolant pipe with coolant hose	-	1	Enquire
42	N90686901	Spring band clamp	N90686901 Spring band clamp 23X12	-	2	Enquire
43	N02300213	hexagon nut, self-locking	N02300213 hexagon nut, self-locking M6	-	1	Enquire
44	N10632003	Oval socket head bolt with hex drive	N10632003 Oval socket head bolt with hex drive M6X16	-	1	Enquire
45	N02214812	hexagon nut, self-locking	N02214812 hexagon nut, self-locking M6	-	1	Enquire
